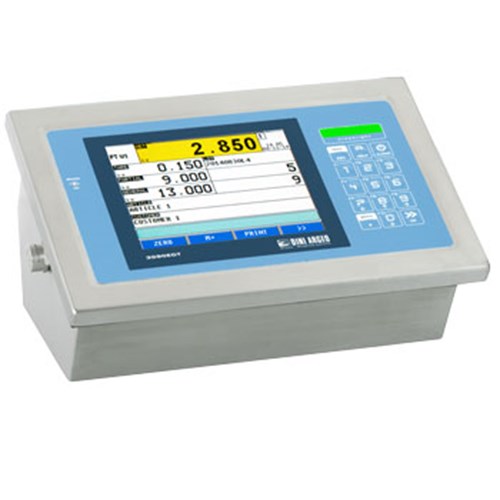

3590EGT Graphic Touchscreen Weight Indicator for Industrial Applications

Backlit graphic display with touch screen technology, lxh= 120x90mm size.
Multilanguage software.
15-key alphanumerical waterproof keyboard.
3-way control light.
Selectable QWERTY, AZERTY o QWERTZ keyboard integrated in the touch screen.
Stainless steel waterproof IP68 enclosure, new optional IP69K protection system.
Dimensions: 280x143x185 mm.
Suitable for use on the table, column, or wall.
Real time clock and permanent data storage.
Supplied with alibi memory, integrated on the motherboard.
Slot for built-in micro SD for recording the configuration, logos, and customized screens (upon request).
Functions available with DINITOOLS utility
- Configuration, data entry and print formatting.
- Recording and filing of all the information on PC.
- Complete retrieval of the configuration.
- Instrument calibration with numeric values.

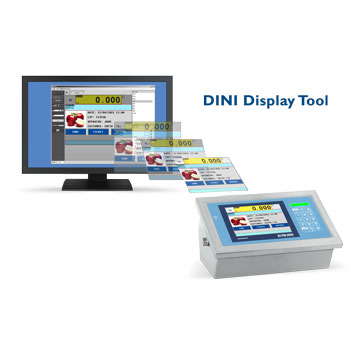

- Customization of the screens.
24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).
Management of the most common digital load cells for weigh bridges (with DIGIKIT option and AF03GT firmware), also for applications with CE-M approval.
Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade.
Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.

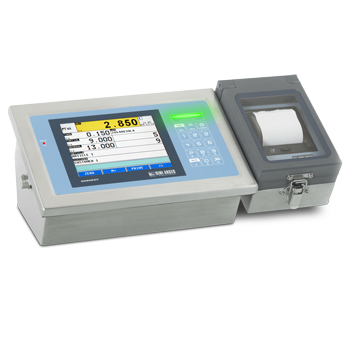

Connectable to printers and labellers with free programmation of the printout formats.
110-240 Vac power supply.

Digital weight indicator with a big touch screen display, suitable for advanced industrial applications. It allows the visualization of all the weighing data and the customization of the screens, simplifying the user operations. Fitted with 3 serial ports, transmission protocols for data communication, completely configurable printouts, integrated alibi memory, and port for connection to barcode/badge reader. CE-M approvable (OIML R-76 / EN 45501).

Ideal for Digital Approved Weighbridges

The 3590EGT indicator with the AF03GT firmware manages the most common digital load cells for weigh bridges, even for CE-M approved applications:

Dini Argeo RCPTD
Dini Argeo RCD
Rice Lake RL5416D/RL5426D
Sensocar SP/CS
Scaime CB50X-DL
Flintec RC3D
HBM C16i (requires HBM junction box and RS422 converter\RS485)
Zemic DM-B4110, DM-B4310, DM-B4311, DM-E5310

For a complete list of supported load cells, refer to the AF03GT Weighing Program Technical Manual.

For efficient handling and optimal protection of digital load cells, the use of the DIGIKIT option is recommended.
