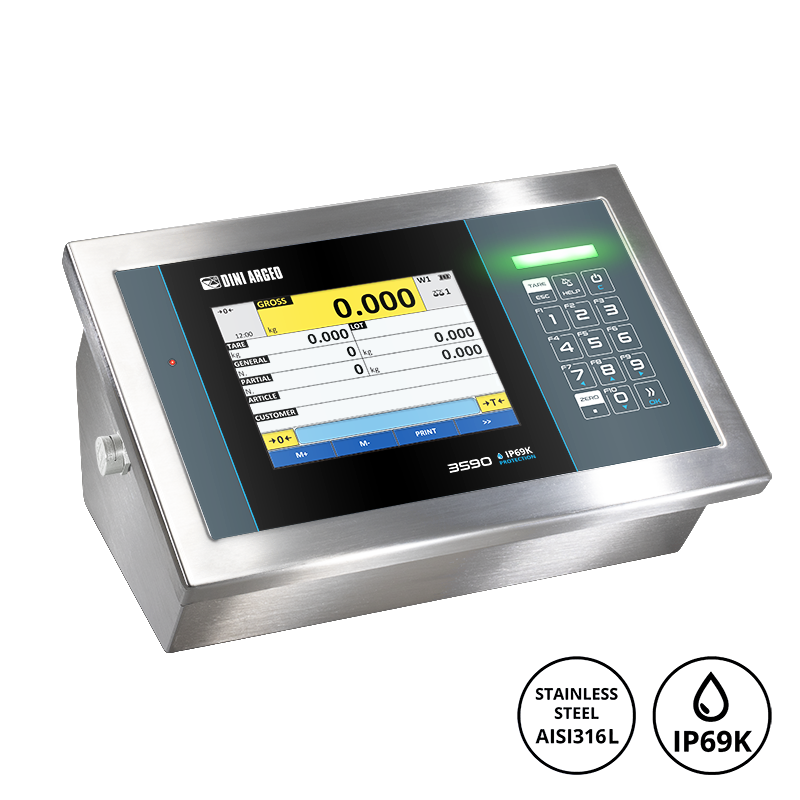

3590EGT HYGIENX: new stainless steel touchscreen weight indicator for environments with high hygiene requirements
Touchscreen backlit graphic display, dimensions lxh= 120x90 mm.
Multilanguage software.
Waterproof alphanumeric keyboard with 15 keys.
Traffic light with 3 colors.
Touchscreen keyboard type QWERTY, AZERTY or QWERTZ, selectable.
AISI 316 stainless steel case.
IP68/IP69K certification against water, dust and high pressure hot water jets.
Dimensions: 280x143x185 mm.
Suitable for use on a table, column or wall.
Calendar clock and permanent data memory.
Alibi Memory as standard, integrated on the motherboard.
Internal micro SD slot (optional) for saving logos.
Functions available with DiniTools utilities: - Configuration, data entry and print formatting. - Storage and archiving of all information on PC. - Complete configuration back-up. - Customization of displays.
A/D converter 24 bit, 4 channels, up to 3200 conv./sec. with autoselect and up to 8 signal linearization points.
4 independent analogue channels for reading the weight.
Max. 10.000e or multirange 3 x 3000e @ 0,3 µV/e in CE-M approved version.
Max. 1.000.000 displayable divisions for internal factory use with internal resolution up to 3.000.000 points.
Connectable to printers and labellers with free programming of the printing formats.
110-240 Vac power supply through a 1.5 m cable with Shuko socket.
Management of up to 16 analogue load cells of 350 Ohm (45 cells at 1000 Ohm).
Max. 10.000e or multirange 3 x 3000e @ 0,3 µV/e in CE-M approved version.
Max. 1.000.000 displayable divisions for internal factory use with internal resolution up to 3.000.000 points.
Connectable to printers and labellers with free programming of the printing formats.
110-240 Vac power supply through a 1.5 m cable with Shuko socket.
Stainless Steel Touchscreen Weight Indicator for Environments with High Hygiene Requirements
The 3590 HYGIENX weight indicator with touchscreen display and advanced weighing program is distinguished by its rugged AISI 316 stainless steel case and IP68 and IP69K protection ratings, which ensure fast and deep sanitization with high-temperature and high-pressure water jets.
In the chemical industry, as in the pharmaceutical and food industries, it is necessary to ensure thorough cleaning and exclude any risk of chemical, physical or bacterial contamination.
3590EGT HYGIENX offers traceability, data entry, database, wireless weighing storage and transmission functions according to Industry 4.0 requirements. CE-M approved (OIML R-76/EN 45501).
This product is a weighing instrument of high quality and precision, designed and manufactured for use in the food, chemical and pharmaceutical industries. It is manufactured according to GMP (Good Manufacturing Practices) standards, in stainless steel, with specific surface treatment and other construction features required in food, chemical and pharmaceutical environments.
BATCH1: Single product dosage systems in loading and unloading
BATCH: Multicomponent dosage systems in loading and unloading (IOEXPB board must be included).
Customizable Screens:
Thanks to the programmable touchscreen display, you can create custom-made interfaces for any application:
The "Dini Display Tool" is a PC software which allows you to quickly customize the touchscreen display.
Main Certifications:
EU Type Examination Certificate (45501:2015)
OIML R76
OIML R51 - MID
Australian legal for trade certificate of approval (NMI S788)
IP68 and IP69K protection rating
Customised Applications:
Thanks to the integrated development area, it is possible to create completely customized applications: - Guided procedures, messaging for the operator - Management of serial ports, customization of protocols - Complete management of digital I/O - Sequential or simultaneous automations - Data entry, customized archives
Dini Argeo also offers the service of development of customized programs, by estimate.
GMP-COMPLIANT PRODUCT
This product is a weighing instrument of high quality and precision, designed and manufactured for use in the food, chemical and pharmaceutical industries. It is manufactured according to GMP (Good Manufacturing Practices) standards, in stainless steel, with specific surface treatment and other construction features required in food, chemical and pharmaceutical environments.
5.7" colour touchscreen indicator with AF01 program, specifically for environments with high hygiene requirements. Casing made of AISI 316 stainless steel with IP68/IP69K rating.
"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).
Thermal transfer or direct thermal labelling machine Supplied with standard peel mechanism. Maximum printing size 25400 x 108 mm. Maximum roll O 127 mm and width up to 112 mm.
Label roll and ribbon not included.
External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels.
External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels.
Built-in 2.4 GHz radiofrequency module with IP69K protection rating. Max. functioning distance in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. Up to 39 configurable channels. (RF2G469K must be combined with another radio module).
External RS232/RS485/PROFIBUS interface for DIN bar. Connectable to the indicators with Profibus protocol with PCB, terminal blocks, plastic box and UL-marked labels (if applicable).
Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners.
Attention: this interface is not suitable for Master-Slave systems.
Weight repeater with 60 mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure, and configurable protocol.
Built-in board with 12 OUT and 6 IN (mounting and cable gland excluded). It includes expansion circuit of the power supply range of the indicator (8-40Vdc). NOT COMPATIBLE WITH 3590E4CH AND TPRXT. With UL marked PCB, Terminal block, plastic box and labels (if applicable).
Built-in optoisolated analog output, 0-4/20 mA, 0-10VDC (cable gland excluded). For DFW, 3590 and CPW indicators. Output -10/+10VDC upon request, only at time of order.
NOTE: For 3590, IOEXPB option board is required, available depending on the model.
Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.
Specific software for production checking which includes all the main check functions, either in sample statistic mode or in complete statistic mode (as provided for by the directive N. 76/211/EEC).
Advanced price computing function with an evolved article management allowing to indicate on the label important information regarding traceability, through the most requested codifications (EAN13, EAN128 bar codes, etc.).
