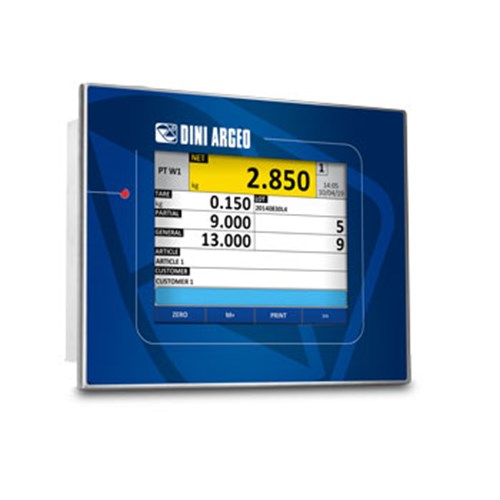

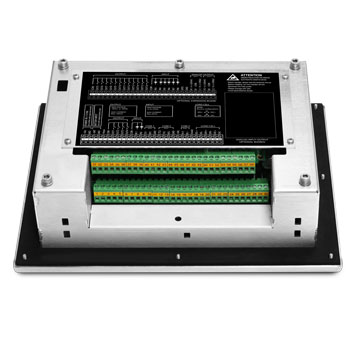

3590EGTB8 Touch: 8-Inch Panel Touchscreen Weight Indicator

Backlit graphic display with touch screen technology, lxh= 160x120 mm size. Indicated for use with gloves.
Multilanguage software, available in Italian, English, German, French and Spanish. Possibility to insert your own translation thanks to the new software "CUSTOM LANGUAGE TOOL", downloadable from the DOWNLOAD area of this card.
Equipped with waterproof gasket.
IP65 frontal protection.
Stainless steel frontal panel, with 8 fixing points for maximum protection against water and dust.
Overall dimensions: 280x220x80 mm.
Drilling template: 188x252 mm.
3 way screen cross light.
Real time clock and permanent data storage.
Fitted alibi memory, integrated on the motherboard.
Slot for built-in micro SD for recording logos (upon request).
Functions available with DINITOOLS utility, also from remote (web server mode via internet).
- Configuration, data entry and print formatting.
- Recording and filing of all the information on PC.
- Complete retrieval of the configuration.
- Instrument calibration with numeric values.
- Customization of the screens.
- Development environment for customised programmes using a specific programming language.
24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).
Management of the most common digital load cells for weighbridges (with AF03GT firmware), also for CE-M approved applications.
Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade.
Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
Connectable to printers and labellers with free programmation of the printout formats.
12-24 Vdc power supply.

Panel digital weight indicator with a big 8" touch screen display, stainless steel front panel and standard Ethernet port. The 3590EGTB8 indicator has an area for the development of specific application programs, integrated debuggers and tools for PC programming. Thanks to the fully customizable work screens, this allows for the visualisation and the rapid management of all the necessary weighing data, master data and free texts, greatly simplifying user operations. CE-M approvable (OIML R-76 / EN 45501).

3590EGTB8 Touch: 8-Inch Panel Touch Screen Weight Indicator Specifications

I/O Section:

1 Internal standard ETHERNET port (excludes standard serial port), for connection to company computer system.
1 USB port for saving data on a memory stick as standard (memory stick not included).
2 RS232 serial ports on terminals, for connection to printer, PC, radio module and optional interfaces.
1 RS232/RS485 serial port on terminals, for connection to repeater, remote scale, badge reader or digital load cells.
Serial keyboard emulation input, for connection to barcode/badge readers or external PC keyboard, via cable with mini DIN connector (optional).
4 opto-isolated outputs as standard, expandable up to 16 with optional board.
2 opto-isolated inputs as standard, expandable up to 8 with optional board.
External Profibus or Modbus/TCP interface (optional), for automation management.
Interface Profinet, Ethernet/IP, EtherCAT, CANopen or external DeviceNet (optional, only with stand programme

Application Software:

SUPPLIED AS STANDARD:
AF01: Totalization and formula weighing
OPTIONAL:
AF02: Pieces/quantity counting
AF03: Weighbridges - Input/Output vehicle
AF04: Statistical checking of prepackaged goods
AF05: Price computing and industrial labelling
AF08: Wheel and axle static weighing with 2 or various platforms
AF09: Dynamic and static axle weighing with 2 platforms
BATCH1: Single product dosage systems in loading and unloading
BATCH: Multicomponent dosage systems in loading and unloading (IOEXPB board must be included).

Main Certifications:

EU Type Examination Certificate (45501:2015)
OIML R76
OIML R51 - MID
OIML R134 (AF09)
Australian legal for trade certificate of approval (NMI S788)

Customised Applications:

Thanks to the integrated development area, fully customized applications can be created autonomously:
- Bespoke weighing programmes according to customer requirements
-Customized weighing programmes for terminal replacement in preexisting systems
- Wizards, operator messages.
- Serial port management, protocols customization.
-Complete digital I/O management.
- Sequential or simultaneous automations.
- Data entry, custom archives.

Dini Argeo can offer the service of bespoke development programs. Please contact us for a free quotation.

Resources / Downloads

Articles

Title	View	Email	Category	Type
Inventory Weighing Solutions and Programmes		Email	Weight Indicators\|Bench Scales\|Pallet Truck Scales\|Floor Scales	Articles

Parts

Available versions

Part #	Description	List Price	Cart / Quote
3590EGTB8	8-inch Touch Screen indicator with AF01 software. Panel enclosure. Colour Display.	Consult	View

Options

Available firmwares

Part #	Description	List Price	Cart / Quote
AF02	Software for piece/quantity counting.	Consult	View
AF03GT	Software for weighbridges, vehicle In/Out. For 3590 "TOUCH SCREEN" weight indicators.	Consult	View
AF04GT	Software for statistical checking of prepackaged goods. For 3590 "TOUCH SCREEN" weight indicators.	Consult	View
AF05	Software for price computing and industrial labelling.	Consult	View
AF08	Software for static wheel and axle weighing with 2 or more pads.	Consult	View
AF09	Software for dynamic and static axle weighing with 1 or 2 pads.	Consult	View
BATCH1	Software for single product dosage systems in loading and unloading.	Consult	View
BATCH	Software for multicomponent dosage systems in loading and unloading. NOTE: For 3590, IOEXPB expansion board is required.	Consult	View
CHECK	Software for packages weighting on a conveyor belt functions.	Consult	View

Software to fill in the databases

	Part #	Description	List Price	Cart / Quote
	DBM	PC software for quick filling out of the databases. For 3590Exx and CPWExx instruments (the price is intended for the license to manage one scale).	Consult	View

Software for display customisation

	Part #	Description	List Price	Cart / Quote
	DDT	Software for the quick customisation of the touchscreen display. For 3590ET and 3590EGT series indicators.	Consult	View

Junction Box / Boards - Load Cell cables

Part #	Description	List Price	Cart / Quote
3590E4CH	Built-in board for multiple quick scale connection.	Consult	View
LCCBC	Cable for connection between platform and indicator, l=50cm. Female connector to be soldered.	Consult	View
LCCB5C	LCCBC cable + 5m extension cable.	Consult	View
LCCB10C	LCCBC cable + 10m extension cable.	Consult	View

Power supplier for DIN bar

	Part #	Description	List Price	Cart / Quote
	MDR2012	12Vdc power unit for DIN bar. 110/240Vac input. CE and UL certified. Not compatible with BOX2121S.	Consult	View

Approval for sale to third parties

	Part #	Description	List Price	Cart / Quote
	KCEM	Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination with a Dini Argeo indicator.	Consult	View
	ECEM-AU	Single platform/scale legal-for-trade approval for Australia.	Consult	View

Storing the weighs

	Part #	Description	List Price	Cart / Quote
	USBK	Set of 5 USB keys for recording the weighs.	Consult	View
	SWM	"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).	Consult	View

Printers/Labellers

Part #	Description	List Price	Cart / Quote
TPRP	Panel thermal printer. Fitted with connection cable, 5Vdc power supply (power adapter not included).	Consult	View
TPRPCAL	5Vdc power supply unit.	Consult	View
PR80-1	Thermal printer with paper cutter.	Consult	View
LP542TE	Thermal transfer or direct thermal labelling machine Supplied with standard peel mechanism. Maximum printing size 25400 x 108 mm. Maximum roll O 127 mm and width up to 112 mm. Label roll and ribbon not included.	Consult	View
SMTPLUS-1	Thermal transfer or direct termal labeller. Peel-off kit in option.	Consult	View
SMTRPK-1	Label peel-off and rewind kit for SMTPLUS-1 labeller.	Consult	View
LX300PRO	DotMatrix impact printer. Paper not included.	Consult	View
TM295	DotMatrix impact printer. Paper / Labels / Tags not included.	Consult	View
RSCBLX	RS232 cable l=1,5m for LX300, TM295 printers.	Consult	View
RSCBLP	RS232 cable l=1,5m for LP542xx, SMTPLUS, PR80 printers.	Consult	View
RSCBLP10M	RS232 cable l=10m for LP542xx, SMTPLUS, PR80 printers.	Consult	View
PRNSERV	Custom-made ticket (up to 4 layouts). NET price.	Consult	View
APRNSERV	Custom-made label (up to 4 layouts). NET price.	Consult	View
CODEPG	Service for loading a customised code-page on TPR printer (standard is PC437 - Central Europe, USA)	Consult	View

Display customisation

	Part #	Description	List Price	Cart / Quote
	GTMEM	10 memories set for display customization with logos and images.	Consult	View

Communication Interfaces

Part #	Description	List Price	Cart / Quote
OBRF2G4	External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels.	Consult	View
OBRF2G4-USB	External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels.	Consult	View
SETHDIN-1	RS232 / RS485 / Ethernet converter. Modbus RTU / Modbus TCP/IP (if applicable). Connectable to all Dini Argeo weight indicators via the serial port. ABS housing for DIN rail. With PCB, screw terminals, plastic box and UL marked labels (if applicable).	Consult	View
SETHNET	External RS232/Ethernet interface. Suitable for multi-location weighbridge systems networking. Compatible only with the AF03 software.	Consult	View
PROFI232-1	External RS232/RS485/PROFIBUS interface for DIN bar. Connectable to the indicators with Profibus protocol with PCB, terminal blocks, plastic box and UL-marked labels (if applicable).	Consult	View
BLTH-3	Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems.	Consult	View
DAC16O-2	Built-in optoisolated analog output, 0-4/20 mA, 0-10VDC (cable gland excluded). For DFW, 3590 and CPW indicators. Output -10/+10VDC upon request, only at time of order. NOTE: For 3590, IOEXPB option board is required, available depending on the model.	Consult	View
RS485OPTO	Built-in optoisolated RS485 interface (mounting and cable gland excluded).	Consult	View
RSCBUSB485	USB cable converter PC/RS485, l=1,5m. With metallic PG9 cable gland. To be combined with an indicator fitted with optional or standard RS485 output.	Consult	View

Fieldbus interfaces

Part #	Description	List Price	Cart / Quote
PROFINET1S	RS485 to ProfiNET interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
ETHERNETIP1S	RS485 to Ethernet IP interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
ETHERCAT1S	RS485 to EtherCAT interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
DEVICENET1S	RS485 to DeviceNET interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
CANOPEN1S	RS485 to CANOPEN interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View

Digital Input / Output

	Part #	Description	List Price	Cart / Quote
	IOEXPBE	Built-in board with 12 OUT and 6 IN (mounting and cable gland excluded). It includes expansion circuit of the power supply range of the indicator (8-40Vdc). NOT COMPATIBLE WITH 3590E4CH AND TPRXT. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View

Weight repeaters

	Part #	Description	List Price	Cart / Quote
	DGT100R-1	Weight repeater with 100mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure.	Consult	View
	GLR100	RS485 alphanumeric repeater with 110 mm multicolour LED display.	Consult	View

Options for ATEX version

Part #	Description	List Price	Cart / Quote
ZBA1S	Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Manual and ATEX UE CONFORMITY DECLARATIONS (available in EN, DE, FR, ES and IT).	Consult	View
KZBA-1	ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. It can connect up to 8 350 Ohm load cells. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135øC Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
KMB4-1	Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20øC = Ta = +40øC) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130øC Dc IP65 (-20øC = Ta = +40øC) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
DCATEXMB4	ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125øC Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).	Consult	View
JB4QA	ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
JB4QAI	ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
EXCB6	Blue shielded cable 6x0.22 mmý, only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 7 x O.D. _/m	Consult	View

PC keyboard / Scanner / Connection cable

Part #	Description	List Price	Cart / Quote
KBCBCE	PC keyboard cable with mini DIN connector.	Consult	View
PCKBRD	QWERTY PC keyboard (it needs a mini DIN cable).	Consult	View
SCBTH	Bluetooth scanner for 1D / 2D barcodes. Includes recharge base. To be combined with 3590 TOUCH SCREEN weight indicator and Bluetooth BLTHxx module.	Consult	View
SCBTHP	Pocket Bluetooth scanner for 1D / 2D barcodes. Equipped with USB cable for recharge. To be combined with 3590 TOUCH SCREEN weight indicator and Bluetooth BLTHxx module.	Consult	View
SCCDR2-1	1D optical barcode reader with stand. Power cable and RS232 communication cable with weight indicator and stainless steel cable gland included.	Consult	View
SC2D	1D/2D optical barcode reader with stand. Power cable and RS232 communication cable with weight indicator and stainless steel cable gland included.	Consult	View

Remote control

	Part #	Description	List Price	Cart / Quote
	TLRP	Radio frequency remote control and receiver with extension, for installations where other option boards with connection to AMP are required.	Consult	View

Other options

Part #	Description	List Price	Cart / Quote
TECSUP	Technical assistance by telephone upon request.	Consult	View
UMAN	Printed user manual (Free download from the website).	Consult	View
TECMAN	Printed technical manual (Free download from the website).	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View
