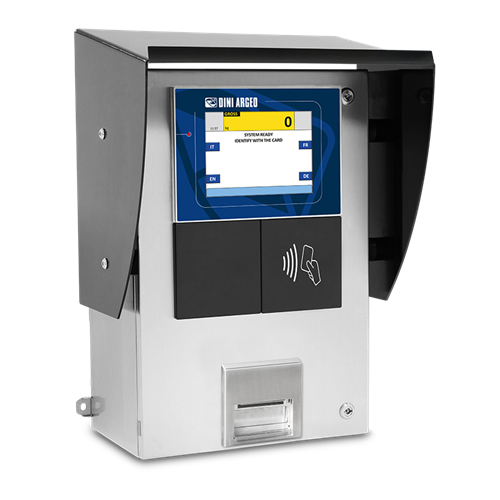

3590EGTBOX8 Kiosk with Weight Indicator for Self-Service Systems and Weighbridges with 8" Touch-Screen

• 1 internal Ethernet port as standard (if activated, it deactivates one serial port), to connect to the company network.
• 1 USB port to save data on a USB driver (driver not provided).
• 2 RS232 serial ports on screw terminals for connection to printer, PC, radio module and optional interfaces.
• 1 RS232/RS485 serial port on screw terminals, for connection to weight repeater, remote scale, badge reader or digital load cells.
• Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
• 4 optoisolated outputs, expandable up to 16 with optional board.
• 2 optoisolated inputs, expandable up to 8 with optional board.
• External Profibus or Modbus/TCP,interface (optional), for automation management.
• External Profinet, Ethernet/IP, EtherCAT, CANopen or DeviceNet interface (optional, only with standard AF01 weighing program).
• Modbus RTU Interface.
• Optional Bluetooth connection, for quick wireless programming of databases, through PC, smartphone or tablet.
• Analog output DAC16O needs the expansion board IOEXPB.

Technical Features:

• Satin STAINLESS steel electrical panel board, fitted with electromechanics and power supply unit for integrated devices.
• Protection visor for outdoor use, from sun and adverse weather conditions.
• 8" high-brightness resistive touchscreen display, suited for use with gloves and water/condensation.
• Completely customizable display.
• Double aeration grille with built-in fan.
• Internal heating unit with thermostat.
• Choice from QWERTY, AZERTY or QWERTZ touchscreen keyboard settings.

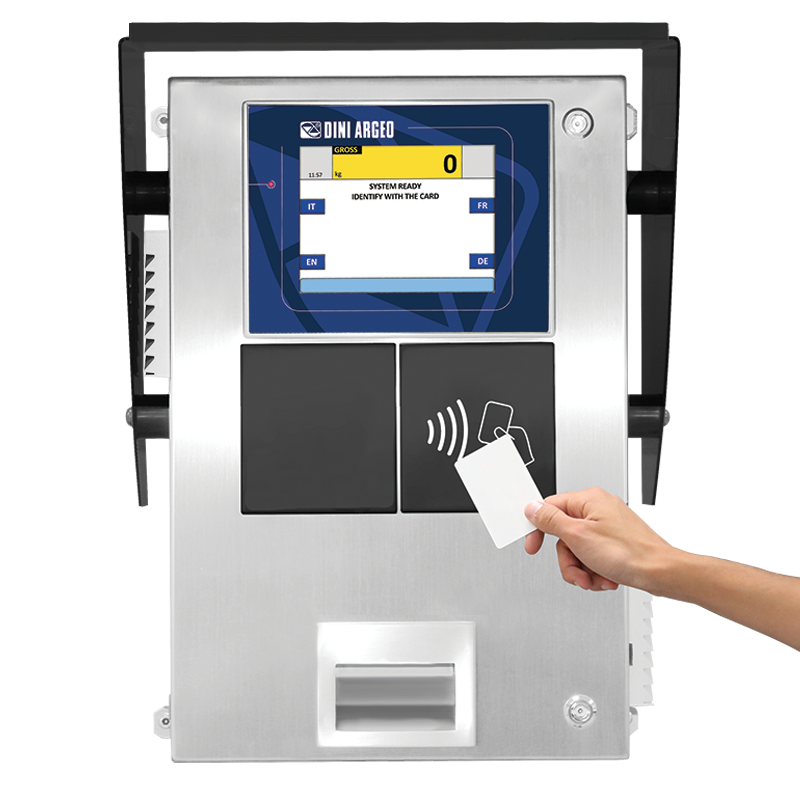

• Built-in RFID reader, with reading distance up to 30mm or coin acceptor.
• Fitted with Alibi Memory.
• Quick display language selection.
• Thermal printer fitted with paper cutter. Printing speed >150mm/sec., 200 dpi resolution, 24/40 columns, 80mm paper width.
• Completely configurable and customisable tickets.
• AF03 software for weighbridges, standard configuration for self-service use.
• A/D 24 bit converter, 4 channels, up to 3200 conv./sec. with autoselect and up to 8 signal linearisation points.
• 4 analogue independant weight reading channels (up to 2 in the E-AF03 version).
• Connectable to max. 16 analogue load cells 350 Ohm (45 load cells at 1000 Ohm).
• Max. 10.000e or multi-range 3 x 3000e @ 0,3 µV/e in CE-M legal for trade approved version.
• Max. 1.000.000 displayable divisions for internal use with internal resolution up to 3.000.000 points.
• Power supply a 110-240 Vac.

Menu selectable languages:

• Menu selectable languages:IT, EN, FR, DE, ES, PT, PL

  Code pages available for the translation of messages and screens, using the Custom Language Tool program (downloadable in the Download section):
• Windows 1252: EN, GA, IT, NO, PT, ES, SV, DE, FI, IS, FR, NL, SL
• Windows 1250: PL, CS, SK, HU, SL, SH, RO, SQ, EN, DE
• Windows 1251: RU, UK, BE, BG, SR, MK, EN
• Windows 1253: EL, EN
• Windows 1258: VI, EN, FR

Main Certifications:

• EU Type Examination Certificate (45501:2015)
• OIML R76
• OIML R134 (AF09)
