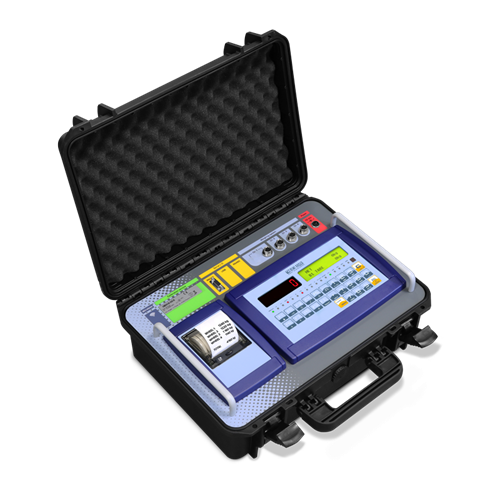

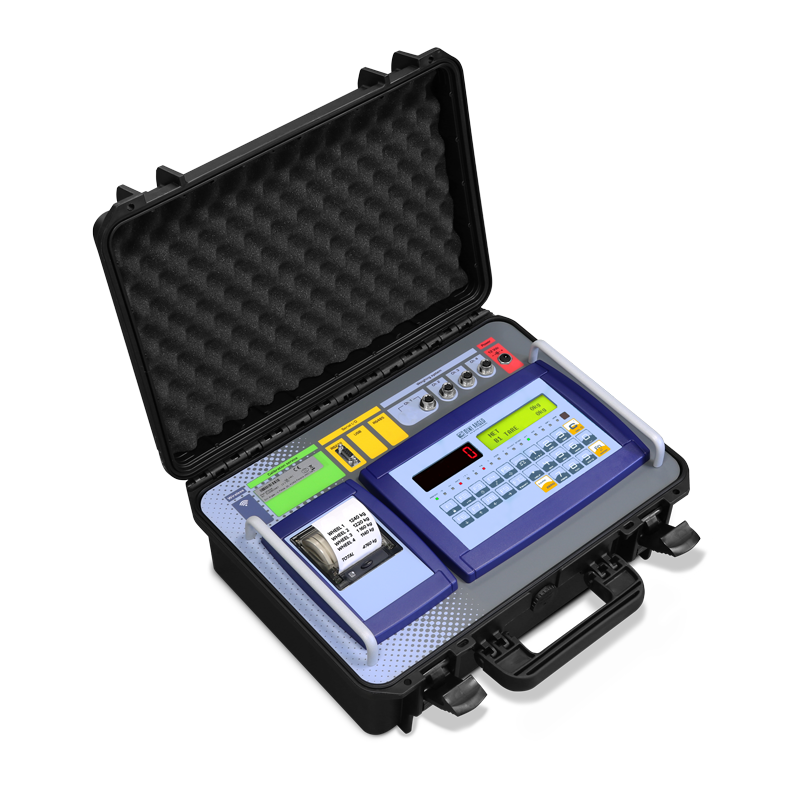

3590EKR Enterprise Weight Indicator with Transport Case for Industrial Applications

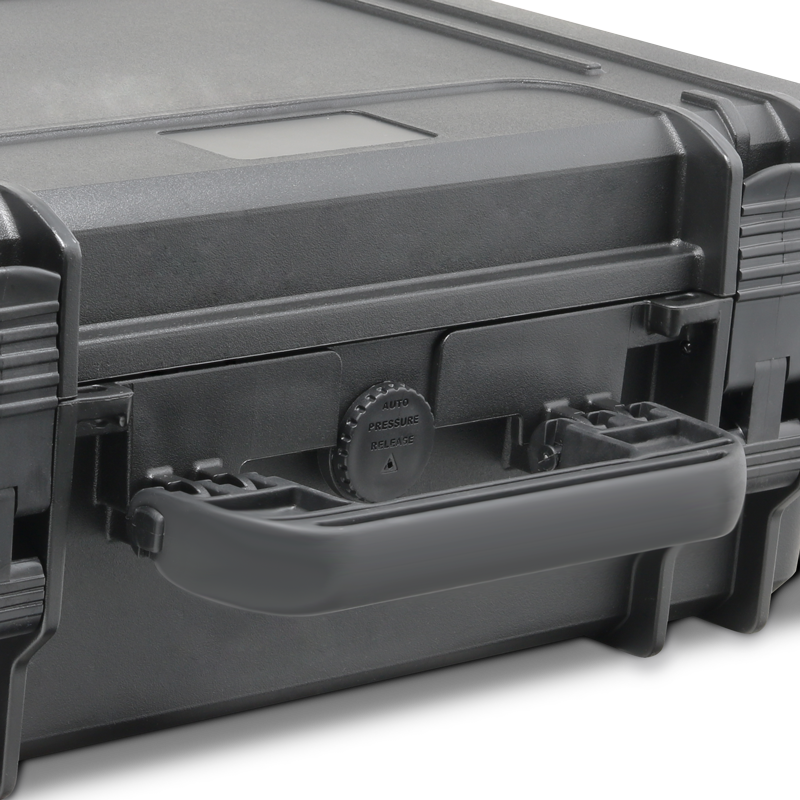

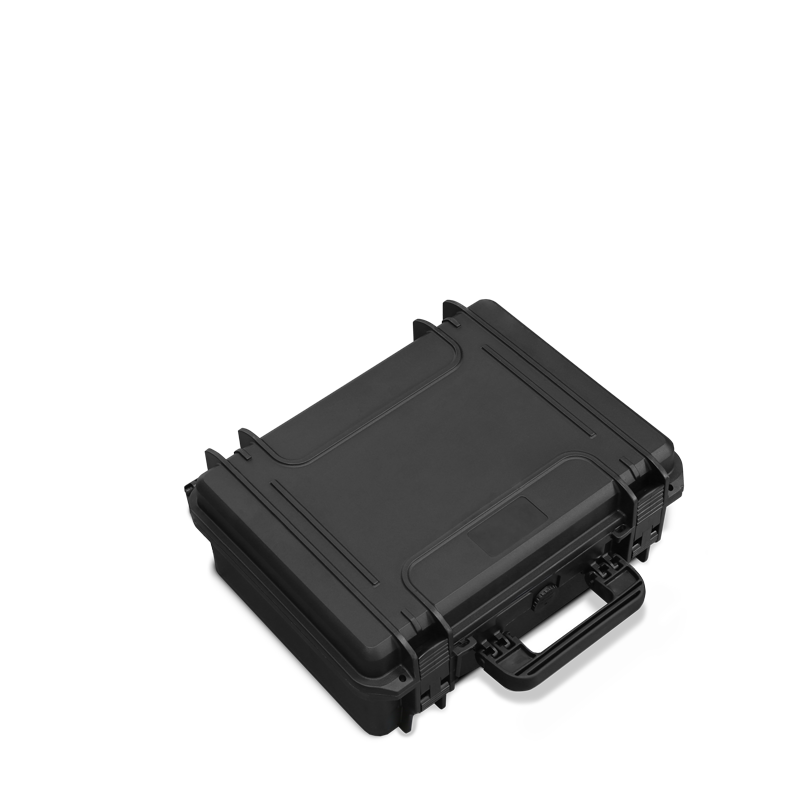

• ABS transport case, with housing for the indicator and space for extra accessories.

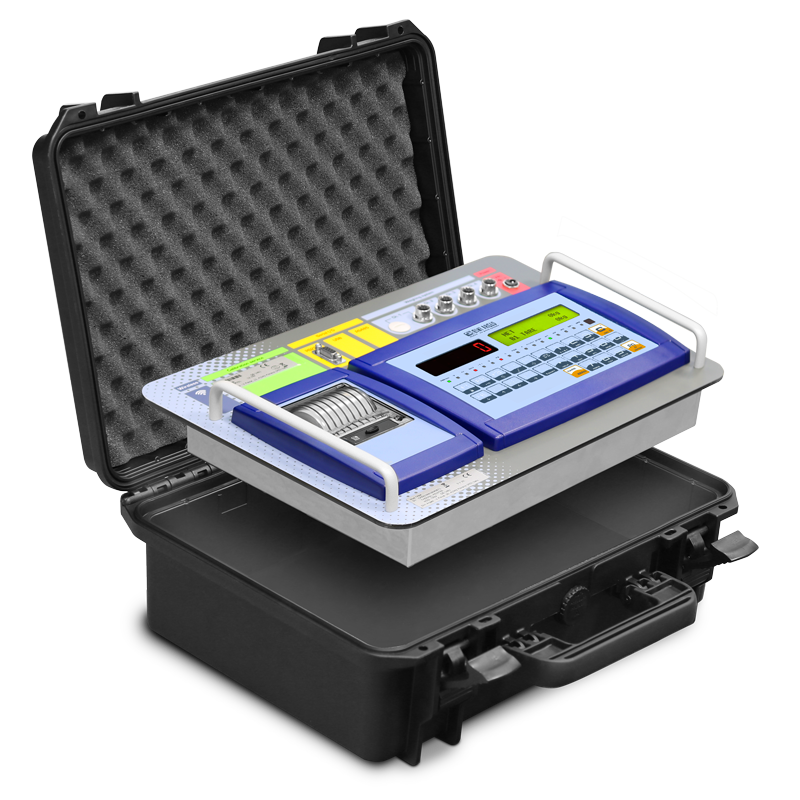

• 3590EXP series indicator fit in a metallic rack type involucre with dimensions of 270x440mm, complete of housing for optional printer, connectors for platforms, and serial output on 9-pole connector.
• Dimensions: 325x460x170 mm. Weight: about 5 kg.
• 25-key alphanumerical waterproof keyboard.
• Highly efficient red led display with 6 digits 15mm high.
• Backlit LCD graphic 25x100mm display.
• Synoptic bar graph with 16 bright LEDs showing the active functions.
• Permanent time/date and data storage.
• Fitted with alibi memory.
• Functions available with the DINITOOLS utility:
  - Configuration, calibration, data entry and print formatting.
  - Recording and filing of all the information on PC, complete with the calibration data of each instrument.
  - Complete retrieval of the data saved for quick substitution.
  - Instrument calibration with numeric values.
• Selection of the programme language directly in the set-up.
• 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
• Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade.
• Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.

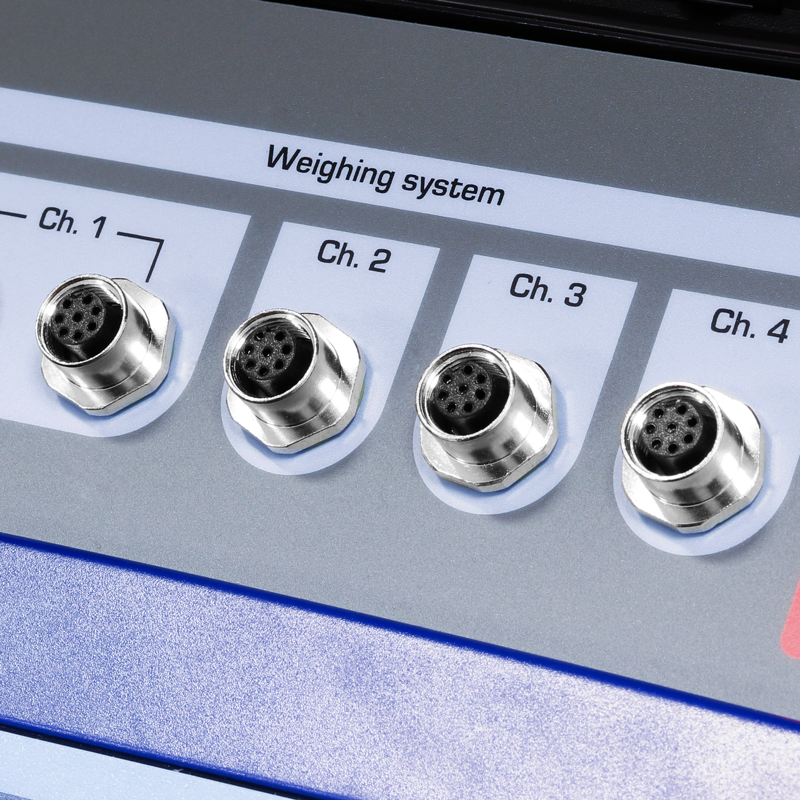

• Fitted with 4 connectors for connection up to 4 platforms with AF08 software (up to 2 with AF03, 1 with AF09).
• Connectable with up to 16 analogue 350-Ohm (or 45 1000-Ohm) load cells.
• Connectable with the main digital load cells available on the market.
• Built-in rechargeable battery (10-hour minimum operating time) with fitted external 12 Vdc / 230 Vac adapter.
• All versions are fitted with attached thermal printer.
