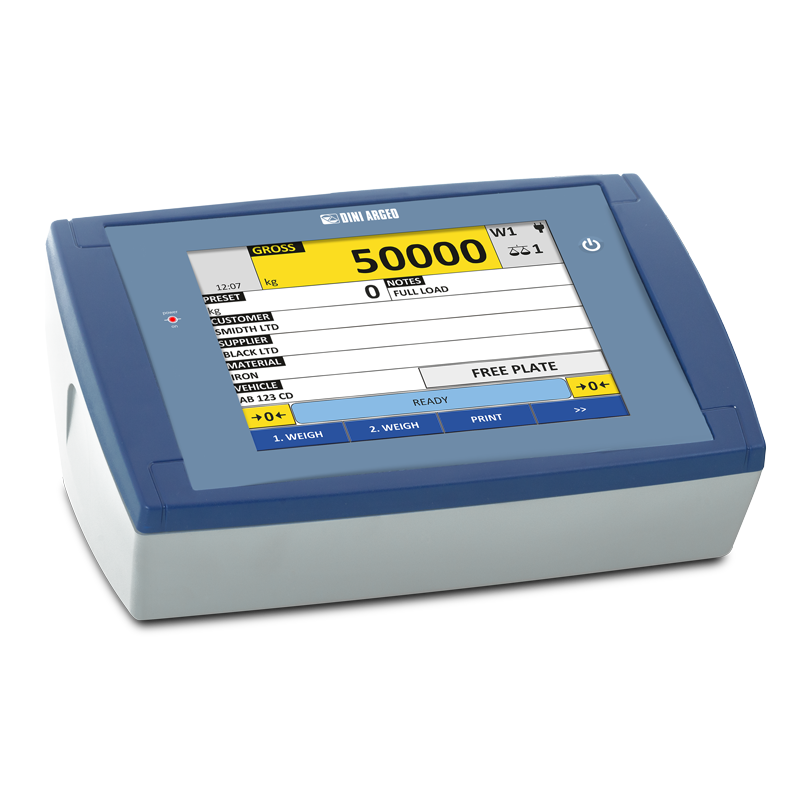

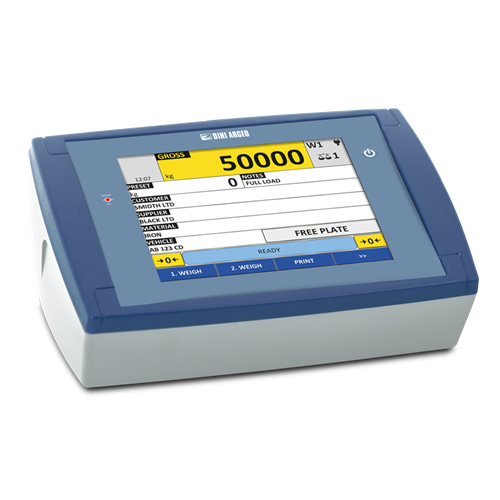

3590ET8 Touch: 8 Touchscreen Weight Indicator for Industrial Applications

Backlit graphic display with 8-inch touch screen technology, lxh= 160x120 mm size
Screens are completely customizable
Multilanguage software
QWERTY, AZERTY or QWERTZ keyboard, selectable
ABS waterproof enclosure with IP65 protection system (IP40 on version with thermal printer)
Dimensions: 278x125x186 mm
Suitable for use on the table, column, or wall
Real-time clock and permanent data storage
Fitted alibi memory, integrated on the motherboard
Slot for built-in micro SD for recording logos (upon request)
Functions available with DINITOOLS utility
- Configuration, data entry and print formatting.
- Recording and filing of all the information on PC.
- Complete retrieval of the configuration.
- Instrument calibration with numeric values.
- Customization of the screens.
24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
Specific version available to provide the management of the most common digital load cells for weigh bridges (model 3590ETD8)
Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03)
Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M Legal for Trade
Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points
Connectable to printers and labelers with free programing of the printout formats
110-240 Vac power supply

Request More Information

The digital weight indicator with a big, 8-inch touchscreen display and suitable for advanced industrial applications.

It allows the visualization of all the weighing data and the customization of the screens, simplifying the user operations. Fitted with three serial ports, Ethernet port, transmission protocols for data communication, completely configurable printouts, integrated alibi memory, and port for connection to barcode/badge reader. CE-M approvable (OIML R-76 / EN 45501).

Completely Customizable Screens

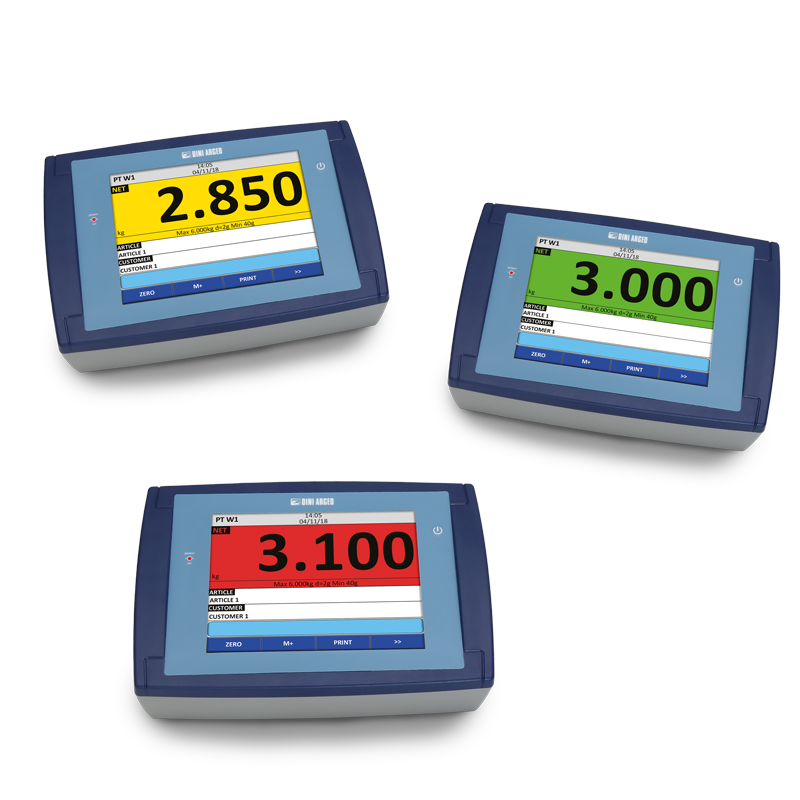

Thanks to the programmable Touch Screen Display, you can create custom-made interfaces for any application.

The "Dini Display Tool" is a PC software which allows you to quickly customize the TOUCH SCREEN.

3590ET8 Touch-Screen Weight Indicator for Industrial Applications Specifications

I/O Section

1 internal Ethernet port as standard (if activated, it deactivates one serial port), to connect to the company network.
2 RS232 serial ports, for connection to printer, PC or PLC, radio module and optional interfaces.
1 RS232 serial port (RS485 optional), for connection to printer, remote scale, badge reader, or digital load cells.
Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
4 optoisolated outputs (optional).
2 optoisolated inputs (optional).
External Profibus or Modbus/TCP,interface (optional), for automation management.
External Profinet, Ethernet/IP, EtherCAT, CANopen or DeviceNet interface (optional, only with standard AF01 weighing program).
Modbus RTU Interface.
Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC, tablet or smartphone.

Customised Applications:
Thanks to our integrated development, you can create complete customised applications in autonomy:

wizards, operator messages
serial port management, protocols customization
digital I/O full management
sequential or simultaneous automations
data entry, custom archives

Dini Argeo can offer the service of custom development programs.

Available Languages:

Menu selectable languages:IT, EN, FR, DE, ES, PT, PL*

* Polish available only on EGT-AF01, EGT-AF02, EGT-AF03, EGT-AF04, EGT-AF09, EGT-BATCH1

Code pages available for the translation of messages and screens, using the Custom Language Tool program (downloadable in the Download section):
Windows 1252: EN, GA, IT, NO, PT, ES, SV, DE, FI, IS, FR, NL, SL
Windows 1250: PL, CS, SK, HU, SL, SH, RO, SQ, EN, DE
Windows 1251: RU, UK, BE, BG, SR, MK, EN
Windows 1253: EL, EN
Windows 1258: VI, EN, FR

Main Certifications:

EU Type Examination Certificate (45501:2015)
OIML R76
OIML R51 - MID
OIML R134 (AF09)
Australian legal for trade certificate of approval (NMI S788)

Application Software:

SUPPLIED AS STANDARD:
AF01: Totalization and formula weighing
OPTIONAL:
AF02: Pieces/quantity counting
AF03: Weighbridges - Input/Output vehicle
AF04: Statistical checking of prepackaged goods
AF05: Price compunting and industrial labelling
AF08: Wheel and axle static weighing with 2 or various platforms
AF09: Dynamic and static axle weighing with 2 platforms
BATCH1: Single product dosage systems in loading and unloading

Resources / Downloads

Articles

Title	View	Email	Category	Type
Inventory Weighing Solutions and Programmes		Email	Weight Indicators\|Bench Scales\|Pallet Truck Scales\|Floor Scales	Articles

Parts

Available versions

Part #	Description	List Price	Cart / Quote
3590ET8-1	8" Touch screen indicator with AF01 software. ABS enclosure. Colour Display. Internal Ethernet port as standard.	Consult	View

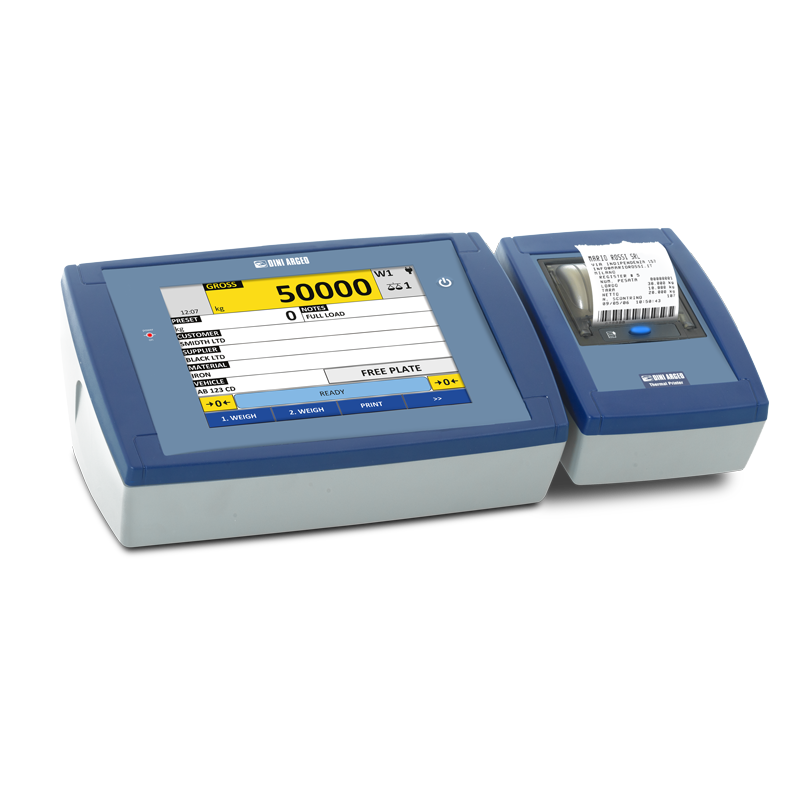

3590ETP8-1	Touch screen indicator with AF01 software with attached printer. ABS enclosure. Colour Display. Internal Ethernet port as standard.	Consult	View

Available versions with UK power cord

Part #	Description	List Price	Cart / Quote
3590ET8UK-1	8" Touch screen indicator with AF01 software. ABS enclosure. Colour Display. Internal Ethernet port as standard. Power supply cord with BS1363 plug (UK plug).	Consult	View

Options

Optional power supply cords

Part #	Description	List Price	Cart / Quote
PWCORDUK	Power supply cord with BS1363 plug (UK plug).	Consult	View
PWCORDCH	Power supply cord with SEV1011 plug (CH plug).	Consult	View
PWCORDUS	Version with US type B power cord (Japan, North and Central America).	Consult	View
PWCORDAUS	Version with AU power cord.	Consult	View

Available firmwares

Part #	Description	List Price	Cart / Quote
AF02	Software for piece/quantity counting.	Consult	View
AF03GT	Software for weighbridges, vehicle In/Out. For 3590 "TOUCH SCREEN" weight indicators.	Consult	View
AF04GT	Software for statistical checking of prepackaged goods. For 3590 "TOUCH SCREEN" weight indicators.	Consult	View
AF05	Software for price computing and industrial labelling.	Consult	View
AF08	Software for static wheel and axle weighing with 2 or more pads.	Consult	View
AF09	Software for dynamic and static axle weighing with 1 or 2 pads.	Consult	View
BATCH1	Software for single product dosage systems in loading and unloading.	Consult	View
CHECK	Software for packages weighting on a conveyor belt functions.	Consult	View

Software to fill in the databases

	Part #	Description	List Price	Cart / Quote
	DBM	PC software for quick filling out of the databases. For 3590Exx and CPWExx instruments (the price is intended for the license to manage one scale).	Consult	View

Software for display customisation

	Part #	Description	List Price	Cart / Quote
	DDT	Software for the quick customisation of the touchscreen display. For 3590ET and 3590EGT series indicators.	Consult	View

External battery

Part #	Description	List Price	Cart / Quote
BP6V12A	IP67 stainless steel external battery pack, 6V 12Ah. TAKE NOTE: this battery can be directly recharged from the indicator's motherboard, when the indicator is connected to the main line (230Vac). Otherwise, it's possible to recharge the battery by using the BP6CBE recharger.	Consult	View
BTCB6	Cable for BP6V12A battery connection.	Consult	View
BP6CBE	Battery charger for BT6V12A battery.	Consult	View
STFA12	Stainless steel bracket for mounting the ATEX battery on column. Compatible with "DFWBP76ATEX..", "IECEXB", "BP6ESTATEX3GD.." and "BP6V12A".	Consult	View

Junction Box / Boards - Load Cell cables

Part #	Description	List Price	Cart / Quote
LCCBC	Cable for connection between platform and indicator, l=50cm. Female connector to be soldered.	Consult	View
LCCB5C	LCCBC cable + 5m extension cable.	Consult	View
LCCB10C	LCCBC cable + 10m extension cable.	Consult	View

Approval for sale to third parties

	Part #	Description	List Price	Cart / Quote
	KCEM	Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination with a Dini Argeo indicator.	Consult	View
	ECEM-AU	Single platform/scale legal-for-trade approval for Australia.	Consult	View

Storing the weighs

Part #	Description	List Price	Cart / Quote
USBEGT	Built-in USB port to store data on a USB driver. To be combined with touchscreen weight indicators. It does not occupy serial ports. Fitted with USB key for PC. TAKE NOTE: this interface cannot be ordered separately and is to be combined with a weight indicator as part of the order.	Consult	View
USBK	Set of 5 USB keys for recording the weighs.	Consult	View
SWM	"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).	Consult	View

Printers/Labellers

Part #	Description	List Price	Cart / Quote
PR80-1	Thermal printer with paper cutter.	Consult	View
LP542TE	Thermal transfer or direct thermal labelling machine Supplied with standard peel mechanism. Maximum printing size 25400 x 108 mm. Maximum roll O 127 mm and width up to 112 mm. Label roll and ribbon not included.	Consult	View
SMTPLUS-1	Thermal transfer or direct termal labeller. Peel-off kit in option.	Consult	View
SMTRPK-1	Label peel-off and rewind kit for SMTPLUS-1 labeller.	Consult	View
LX300PRO	DotMatrix impact printer. Paper not included.	Consult	View
TM295	DotMatrix impact printer. Paper / Labels / Tags not included.	Consult	View
RSCBLX	RS232 cable l=1,5m for LX300, TM295 printers.	Consult	View
RSCBLP	RS232 cable l=1,5m for LP542xx, SMTPLUS, PR80 printers.	Consult	View
RSCBLP10M	RS232 cable l=10m for LP542xx, SMTPLUS, PR80 printers.	Consult	View
PRNSERV	Custom-made ticket (up to 4 layouts). NET price.	Consult	View
APRNSERV	Custom-made label (up to 4 layouts). NET price.	Consult	View
CODEPG	Service for loading a customised code-page on TPR printer (standard is PC437 - Central Europe, USA)	Consult	View

Display customisation

	Part #	Description	List Price	Cart / Quote
	GTMEM	10 memories set for display customization with logos and images.	Consult	View

Communication Interfaces

Part #	Description	List Price	Cart / Quote
RSCBUSBPG	USB PC/RS232 converter cable, l=1,5m, with PG9. USB/RJ11 connector. For the connection to weight indicators with IP65 and IP68 protection system.	Consult	View
RSCBUSB485	USB cable converter PC/RS485, l=1,5m. With metallic PG9 cable gland. To be combined with an indicator fitted with optional or standard RS485 output.	Consult	View
OBRF2G4	External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels.	Consult	View
OBRF2G4-USB	External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels.	Consult	View
RF2G4	Built-in 2.4 GHz radiofrequency module. Max. functioning distance in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. Up to 39 configurable channels. (RF2G4 must be combined with another radio module).	Consult	View
SETHNET	External RS232/Ethernet interface. Suitable for multi-location weighbridge systems networking. Compatible only with the AF03 software.	Consult	View
PROFI232-1	External RS232/RS485/PROFIBUS interface for DIN bar. Connectable to the indicators with Profibus protocol with PCB, terminal blocks, plastic box and UL-marked labels (if applicable).	Consult	View
BLTH-3	Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems.	Consult	View
RS485C	Built-in RS485 interface (mounting and cable gland excluded).	Consult	View
RS485OPTO	Built-in optoisolated RS485 interface (mounting and cable gland excluded).	Consult	View
WIFITD-3	(S1) Built-in WI-FI interface. For wireless connection (through access point) to the company computer system.	Consult	View

Fieldbus interfaces

Part #	Description	List Price	Cart / Quote
PROFINET1S	RS485 to ProfiNET interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
ETHERNETIP1S	RS485 to Ethernet IP interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
ETHERCAT1S	RS485 to EtherCAT interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
DEVICENET1S	RS485 to DeviceNET interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
CANOPEN1S	RS485 to CANOPEN interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
FB1SCB2M	CPU Connecting Cable for Fieldbus Series 1S. Length: 2m	Consult	View

Connection cables

Part #	Description	List Price	Cart / Quote
RSCBRJ	RS232/C serial cable - DB9/RJ11 - l=1,5m.	Consult	View
RSCBRJ10M	RS232/C serial cable - DB9/RJ11 - l=10m.	Consult	View
ETHCBRJ	Ethernet cable, l=1,5m. Fitted with fairlead, for connection between indicator and PC network.	Consult	View

Digital Input / Output

	Part #	Description	List Price	Cart / Quote
	C2IN	Set of 2 optoisolated inputs (mounting and cable gland excluded).	Consult	View
	C4OUT	Set of 4 optoisolated outputs (mounting and cable gland excluded).	Consult	View

Analog Ouput

	Part #	Description	List Price	Cart / Quote
	DAC16OSER	Built-in RS232 / RS485 optoisolated analog output, 0-4/20 mA, 0-10VDC . For DFW, 3590 Touch Screen. Output -10/+10VDC upon request, only at time of order.	Consult	View

Weight repeaters

	Part #	Description	List Price	Cart / Quote
	GLR100	RS485 alphanumeric repeater with 110 mm multicolour LED display.	Consult	View
	DGT100R-1	Weight repeater with 100mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure.	Consult	View

Attached control light box

	Part #	Description	List Price	Cart / Quote
	OBCLTP	ABS 3 way control light (for indicator with relais output). Acustical alarm, connexion cable, power supply from indicator.	Consult	View

Columns, supports brackets, visors

Part #	Description	List Price	Cart / Quote
STFI-1	AISI 304 stainless steel fixing bracket. For weight indicator wall mounting.	Consult	View
STFR-1	AISI 304 stainless steel fixing bracket with adjustable inclination. For weight indicator wall mounting.	Consult	View
CSP38I-1	AISI 304 stainless steel column 450x450mm, h=917mm, O 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
CSP38	Stainless steel column 450x450mm, h=917, O 38mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
CSP38D	Stainless steel column 350x350mm, h=750mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View

Options for ATEX version

Part #	Description	List Price	Cart / Quote
ZBA1S	Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Manual and ATEX UE CONFORMITY DECLARATIONS (available in EN, DE, FR, ES and IT).	Consult	View
KZBA-1	ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. It can connect up to 8 350 Ohm load cells. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135øC Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
KMB4-1	Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20øC = Ta = +40øC) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130øC Dc IP65 (-20øC = Ta = +40øC) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
DCATEXMB4	ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125øC Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).	Consult	View
JB4QA	ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
JB4QAI	ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
EXCB6	Blue shielded cable 6x0.22 mmý, only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 7 x O.D. _/m	Consult	View

PC keyboard / Scanner / Connection cable

Part #	Description	List Price	Cart / Quote
PCKBRD	QWERTY PC keyboard (it needs a mini DIN cable).	Consult	View
SCBTH	Bluetooth scanner for 1D / 2D barcodes. Includes recharge base. To be combined with 3590 TOUCH SCREEN weight indicator and Bluetooth BLTHxx module.	Consult	View
SCBTHP	Pocket Bluetooth scanner for 1D / 2D barcodes. Equipped with USB cable for recharge. To be combined with 3590 TOUCH SCREEN weight indicator and Bluetooth BLTHxx module.	Consult	View
SCCDR2-1	1D optical barcode reader with stand. Power cable and RS232 communication cable with weight indicator and stainless steel cable gland included.	Consult	View
SC2D	1D/2D optical barcode reader with stand. Power cable and RS232 communication cable with weight indicator and stainless steel cable gland included.	Consult	View
KBCBCE	(S1) PC keyboard cable with mini DIN connector.	Consult	View

Protection against electric discharges

	Part #	Description	List Price	Cart / Quote
	3590EEP	Built-in protection card against electric discharges according to IEC 1000-4-5/D (IEC 801-5/D).	Consult	View

Keyboard protection cover

	Part #	Description	List Price	Cart / Quote
	CVRXP	Kit of 10 moulded protective covers in transparent plastic. For indicator DFWXP or 3590EXP with ABS case.	Consult	View

Remote control

	Part #	Description	List Price	Cart / Quote
	TLRP	Radio frequency remote control and receiver with extension, for installations where other option boards with connection to AMP are required.	Consult	View

PG cable glands

Part #	Description	List Price	Cart / Quote
PG7P	10 PG7 ABS cable gland set for weight indicators.	Consult	View
PG9P	10 PG9 ABS cable gland set for weight indicators.	Consult	View
PG9PG11C	Kit of 10 metalic IP68 from PG9 to PG11 adapters (o max cable 12mm)	Consult	View
PG9PG13C	Kit of 10 metalic IP68 from PG9 to PG13 adapters (o max cable 12mm)	Consult	View

Other options

Part #	Description	List Price	Cart / Quote
TECSUP	Technical assistance by telephone upon request.	Consult	View
TECMAN	Printed technical manual (Free download from the website).	Consult	View
UMAN	Printed user manual (Free download from the website).	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View

Related Products

AF02 Software for 3590E/CPWE Indicators for Quantity Counting Systems

Suitable for counting applications and data management, with articles database, clients database and tares database and customisation printouts.

AF03 GT Weighbridge Program for 3590 Touch Screen Weight Indicators

Specific program for 3590ET/3590EGT series weight indicators with touch screen display, it offers every main function required in the collection of data when weighing vehicles with weighbridges either in manual mode with operator or automatic/self-service.

AF04GT Software for 3590 Touch Screen for Statistical Checking of Packaged Goods

Specific software for production checking which includes all the main check functions, either in sample statistic mode or in complete statistic mode (as provided for by the directive N. 76/211/EEC).

AF05 Software for 3590E/CPWE Indicators for Industrial Price Computing

Advanced price computing function with an evolved article management allowing to indicate on the label important information regarding traceability, through the most requested codifications (EAN13, EAN128 bar codes, etc.).

AF08 Software for 3590E Indicators For Wheel Weighing Systems with Various Pads

Suitable for creating wheel weighing and static axle weighing systems, or to weigh objects with various resting points. Ideal for weighing and calculating the centre of gravity coordinates of the vehicles, trucks, airplanes, containers, etc. Simultaneous display of the weight of each connected pad and of the sum. CE-M approved (OIML R-76 / EN 45501).

AF09 Software for 3590E/CPWE Indicators For Axle Weighing

Software suitable for advanced applications of axle weighing and totalization for control of the weight of the vehicle or for input / output weighing.
