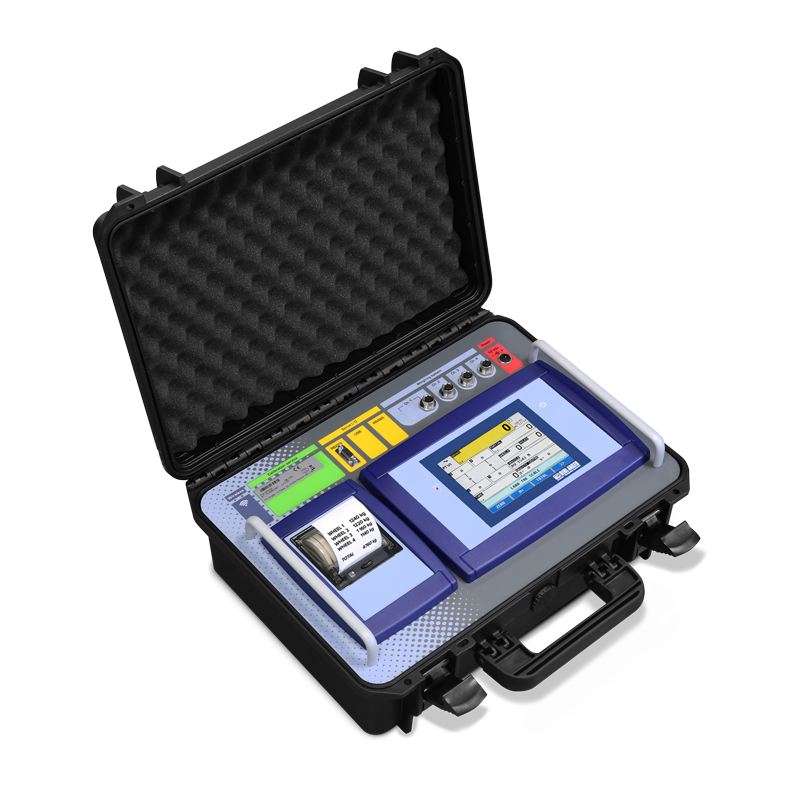

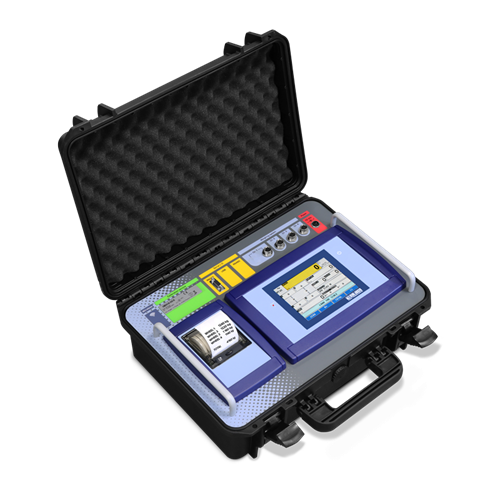

3590ETKR Touchscreen Weight Indicator with Transport Case

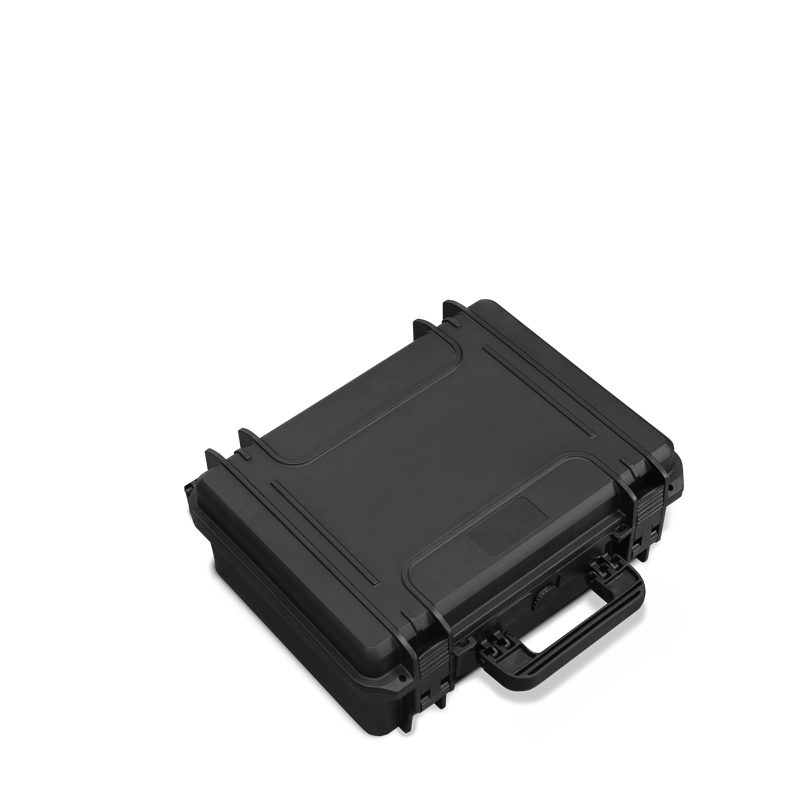

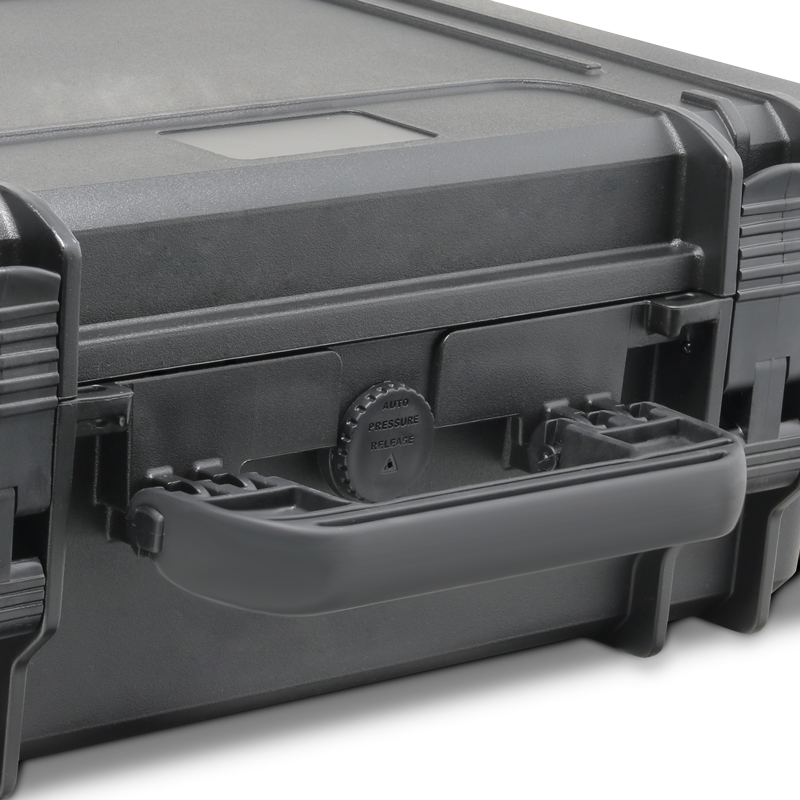

ABS transport case, with housing for the indicator and space for extra accessories.

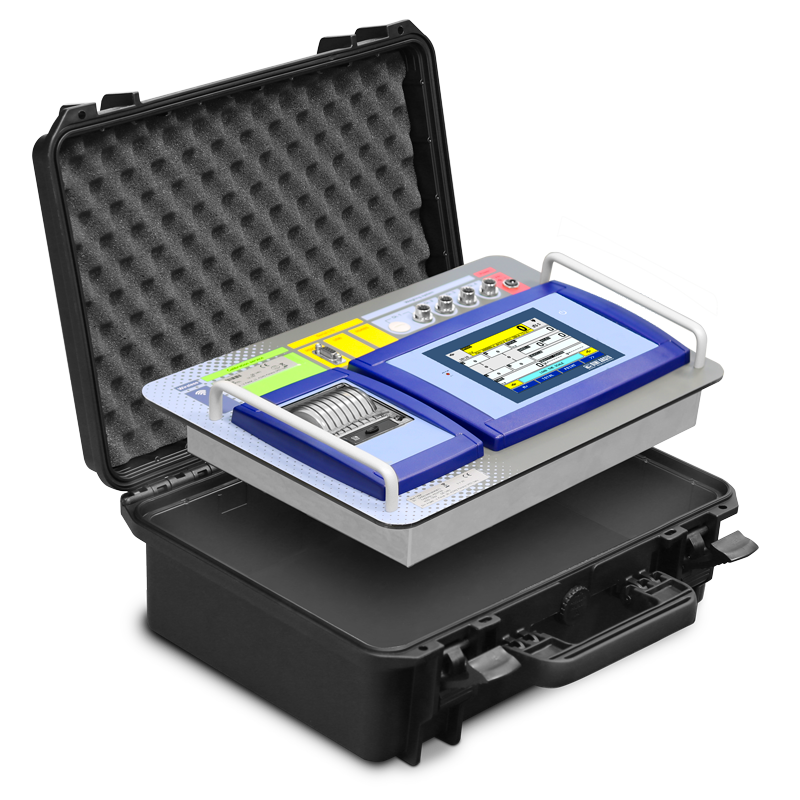

3590ET series indicator fit in a metallic rack type involucre with dimensions of 270x440mm, complete of housing for printer, connectors for platforms, and serial output on 9-pole connector.
Backlit graphic display with touch screen technology, lxh= 120x90mm size. Screens completely customizables.
Multilanguage software.
QWERTY, AZERTY o QWERTZ keyboard integrated in the touch screen, selectable.
Dimensions: 325x460x170 mm. Weight: about 5kg.
Fitted with attached thermal printer.
Real time clock and permanent data storage.
Fitted alibi memory, integrated on the motherboard.
Slot for built-in micro SD for recording the configuration, logos, and customized screens (upon request).
Functions available with DINITOOLS utility
- Configuration, data entry and print formatting.
- Recording and filing of all the information on PC.
- Complete retrieval of the configuration.
- Instrument calibration with numeric values.
- Customization of the screens.
24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm).
Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade.
Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
Connectable to printers and labellers with free programmation of the printout formats.
Power supply through built-in rechargeable battery, the operating time is of about 10 hours.

Multifunction high performance digital weight indicator in Rack version, complete with 4 connectors for linking the platforms, built-in rechargeable battery with charger, and case. Particularly suitable for mobile weighing applications. CE-M approvable (OIML R-76 / EN 45501).

3590ETKR Touch Screen Weight Indicator with Transport Case Specifications

I/O Section:

Available on panel:- One RS232 serial ports, for connection to PC, on 9-pole connector.
Available on internal side:
- 1 RS232 serial ports, for connection to printer, radio module, PC or PLC, badge reader or remote scale.
- 1 RS232 serial port, for connection to printer, remote scale, badge reader, or digital load cells.
- Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
- Up to 4 optoisolated outputs (optional).
- Up to 2 optoisolated inputs (optional).

Available Languages:

Menu selectable languages:IT, EN, FR, DE, ES, PT, PL*

* Polish available only on EGT-AF03, EGT-AF09

Code pages available for the translation of messages and screens, using the Custom Language Tool program (downloadable in the Download section):
Windows 1252: EN, GA, IT, NO, PT, ES, SV, DE, FI, IS, FR, NL, SL
Windows 1250: PL, CS, SK, HU, SL, SH, RO, SQ, EN, DE
Windows 1251: RU, UK, BE, BG, SR, MK, EN
Windows 1253: EL, EN
Windows 1258: VI, EN, FR

Customizable Screens:
Thanks to the programmable Touch Screen Display, you can create custom-made interfaces for any application.

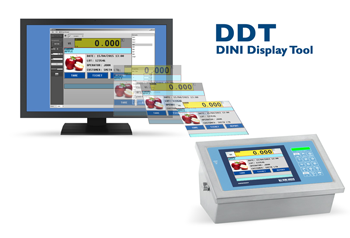

The "Dini Display Tool" is a PC software which allows you to quickly customize the TOUCH SCREEN.

Custom Applications:
Thanks to our integrated development, you can create complete customised applications in autonomy:

wizards, operator messages
serial port management, protocols customization
digital I/O full management
sequential or simultaneous automations
data entry, custom archives

Dini Argeo can offer the service of custom development programs.

Main Certifications:

EU Type Examination Certificate (45501:2015)
OIML R76
OIML R51 - MID
OIML R134 (AF09)

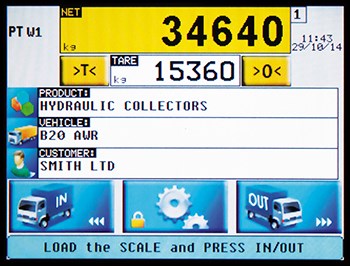

COMPLETELY CUSTOMIZABLES SCREENS

Thanks to the programmable Touch Screen Display, you can create custom-made interfaces for any application:

The "Dini Display Tool" is a PC software which allows you to quickly customize the TOUCH SCREEN.

Resources / Downloads

Articles

Title	View	Email	Category	Type
Inventory Weighing Solutions and Programmes		Email	Weight Indicators\|Bench Scales\|Pallet Truck Scales\|Floor Scales	Articles

Parts

Available versions

Part #	Description	List Price	Cart / Quote
3590ETKR-3	For analogue WWS (WWS...-y) only. Touch screen indicator in transport case with printer, AF08 software. Colour display. Available only in combination with Dini Argeo vehicle weighing systems (WWS, RWS, DTW, WBSA series).	Consult	View
3590ETKR2G4-1	For WWS with Radiofrequency (WWS...2G4-y) only. Touch screen indicator in transport case with printer, AF08 software. Colour display and radio module. Available only in combination with Dini Argeo vehicle weighing systems (WWS, RWS, DTW, WBSA series).	Consult	View
3590ETKR09-3	For analogue WWS (WWS...-y) only. Touch screen indicator in transport case with printer, AF09 software. Colour display. Available only in combination with Dini Argeo axle weighing systems (WWS, RWS).	Consult	View
3590ETKR2G4-AF09-1	For WWS with Radiofrequency (WWS...2G4-y) only. Touch screen indicator in transport case with printer, AF09 software. Colour display and radio module. Available only in combination with Dini Argeo vehicle weighing systems (WWS, RWS, series).	Consult	View

Options

Optional power supply cords

Part #	Description	List Price	Cart / Quote
PWCORDUKVDE	Version with BS1363 power cord (UK plug).	Consult	View
PWCORDUSVDE	Version with US type B power cord. (Japan, North and Central America).	Consult	View
PWCORDAUSVDE	Version with AU power cord.	Consult	View

Available firmwares

	Part #	Description	List Price	Cart / Quote
	AF03GT	Software for weighbridges, vehicle In/Out. For 3590 "TOUCH SCREEN" weight indicators.	Consult	View

Software to fill in the databases

	Part #	Description	List Price	Cart / Quote
	DBM	PC software for quick filling out of the databases. For 3590Exx and CPWExx instruments (the price is intended for the license to manage one scale).	Consult	View

Software for display customization

	Part #	Description	List Price	Cart / Quote
	DDT	Software for the quick customisation of the touchscreen display. For 3590ET and 3590EGT series indicators.	Consult	View

Protection against electric discharges

	Part #	Description	List Price	Cart / Quote
	3590EEP	Built-in protection card against electric discharges according to IEC 1000-4-5/D (IEC 801-5/D).	Consult	View

Approval

	Part #	Description	List Price	Cart / Quote
	KCEM	Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination with a Dini Argeo indicator.	Consult	View

Storing the weighs (only at time of order)

Part #	Description	List Price	Cart / Quote
USBEGTKR	Built-in USB port kit for indicator in transport case. It does not occupy serial ports. Complete of USB key for PC. TAKE NOTE: this interface is not available on its own, always to be combined with a weight indicator when ordering.	Consult	View
USBK	Set of 5 USB keys for recording the weighs.	Consult	View
SWM	"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).	Consult	View

Printers/Labelers

	Part #	Description	List Price	Cart / Quote
	PRNSERV	Custom-made ticket (up to 4 layouts). NET price.	Consult	View
	CODEPG	Service for loading a customised code-page on TPR printer (standard is PC437 - Central Europe, USA)	Consult	View

Digital Input / Output

	Part #	Description	List Price	Cart / Quote
	C2IN	Set of 2 optoisolated inputs (mounting and cable gland excluded).	Consult	View
	C4OUT	Set of 4 optoisolated outputs (mounting and cable gland excluded).	Consult	View

Display customization

	Part #	Description	List Price	Cart / Quote
	GTMEM	10 memories set for display customization with logos and images.	Consult	View

Communication interfaces (only at time of order)

	Part #	Description	List Price	Cart / Quote
	BLTH-3	Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems.	Consult	View

Weight repeaters

	Part #	Description	List Price	Cart / Quote
	GLR100	RS485 alphanumeric repeater with 110 mm multicolour LED display.	Consult	View
	DGT100R-1	Weight repeater with 100mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure.	Consult	View

Connection cables

Part #	Description	List Price	Cart / Quote
ETHCBRJ	Ethernet cable, l=1,5m. Fitted with fairlead, for connection between indicator and PC network.	Consult	View
RSCBP2P	1,5m cable RS232/C for connection to a PC.	Consult	View
RSCBUSBKR	USB PC/RS232 DB9 converter cable, l=1,5m. USB/DB9 connector.	Consult	View

PC keyboard / Scanner / Connection cables

Part #	Description	List Price	Cart / Quote
KBCBCE	PC keyboard cable with mini DIN connector.	Consult	View
PCKBRD	QWERTY PC keyboard (it needs a mini DIN cable).	Consult	View
SCBTH	Bluetooth scanner for 1D / 2D barcodes. Includes recharge base. To be combined with 3590 TOUCH SCREEN weight indicator and Bluetooth BLTHxx module.	Consult	View
SCBTHP	Pocket Bluetooth scanner for 1D / 2D barcodes. Equipped with USB cable for recharge. To be combined with 3590 TOUCH SCREEN weight indicator and Bluetooth BLTHxx module.	Consult	View
SCCDR2-1	1D optical barcode reader with stand. Power cable and RS232 communication cable with weight indicator and stainless steel cable gland included.	Consult	View
SC2D	1D/2D optical barcode reader with stand. Power cable and RS232 communication cable with weight indicator and stainless steel cable gland included.	Consult	View

Remote Control

	Part #	Description	List Price	Cart / Quote
	TLRP	Radio frequency remote control and receiver with extension, for installations where other option boards with connection to AMP are required.	Consult	View

PG cable glands

Part #	Description	List Price	Cart / Quote
PG9P	10 PG9 ABS cable gland set for weight indicators.	Consult	View
PG9PG11C	Kit of 10 metalic IP68 from PG9 to PG11 adapters (o max cable 12mm)	Consult	View
PG9PG13C	Kit of 10 metalic IP68 from PG9 to PG13 adapters (o max cable 12mm)	Consult	View

Expendable materials

	Part #	Description	List Price	Cart / Quote
	RPT57C	50 thermal paper rolls 30m long, 57mm wide. 12mm hole. 51mm external diameter.	Consult	View

Other options

Part #	Description	List Price	Cart / Quote
TECSUP	Technical assistance by telephone upon request.	Consult	View
UMAN	Printed user manual (Free download from the website).	Consult	View
TECMAN	Printed technical manual (Free download from the website).	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View
