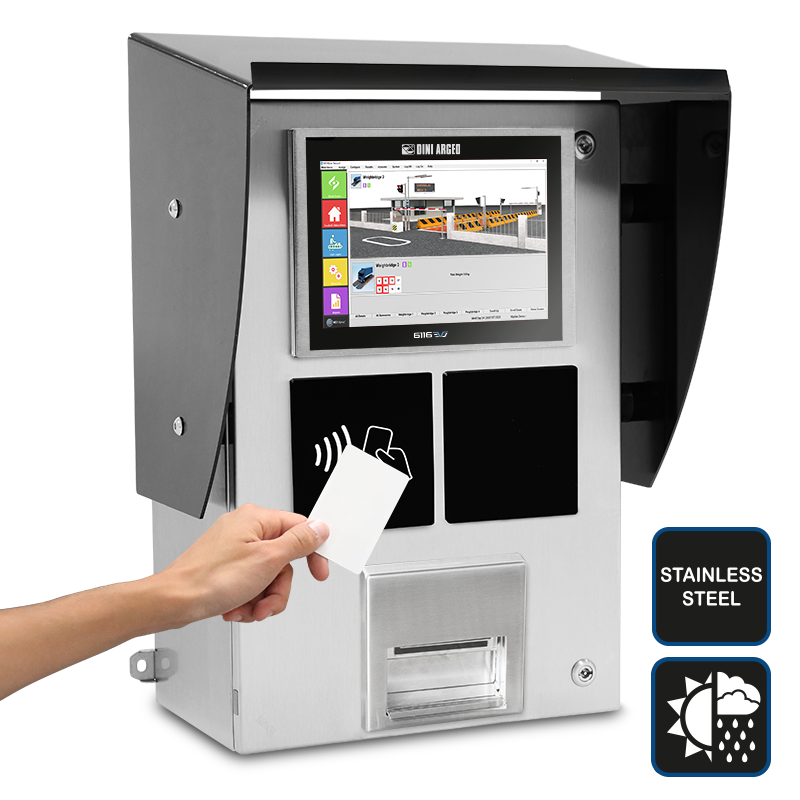

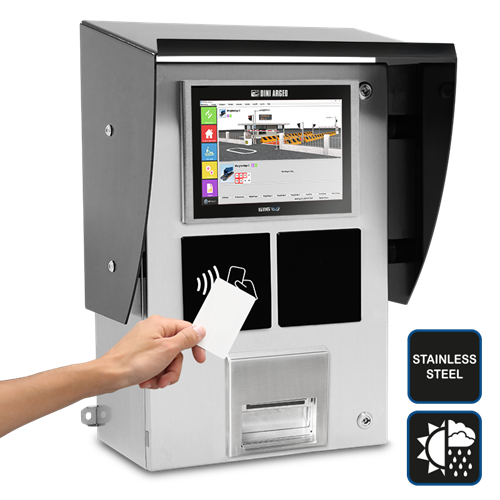

6116EVO-BOX Kiosk with Industrial PC for Self-Service Systems and Weighbridges
- New interactive weighbridge kiosk equipped as standard with touchscreen PC for controlling incoming and outgoing vehicles.
- The highly illuminated display makes the 6116EVOBOX ideal for outdoor use.
- The PC offers high performance and a high degree of programmability. With the new D-LEGAL software, it is possible to create trade-legal-approved applications and further simplify data exchange with external programs.
- Designed for outdoor applications Brushed stainless steel casing.
- Sun and rain visor for outdoor use.
- Industrial touchscreen PC with 10.1" display, 1280x800 px resolution, high brightness, suitable for outdoor use. Refer to the technical manual of the product for more information.
- Thermal printer with cutter. Print speed >150 mm/sec, 200 dpi resolution, 24/40 columns, 80 mm paper width, max. print length 20 cm.
- Integrated RFID proximity reader, with reading distance up to approximately 30 mm. Automatic internal temperature control system, configurable.
- Total power of the panel at 110-240 Vac (power cable not included).
Main Options:
- Integrated electronic part of the scale, with digital inputs and outputs.
- Numeric or alphanumeric weight repeater.
- RFID cards.
- Ready for metric approval (only with integrated weight transmitter).
- Coin acceptor available on request (ask for quote).
The Self-Service PC Weighing Terminal for Industry
New interactive weighbridge kiosk equipped as standard with touchscreen PC for controlling incoming and outgoing vehicles. The highly illuminated display makes the 6116EVOBOX ideal for outdoor use. The PC offers high performance and a high degree of programmability. With the new D-LEGAL software, it is possible to create trade-legal-approved applications and further simplify data exchange with external programs. Equipped as standard with a thermal printer with a cutter and RFID card reader.

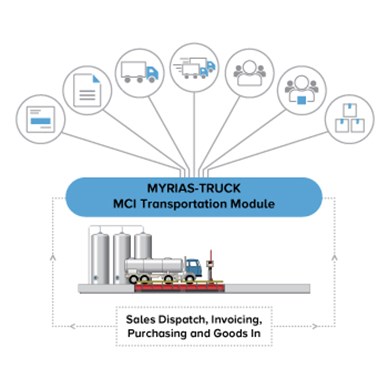

MYRIAS-TRUCK: Software For Efficient Access Management
With more than 30 years of successful development and installations, the Myrias software allows you to:
- Record vehicle load data and empty weight data
- Read vehicle and trailer identification data
- Weigh multi-axle vehicles
- Check contents inventory
It is also compatible with the main weighbridge indicators and can communicate with printers, traffic lights, barriers and cameras for complete control of the weighing process.
6116BOX Kiosk with Industrial PC for Self-Service Systems and Weighbridges Specifications
|
Processor: Graphics: Operating system: Available Inputs/Outputs: |
Touchscreen: Screen: |
RAM: Storage: Peripheral devices: |
AF6116 Optional Application Program (DGT4X weight transmitter required)
The AF6116 program is an optional application specific for the 6116EVO4X and 6116EVO4XKB containing the main AF programs:
- AF01 - Weight totalisation;
- AF02 - Piece/quantity counting;
- AF03 - Vehicle entry/exit;
- AF04 - Statistical pre-packaging check;
- AF05 - Industrial labelling; selectable from settings menu with several important additional features and extensions:
-
- The program allows the USB or ETHERNET ports of the PC to be used to emulate the operation of the 3590 COM PC, COM PRN and COM AUX
- Weighing result storage: the saving functions on a USB flash drive and SD memory available on 3590 are replicated on two memory allocations (64 MB each), with the possibility of exporting the weighing results to the desired folder, which can even be a network folder
- More free text, up to 100 records available
- Larger databases, up to 10,000 records available per database
- Database management via SQL (read and write)
Virtual Alibi Memory And Api For The Development Of Approved Programs
The 6116EVO has two optional programs, designed to facilitate communication with the integrated electronic part of the scale via APIs and the saving of weighing data, also approved as legal for trade:
- D-LEGAL: Approved software for saving weighting results and libraries API (cannot be combined with AF6116).
- D-API: Software for internal use for saving weighing results and API libraries (cannot be combined with AF6116).
Parts
| Part # | Description | List Price | Cart / Quote |
|---|---|---|---|
| 6116EVO-BOX-1 | Stainless steel pedestal or wall-mounted box with industrial PC, 10.1-inch touchscreen display and preinstalled Windows 10 operating system. Equipped with a thermal printer and RFID card reader. |
Consult |
Options
Electronic part of the scale (to be combined with optional D-LEGAL PC program for approved applications)
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
DGT4X | High speed weight transmitter for DIN bar with 4 channels, 2 IN and 2 OUT. 5-key keypad, LED display. |
Consult |
|
|
DGT1SX | Weight transmitter on DIN rail, with 2 INPUTS and 4 OUTPUTS. Fitted with 5-key keypad and LED display. Multifunction weighing program. |
Consult |
Cables for connecting the electronic part of the scale to the PC
Available application software
RFID cards
International power cables
Expendable materials
Weight repeaters (RS485 connection to PC)
Configuration and customization services
Approval for sale to third parties
Related Products
D-LEGAL Software
D-LEGAL software can be used to turn a PC into an approved digital weight indicator in compliance with NAWI.
