6116EVO Industrial Touchscreen PC with Integrated Scale Input
- 6116EVO is the new version of the Dini Argeo industrial PC, designed for harsh industrial environments and equipped with a capacitive touch screen, ideal for precise point-of-contact detection, even with gloves and in the presence of water/condensation.
- 6116EVO guarantees high performance, thanks to the latest Intel 4-core processor, and is available with integrated weighing electronics to manage up to 4 scales.
- Thanks to the D-LEGAL software, it is also possible to create applications approved for use with third parties and to further simplify data exchange with external programmes.
Options:
- 15', 17', 19' and 21,5' versions (available upon quotation)
- Numeric or alphanumeric weight repeater
- Provision for metric approval (only with integrated weight transmitter)
The New Frontier of Industrial PCS for Automation
New industrial touch screen PC with an AISI 304 stainless steel case and IP67 protection degree, specifically for harsh industrial environments. It allows the loading of any weighing programme developed on Windows 10, for the creation of advanced weighing systems. High-performance Intel processor and up to 4 scale inputs.

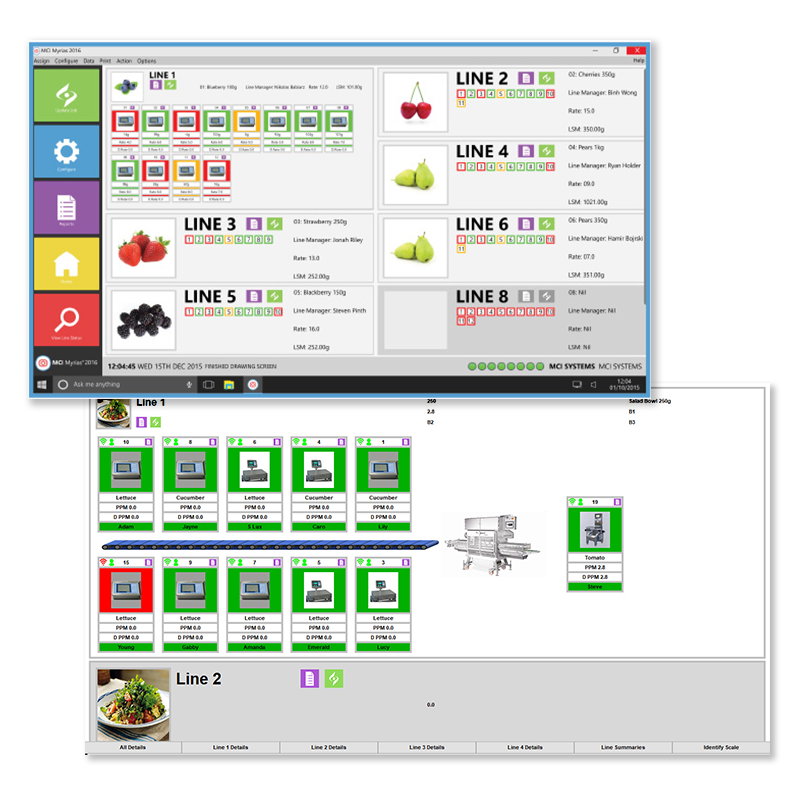

Discover Our New PC Software Solutions! ![](https://www.diniargeo.com/images/MYRIAS/MYRIAS_logo_lo.png?width=0&height=0&mode=max)
With more than 30 years of successful development and installations, the Myrias software has multiple modules that combine to create different solutions:
- Dynamic Checkweigher
- Truck Scale & Axle Weigher
- Manual Checkweigher
- Offline sampling
- Pallet weighing
- Traceability
- Recipe
- Data Manager
- Belt weighing
- Stock Control.
6116EVO Industrial Touchscreen PC with Integrated Scale Input Specifications
High-performance Intel 4-core processor. |
Ram 8GB DDR3L. |
Industrial communication ports with IP67 protection. |
Optional Virtual Alibi Memory And Api For Development Of Approved Programmes
6116EVO has two optional programmes, designed to facilitate communication with the integrated weighing electronics via APIs and the saving of weighings, including those approved for legal-for-trade-use:
- D-API: Software for internal use for saving weighs and API libraries (cannot be combined with AF6116)
- D-LEGAL: Approved software for saving weighings and API libraries (cannot be combined with AF6116)
Click here for more information.
Optional Application Programme 'Af6116' (Only For 6116Evo4X And 6116Evo4Xkb)
The AF6116 program is an optional application specific for 6116EVO4X AND 6116EVO4XKB that includes the main AF programs (AF01 - Totalization; AF02 - Piece/quantity counting; AF03 - Input/output vehicles; AF04 - statistical checking of prepacked goods; AF05 - Industrial labelling; selectable from the settings menu) with some important additional features and extensions:
- The programme allows the USB or ETHERNET ports of the PC to be used to emulate the operation of the 3590's COM PC, COM PRN and COM AUX
- Weighing saving: the saving functions on USB key and SD memory available on the 3590 are replicated on 2 memory allocations of 64Mb, with the possibility of exporting the weighings to the desired folder, including network.
- More free texts, up to 100 records available.
- Larger databases, up to 10 000 records per database available.
- Database management via SQL (read and write)
AVAILABLE INPUTS/OUTPUTS
6116EVO-1
|
6116EVO4X
|
6116EVO4XKB
|
|
Internal USB 3.1 Type A ports |
2
|
1
|
1
|
Panel USB 2.0 ports |
2
|
2
|
2
|
Internal Gigabit Ethernet port, 10/100/1000 Mbps |
1
|
1
|
1
|
Gigabit-Ethernet RJ45 panel port, 10/100/1000 Mbpss |
1
|
1
|
1
|
Internal VGA port |
1
|
1
|
1
|
Internal HDMI port |
1
|
1
|
1
|
Audio IN |
1
|
1
|
1
|
Audio OUT |
1
|
1
|
1
|
Digital inputs |
1
|
2
|
2
|
Digital outputs |
0
|
2
|
2
|
Scale inputs |
0
|
4
|
4
|
Resources / Downloads
Parts
Part # | Description | List Price | Cart | |
---|---|---|---|---|
![]() |
6116EVO-1 | High performance industrial touch screen PC, stainless steel IP67. |
Call for price |
|
![]() |
6116EVO4X | High performance industrial touch screen PC, stainless steel IP67. Integrated high-speed 4-channel weighing card configurable exclusively from PC. NOTE: if used for approved applications, add the optional D-LEGAL programme. |
Call for price |
|
![]() |
6116EVO4XKB | High performance industrial touch screen PC, stainless steel IP67. Integrated high-speed 4-channel weighing card configurable from PC and via keyboard and display on rear panel. |
Call for price |
Options
Available versions
Part # | Description | List Price | Cart | |
---|---|---|---|---|
![]() |
6116EVO-1 | High performance industrial touch screen PC, stainless steel IP67. |
Call for price |
|
![]() |
6116EVO4X | High performance industrial touch screen PC, stainless steel IP67. Integrated high-speed 4-channel weighing card configurable exclusively from PC. NOTE: if used for approved applications, add the optional D-LEGAL programme. |
Call for price |
|
![]() |
6116EVO4XKB | High performance industrial touch screen PC, stainless steel IP67. Integrated high-speed 4-channel weighing card configurable from PC and via keyboard and display on rear panel. |
Call for price |
Previous end-of-series versions, last pieces available
Available application software
Weight repeaters (RS485 connection to PC)
Additional PG cable glands
Optional power supply cords
Configuration and customization services
Approval for sale to third parties
Other options
Related Products
![6116BOX](/media/hadluild/6116box.jpg?anchor=center&mode=crop&width=450&rnd=132913236829300000)

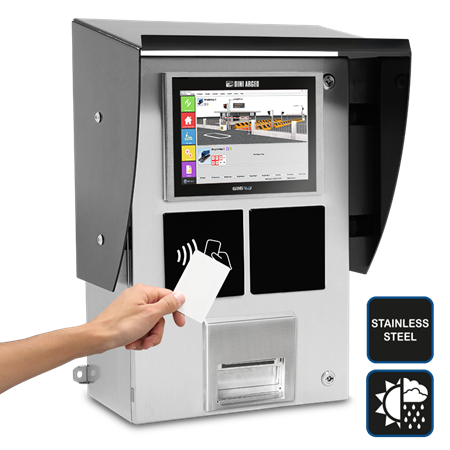

6116EVO-BOX Kiosk with Industrial PC for Self-Service Systems and Weighbridges
