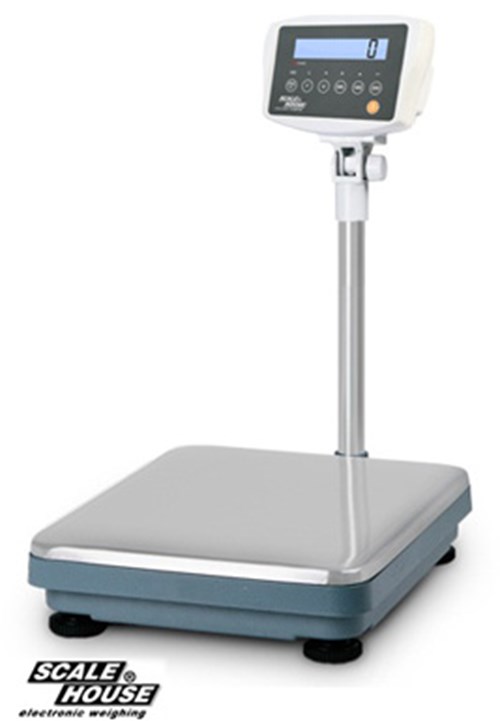

AFWC and AFWD Series Bench/Floor Multifunction Scale
- Backlit LCD display with 6 digits 24mm high, easily visible from all angles with adjustable inclination.
- Membrane waterproof keypad with 7 keys anc acoustic feedback.
- ABS case and indicator support column.
- Stainless steel plate, size:
- C model 350x450mm;
- D model 420x520mm.
- Built-in rechargeable battery (about 70h battery life) and 230Vac power adapter (EU plug).
- Overall height from ground with indicator and column:
- C model 860mm;
- D model 920mm.
- Packaging:
- C model: 780 x 500 x 220 mm size - approximate weight of 15,5kg;
- D model: 970 x 600 x 230 mm size - approximate weight of 17kg.
- Upon request:
- ACCREDIA calibration with issuing of relative certificate;
- 3000e CE-M approval.
Versatile bench or floor scale with attached column, for control and production. Pieces counting, weight control, and totalization function. Available also CE-M approved for legal for trade use.
Specifications
Functions:
- counting
- weight check, with 2 thresholds and acoustic alarm
- weight totalization, in loading or in unloading
- unit conversion: kg, g, lb, oz
- weighing filter selection
- setting range of auto-zero at the switch-on
- zeroing
- zero tracking
- semi-automatic tare
- digital calibration
- backlight command
- low battery warning
Counting Features
Internal sensitivity, minimum recommended APW, and minimum sampling weight:
| Model | AFWC30 | AFWC60 AFWD60 |
AFWC150 AFWD150 |
AFWD300 |
| Internal sensitivity g |
0,1 |
0,2 |
0,5 |
1 |
| Min. recommended APW g |
0,5 |
1 |
2 |
5 |
| Min. sampling weight g |
200 |
400 |
1000 |
2000 |
Available Versions
| Code | Max (kg) | d (g) | M (g*) |
|---|---|---|---|
| AFWC30 | 30 | 10 | 10 |
| AFWC60 | 60 | 20 | 20 |
| AFWC150 | 150 | 50 | 50 |
| AFWD60 | 60 | 20 | 20 |
| AFWD150 | 150 | 50 | 50 |
| AFWD300 | 300 | 100 | 100 |
(*) CE-M divisions are obtainable only with the relative options.
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles | |
| How to Choose a Bench Scale | Email |
Bench Scales | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
AFWC30 | Bench/floor scale with 30 kg capacity, 10 g division, stainless steel plate 350x450 mm size, LCD display, membrane waterproof keypad and column. |
Consult |
|
|
|
AFWC60 | Bench/floor scale with 60 kg capacity, 20 g division, stainless steel plate 350x450 mm size, LCD display, membrane waterproof keypad and column. |
Consult |
|
|
|
AFWC150 | Bench/floor scale with 150 kg capacity, 50 g division, stainless steel plate 350x450 mm size, LCD display, membrane waterproof keypad and column. |
Consult |
|
|
|
AFWD60 | Bench/floor scale with 60 kg capacity, 20 g division, stainless steel plate 420x520 mm size, LCD display, membrane waterproof keypad and column. |
Consult |
|
|
|
AFWD150 | Bench/floor scale with 150 kg capacity, 50 g division, stainless steel plate 420x520 mm size, LCD display, membrane waterproof keypad and column. |
Consult |
|
|
|
AFWD300 | Bench/floor scale with 300 kg capacity, 100 g division, stainless steel plate 420x520 mm size, LCD display, membrane waterproof keypad and column. |
Consult |
Options
Calibration service only available at time of order
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
CT4 | ISO 17025 calibration certificate from 6 to 60 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail. |
Consult |
|
|
|
CT5 | ISO 17025 calibration certificate from 61 to 300 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail. |
Consult |
Options only available at time of order
Spare parts
Related Products
APM Series Weighing Scales
These bench weighing scales are fitted with a weight indicator that can be mounted attached to the platform or fixable to the wall, thanks to the stretchable cable. The big 50mm LCD display allows to easily read the weight in any condition. Easy Carrying Built-in Handgrip Design. Available also CE-M APPROVED for legal for trade use.

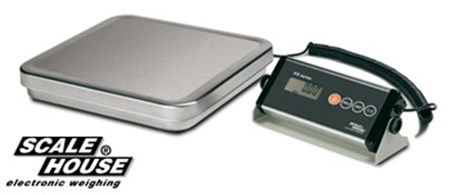

KS Series Bench/Floor Scale
