Alphanumeric Repeater GLR100

Painted steel container, with protection rating IP54. Suitable for indoor or outdoor use (suitably protected from rain).
RGB HIGH LUMINOSITY LED matrix display, 605x150 mm.
Numerical mode: up to 6 digits, h= 110mm with metrological icons (stability, zeroing, NET, etc.)
Alphanumeric mode: up to 2 lines of 16 characters, h= 42 mm.
240 Vac power supply through 2-metre cable.
Rear fixings M6, l= 9 mm, centre-to-centre distance 170x112 mm

Australian National Measurement Institute

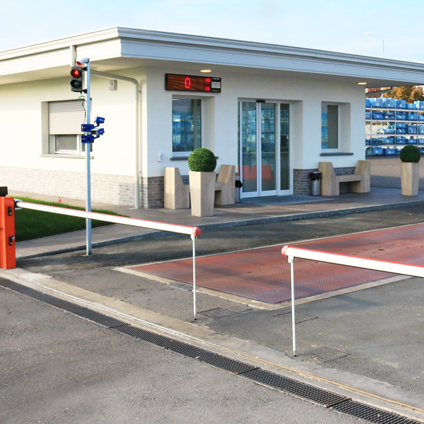

Alphanumeric graphic repeater with RGB HIGH LUMINOSITY LED matrix, ideal for displaying weight and operational messages. Depending on the connected indicator, it is possible to display weight with large digits or customisable operational messages. RGB technology allows you to change the colour displayed, with a traffic light function (red, yellow, green). CE-M approved (OIML R-76 / EN 45501).

SPECIFICATIONS ALPHANUMERIC REPEATER "GLR100"

AVAILABLE MODES with 3590 TOUCH SCREEN indicators:

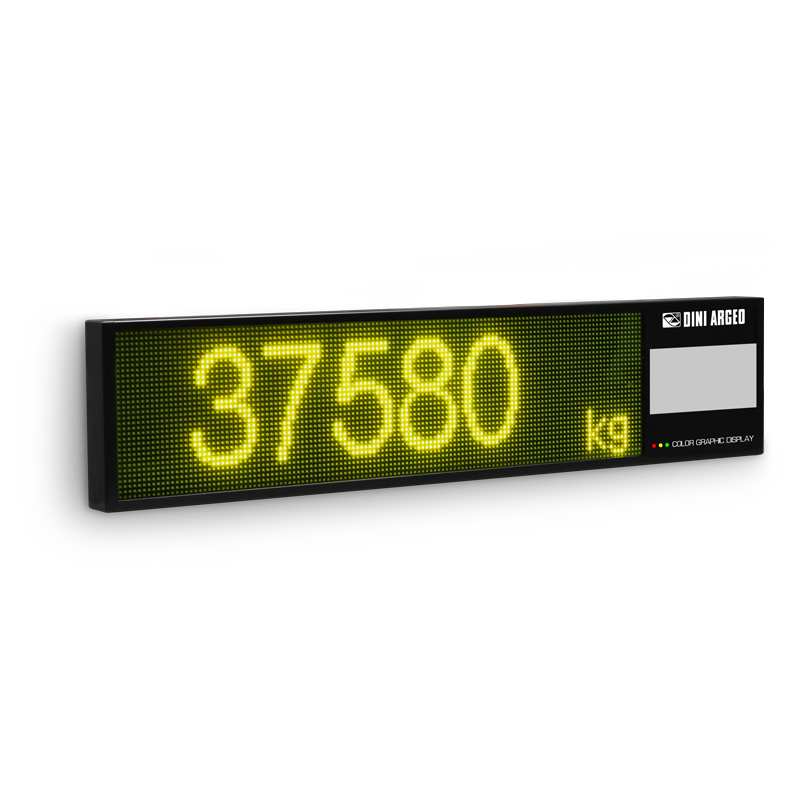

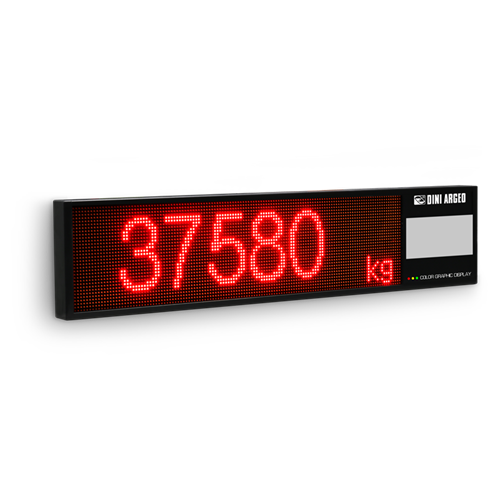

6-digit 110mm Weight repeater

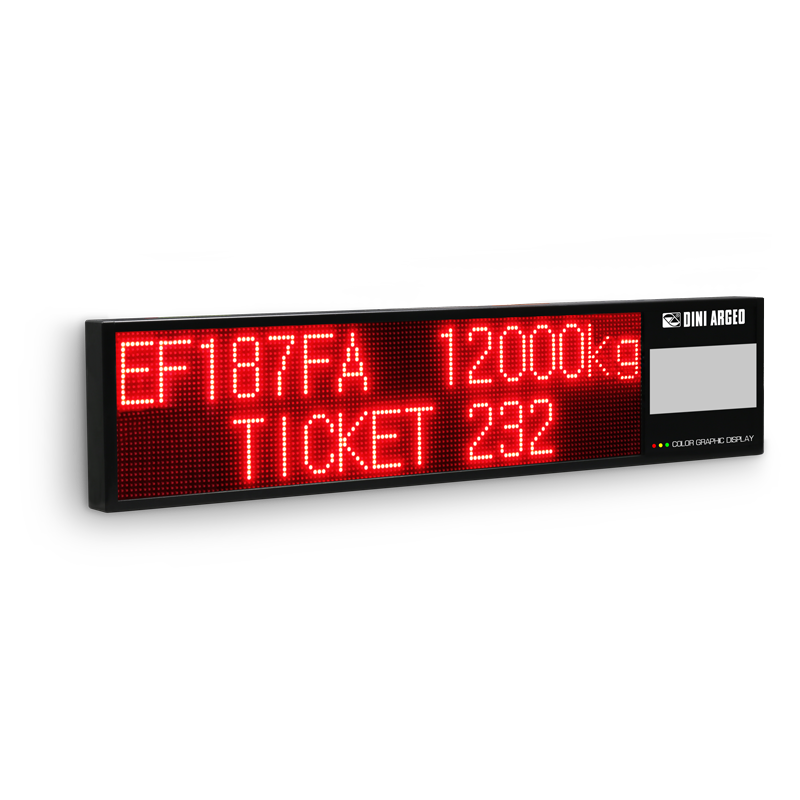

Alphanumeric display with gross and tare weight in the selected language (two 42mm lines)

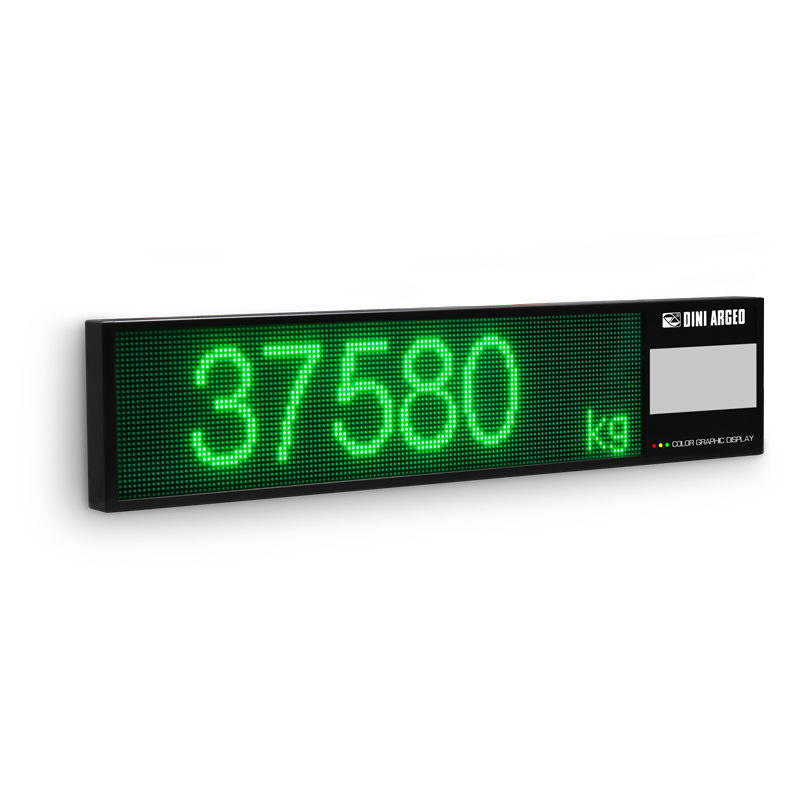

Display colour management (red, yellow or green), synchronised with the connected weight indicator (only in combination with TOUCH SCREEN series indicators)
On request:
- Fully customisable messages, with descriptions, databases, free texts, formulas, targets, etc.
- Screen saver with date and time, displayed when the scale is not in use
- Scroll texts

AVAILABLE MODES with DFW, DGT, 3590E and CPW indicators:

Weight repeater with 6-digit 110mm

COMMUNICATION PORTS:

RS485 port for long distance transmission (up to 1000 m) or radio (up to 70m indoor, 150m outdoor). To be combined with indicator provided with RS485 or radio communication port. RS485 cable with 10m IP67 cable as standard.

MAIN CERTIFICATIONS:

Australian legal for trade certificate of approval (NMI S788)

Parts

Available versions

	Part #	Description	List Price	Cart / Quote
	GLR100	RS485 alphanumeric repeater with 110 mm multicolour LED display.	Consult	View
	GLR100-2G4	Alphanumeric radio repeater with 110 mm multicolour LED display.	Consult	View

Options

Columns, supports brackets, visors

Part #	Description	List Price	Cart / Quote
GLR100S	Wall support bracket, adjustable and inclinable. Painted steel housing.	Consult	View
GLR100P	Support bracket for pole, adjustable. Painted steel housing.	Consult	View

Main connactable indicators

Part #	Description	List Price	Cart / Quote
3590EGTT	Advanced Touch Screen indicator with 2 IN, 4 OUT, RS485, AF01 software. Tilting version with stainless steel support for bench/wall installation. Fitted with AF01 software as standard.	Consult	View
3590E	Indicator with AF01 software and external power supply. Built-in rechargeable battery, RJ45 connector, glands and cups not included. TAKE NOTE: no option can be installed at the time of order neither any calibration or approval service. Options can be provided separately.	Consult	View
DFWKXP	17-key indicator. IP65 ABS case, backlit LCD display, and standard weighing programme.	Consult	View
DGT20I-1	Indicator for table/panel mounting with 2 IN and 2 OUT. Stainless steel case, 5-key keypad, LED display, and standard weighing programme. With external power unit 110/230Vac - 12Vdc and IP68 connector.	Consult	View

Communication Interfaces

Part #	Description	List Price	Cart / Quote
RS485C	Built-in RS485 interface (mounting and cable gland excluded).	Consult	View
RS485OPTO	Built-in optoisolated RS485 interface (mounting and cable gland excluded).	Consult	View
DF485	RS485 bidirectional port for DFW series.	Consult	View
OBRF2G4	External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels.	Consult	View

Related Products

3590EGTT Touchscreen Weight Indicator for Industrial Applications

Totally configurable touch screen weight indicator for advanced weighing systems. The 3590EGTT indicator, other than the chosen weighing programme, has an area for the development of specific application programmes, integrated debuggers and programming tools for PCs.

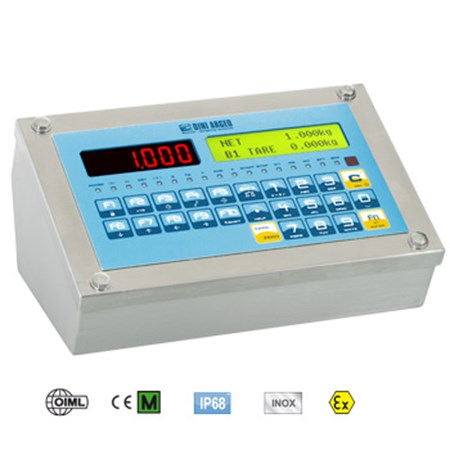

3590E Enterprise 3GD Series Weight Indicator for Advanced Applications in ATEX 2 & 22 Zones

Weight indicator for ATEX areas classified at risk of explosion with protection methods according to ATEX II 3G Ex nR IIC T6 Gc X for gases and ATEX II 3D Ex tc IIIC T85°C Dc IP68 X for dust. The wide range of available software programs guarantees the maximum versatility. Completely programmable printouts and fitted with alibi memory. CE-M approvable (OIML R-76 / EN 45501).

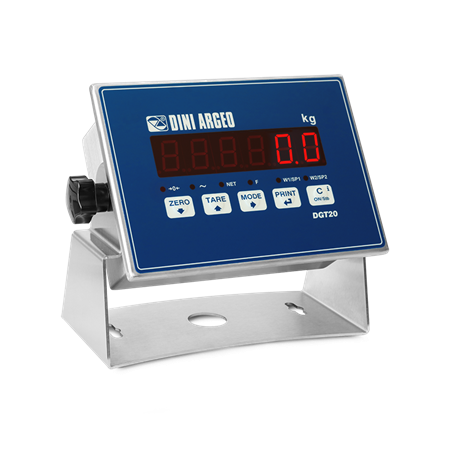

DGT20I: IP68 Stainless Steel Weight Transmitter/Indicator
