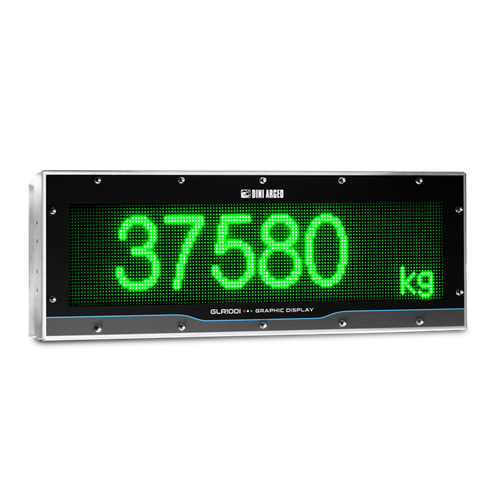

Alphanumeric Weight Repeater "GLR100I"In Stainless Steel And With IP68 Protection

Stainless steel enclosure, with IP68 protection rating. Suitable for outdoor use.
RGB HIGH LUMINOSITY LED matrix display, 605x150 mm.
Numerical mode: up to 6 digits, h= 110mm with metrological icons (stability, zeroing, NET, etc.)
Alphanumeric mode: up to 2 lines of 16 characters, h= 42 mm.
Power supply: 110-240Vac.
Dimensions: 688x250x57mm.
VESA Rear fixings (M6, 100x100mm).

Australian National Measurement Institute

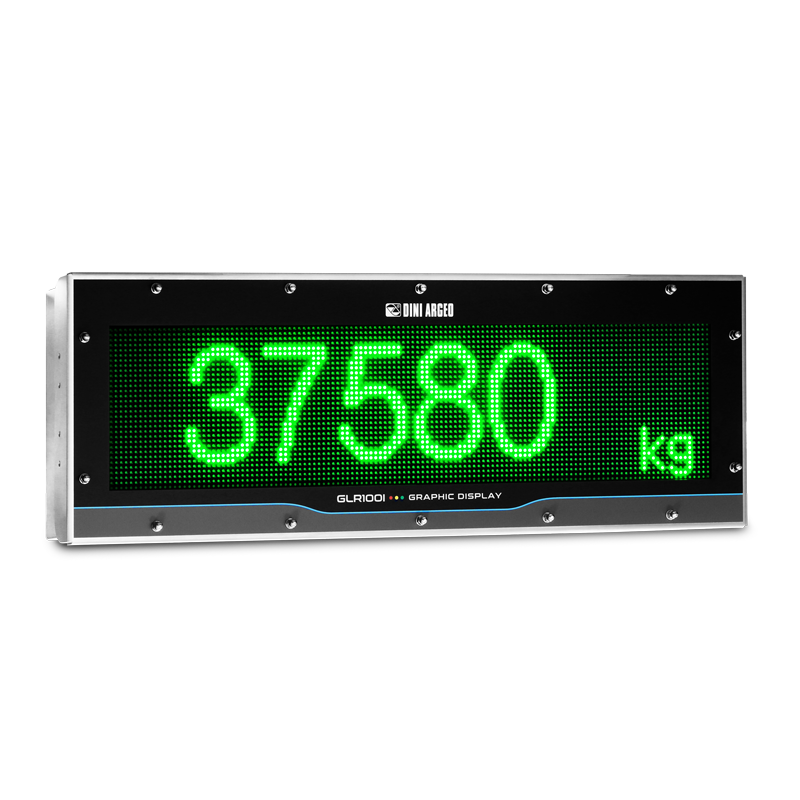

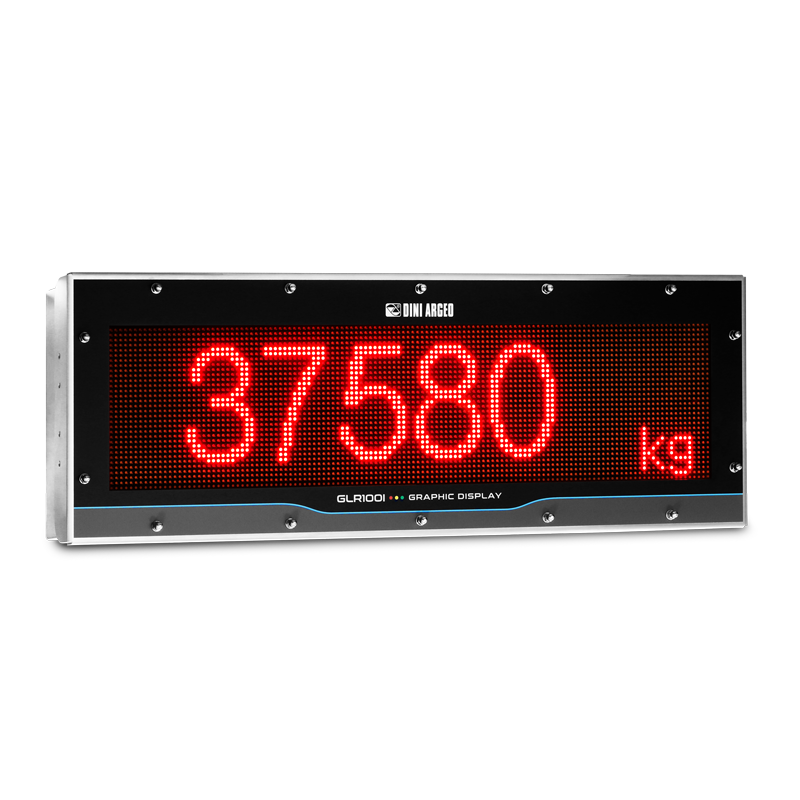

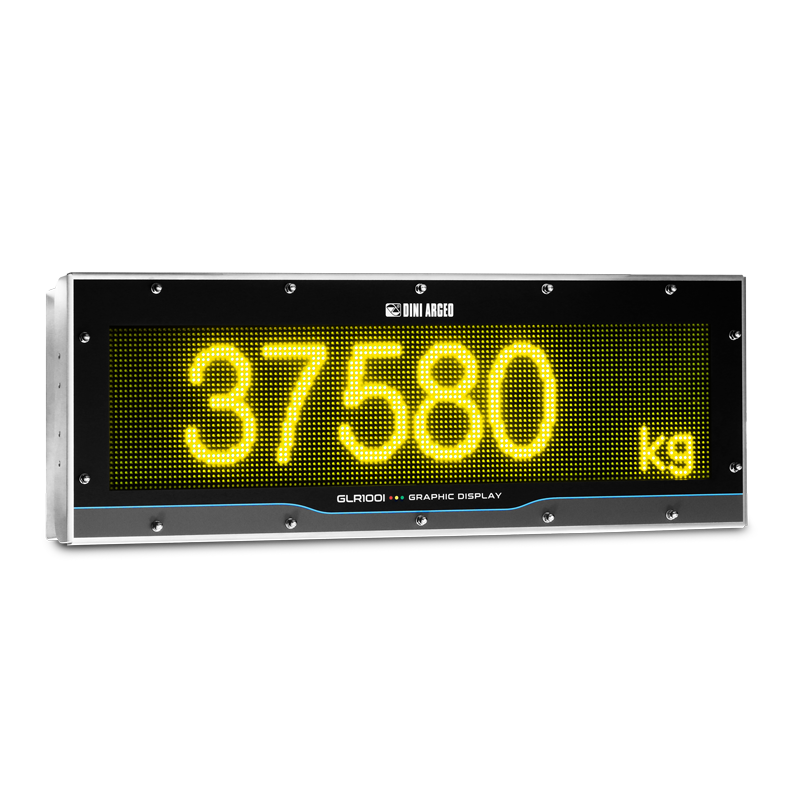

Alphanumeric graphic repeater with RGB HIGH LUMINOSITY LED matrix, ideal for displaying weight and operational messages. Depending on the connected indicator, it is possible to display weight with large digits or customisable operational messages. RGB technology allows you to change the colour displayed, with a traffic light function (red, yellow, green). Stainless steel enclosure and IP68 protection rating.

Alphanumeric Weight Repeater "GLR100I" Specifications

AVAILABLE MODES with 3590 TOUCH SCREEN indicators:

6-digit 110mm Weight repeater
Alphanumeric display with gross and tare weight in the selected language (two 42mm lines)
Display colour management (red, yellow or green), synchronised with the connected weight indicator (only in combination with TOUCH SCREEN series indicators)
Upon request:
- Fully customisable messages, with descriptions, databases, free texts, formulas, targets, etc.
- Screen saver with date and time, displayed when the scale is not in use
- Scroll texts

COMMUNICATION PORTS:

RS485 port for long distance transmission (up to 1000 m) or radio (optional, up to 70m indoor, 150m outdoor). To be combined with indicator provided with RS485 or radio communication port.

AVAILABLE MODES with DFW, DGT, 3590E and CPW indicators:

Weight repeater with 6-digit 110mm

Parts

Available versions

	Part #	Description	List Price	Cart / Quote
	GLR100I	RS485 alphanumeric repeater with 110mm multicolor LED display, stainless steel casing and IP68 protection rating.	Consult	View

Options

Columns, supports brackets, visors

	Part #	Description	List Price	Cart / Quote
	GLR100IV	Attached stainless steel visor. It protects from sun and rain and improves the indicator visibility.	Consult	View
	DGT100S	2 stainless steel brackets for fixing on the ceiling or wall.	Consult	View

Connection cables

	Part #	Description	List Price	Cart / Quote
	RSCBTW	4-core twisted shielded cable (2x2x0.34 mmý), for RS485 communication or analogue output. Polyolefin inner sheath. Tinned copper braid shielding. Outer sheath PVC, diameter 7mm. Temperature range: -30 / +80 øC. Minimum bending radius >/= 6 x O.D. _/m	Consult	View

International power cables

Part #	Description	List Price	Cart / Quote
PWCORDCH	Power supply cord with SEV1011 plug (CH plug).	Consult	View
PWCORDUK	Power supply cord with BS1363 plug (UK plug).	Consult	View
PWCORDUS	Version with US type B power cord (Japan, North and Central America).	Consult	View
PWCORDAUS	Version with AU power cord.	Consult	View

Main connactable indicators

Part #	Description	List Price	Cart / Quote
3590EGTT	Advanced Touch Screen indicator with 2 IN, 4 OUT, RS485, AF01 software. Tilting version with stainless steel support for bench/wall installation. Fitted with AF01 software as standard.	Consult	View
3590E	Indicator with AF01 software and external power supply. Built-in rechargeable battery, RJ45 connector, glands and cups not included. TAKE NOTE: no option can be installed at the time of order neither any calibration or approval service. Options can be provided separately.	Consult	View
DFWKXP	17-key indicator. IP65 ABS case, backlit LCD display, and standard weighing programme.	Consult	View
DGT20IPW	Indicator for table/panel mounting with 2 IN and 2 OUT. Stainless steel case, 5-key keypad, LED display, and standard weighing programme. With internal power unit 110/220Vac.	Consult	View
DGT1S	Weight transmitter on DIN bar, with 2 INPUTS and 2 OUTPUTS. Fitted with 5-key keypad and LED display. Multifunction weighing program.	Consult	View

Communication interfaces for connected weight indicator

Part #	Description	List Price	Cart / Quote
RS485C	Built-in RS485 interface (mounting and cable gland excluded).	Consult	View
RS485OPTO	Built-in optoisolated RS485 interface (mounting and cable gland excluded).	Consult	View
DF485	RS485 bidirectional port for DFW series.	Consult	View
RF2G4-TTL	Integrated 2.4 GHz radio frequency module, complete of TTL port. Max. functioning distance in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. Up to 39 configurable channels. (RF2G4-TTL must be combined with another radio module).	Consult	View
