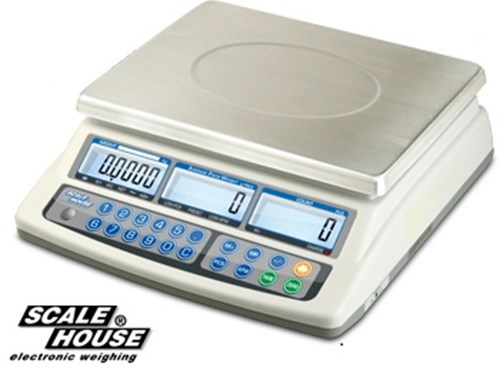

ASC Series Counting Compact Scale
- 3 backlit LCD displays with 6 digits 20mm high, for viewing the weight, average piece weight, and number of pieces.
- Membrane waterproof, numerical and functional keypad with 20 keys and acoustic feedback.
- Stainless steel plate, 230x300mm size.
- Level and adjustable feet.
- Built-in rechargeable battery (about 70h battery life) and 230V power adapter (EU plug).
- RS232/C port for connection to PC or printer.
- Packaging: 410x375x180mm size - approximate weight of 5,1kg.
- Upon request:
- ACCREDIA calibration with issuing of relative certificate;
- 3000e + 3000e dual range CE-M approval.
Counting scale, particularly suitable for taking inventories and counting small parts. Weight or piece quantity check, weight and pieces' totalization, 10 PLU memory. Available also CE-M APPROVED for legal for trade use.
ASC Series Specification
|
Functions: |
|
|
ASC Series Counting Features
Internal sensitivity and minimum recommended A.P.W.:
| Model | ASC6 | ASC15 | ASC30 |
| Internal sensitivity g |
0,02 |
0,05 |
0,1 |
| Min. recommended A.P.W. g |
0,1 |
0,2 |
0,5 |
Available versions
Code |
Max (kg) | d (g) |  2R (g)* |
|---|---|---|---|
| ASC6 | 6 | 0,1 | 1/2 |
| ASC15 | 15 | 0,2 | 2/5 |
| ASC30 | 30 | 0,5 | 5/10 |
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart | |
|---|---|---|---|---|
|
ASC6 | Counting scale with 6 kg capacity, 0,1 g division, stainless steel plate 230x300 mm, 3 backlit LCD displays and membrane waterproof keypad. |
Call for price |
|
|
|
ASC15 | Counting scale with 15 kg capacity, 0,2 g division, stainless steel plate 230x300 mm, 3 backlit LCD displays and membrane waterproof keypad. |
Call for price |
|
|
|
ASC30 | Counting scale with 30 kg capacity, 0,5 g division, stainless steel plate 230x300 mm, 3 backlit LCD displays and membrane waterproof keypad. |
Call for price |
Options
Calibration service only available at time of order
| Part # | Description | List Price | Cart | |
|---|---|---|---|---|
|
CT4 | ISO 17025 calibration certificate from 6 to 60 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail. |
Call for price |
Options only available at time of scale's order
Replacement Parts
Related Products
NCS Series Counting Compact Scale
Compact and portable counting scale, ideal for rentals and inventories, with pieces' totalization function.
NCL Series Counting Compact Scale
Compact and portable counting scale with large plate, ideal for rentals and inventories, with pieces' totalization function. 8 PLU memory.
BCSD Series Dual Loading Counting Scale
Counting scale, connectable to a second remote platform, particularly suitable for taking inventories and for counting small parts. Weight or piece quantity check, weight and pieces' totalization function, 100 PLU memory.
