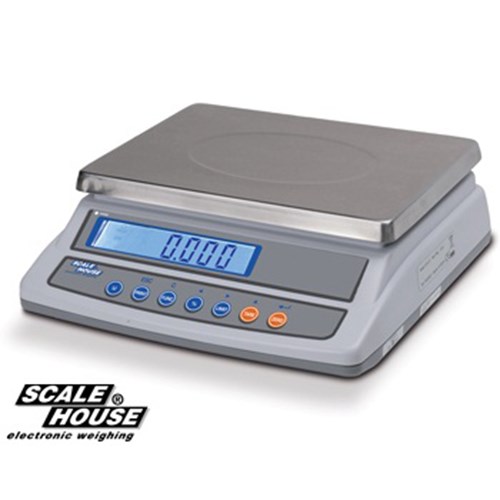

ASW Series Multifunction/Counting Scale
- Backlit LCD display with 6 digits 24 mm high.
- Membrane waterproof keypad with 7 digits and acoustic feedback.
- Stainless steel plate, 230x300mm size.
- Adjustable feet and level.
- Built-in rechargeable battery (about 70h battery life) and 230 Vac power adapter (EU plug).
- Packaging: 415x380x190mm size - approximate weight of 5kg.
- Upon request: ACCREDIA calibration with issuing of relative certificate.
Professional, multifunction, compact scale with the counting, % weight, weight and pieces quantity check and weight totalization functions.
ASW Series Specification
Functions: |
ASW Series Counting Features
Internal sensitivity and minimum recommended A.P.W.:
Model | ASW3 | ASW30 |
Internal sensitivity g |
0,01 |
0,1 |
Min. recommended A.P.W. g |
0,05 |
0,5 |
Available versions
Code |
Max (kg) | d (g) |
---|---|---|
ASW3 | 3 | 0,1 |
ASW30 | 30 | 1 |
Resources/Downloads
Application Stories / Articles
Title | View | Category | Type | |
---|---|---|---|---|
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses | Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|ATEX Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing Kits|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Platforms, Indicators and Accessories|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Mounting Kits|Hygienic Load Cells | Articles |
Parts
Available Versions
Part # | Description | List Price | Cart/Quote | |
---|---|---|---|---|
![]() |
ASW3 | Counting compact scale with 3 kg capacity, 0,1 g division, stainless steel plate, 230x300 mm size, backlit LCD display and membrane waterproof keypad. |
Consult |
|
![]() |
ASW30 | Counting compact scale with 30 kg capacity, 1 g division, stainless steel plate, 230x300 mm size, backlit LCD display and membrane waterproof keypad. |
Consult |
Options
Calibration Service (Only at Order)
Part # | Description | List Price | Cart/Quote | |
---|---|---|---|---|
![]() |
CT3 | ISO 17025 calibration certificate up to 5 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail. |
Consult |
|
![]() |
CT4 | ISO 17025 calibration certificate from 6 to 60 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail. |
Consult |
Spare Parts
Related Products

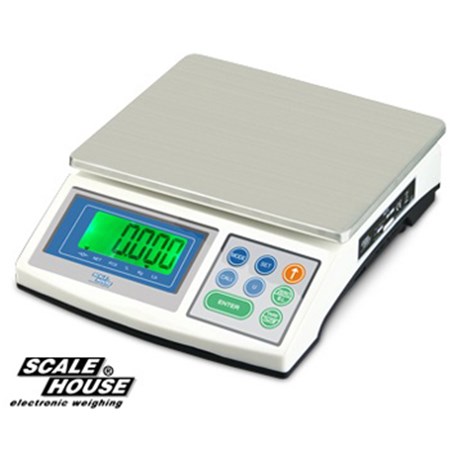

NWS Series Multifunction/Counting Scale
Compact and portable multifunction scale, with counting function and weight check function.

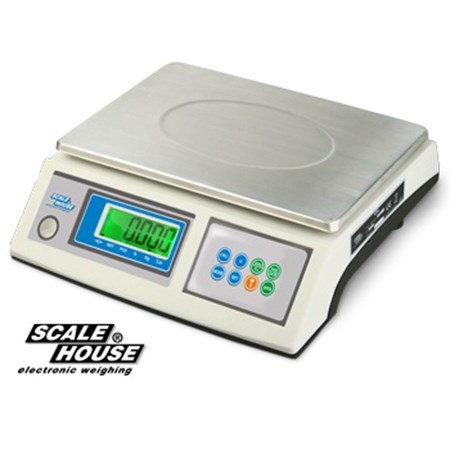

NWL Series Multifunction/Counting Scale
