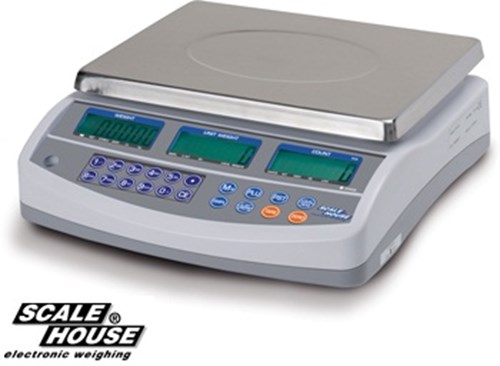

BCSD Series Dual Loading Counting Scale

3 backlit LCD displays with 6 digits 20mm high for simultaneously viewing weight, average piece weight, and number of pieces
Membrane waterproof, alphanumeric and functional keypad with 20 keys and acoustic feedback
Stainless steel plate, 230x300mm size
Level and adjustable feet
Built-in rechargeable battery (about 70h battery life) and 230Vac power adapter (EU plug).
RS232/C port for connection to PC or printer

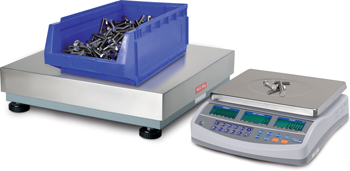

Configurable input for connection to second counting platform, with completely programmable capacity and division
Packaging: 440x370x220mm size - approximate weight of 5,5kg
Upon request: ACCREDIA calibration with issuing of relative certificate

Counting scale, connectable to a second remote platform, particularly suitable for taking inventories and for counting small parts. Weight or piece quantity check, weight and pieces' totalization function, 100 PLU memory.

Specifications

Functions:

counting
- entry of sampling items,
- entry of Average Piece Weight,
- optimization of the A.P.W.,
- indication of insufficient A.P.W./sampling quantity,
- 100 PLU memory, each with: alphanumeric description of 12 characters, tare, A.P.W.
weight or piece quantity check, with 2 thresholds and acoustic alarm
weight and pieces' totalization
unit of measure conversion: kg, lb
zeroing
zero tracking
semi-automatic tare or enterable from keypad
digital calibration
auto switch-off
backlight command
low battery warning

Note: In order to realize the configuration with two platforms, you have to order one SHCAL calibration service for the reference scale and one for the counting scale.

Counting Features

Internal sensitivity and minimum recommended A.P.W.:

Model	BCSD6	BCSD15	BCSD30
Internal sensitivity g	0,02	0,05	0,1
Min. recommended A.P.W. g	0,1	0,2	0,5

Available versions

Code	Max (kg)	d (g)
BCSD6	6	0,1
BCSD15	15	0,2
BCSD30	30	0,5

NOTE: available connection to a second remote platform of SCALE HOUSE series.

Resources / Downloads

Articles

Title	View	Email	Category	Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses		Email	Pallet Truck Scales\|Pallet Scales\|Pallet Weighers\|Electric Pallet Truck Scales\|Ex Pallet Truck Scales\|Hygienic Pallet Truck Scales\|Pallet Weighing\|Weighing Forks\|Hydraulic Weighing\|Counting Scales\|Bench Scales\|Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Weighing Axle Platforms and Indicators\|High Resolution Load Cells\|Off Center Load Cells\|Bending Beam Load Cells\|Shear Beam Load Cells\|Double Shear Beam Load Cells\|Compression Load Cells\|Tension Load Cells\|Column Load Cells\|Assembly Kit Load Cells\|Ex Load Cells\|Hygienic Load Cells	Articles

Parts

Available Versions

Part #	Description	List Price	Cart / Quote
BCSD6	Counting scale with 6 kg capacity, 0,1 g division, stainless steel plate 230x300 mm, 3 backlit LCD displays and membrane waterproof keypad.	Consult	View
BCSD15	Counting scale with 15 kg capacity, 0,2 g division, stainless steel plate 230x300 mm, 3 backlit LCD displays and membrane waterproof keypad.	Consult	View
BCSD30	Counting scale with 30 kg capacity, 0,5 g division, stainless steel plate 230x300 mm, 3 backlit LCD displays and membrane waterproof keypad.	Consult	View

Options

Calibration service only available at time of order

	Part #	Description	List Price	Cart / Quote
	CT4	ISO 17025 calibration certificate from 6 to 60 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View

Calibration service with weight indicator

Part #	Description	List Price	Cart / Quote
SHCAL1	Calibration service for platform up to 30 kg, connected to Scale House weight indicator - NET PRICE	Consult	View
SHCAL2	Calibration service for platform from 31 to 1500 kg, connected to Scale House weight indicator - NET PRICE	Consult	View
SHCAL3	Calibration service for platform from 1501 to 6000 kg, connected to Scale House weight indicator - NET PRICE	Consult	View

Printers/Labelers

	Part #	Description	List Price	Cart / Quote
	OBTPRSH	ABS bench thermal printer for Scale House products (to be combined with specific cable for each scale). 58 mm paper width; 50 mm roll diameter; power supply through built-in 110-240 Vac power supplier.	Consult	View

Connection cables

	Part #	Description	List Price	Cart / Quote
	RSCBBC	1,5 m cable for connecting AFW, ALGM, ASB, ASC, ASG, BCSD and HLD series scales to OBTPRSH printer.	Consult	View
	RSCBPCX	1,5 m RS232/C cable for connecting AFW, ALGM, ALGS, ASC, BCSD, GAM and KS series scales to PC.	Consult	View

Spare parts

Part #	Description	List Price	Cart / Quote
SHAL14	12V 500mA power supplier (EU).	Consult	View
14DFWBA	Lead battery, 6V 4.5Ah. ATTENTION: for the purchase of the entire INSTAPLUGBK extractable rechargeable battery please refer directly to the TPWLK, TPWP or TPWTS pallet truck data sheet.	Consult	View
15ASBF	Adjustable foot.	Consult	View
15BCSDK	Keyboard overlay.	Consult	View
15ASBP	Stainless steel weighing plate.	Consult	View
15ASBU	Plastic underplate.	Consult	View
15BCSDC	Moulded protective covers in transparent plastic.	Consult	View

Related Products

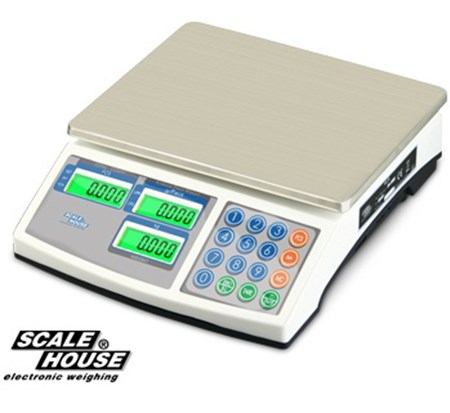

NCS Series Counting Compact Scale

Compact and portable counting scale, ideal for rentals and inventories, with pieces' totalization function.

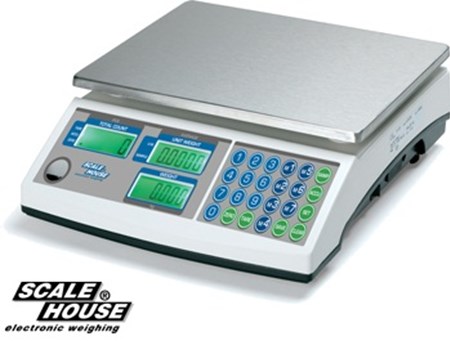

NCL Series Counting Compact Scale

Compact and portable counting scale with large plate, ideal for rentals and inventories, with pieces' totalization function. 8 PLU memory.

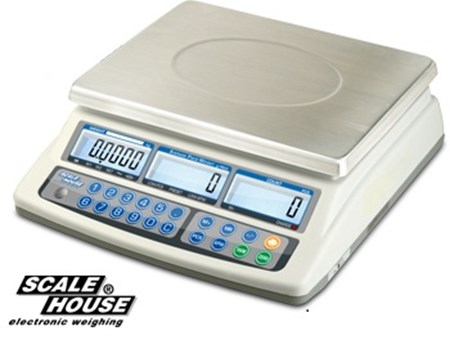

ASC Series Counting Compact Scale
