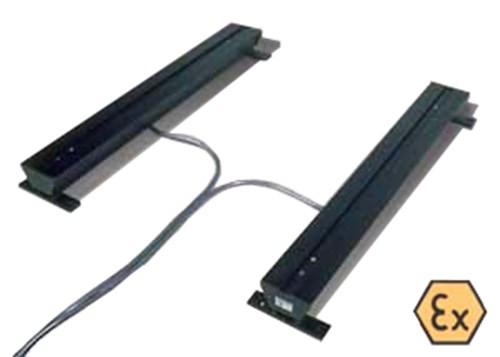

BP Series Weighing Beams

• Functions with 4 IP68 stainless steel shear-beam approved load cells (BPL) and with 2 aluminum off-center approved load cells (BPS-BPM-BPX), made according to OIML R60 standards with protection against dust and water splashes according to IP65 standards (350 Ohm input resistance)
• The structure is made in section and sheet oven-fire painted carbon steel, fitted with articulated joints for compensating the bending and/or expansion of the structure to be weighed, and with stops for protection from accidental bumps
• Shielded 3m long 4-pin cable for connecting each bar with the fitted junction box
• Up to 15 VDC power supply
• IP67 hermetic equalized junction box with shielded 5m long 6-pin cable with connectors for connection to the indicator
• The stainless steel model has the structure, and mechanics in AISI304 and the load cells are treated with an anticorrosion treatment.

Options Only Available at Time of Order:

• Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval (with indicators of our production)
• High resolution model for internal factory use

Options for ATEX Version:

• CCATEX: ATEX certificate for each load cell
• JB4QA: ATEX certified junction box
• DCATEXMECH: ATEX declaration for the PLATFORM (for the load cells ATEX declaration see CCATEX-1 code). Option to be offered only if the platform is ordered without the indicator, if so, refer to the chosen weight indicator available certifications

WARNING
With ATEX weighing systems, when directly weighing light metals (such as aluminum, magnesium, titanium and their alloys), it is necessary that the surface of the installed structure, above the bars, be in stainless steel.
