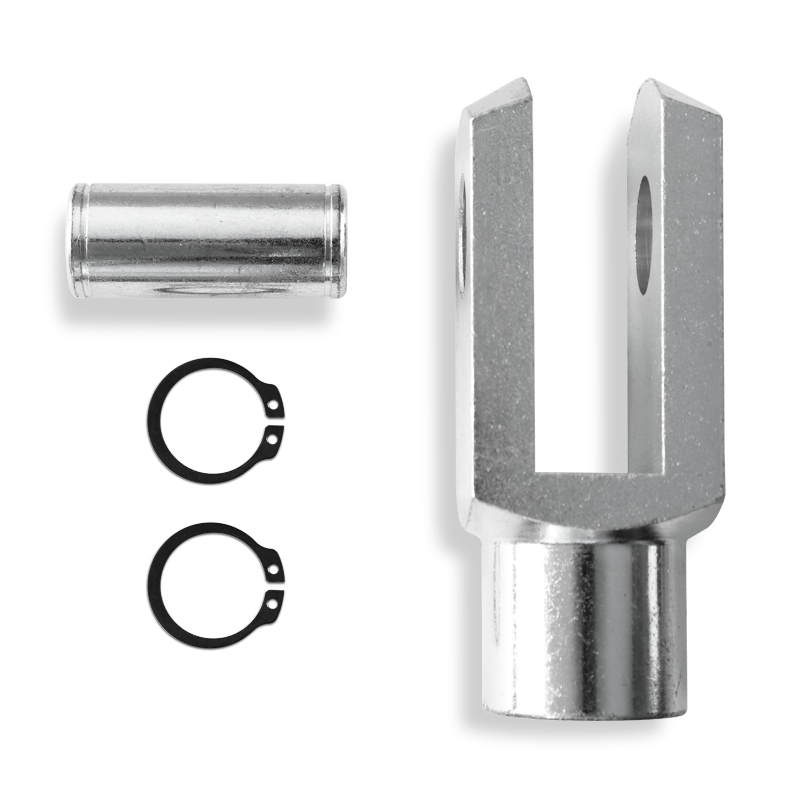

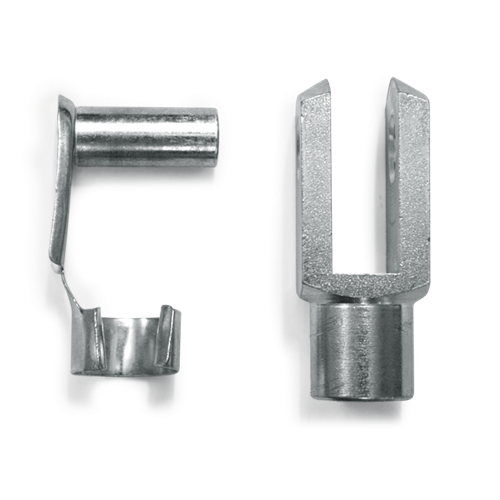

CLV U Clevis for RBJ Rod-End Ball Joints
- Material: galvanized steel
- Easy to install
- Fitted with threaded bush for an easy installation to the supporting system
- Locking pin fitted as a standard, with a quick locking/unlocking system

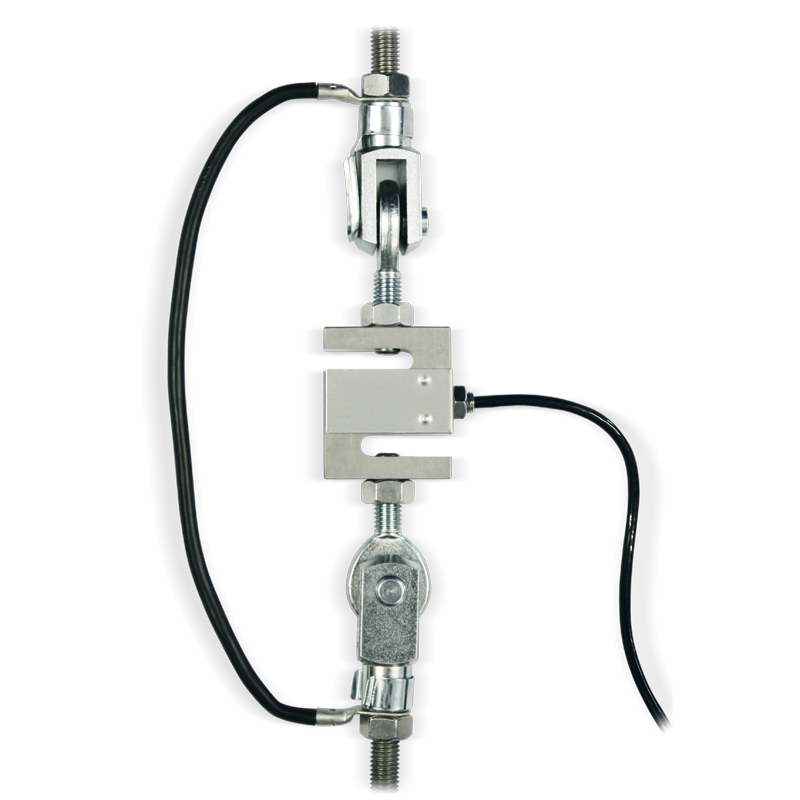

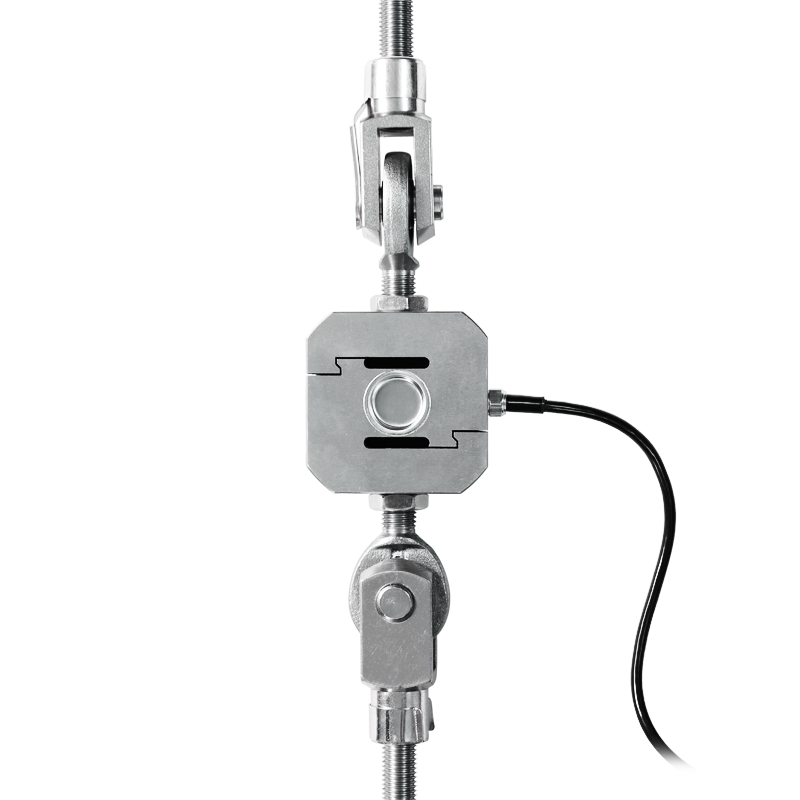

Steel clevis for the easy installation of the tension load cells. In combination with the RBJ rod-end ball joints, they allow you the correct alignment of the suspended load.
Parts
Available Versions
| Part # | Description | List Price | Cart/Quote | |
|---|---|---|---|---|
|
CLVM8 | M8 clevis fitted with pin, for combination with RBJM8. For STG100 and SL capacity up to 50kg. |
Consult |
|
|
|
CLVM12 | M12 clevis fitted with pin, for combination with RBJM12. For STG500, STG1000 and SL capacity from 100 to 1000kg. |
Consult |
|
|
|
CLVM16 | M16 clevis fitted with pin, for combination with RBJM16. For STFC2000 and STU2000-1k. |
Consult |
Options
Articulated joints
| Part # | Description | List Price | Cart/Quote | |
|---|---|---|---|---|
|
RBJM8 | M8 articulated rod-end ball joint. Maximum lifting capacity of 600kg. For STG100 and SL up to 50kg capacity. |
Consult |
|
|
|
RBJM12 | M12 articulated rod-end ball joint. Maximum lifting capacity of 1000kg. For STG500, STG1000 and SL capacity from 100 to 1000kg. |
Consult |
|
|
|
RBJM16 | M16 articulated rod-end ball joint. Maximum lifting capacity of 2000kg. For STFC2000 and STU2000-1K. |
Consult |
|
|
|
RBJM24 | M24 articulated rod-end ball joint. Maximum lifting capacity of 5000kg. For STFC5000 and STFC10000. |
Consult |
