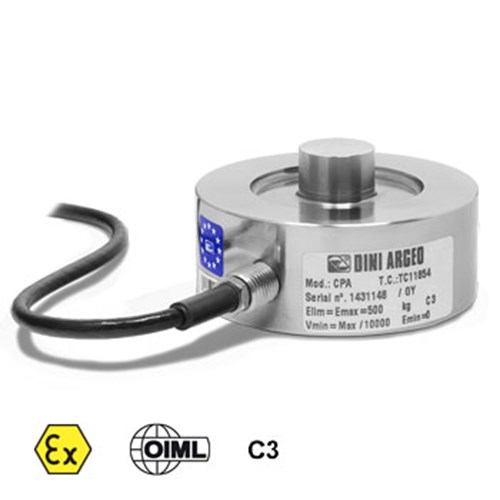

CPA Series Low Profile Compression Load Cells

Capacities from 150 to 10000 kg
OIML C3 class, from 2000 to 10000 kg
Low profile
Great resistance to lateral forces
Stainless steel construction
IP68 protection
Shielded connection cable

Request More Information

HD View

CAPACITIES (kg): 150, 300, 500, 1000, 2000, 3000, 5000, 7000, 10000, 20000, 30000, 50000.

OIML R60, C3 precision class from 2000 a 10000kg.

Stainless steel. IP68 protection.

Stainless steel compression load cells suitable for extremely harsh environments and high temperatures.

Specifications

Minimum load cell verification interval:
Vmin = EMax / 10000

Full Scale Output:
2mV/V +/- 0,1% (1,3mV/V for CPA150)

Repeatability:
0,01% F.S.

Combined Error:
0.025% Emax (≤10t), 0.05% Emax (≥20t)

Temperature effect on zero:
0,0014% /°C

Temperature effect on full scale output:
0,0013% /°C

Compensated Temperature Range:
-10°C/+40°C

Operating Temperature Range:
-30°C/+60°C
* Upon request up to 200°C

Creep error after 4 hours:
0,03% F.S.

Maximum tolerated excitation voltage:
15 Vdc

Input Resistance:
1100 ± 50 Ohm

Output Resistance:
1000 ± 10 Ohm

Zero Balance:
± 2% F.S.

Insulation Resistance:
>5000 MOhm

Safe Overload:
150% F.S.

Shielded cable:
6-wire shielded cable, 5 mm diameter:
- 5 m long for the versions from 150 up to 10000kg
- 15 m long for the versions from 20000 to 50000kg

Main Certifications

OIML R60

Australian legal for trade certificate of approval (NMI S838)

Wiring Code

Wiring Code
Colour	Function
METAL	SHIELD
GREEN	OUTPUT +
VIOLET	SENSE +
RED	INPUT +
WHITE	OUTPUT -
GREY	SENSE -
BLACK	INPUT -

ATEX Version

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:

ATEX II 1G Ex ia IIC T6 (Ta -20÷+40ºC) TX (Ta -20÷+65ºC)
ATEX II 1D tD A20 TXºC (Ta -20÷+40ºC) TXºC (Ta -20÷+65ºC).

The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

The CCATEX certificate is issued after the checks done by qualified technicians, with the help of specific equipments, for each load cell.

IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

Available versions

Code	Max (kg)
CPA150	150
CPA300	300
CPA500	500
CPA1000	1000
CPA2000	2000
CPA3000	3000
CPA5000	5000
CPA7000	7000
CPA10000	10000
CPA20000	20000
CPA30000	30000
CPA50000	50000

NOTE: Capacities up to 1000t upon request.

Resources/Downloads

Application Stories / Articles

Title	View	Email	Category	Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses		Email	Pallet Truck Scales\|Pallet Scales\|Pallet Weighers\|Electric Pallet Truck Scales\|ATEX Pallet Truck Scales\|Hygienic Pallet Truck Scales\|Pallet Weighing\|Weighing Forks\|Hydraulic Weighing Kits\|Counting Scales\|Bench Scales\|Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Platforms, Indicators and Accessories\|High Resolution Load Cells\|Off Center Load Cells\|Bending Beam Load Cells\|Shear Beam Load Cells\|Double Shear Beam Load Cells\|Compression Load Cells\|Tension Load Cells\|Column Load Cells\|Mounting Kits\|Hygienic Load Cells	Articles
How to Choose the Best Load Cell for Your Needs		Email	All Load Cells and Mounting kits	Articles

Parts

Available Versions

Part #	Description	List Price	Cart/Quote
CPA150	Compression load cell, C3, Max=150kg. Stainless steel, IP68 protection rate.	Consult	View
CPA300	Compression load cell, C3, Max=300kg. Stainless steel, IP68 protection rate.	Consult	View
CPA500	Compression load cell, C3, Max=500kg. Stainless steel, IP68 protection rate.	Consult	View
CPA1000	Compression load cell, C3, Max=1000kg. Stainless steel, IP68 protection rate.	Consult	View
CPA2000	Approved compression load cell, C3, Max=2000kg. Stainless steel, IP68 protection rate.	Consult	View
CPA3000	Approved compression load cell, C3, Max=3000kg. Stainless steel, IP68 protection rate.	Consult	View
CPA5000	Approved compression load cell, C3, Max=5000kg. Stainless steel, IP68 protection rate.	Consult	View
CPA7000	Approved compression load cell, C3, Max=7000kg. Stainless steel, IP68 protection rate.	Consult	View
CPA10000	Approved compression load cell, C3, Max=10000kg. Stainless steel, IP68 protection rate.	Consult	View
CPA20000	Compression load cell, C3, Max=20000kg. Stainless steel, IP68 protection rate.	Consult	View
CPA30000	Compression load cell, C3, Max=30000kg. Stainless steel, IP68 protection rate.	Consult	View
CPA50000	Compression load cell, C3, Max=50000kg. Stainless steel, IP68 protection rate.	Consult	View

Options

Version for Very High Temperatures

Part #	Description	List Price	Cart/Quote
CPAHT	Option for high temperatures with compensation up to constant 170°C (with brief peaks up to 200°C) and specific cable (for single load cell).	Consult	View
CPAHTL	Option for high temperatures with compensation up to 85°C and standard cable (for single load cell).	Consult	View

Mounting kits

Part #	Description	List Price	Cart/Quote
KCPN10A	Nickel steel kit for assembling a CPX cell, up to 12,500kg and CPA cell up to 10,000kg (Load cell not included).	Consult	View
KCPN10	Stainless steel kit for assembling a CPX cell, up to 12,500kg and CPA up to 10,000kg (load cell not included).	Consult	View
KCPN10PRO	UNI EN 1090 stainless steel mounting kit for CPX load cells up to 12.500kg and CPA up to 10.000kg (Load cell not included).	Consult	View
KCPN30	Stainless steel kit for assembling a 30.000kg CPX and 20.000kg CPA / 30.000 kg cells (load cell not included).	Consult	View
KCP50	Kit in zinc-plated steel for assembling a 30.000 kg CPX load cell and CPA load cells from 20.000 to 50.000 kg (Load cell not included).	Consult	View

Stay Rod

	Part #	Description	List Price	Cart/Quote
	LNK2635	Galvanized stay rod with ball-and-socket joints. Max 100 kN. For proper installation, 2xLNKST are needed. Note: They can’t be ATEX-certified.	Consult	View
	LNKST	Single plate for stay rod. Fitted with fixing screw. (For proper installation, LNK2635 and a second LNKST are needed). Note: They can’t be ATEX-certified.	Consult	View

Connection Cables

Part #	Description	List Price	Cart/Quote
LCCB	Shielded cable 6x0.25 mm² (suitable for Ex zones). PVC inner sheath. Tinned copper braid shielding. PVC outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 6 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).	Consult	View
LCCBA	Armoured cable 6x0.25 mm² (suitable for Ex zones). PVC inner sheath, diameter 5mm. Iron-zinc alloy armour. Transparent PVC outer sheath, 8 mm diameter. Temperature range: -15 / +70 °C. Minimum bending radius >/= 5 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).	Consult	View
LCCBM	Shielded 4x0,34 mm² cable for moving applications. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).	Consult	View
PRCB	Protection sheathing for shielded cable. €/meter internal Ø 15mm. Maximum orderable length: 100 m (longer lengths available only upon request).	Consult	View

Junction Boxes

Part #	Description	List Price	Cart/Quote

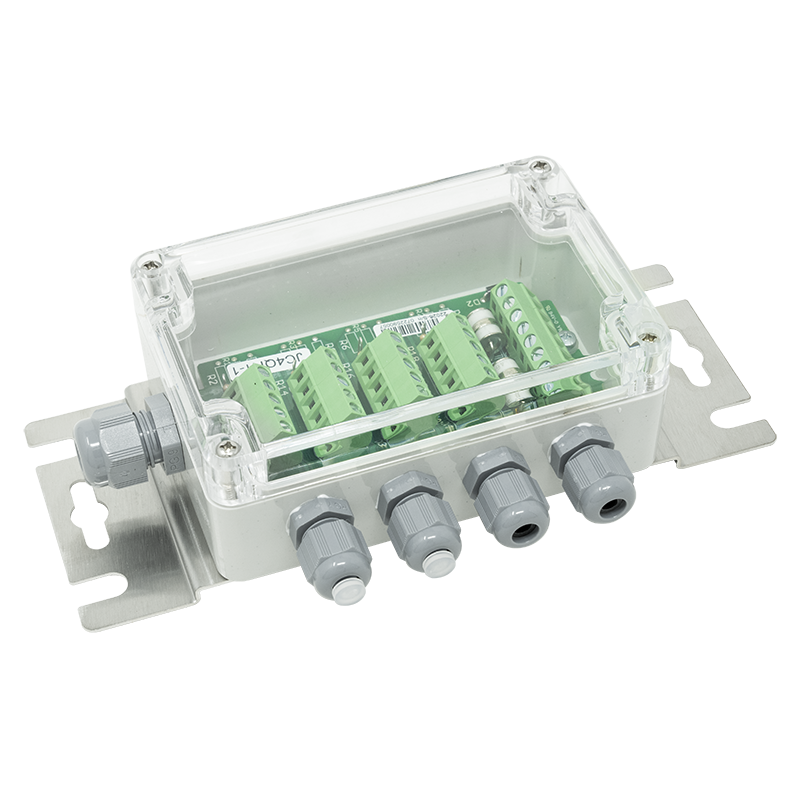

JB4Q	Equalisation box for connection with up to 4 load cells. ABS box, IP67 protection rating, with 4 + 1 fairleads.	Consult	View
JB4QI	Stainless steel equalisation box for connection with up to 4 load cells. IP65 protection rating, with 4 + 1 fairleads.	Consult	View

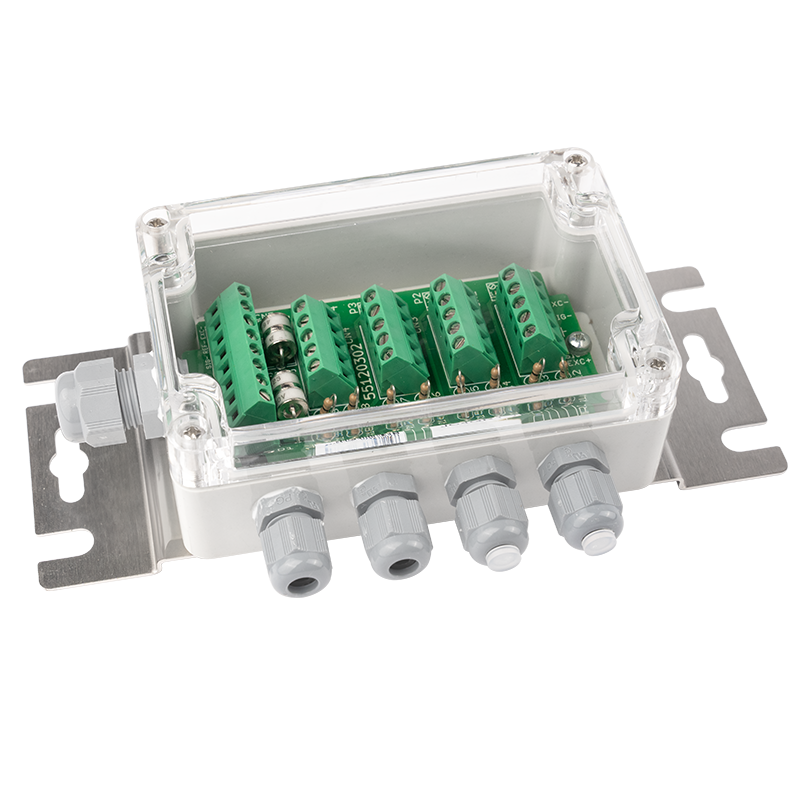

JB4	Junction box with up to 4 load cells. ABS box, IP67 protection rating, with 4 + 1 fairleads.	Consult	View

Available Weight Indicator / Transmitter

Part #	Description	List Price	Cart/Quote
DGT1S	Weight transmitter on DIN bar, with 2 INPUTS and 2 OUTPUTS. Fitted with 5-key keypad and LED display. Multifunction weighing program.	Consult	View
DGT1	Weight transmitter for DIN bar. 5-key keypad, LED display, date/time, alibi memory, and multifunction weighing program.	Consult	View
DGT4	Transmitter for DIN bar with 4 channels, 2 IN and 2 OUT. 5-key keypad, LED display, and standard weighing program.	Consult	View
DGTQ	Transmitter for panel mounting, with 2 IN and 2 OUT. 5-key keypad, LED display, and standard weighing program.	Consult	View

Options for ATEX Version

Part #	Description	List Price	Cart/Quote
ZBA1S	Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
KZBA-1	ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135°C Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
JB4QAI	ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
JB4QA	ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
LCCB	Shielded cable 6x0.25 mm² (suitable for Ex zones). PVC inner sheath. Tinned copper braid shielding. PVC outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 6 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).	Consult	View
EXCB6	Blue shielded cable 6x0.22 mm², only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 7 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).	Consult	View
KMB4-1	Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20°C = Ta = +40°C) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130°C Dc IP65 (-20°C = Ta = +40°C) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
CCATEX-1	Optional ATEX version for single load cell. Marking: ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga and ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
CCATEX3GD	ATEX certificate for each load cell. Marking: ATEX II 3G Ex nA IIC T6 Gc for gas and ATEX II 3D Ex tc IIIC T115°C Dc IP65 for dusts. Complete with manual and ATEX CE conformity declaration (available in EN, DE, FR and IT).	Consult	View
DCATEXMECH	ATEX version for the PLATFORM / LOAD CELL MOUNTING KIT for zone 1/21 (for the load cells ATEX declaration see CCATEX code). Option to be offered only if the platform is ordered without the indicator, otherwise refer to the available certifications for the chosen weight indicator. Provided with safety instructions and ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
DCATEXMB4	ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125°C Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).	Consult	View
