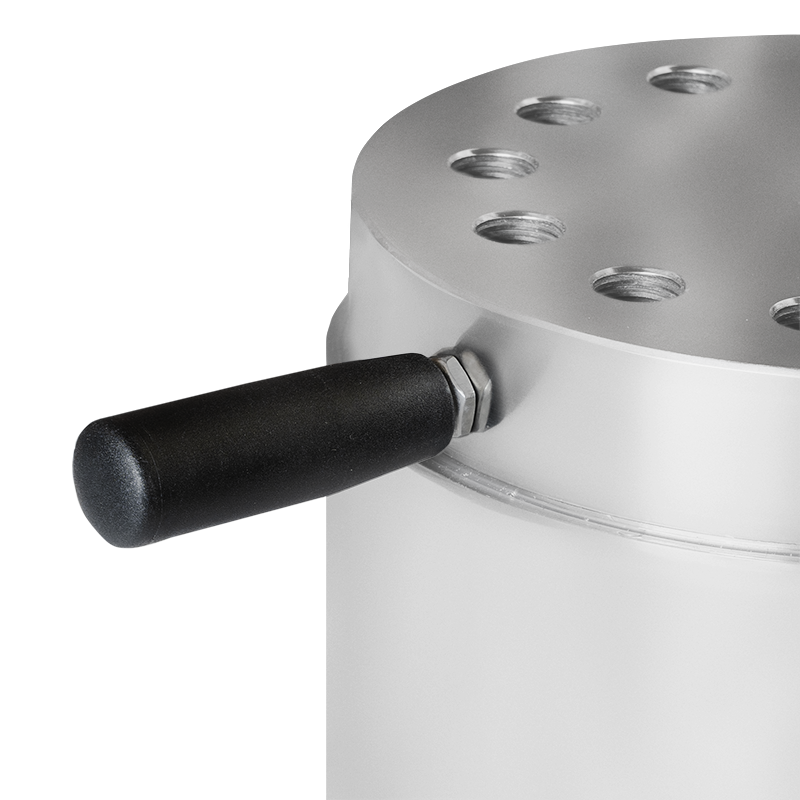

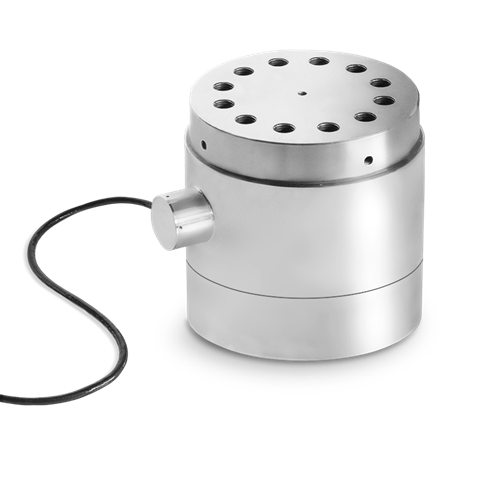

CPH Series Compression Load Cell

Full Scale Output:
2mV/V ± 1%

Repeatability:
0,1% F.S.

Temperature effect on zero:
0,0014% F.S./°C

Temperature effect on full scale output:
0,0013% F.S./°C

Compensated Temperature Range:
-10°C / +40°C

Operating Temperature Range:
-30°C / +85°C

Storage Temperature Range:
-30°C / +90°C

Non-linearity:
0,15% F.S.

Hysteresis:
0,15% F.S.

Creep error after 4 hours:
0,05% F.S.

Maximum tolerated excitation voltage:
15 Vdc

Input Resistance (capacity from 50 to 500 t):
1050 ± 20 Ohm

Output Resistance (capacity from 50 to 500 t):
1050 ± 20 Ohm

Input Resistance (capacity from 800 to 1.000 t):
1400 ± 20 Ohm

Output Resistance (capacity from 800 to 1.000 t):
1400 ± 20 Ohm

Zero Balance:
± 2% F.S.

Insulation Resistance:
> 5.000 MOhm

Safe Overload:
> 150% F.S.

Breaking load:
> 300% F.S.

Shielded cable:
6-wire shielded cable, 5 mm diameter:
- 15 m long for the versions from 50 to 500 t
- 25 m long for the versions from 800 to 1.000 t
