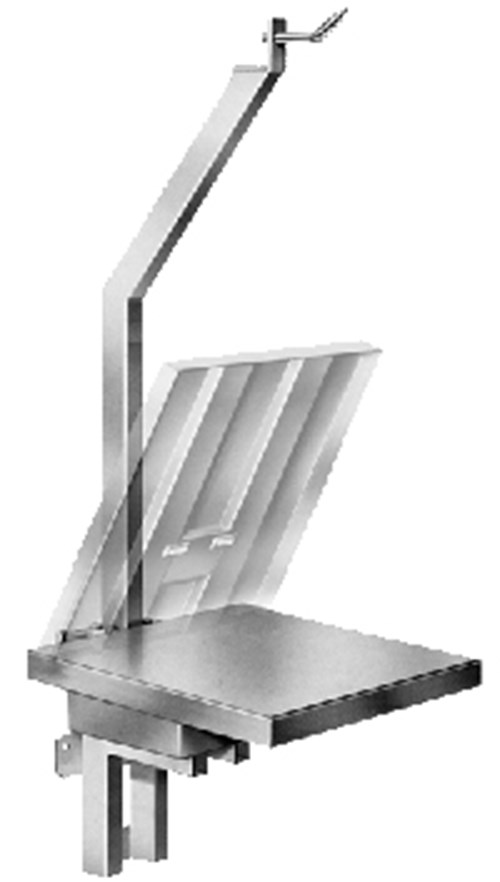

CW Stainless Steel Series Wall Quarter-Weighing Modules

Functions with a stainless steel, single point, approved load cell made according to OIML R60 standards, with protection against dust and moisture according to IP66 standards (350 Ohm input resistance)
Bearing structure which may be fixed to the wall fitted with a quarter-weighing hook
Folding stainless steel loading surface, fitted with a fall-prevention safety piston
Up to 15 VDC power supply
Shielded 3m long 6-pin cable with connectors for connection to the weight indicator

Options to be Specified when Ordering:

Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval (depending on the indicators used)
Models with special sizes and capacities (ask for estimate)

Request More Information

HD View

Stainless steel weighing modules suitable both for weighing hanging quarters and for weighing on a reclining platform. Standard version is with approved load cell.

Parts

Available versions

	Part #	Description	List Price	Cart / Quote
	CW12I15	Wall quarter-weighing platform with 150 kg capacity, 50 g division, stainless steel loading surface 490x500 mm, stainless steel structure.	Consult	View
	CW12I30	Wall quarter-weighing platform with 300 kg capacity, 100 g division, stainless steel loading surface 490x500 mm, stainless steel structure.	Consult	View

Options

Calibration service with weight indicator

	Part #	Description	List Price	Cart / Quote
	DINICAL	Connection to a Dini Argeo indicator and calibration. NET PRICE (*).	Consult	View
	DINICAL-DRC	Connection to a Dini Argeo indicator and calibration. NET PRICE.	Consult	View

Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)

Part #	Description	List Price	Cart / Quote
ECEM	3000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.	Consult	View
ECEM2	CE-M single platform legal for trade multi range approval.	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View

Calibration service with Dini Argeo indicator (only at time of order)

	Part #	Description	List Price	Cart / Quote
	CT5	ISO 17025 calibration certificate from 61 to 300 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
