D-LEGAL Software

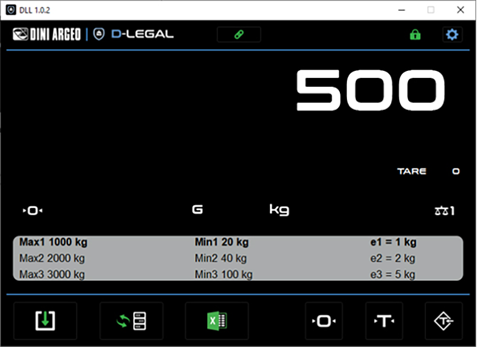

The program interface includes the scale display and functions for zeroing the scale, taring containers, and saving weights to the approved database.
Approved weight database (virtual alibi memory) provides protection against modification and makes data searchable and exportable to Excel.
Virtually unlimited storage memory.
Keyboard emulation function to enter the approved weight directly where it is needed on bills, invoices, etc.
Available in 3 versions:
- D-LEGAL for use in relationship with third parties
- D-API for internal use only
- D-REPE approved repeater.

D-LEGAL IS APPROVED FOR USE IN THIRD-PARTY RELATIONSHIP

Due to the third-party relationship homologation, D-LEGAL enables the creation of homologated Windows application software by leveraging the API library.
Type approval certificate available for download in the download area (TEC 0200-NAWI-12991 R.x)
Refer to the user manual for the registration and approval procedure.

D-LEGAL is a real legal for trade weighing system, a software that turns the PC into the primary indicator of the NAWI (EU Type Examination Certificate according to Directive 2014/31EU and OIML approval R76/2006).

D-LEGAL software can be used to turn a PC into an approved digital weight indicator in compliance with NAWI.

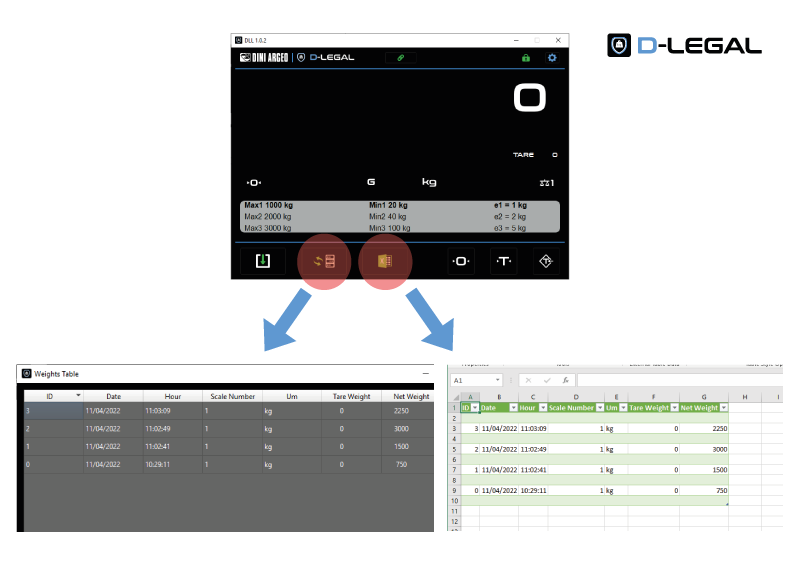

Using a virtual alibi memory for data storage, D-LEGAL can save approved weights in a single file on the PC. There is no memory limit and the data is easily accessible, searchable and can be exported to Excel.

D-LEGAL offers simplified data exchange with external applications through a comprehensive API package.

It is also available as an approved secondary display (D-REPE) and as a non-approved system for internal data management (D-API).

D-LEGAL Software Specifications

DEMO VERSION

Download the executable in order to try out the functionality ofD-API/D-LEGAL in DEMO version (follow the directions in the manual).
Note: DEMO version also requires connection to an indicator in the planned versions.

MINIMUM PC REQUIREMENTS

4GB RAM.
Processor Intel Celeron N3350 1.1GHz or equivalent.
200 MB of free disk space.
Windows 10.
800x600 with 256 colours.

COMPATIBLE INDICATORS AND TRANSMITTERS

DFWL PLUS
DFWLI PLUS
DGT4X
DGT1SX
DGT1P
DGT1SP
DFWIECEX
3590 touch screen serie(with D-API)

Available versions

	Weight Display		Zero	Tare	Save Weight	Alibi memory approved	APIs
D-LEGAL	✔	✔	✔	✔	✔	✔	✔
D-API	✔	--	✔	✔	✔	--	✔
D-REPE	✔	✔	--	--	--	--	--

Parts

Available versions

Part #	Description	List Price	Cart / Quote
D-LEGAL	Legal for trade approved software for recording weighing results to a PC (virtual alibi function) with an integrated API library for interfacing with other software.	Consult	View
D-API	Software for recording weighing results to a PC (for internal use) with an integrated API library for interfacing with other software.	Consult	View
D-REPE	Legal for trade approved software for repeating weight on a PC	Consult	View

Options

Compatible indicators

Part #	Description	List Price	Cart / Quote
DFWL-10	Weight indicator PLUS version with ABS case and 5-key keypad. Backlit LCD display and standard weighing program.	Consult	View
DGT4X	High speed weight transmitter for DIN bar with 4 channels, 2 IN and 2 OUT. 5-key keypad, LED display.	Consult	View
DGT1SX	Weight transmitter on DIN rail, with 2 INPUTS and 4 OUTPUTS. Fitted with 5-key keypad and LED display. Multifunction weighing program.	Consult	View
DGT1P	Panel weight transmitter with aluminum case. 2 IN and 2 OUT. 5-key keypad, LED display.	Consult	View

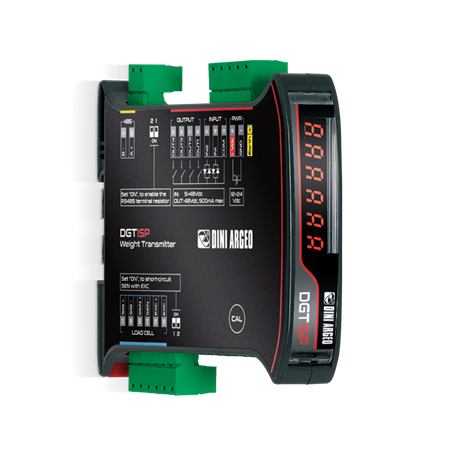

DGT1SP	Weight transmitter on DIN rail, with 2 INPUTS and 4 OUTPUTS. Fitted with 5-key keypad and LED display. Multifunction weighing program.	Consult	View
DFWIECEX	IECEX and ATEX certified weight indicator for zones 1, 21, 2, 22. Protection: Ex II 2(2)G(1)G Ex ib [ib Gb] [ia Ga] IIC T4 Gb X for gas and Ex II 2(2)D(1)D Ex tb [ib Db] [ia Da] IIIC T135øC Db X for dust (Ta=0øC/+50øC). Always combine with IECEXPW power supply or IECEXB battery. Includes printed safety instructions and EU ATEX declaration of conformity (EN, DE, FR, ES, IT).	Consult	View
6116EVO4X	High performance industrial touch screen PC, stainless steel IP67. Integrated high-speed 4-channel weighing card configurable exclusively from PC. NOTE: if used for approved applications, add the optional D-LEGAL programme.	Consult	View
6116EVO4XKB	High performance industrial touch screen PC, stainless steel IP67. Integrated high-speed 4-channel weighing card configurable from PC and via keyboard and display on rear panel.	Consult	View

Related Products

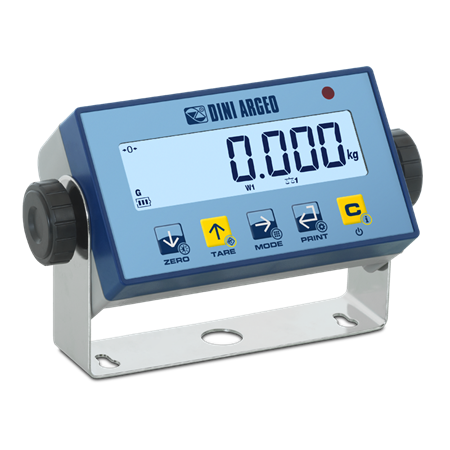

DFWL: Multifunction Weight Indicators

High performance and reliability at a competitive price. The DFWL digital weight indicator is versatile and easy to programme and use. The wide range of available functions and interfaces, make it suitable for many different kinds of industrial and commercial weighing applications. Suitable for pallet truck scales, fork lifts and automotive. Standard fitted with a support bracket with adjustable inclination, for use on the table, column, or wall. CE-M approvable (OIML R-76 / EN 45501).

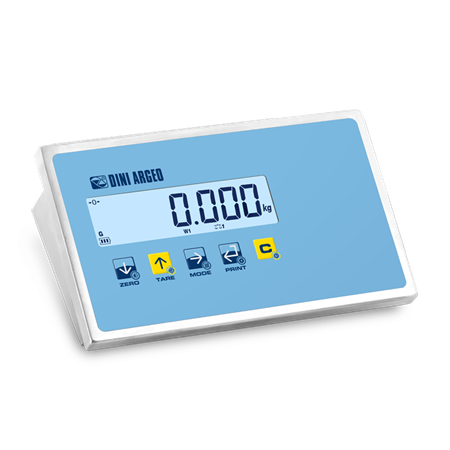

DFWLI: Multifunction Weight Indicator, In IP68 Stainless Steel Case

Easy to programme and use, versatile and high performing weight indicator. The wide range of available functions and interfaces, make it suitable for multiple industrial and commercial weighing applications, such as floor scales, mobile weighing, etc. Case in IP68 stainless steel. CE-M approvable (OIML R-76/EN 45501).

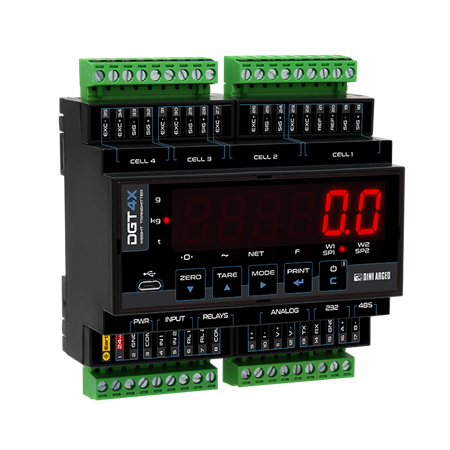

DGT4X High Speed Weight Transmitter

Weight transmitter for weight transfer to PLC via Fieldbus, analog output or RS485. It allows the reading and diagnostics of each load cell or each connected scale.

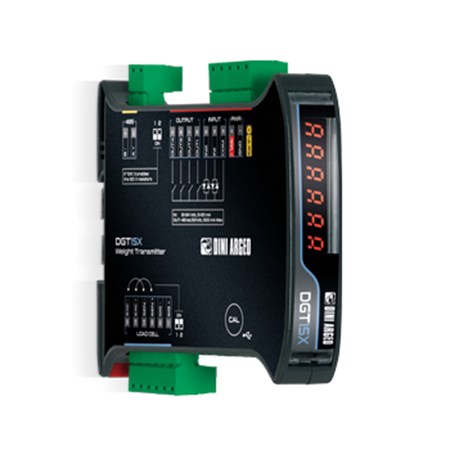

DGT1SX High-Speed Digital Weight Transmitter

High-performance multifunctional weight transmitter, the fastest of the Dini Argeo range.

DGT1S PLUS: Multifunction Digital Weight Transmitter

Compact multifunction weight transmitter, for DIN rail mounting. It allows the direct reading and diagnostics of the connected weighing system.

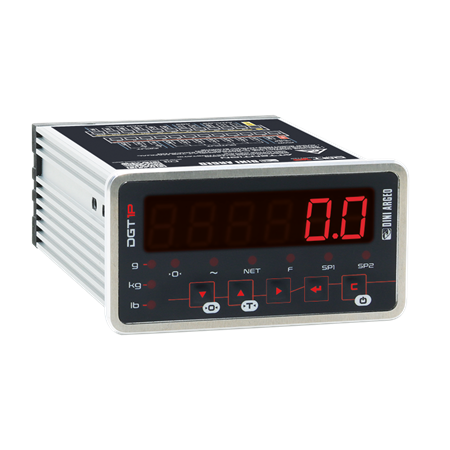

DGT1P Panel Digital Weight Transmitter/Indicator
