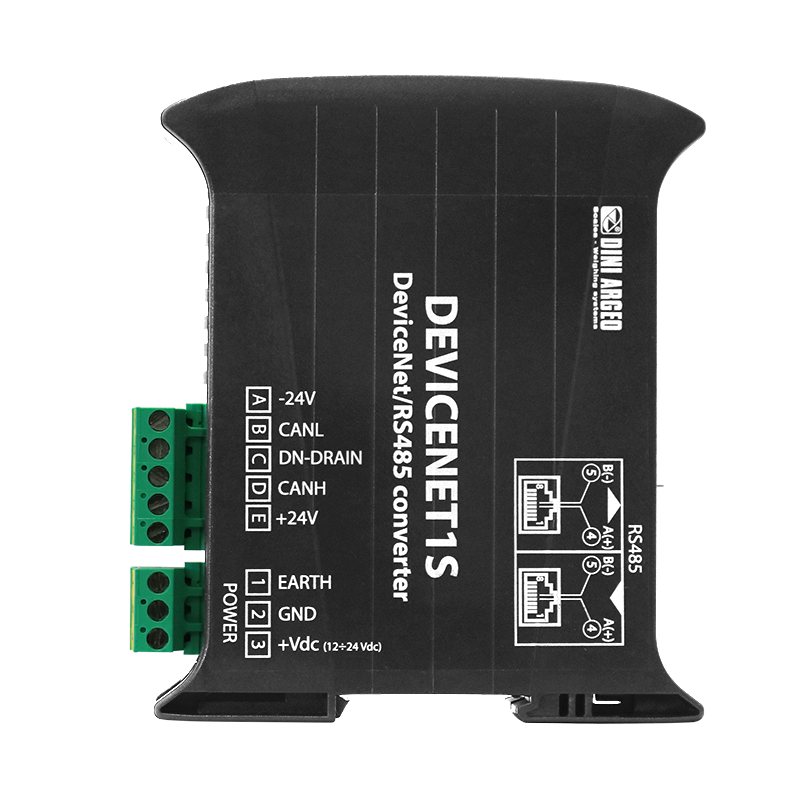

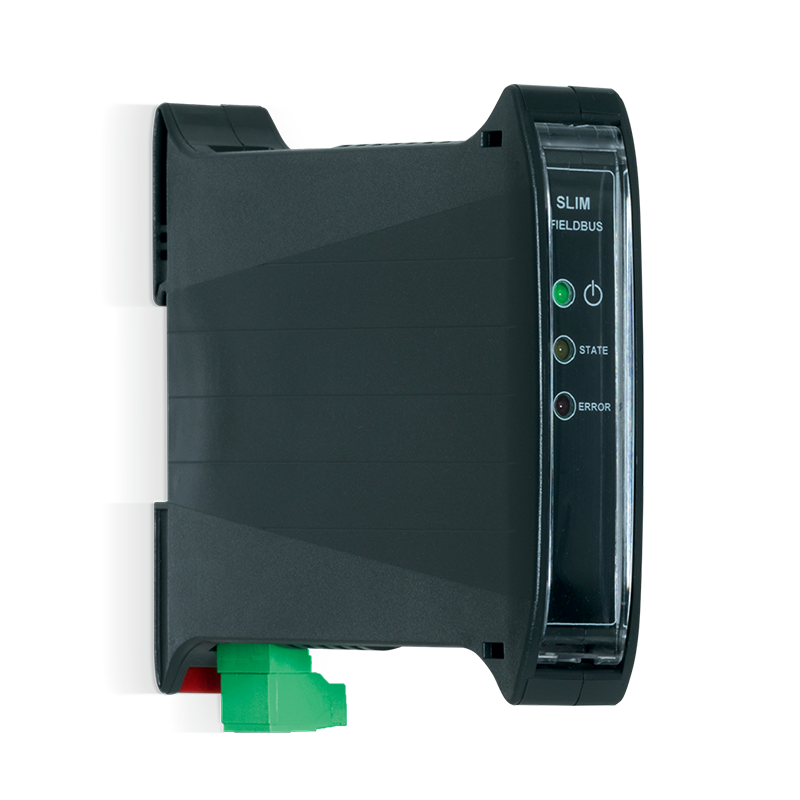

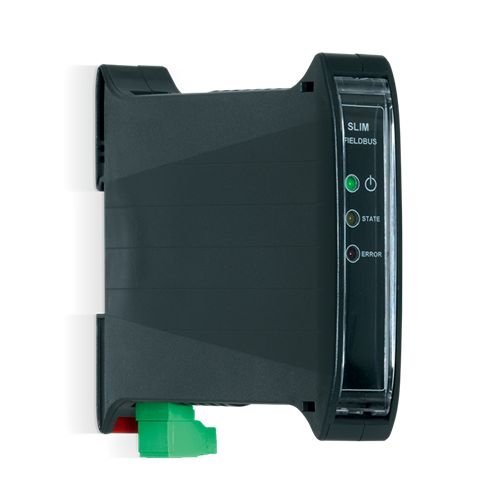

DEVICENET interface for weighing scales network or single weighing scale

DEVICENET CONVERTER FOR SINGLE WEIGHING SCALE:

• By connecting the DEVICENET to a single weighing scale or by selecting one from the scales network, the DEVICENET protocol transmits the following data and controls:
  - NET, GROSS and TARE weight
  - Weight status (for example; positive, negative, stable, unstable)
  - Error condition (es. overload, underload)
  - DIGITAL INPUT status
  - RELAY OUTPUT status
  - SETPOINT output writings
  - Aliby Memory
  - Calibration
  - Configuration SETUP

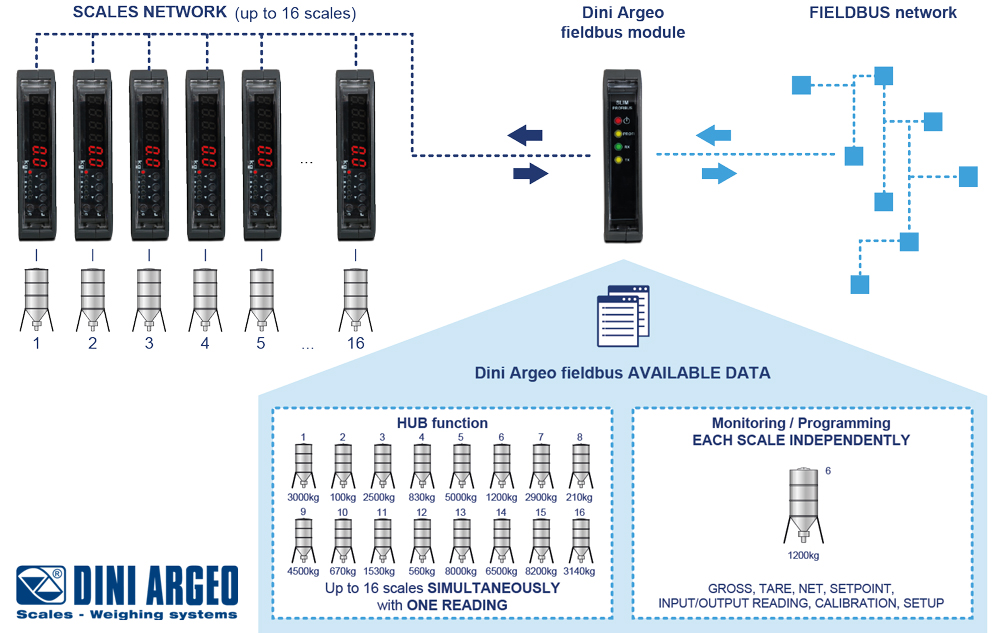

DEVICENET HUB FUNCTION, UP TO 16 WEIGHING SCALES:

• This configuration permits to monitor simultaneously all the data of the weighing scales network by DEVICENET protocol.
  In detail:
  - NET weight and GROSS weight of the scales
  - Weight status (for example, positive, negative, stable, unstable)
  - RELAY OUTPUT status
  - DIGITAL INPUT status
  - Error condition (e.g. overload, underload)
