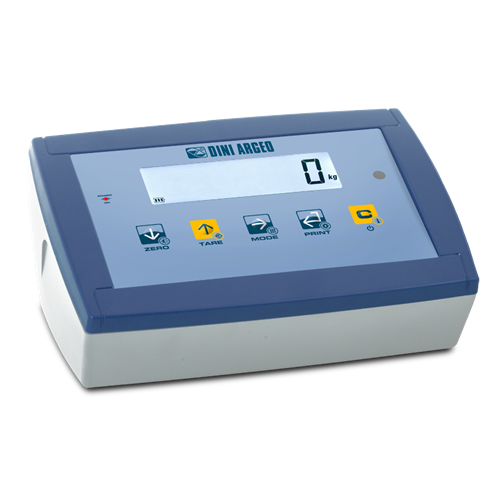

DFW XP Multifunction Weight Indicators

I/O Section:

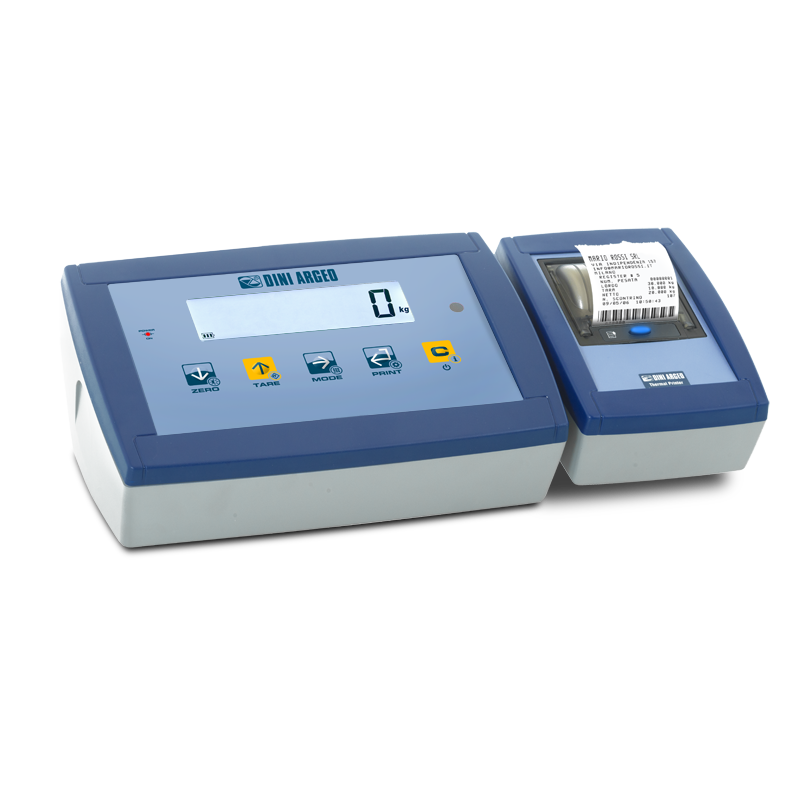

• RS232/C port configurable for connection with printer/labeller, or for attached printer.
• RS232/C (or optionally RS485) bi-directional port configurable for PC, PLC, remote display, and radio modem.
  Quick RJ RS232 plug connection.

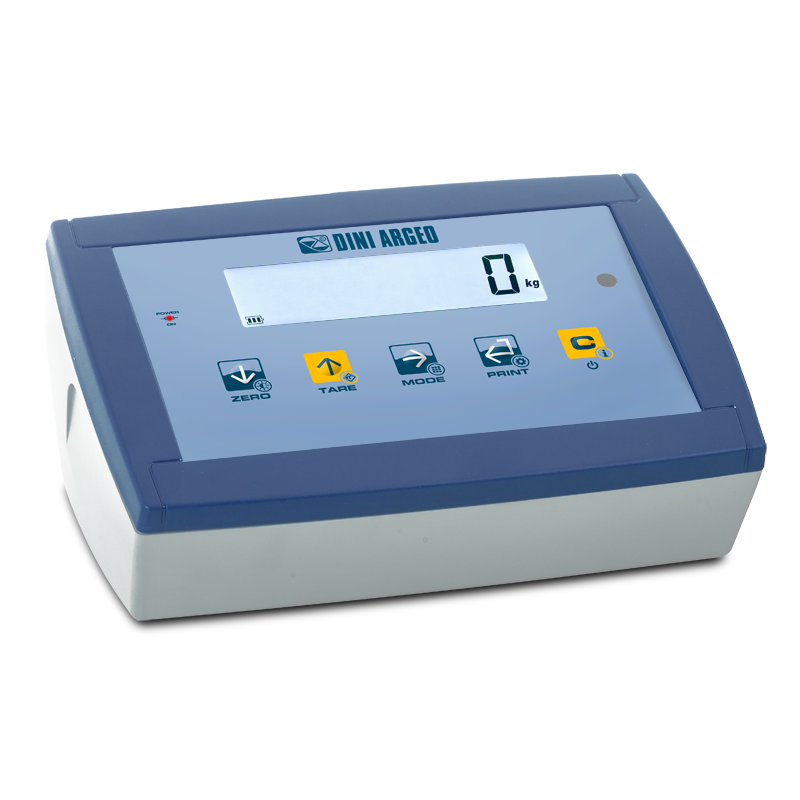

• IR input only available for models with simplified 5-key keypad.

Keyboard Functions:

• Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching, backlit setting, function mode quick selection, user menu.

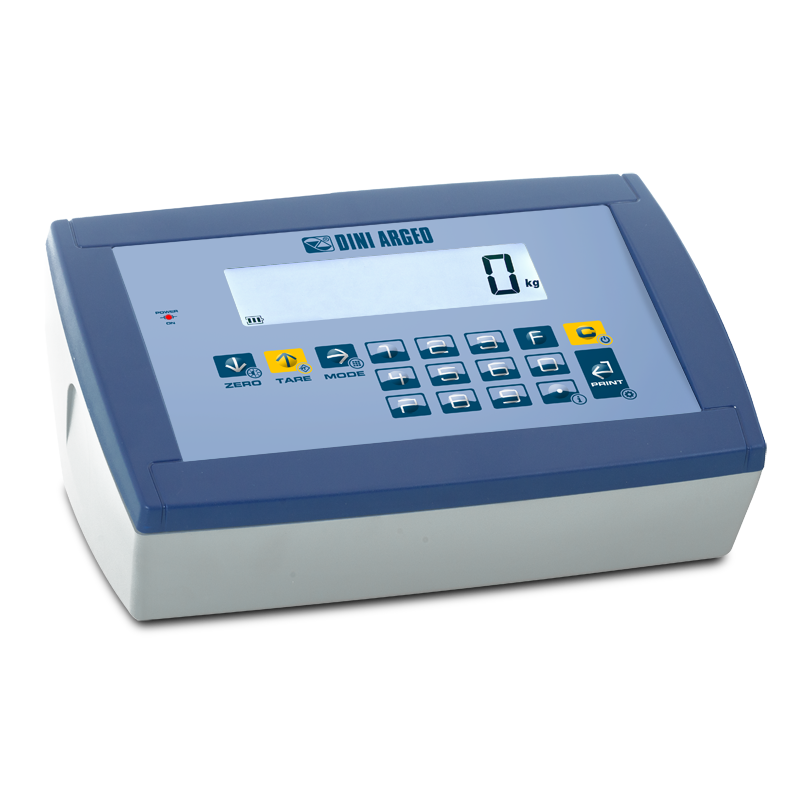

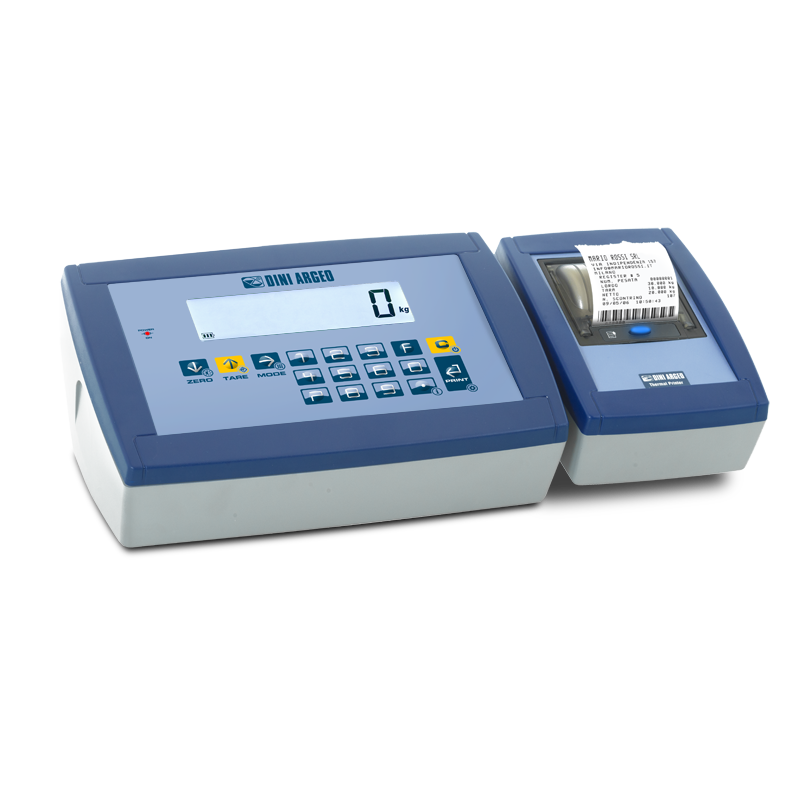

  17-key Version: Database of 20 tares, 2 Numeric IDs, keyboard lock, repetition of last printout made, quick target insertion, APW, threshold and setpoint.

Master/Repeater Options:

• Specific program (MSTSLV code) for use of the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.

  FUNCTIONING MODES:
• Multi-scale repeater (MASTER):function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.
• UNIVERSAL weight repeater:
  function which allows to repeat the weight of any scales, through the configuration of the input string.

Selectable Function Modes:

• The user can select the operating modes directly using the dedicated key*:
  - High resolution display x 10
  - Precision weighing with temporary recalibration via a sample weight (for internal factory use)
  - Net/Gross
  - Lb to Kg converter
  - Free conversion factor (for meter and litre counters etc.)
  - Weight totalizer
  - Formulizer
  - +/- controller with quick target and threshold input
  - Percentage weighing
  - Percentage batching with programmable target
  - Piece counter
  - Hold
  - Two-speed filling/batching with reset upon starting (with optional DFIO)

  The “alibi memory” and “setpoint” functions are available in combination with the required operating mode and they are activated automatically when installing the relevant optional board.


• Optional functions:
  - PEAK, detection of weight peaks (code DFWPK)
  - Newton to Kg converter (code DFWPK)
  - Input-output (on request).


• Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.

  * These quick access keys to the menus can be blocked by configuring a dedicated password.

Available Functions from Remote Control:

• Optional radiofrequency 6-key remote control: zero, tare, enable / disable function, print, switch-off.
• Optional infrared 19-key remote control: zero, tare / manual tare, enable / disable function, print, switch-off (IR input only available for models with simplified 5-key keypad).

Main Certifications:

• EU Type Examination Certificate (45501:2015)
• OIML R76
• Australian legal for trade certificate of approval (NMI S788)

LANGUAGES AVAILABLE FOR PRINTING

• IT, EN, FR, DE, ES, PT, CN*, EL*

  * For Chinese and Greek a programming of the printer/labeler is required (S1, only at the time of order)
