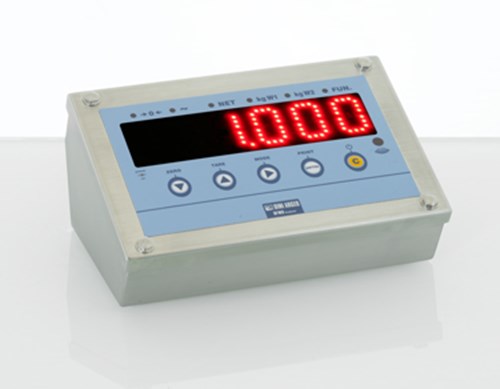

DFWDXT Indicator with Large and Bright Red LED Display
Waterproof 5-key functional keypad.
6 large and very bright 40 mm LED digits, easily visible from all angles and from great distances, with an adjustable brightness intensity.The SMD technology guarantees a high efficiency and brightness, also in full sunlight.
6 LED for indication of active functions.
Stainless steel case with IP68 protection against rain and dust, easy to clean and resistant in harsh and corrosive environments.
Suitable for use on the table, or wall.
Dimensions 264x174x115mm.
Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/e in CE-M approved version for legal for trade use.
Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
Up to 8 signal linearization points.
A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.
Digital calibration and set-up from keyboard or from PC with DINITOOLS™.
Power supply 110-240Vac or 6 Vdc through fitted built-in rechargeable battery.
Connection with up to 8 load cells with 350 Ohm input resistance.
Digital weight indicator, with large and very bright and efficient, 40 mm red LED matrix display (SMD technology), easily visible from all angles, from long distances, and in full sunlight. Brightness intensity is easily adjustable through the software on PC. Its high performance and available programmes make it suitable for all industrial and commercial applications. CE-M approvable (OIML R-76 / EN 45501).
The RS232/C port is configurable for connecting with a printer/labeler, or for an attached printer. The RS232/C (or optionally RS485) is a bi-directional port configurable for PC, PLC, remote display, and radio modem. Quick RJ RS232 plug connection.
This indicator comes with an optional repeater that has two functioning modes. The multi-scale repeater (MASTER) is a function which allows repeating of up to 32 independent scales, with the possibility of managing their functions or displaying and printing the sum of the weights of all the scales. The universal weight repeater is a function which allows the weight of any scale through the configuration of the input string.
RS232/C port configurable for connection with printer/labeler, or for attached printer.
RS232/C (or optionally RS485) bi-directional port configurable for PC, PLC, remote display, and radio modem. Quick RJ RS232 plug connection.
Master/Repeater Options:
Specific programme (MSTSLV code) for use of the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.
FUNCTIONING MODES:
Multi-scale repeater (MASTER): function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.
UNIVERSAL weight repeater: function which allows to repeat the weight of any scales, through the configuration of the input string.
KEYBOARD:Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching.
SELECTABLE FUNCTIONS: - High Resolution Weighing x 10. - Net/Gross or lb/kg conversion. - Accumulation. - Formula weighing. - +/- Checkweighing. - Percentage weighing. - Approved transmission of the weight to PC/PLC or data recording on MMC/USB (with Alibi memory ALMEM option). - Counting(Max. resolution of 1.500.000 divisions). - Hold. - Set Point Control (with DFIO option).
Main Certifications:
EU Type Examination Certificate (45501:2015)
OIML R76
Australian legal for trade certificate of approval (NMI S788)
"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).
PC software for vehicle weighing. Combinable with DFW, DGT and 3590 series' weight indicators. Databases for storing the customer, material, and vehicle data, management of the totals and programmable printouts. Requires an Alibi Memory.
Thermal transfer or direct thermal labelling machine Supplied with standard peel mechanism. Maximum printing size 25400 x 108 mm. Maximum roll O 127 mm and width up to 112 mm.
Label roll and ribbon not included.
External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels.
External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels.
Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners.
Attention: this interface is not suitable for Master-Slave systems.
Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels (if applicable).
Built-in optoisolated analog output, 0-4/20 mA, 0-10VDC (cable gland excluded). For DFW, 3590 and CPW indicators. Output -10/+10VDC upon request, only at time of order.
NOTE: For 3590, IOEXPB option board is required, available depending on the model.
Stainless steel 3 way control light (for indic. with relais output). For attached mounting to the stainless steel indicators of the "XT" line. Connection cable and power supply from indicator.
Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Manual and ATEX UE CONFORMITY DECLARATIONS (available in EN, DE, FR, ES and IT).
ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. It can connect up to 8 350 Ohm load cells. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135øC Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).
ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125øC Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).
Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20øC = Ta = +40øC) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130øC Dc IP65 (-20øC = Ta = +40øC) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).
ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
Blue shielded cable 6x0.22 mmý, only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 7 x O.D. _/m
Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.
