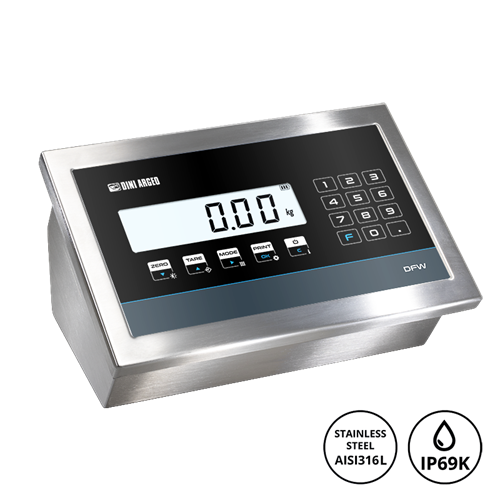

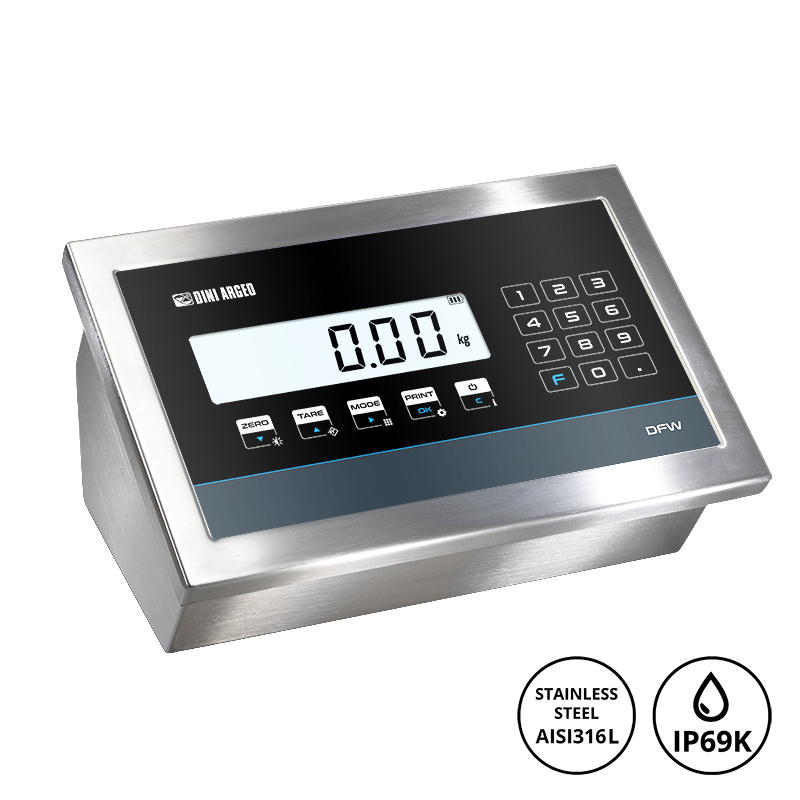

DFWK HYGIENX®: New Multifunctional Weight Indicator for Industrial Industries with High Hygiene Requirements

FUNCTIONS

• Operation modes selectable directly by the user, via dedicated key*:
• High-resolution display x 10
• Precision weighing with temporary recalibration by sample weight (for internal factory use)
• Net/Gross
• lb/kg conversion
• Free conversion factor (for meter-counting systems, liter counters etc.)
• Weights totalization
• Formulation
• +/- control, with rapid target and threshold entry
• Percentage weighing
• Percentage dosing with programmable target
• Piece counting
• Hold
• Two-speed filling/dosing with zeroing at start (with optional DFIO).
  The "alibi memory" and "setpoint" functions are available in combination with the desired mode of operation and are automatically activated when the corresponding optional board is installed; thus, for example, totalizing, saving each aliby memory weighing, and activating relay outputs are possible.

  *These quick menu access keys can be inhibited by configuring a dedicated password.

I/O SECTION

• Bi-directional RS232/C port configurable for connection to remote printer/labeler
• Bi-directional RS232/C (optional RS485) port configurable for PC, PLC, additional remote display or radio modem

MAIN CERTIFICATIONS

• EU Type Examination Certificate (45501:2015)
• OIML R76
• Australian legal for trade certificate of approval (NMI S788)
• IP68 and IP69K protection rating

FUNCTIONS AVAILABLE FROM REMOTE CONTROL

• 6-key radio frequency remote control:
  zero; tare; enable/disable function; print; shutdown.

GMP-COMPLIANT PRODUCT

• This product is a weighing instrument of high quality and precision, designed and manufactured for use in the food, chemical and pharmaceutical industries. It is manufactured according to GMP (Good Manufacturing Practices) standards, in stainless steel, with specific surface treatment and other construction features required in food, chemical and pharmaceutical environments.
