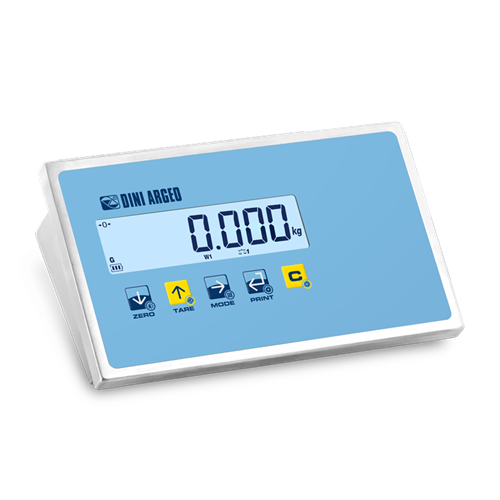

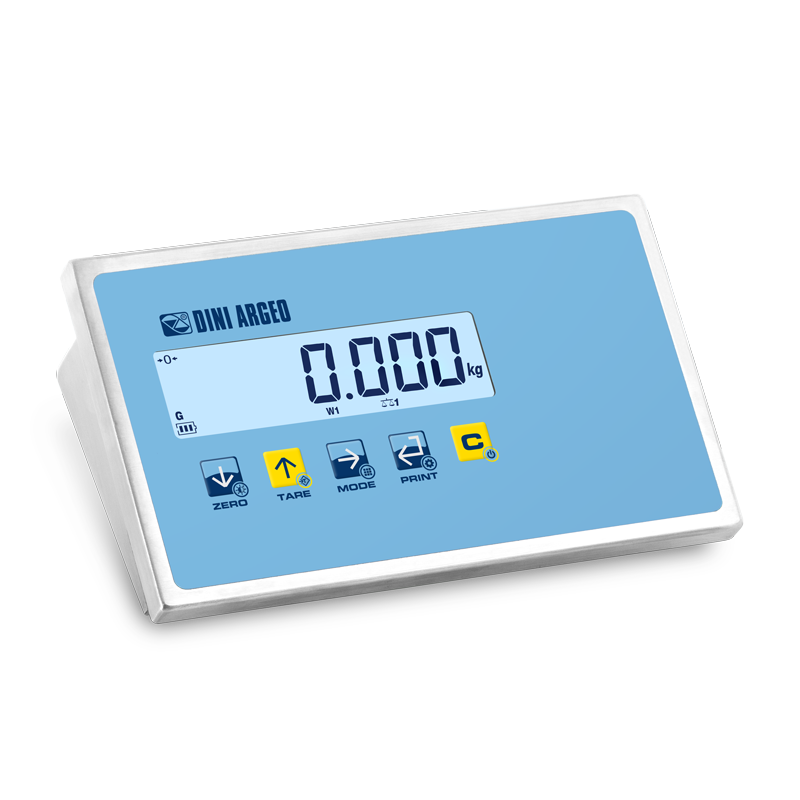

DFWLI PLUS: MULTIFUNCTION WEIGHT INDICATOR ADVANCED VERSION WITH IP68 STAINLESS STEEL CASE

5/17-key functional waterproof keypad, with indication for quick access to main functions and regulations.
LCD 25mm backlit display with 6 high contrast digits and icons for indication of active functions.
Waterproof IP68 STAINLESS STEEL case, with sealed rubber gasket, easy to clean and resistant in harsh and corrosive environments.
Dimensions in mm: 243x145x78,4 mm.
Suitable for use on the table, column, or wall.
A/D 24 bit converter, 4 channels, up to 200 conv./sec. autoselect and up to 8 signal linearisation points.
Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/e in CE-M approved version for legal for trade use.
Up to 1.000.000 displayable divisions with built-in resolution up to 3.000.000 points.
Connection with up to 8 load cells with input resistance equal to 350 Ohm or up to 16 cells of 700 Ohm each.
Digital calibration and set-up from keypad or from PC with DINITOOLS.
Power supply 110 - 240 VAC.

HD View

This indicator is the advanced version of the DFWLI series, with new high-end functions, such as:
- Up to 3 serial ports: 2 bi-directional RS232 ports as standard and 1 additional RS485 port (optional).
- Fully customisable weight string
- Customisable weight reading command
- Can integrate an opto-isolated analogue output (optional), configurable to 4-20mA or 0-10Vdc
- Modbus ASCII/RTU
- Ready for communication with D-LEGAL and D-API programmes

Case in IP68 stainless steel. CE-M approvable (OIML R-76/EN 45501).

DFWLI: Multifunction Weight Indicator, In IP68 Stainless Steel Case Specifications

I/O Section:

Bi-directional RS232/C port configurable for connection to printer/labeller.
Bi-directional RS232/C port configurable for PC, PLC, additional remote display or radio modem. RJ connector for quick connection.
RS485 bidirectional port (optional, on internal terminal board), configurable for PC, PLC, additional remote display or radio modem.
ASCII protocol.
MODBUS RTU/MODBUS ASCII protocol (connect to RS232/RS485 serial port).
Opto-isolated analogue output, configurable to 4-20mA or 0-10Vdc (-10/+10VDC on request, only at time of order).

Available Languages for Printing:
IT, EN, FR, DE, ES, PT, CN*, EL*

* For Chinese and Greek a programming of the printer/labeler is required (S1, only at the time of order)

KEYBOARD FUNCTIONS:
Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching, backlit setting, function mode quick selection, user menu.

Available Functions From Remote Control:

Radiofrequency 6-key remote control: zero, tare, enable / disable function, print, switch-off.

Main Certifications:

EU Type Examination Certificate (45501:2015)
OIML R76
Australian legal for trade certificate of approval (NMI S788)

Selectable Function Modes:

The user can select the operating modes directly using the dedicated key*:
- High resolution display x 10
- Precision weighing with temporary recalibration via a sample weight (for internal factory use)
- Net/Gross
- Newton to Kg converter
- Lb to Kg converter
- Free conversion factor (for meter and litre counters etc.)
- Weight totalizer
- Formulizer
- +/- controller with quick target and threshold input
- Percentage weighing
- Piece counter
- Hold
- Detection of weight peaks
Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.

* These quick access keys to the menus can be blocked by configuring a dedicated password.

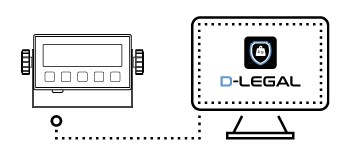

NEW: D-LEGAL AND D-API PROGRAMMES

The new weighing software D-LEGAL is a virtual alibi memory that allows you to save approved weighs directly on a PC, with no memory limits.D-LEGAL is designed to simplify data exchange with external programmes through a complete API package.
D-LEGAL can communicate with the Dini Argeo DGT4X, DGT1SX, DGT1P, DGT1SP, DFWIECEX , DFWL PLUS and DFWLI PLUS transmitters and indicators.
Main features:
- Approved and encrypted weighing database that is searchable and exportable in Excel format
- Potentially unlimited storage memory
- Available in an internal use version (D-API)

Parts

Available versions

Part #	Description	List Price	Cart / Quote
DFWLI-10	Weight indicator PLUS version with 5-key keypad. IP68 stainless steel case, LCD backlit display, and standard weighing programme.	Consult	View

Options

Optional power supply cords

Part #	Description	List Price	Cart / Quote
PWCORDUK	Power supply cord with BS1363 plug (UK plug).	Consult	View
PWCORDCH	Power supply cord with SEV1011 plug (CH plug).	Consult	View
PWCORDUS	Version with US type B power cord (Japan, North and Central America).	Consult	View
PWCORDAUS	Version with AU power cord.	Consult	View

Part #	Description	List Price	Cart / Quote
LCCB10C	LCCBC cable + 10m extension cable.	Consult	View
LCCB5C	LCCBC cable + 5m extension cable.	Consult	View
LCCBC	Cable for connection between platform and indicator, l=50cm. Female connector to be soldered.	Consult	View

	Part #	Description	List Price	Cart / Quote
	KCEM	Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination with a Dini Argeo indicator.	Consult	View
	ECEM-AU	Single platform/scale legal-for-trade approval for Australia.	Consult	View

	Part #	Description	List Price	Cart / Quote
	DFCLK	Real time clock for printing/displaying of date and time. With UL marked PCB, screw terminal, plastic box and labels (if applicable).	Consult	View

	Part #	Description	List Price	Cart / Quote
	SWM	"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).	Consult	View
	USBDFWL-1	Built-in USB port to store data on a USB driver. To be combined with DFWLI and DFWLKI weight indicators. Fitted with USB key for PC.	Consult	View

	Part #	Description	List Price	Cart / Quote
	WEITRUCK-1	PC software for vehicle weighing. Combinable with DFW, DGT and 3590 series' weight indicators. Databases for storing the customer, material, and vehicle data, management of the totals and programmable printouts. Requires an Alibi Memory.	Consult	View

Part #	Description	List Price	Cart / Quote
OBTPRB	Table thermal printer. For weight indicator, with IP40 ABS case, 1,5 m connection cable and internal power supply. Thermal paper roll included as standard.	Consult	View
CODEPG	Service for loading a customised code-page on TPR printer (standard is PC437 - Central Europe, USA)	Consult	View
LP542TE	Thermal transfer or direct thermal labelling machine Supplied with standard peel mechanism. Maximum printing size 25400 x 108 mm. Maximum roll O 127 mm and width up to 112 mm. Label roll and ribbon not included.	Consult	View
SMTPLUS-1	Thermal transfer or direct termal labeller. Peel-off kit in option.	Consult	View
RSCBLP	RS232 cable l=1,5m for LP542xx, SMTPLUS, PR80 printers.	Consult	View
RSCBLP10M	RS232 cable l=10m for LP542xx, SMTPLUS, PR80 printers.	Consult	View
CNFSERV	Custom-made printouts for DFW and DFWL series. NET price.	Consult	View

Part #	Description	List Price	Cart / Quote
RSCBUSBPG	USB PC/RS232 converter cable, l=1,5m, with PG9. USB/RJ11 connector. For the connection to weight indicators with IP65 and IP68 protection system.	Consult	View
RSCBUSB485	USB cable converter PC/RS485, l=1,5m. With metallic PG9 cable gland. To be combined with an indicator fitted with optional or standard RS485 output.	Consult	View
OBRF2G4	External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels.	Consult	View
RF2G4	Built-in 2.4 GHz radiofrequency module. Max. functioning distance in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. Up to 39 configurable channels. (RF2G4 must be combined with another radio module).	Consult	View
ETHD	Built-in Ethernet interface. Speed from 10 to 100 Mbps, TCP, UDP, IP, ARP, ICMP, Ethernet Mac protocols.	Consult	View
RS485C	Built-in RS485 interface (mounting and cable gland excluded).	Consult	View
BLTH-3	Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems.	Consult	View
DFIO3V3	Built-in 2 IN / 6 OUT interface.	Consult	View

	Part #	Description	List Price	Cart / Quote
	DAC16OSER	Built-in RS232 / RS485 optoisolated analog output, 0-4/20 mA, 0-10VDC . For DFW, 3590 Touch Screen. Output -10/+10VDC upon request, only at time of order.	Consult	View

Part #	Description	List Price	Cart / Quote
RSCBRJ	RS232/C serial cable - DB9/RJ11 - l=1,5m.	Consult	View
RSCBRJ10M	RS232/C serial cable - DB9/RJ11 - l=10m.	Consult	View
ETHCBRJ	Ethernet cable, l=1,5m. Fitted with fairlead, for connection between indicator and PC network.	Consult	View

	Part #	Description	List Price	Cart / Quote
	TLRP	Radio frequency remote control and receiver with extension, for installations where other option boards with connection to AMP are required.	Consult	View

Part #	Description	List Price	Cart / Quote
STFR-1	AISI 304 stainless steel fixing bracket with adjustable inclination. For weight indicator wall mounting.	Consult	View
CSP38I-1	AISI 304 stainless steel column 450x450mm, h=917mm, O 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
CSP38	Stainless steel column 450x450mm, h=917, O 38mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
CSP38D	Stainless steel column 350x350mm, h=750mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View

	Part #	Description	List Price	Cart / Quote
	DGT100R-1	Weight repeater with 100mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure.	Consult	View

Part #	Description	List Price	Cart / Quote
ZBA1S	Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Manual and ATEX UE CONFORMITY DECLARATIONS (available in EN, DE, FR, ES and IT).	Consult	View
KZBA-1	ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. It can connect up to 8 350 Ohm load cells. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135øC Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
KMB4-1	Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20øC = Ta = +40øC) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130øC Dc IP65 (-20øC = Ta = +40øC) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
DCATEXMB4	ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125øC Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).	Consult	View
JB4QA	ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
JB4QAI	ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
EXCB6	Blue shielded cable 6x0.22 mmý, only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 7 x O.D. _/m	Consult	View

Part #	Description	List Price	Cart / Quote
PG7M	10 PG7 metallic cable gland set for weight indicators.	Consult	View
PG9M	10 PG9 metallic cable gland set for weight indicators.	Consult	View
PG9PG11C	Kit of 10 metalic IP68 from PG9 to PG11 adapters (o max cable 12mm)	Consult	View
PG9PG13C	Kit of 10 metalic IP68 from PG9 to PG13 adapters (o max cable 12mm)	Consult	View

Part #	Description	List Price	Cart / Quote
TECSUP	Technical assistance by telephone upon request.	Consult	View
TECMAN	Printed technical manual (Free download from the website).	Consult	View
UMAN	Printed user manual (Free download from the website).	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View

Related Products

D-LEGAL Software

D-LEGAL software can be used to turn a PC into an approved digital weight indicator in compliance with NAWI.
