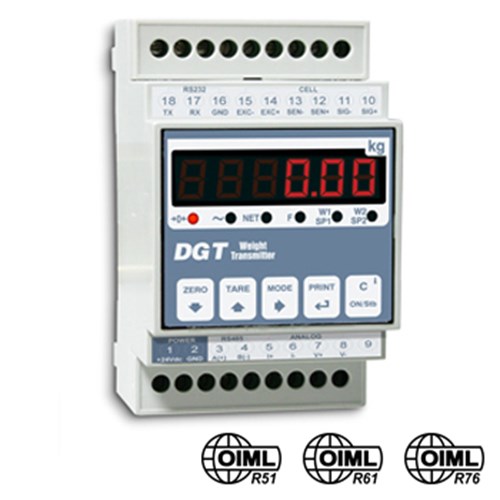

DGT1: Multifunction, Digital Weight Transmitter/Indicator
- Easy to use 5-key waterproof keyboard.
- Highly efficient red LED display with 6 8-mm digits and 6 LEDs for showing active functions.

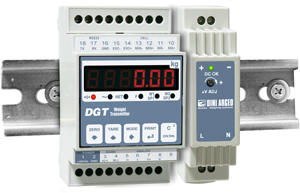

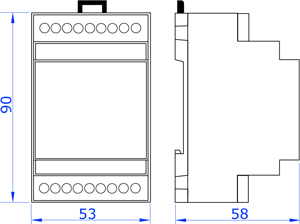

- Standard dimensions for mounting on DIN bar.
- Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS.
- Up to 10.000e or multirange 2 x 3000e @ 0,3 µV/e in CE-M approved version for legal for trade use.
- Up to 800.000 displayable divisions with internal resolution up to 3.000.000 points.
- Up to 8 signal linearization points with DINITOOLS (3 from keypad).
- 1 channel A/D 24-bit sigma-delta conversion, up to 400 conv./sec. autoselect.
- Connectable with up to 8 analogue load cells with 350 Ohm input resistance.
- From 12 Vdc to 24 Vdc power supply.
- Fitted with real time clock and Alibi memory.

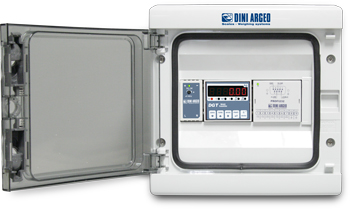

Compact, multifunction weight transmitter / indicator, for panel mounting on DIN bar. It allows the direct reading and diagnostics of the connected weighing system. The wide range of available interfaces, makes it easy to integrate the weighing with any automation system.
Specifications
|
Transmitter / Indicator: Functions Keyboard:
|
I/O Section: - RS232/C bidirectional port configurable for connectio--n with external units. Master/Repeater Option (MSTSLV code): Functioning Modes: |
Certifications: |
Parts
Available Versions
| Part # | Description | List Price | Cart | |
|---|---|---|---|---|
|
DGT1 | Weight transmitter for DIN bar. 5-key keypad, LED display, date/time, alibi memory, and multifunction weighing program. |
Call for price |
|
|
|
DGT1IO | Weight transmitter for DIN bar with 2 IN and 2 OUT. 5-key keypad, LED display, real time clock, alibi memory. Multifunction weighing programme. |
Call for price |
|
|
|
DGT1AN | Weight transmitter for DIN bar with analogue output. 5-key keypad, LED display, real time clock, alibi memory. Multifunction weighing programme. |
Call for price |
Options
RS485 lightning and surge protection
| Part # | Description | List Price | Cart |
|---|---|---|---|
| RS485PDIN | Protection circuit for port 485, with enclosure for DIN rail installation. Protection according to IEC 1000-4-5/D (IEC 801-5/D). |
Call for price |
Approval for sale to third parties
Storing the weighs
PC software for managing weighbridges
Printers/Labelers
Communication Interfaces
Power supplier for DIN bar
ABS boxes for wall mounting
Options for ATEX version
Weight repeater software
Other accessories / options
