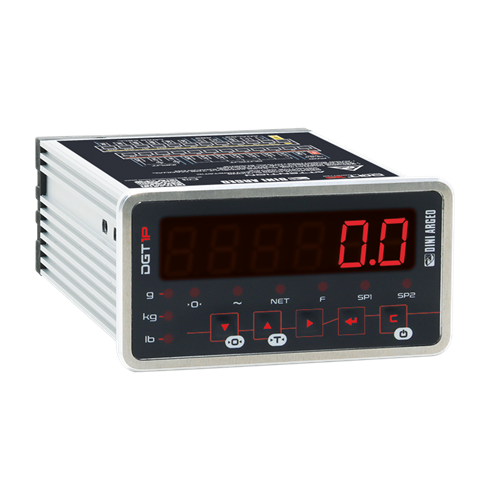

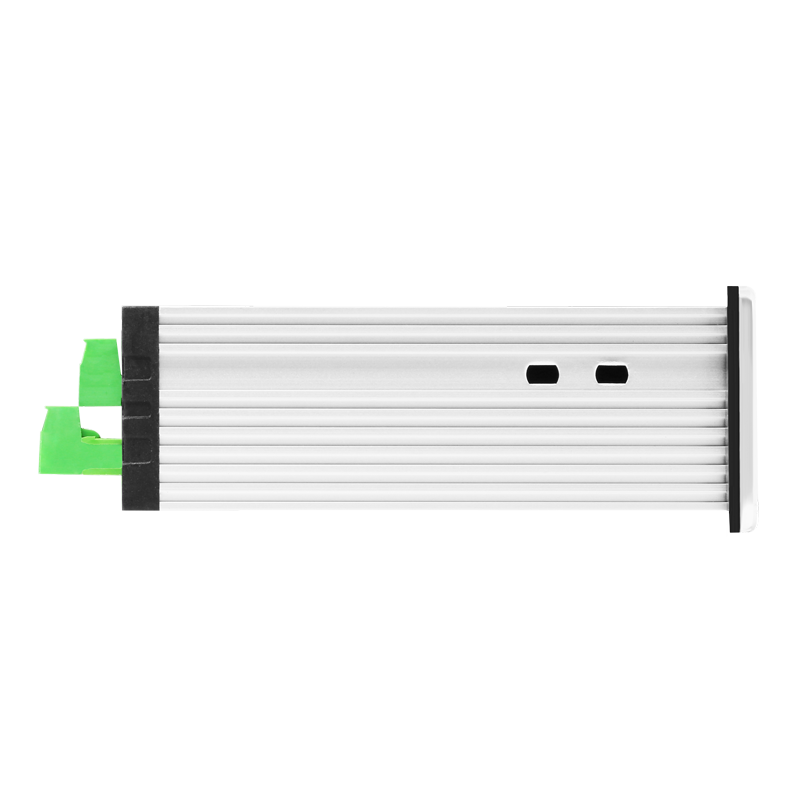

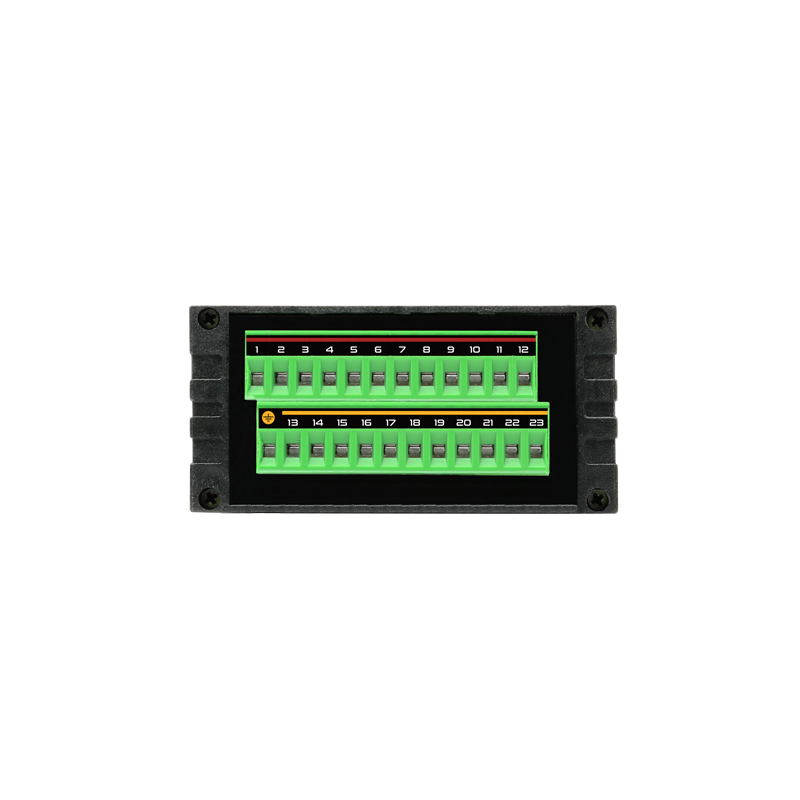

DGT1P Panel Digital Weight Transmitter/Indicator

Panel weight transmitter/indicator with aluminum case. Ideal as microcontroller in industrial weighing and dosing systems, it makes it easier and safer to integrate the weighing into any automation system. Up to 2 programmable digital inputs and 6 outputs.

Request More Information

Specifications

Power supply:
12-24 Vdc

Converter:
A/D 24 bit with 1 channel

Max number of scales:
1

Load cells connection:
4 or 6 wires (with sense)

Conversion rate:
400 Hz

Selectable sampling rate:
up to 400 conv./sec

Displaying:
up to 800.000d

Signal sensitivity:
0,01 µV/d (0,03 µV/e)

Resolution:
3.000.000 points

Linearization:
up to 8 points

Connectable load cells:
up to 16x350 Ω cells

Serial ports:
1 RS485 port

Analog output:
16 bit optoisolated (DGT1PAN Model) choosing between 0-5Vdc, 0-10Vdc, 4-20mA or 0-20mA.

Digital outputs:
n. 2 OUT (optional up to 6), configurable optoisolated photomosfet

Digital inputs:
n. 2 IN, configurable optoisolated

Case:
Aluminium.
Dimensions:100 x 53 x 136 mm (l x h x w).
Panel cutout: 92 x 44 mm (l x h).

Calibration:

Theoretical (mV\V)
With sample weights

Keyboard functions:
zeroing, tare, function mode, print, manual data sending, On/Stand-by

Program functions:

Setpoint
High resolution
Peak
Alibi Memory
Unit of measure conversion

Keyboard:
Mechanical with 5 digits, waterproof

Display:
14,2mm red LED

Certifications:
CE-M EN 45501
OIML R76
OIML R61 - MID
OIML R51

Parts

Available Versions

	Part #	Description	List Price	Cart / Quote
	DGT1P	Panel weight transmitter with aluminum case. 2 IN and 2 OUT. 5-key keypad, LED display.	Consult	View
	DGT1PAN	Panel weight transmitter with aluminum case. 2 IN, 2 OUT and analogue output. 5-key keypad, LED display.	Consult	View

Options

RS485 lightning and surge protection

Part #	Description	List Price	Cart / Quote
RS485PDIN	Protection circuit for port 485, with enclosure for DIN rail installation. Protection according to IEC 1000-4-5/D (IEC 801-5/D).	Consult	View

Digital Input / Output

	Part #	Description	List Price	Cart / Quote
	C4OUT	Set of 4 optoisolated outputs (mounting and cable gland excluded).	Consult	View

Approval for sale to third parties

	Part #	Description	List Price	Cart / Quote
	KCEM	Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination with a Dini Argeo indicator.	Consult	View

Clock Calendar / Alibi Memory for type-approved communication

	Part #	Description	List Price	Cart / Quote
	ALMEM-1	Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels (if applicable).	Consult	View
	DFCLK	Real time clock for printing/displaying of date and time. With UL marked PCB, screw terminal, plastic box and labels (if applicable).	Consult	View

PC Softwares

Part #	Description	List Price	Cart / Quote
D-LEGAL	Legal for trade approved software for recording weighing results to a PC (virtual alibi function) with an integrated API library for interfacing with other software.	Consult	View
D-API	Software for recording weighing results to a PC (for internal use) with an integrated API library for interfacing with other software.	Consult	View

Power supplier for DIN bar

	Part #	Description	List Price	Cart / Quote
	MDR2012	12Vdc power unit for DIN bar. 110/240Vac input. CE and UL certified. Not compatible with BOX2121S.	Consult	View
	DR1512	12Vdc power unit for DIN bar. 110/240Vac input.	Consult	View

Communication Interfaces

	Part #	Description	List Price	Cart / Quote
	SETHDIN-1	RS232 / RS485 / Ethernet converter. Modbus RTU / Modbus TCP/IP (if applicable). Connectable to all Dini Argeo weight indicators via the serial port. ABS housing for DIN rail. With PCB, screw terminals, plastic box and UL marked labels (if applicable).	Consult	View

Options for ATEX version

Part #	Description	List Price	Cart / Quote
ZBA1S	Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Manual and ATEX UE CONFORMITY DECLARATIONS (available in EN, DE, FR, ES and IT).	Consult	View
KZBA-1	ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. It can connect up to 8 350 Ohm load cells. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135øC Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
KMB4-1	Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20øC = Ta = +40øC) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130øC Dc IP65 (-20øC = Ta = +40øC) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
DCATEXMB4	ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125øC Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).	Consult	View
JB4QA	ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
JB4QAI	ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
EXCB6	Blue shielded cable 6x0.22 mmý, only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 7 x O.D. _/m	Consult	View

Other accessories / options

Part #	Description	List Price	Cart / Quote
UMAN	Printed user manual (Free download from the website).	Consult	View
TECMAN	Printed technical manual (Free download from the website).	Consult	View
TECSUP	Technical assistance by telephone upon request.	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View
