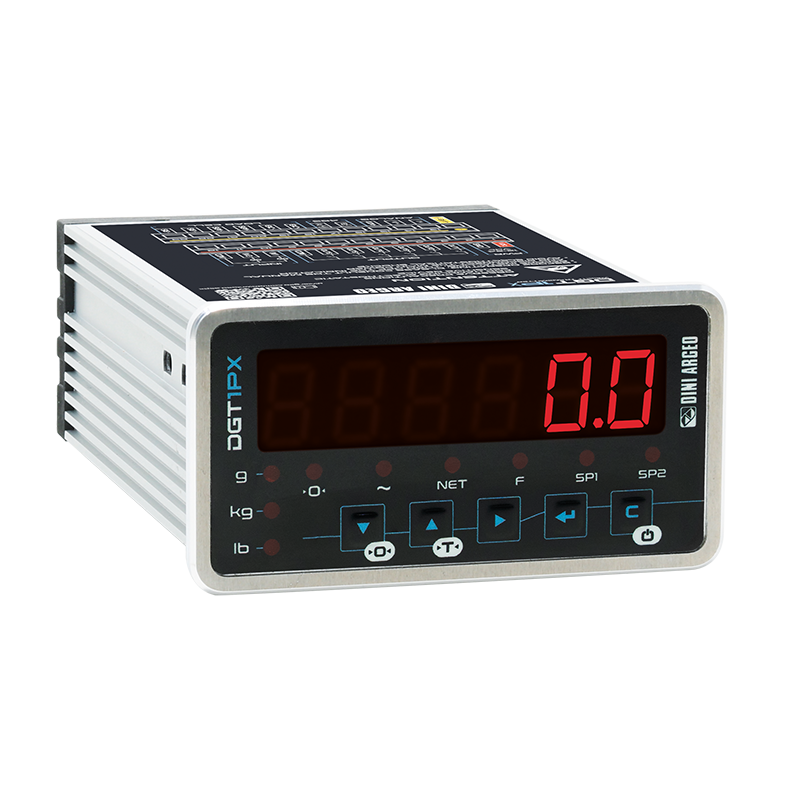

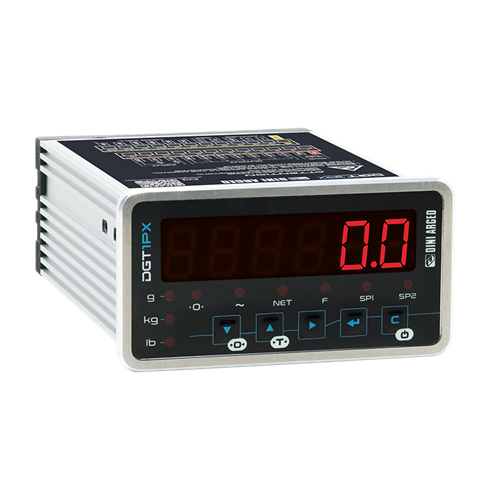

DGT1PX Panel Digital Weight Transmitter/Indicator

High-speed panel mount weight transmitter/indicator with aluminum case. Ideal as a microcontroller in industrial weighing and batching systems, it makes it easier and safer to integrate weighing to any automation system. Up to 2 programmable digital inputs and 6 digital outputs.

New compared to DGT1P

Increased converter speed, up to 4800 Hz
µUSB Port
Possibility of configuration via XSpeed Tool
Integrated Fieldbus

Request More Information

Approvals
CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID), Australian approval

Specifications

Power supply:
12-24 Vdc

Converter:
A/D 24 bit with 1 channel

Max number of scales:
1

Load cells connection:
4 or 6 wires (with sense)

Conversion rate:
4.800 Hz

Selectable sampling rate:
up to 1.000.000d

Displaying:
up to 800.000d

Signal sensitivity:
0,01 µV/d (0,03 µV/e)

Resolution:
3.000.000 points

Linearization:
up to 8 points

Connectable load cells:
up to 16x350 Ω cells

Serial ports:
1 RS485 port + µUSB (configuration with XSpeed Tool)

Fieldbus:
Profinet, EthernetIP, Modbus TCP/IP, Ethercat, Devicenet, Canopen.

Analog output:
16 bit optoisolated (DGT1PAN Model) choosing between 0-5Vdc, 0-10Vdc, 4-20mA or 0-20mA.

Digital outputs:
n. 2 OUT (optional up to 6), configurable optoisolated photomosfet

Digital inputs:
n. 2 IN, configurable optoisolated

Case:
Aluminium.
Dimensions:100 x 53 x 136 mm (l x h x w).
Panel cutout: 92 x 44 mm (l x h).

Calibration:

Theoretical (mV\V)
With sample weights
Remotely via web server
From keyboard
From PC with "Dini Tools"

Keyboard functions:
zeroing, tare, function mode, print, manual data sending, On/Stand-by

Program functions:

Setpoint
High resolution
Peak
Alibi Memory
Unit of measure conversion

Keyboard:
Mechanical with 5 digits, waterproof

Display:
14,2mm red LED

Certifications:
CE-M EN 45501
OIML R76
OIML R61 - MID
OIML R51

PC XSPEED Tool Software

Specific program for PC, designed to improve the performance of any weighing system.
Customization of the weighing filter, to maximize the speed and accuracy of the weighs in static and dynamic applications.
Graphical weighing analysis for the identification of mechanical disturbances and vibrations.

Integrated WEB SERVER (for PROFINET, ETHERNET/IP and MODBUS TCP models)

The integrated WEB SERVER allows full diagnostics, calibration and remote configuration of the weight transmitter from an Ethernet network.
For PROFINET, ETHERNET/IP, MODBUS TCP/IP models only.

Parts

Available Versions

Part #	Description	List Price	Cart/Quote
DGT1PX	Panel weight transmitter with aluminum case. 2 IN and 2 OUT. 5-key keypad, LED display.	Consult	View
DGT1PX-AN	Panel weight transmitter with aluminum case. 2 IN, 2 OUT and analog output. 5-key keypad, LED display.	Consult	View
DGT1PX-CANOP	Panel weight transmitter with aluminum case. 2 IN, 2 OUT and Canopen. 5-key keypad, LED display.	Consult	View
DGT1PX-DEVNET	Panel weight transmitter with aluminum case. 2 IN, 2 OUT and Devicenet. 5-key keypad, LED display.	Consult	View
DGT1PX-ETHCAT	Panel weight transmitter with aluminum case. 2 IN, 2 OUT and Ethercat. 5-key keypad, LED display.	Consult	View
DGT1PX-MODTCP	Panel weight transmitter with aluminum case. 2 IN, 2 OUT and Modbus/TCP. 5-key keypad, LED display.	Consult	View
DGT1PX-PRONET	Panel weight transmitter with aluminum case. 2 IN, 2 OUT and Profinet. 5-key keypad, LED display.	Consult	View
DGT1PX-ETHIP	Panel weight transmitter with aluminum case. 2 IN, 2 OUT and Ethernet/IP. 5-key keypad, LED display.	Consult	View

Options

RS485 Lightning and Surge Protection

	Part #	Description	List Price	Cart/Quote
	RS485PDIN	Protection circuit for port 485, with enclosure for DIN rail installation. Protection according to IEC 1000-4-5/D (IEC 801-5/D).	Consult	View

Digital Input / Output

	Part #	Description	List Price	Cart/Quote
	C4OUT	Set of 4 optoisolated outputs (mounting and cable gland excluded).	Consult	View

Approval for Sale to Third Parties

	Part #	Description	List Price	Cart/Quote
	KCEM	Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination with a Dini Argeo indicator.	Consult	View

Clock Calendar / Alibi Memory for Type-Approved Communication

	Part #	Description	List Price	Cart/Quote
	ALMEM-1	Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels. If applicable, it requires FW 05.00.02 or higher. Not compatible with weight repeaters.	Consult	View
	DFCLK	Real time clock for printing/displaying of date and time. With UL marked PCB, screw terminal, plastic box and labels (if applicable).	Consult	View

PC Software

	Part #	Description	List Price	Cart/Quote
	D-LEGAL	Legal for trade approved software for recording weighing results to a PC (virtual alibi function) with an integrated API library for interfacing with other software.	Consult	View
	D-API	Software for recording weighing results to a PC (for internal use) with an integrated API library for interfacing with other software.	Consult	View

Power Supply for DIN Bar

	Part #	Description	List Price	Cart/Quote
	MDR2012	12Vdc power unit for DIN bar. 110/240Vac input. CE and UL certified. Not compatible with BOX2121S.	Consult	View
	DR1512	12Vdc power unit for DIN bar. 110/240Vac input.	Consult	View

Communication Interfaces

	Part #	Description	List Price	Cart/Quote
	SETHDIN-1	RS232 / RS485 / Ethernet converter. Modbus RTU / Modbus TCP/IP (if applicable). Connectable to all Dini Argeo weight indicators via the serial port. ABS housing for DIN rail. With PCB, screw terminals, plastic box and UL marked labels (if applicable).	Consult	View

Options for ATEX Version

Part #	Description	List Price	Cart/Quote
ZBA1S	Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
KZBA-1	ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135°C Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
KMB4-1	Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20°C = Ta = +40°C) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130°C Dc IP65 (-20°C = Ta = +40°C) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
DCATEXMB4	ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125°C Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).	Consult	View
JB4QA	ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
JB4QAI	ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
EXCB6	Blue shielded cable 6x0.22 mm², only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 7 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).	Consult	View

Other Options

Part #	Description	List Price	Cart/Quote
UMAN	Printed user manual (Free download from the website).	Consult	View
TECMAN	Printed technical manual (Free download from the website).	Consult	View
TECSUP	Technical assistance by telephone upon request.	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET €.	Consult	View
