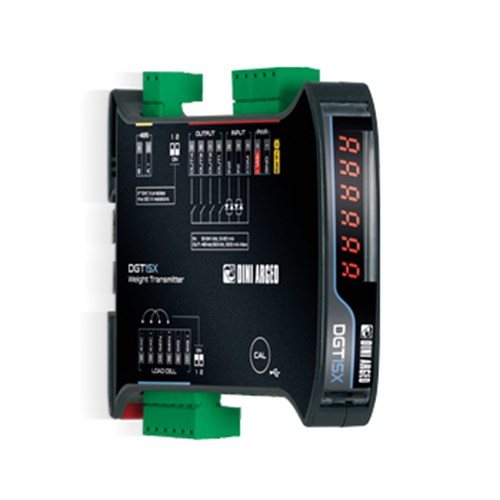

DGT1SX CHECK: High-Speed Digital Weight Transmitter

  • Dynamic weight sampling at high speed, up to 4800 Hz
  • Automatic weighing detection
  • Weighing start/stop by weight tresholds or by triggers (digital inputs/photocells)
  • Last 10 weighs memory
  • Fully programmable weight filters using the Dini Argeo XSPEED TOOL
  • Load cell failure detection
Request More Information
DGT1SX Check

Specific weight transmitter ideal for dynamic and/or robotic high-speed weighing systems.
Thanks to its algorithm and high-speed conversion rate, it calculates the weight of a package running on a weighing conveyor and store data in a memory that can be read from fieldbus. Designed for a throughput of over 200 pcs/min.

Available versions
PROFINET I/O | RS485 | ETHERNET IP | MODUBUS TCP

Onboard Web Server
Integrated WEB SERVER as standard, for configuration, diagnostics and data backup.



Number of scales/channels:
1

Calibration:

  • Theoretical (mV/V)
  • With sample weights
  • Via WEB SERVER
  • Via XSPEED TOOL

Conversion rate:
Up to 4800 Hz

Maximum number of load cells:
Up to 16x350Ω

Load cell excitation voltage:
5 V

Minimum sensitivity:
High resolution 0.01 µV/d
Legal for trade 0.3 µV/e

Number of legal-for-trade divisions:
Up to 10,000e or multi-field 3,000+3,000e

Linearization:
up to 8 points

Communication ports:

  • 1 micro-USB port (device) for PC configuration with Dinitools® and XSpeed Tool
  • 1 RS485 port
  • Fieldbus: see available models

Communication protocols:
Modbus RTU, ASCII or Fieldbus

Communication rate:
On serial port up to 1600 Hz
On Fieldbus up to 120 Hz
Via Modbus RTU up to 110 Hz

PC programs for configuration:
XSPEED TOOL

Display:
Red LED 8 mm, 6 characters

Keyboard:
5-key mechanicalKeyboard functions: Zeroing, Tare, Visualization, ON/OFF

Housing:
ABS, for Din bar (120 x 23 x 112 mm)

Power supply:
12÷24 Vdc

Operating temperature range:

  • For internal use -20°C ÷ +60°C
  • Approved -10°C ÷ +40°C

Max humidity:
85%, non-condensing

INPUTS/OUTPUTS:

  • Digital outputs: n. 4 OUT, configurable
  • Digital inputs: n. 2 IN, configurable

UPON REQUEST:

  • UL Listed (upon request)

INTEGRATED WEB SERVER (for PROFINET, ETHERNET/IP and MODBUS TCP/IP models):

  • The integrated WEB SERVER allows full diagnostic, calibration and remote configuration of the weight transmitter from an Ethernet network.



XSPEED tool is the PC program for optimizing the performance of the weighing system integrated in the process and industrial automation. Through XSPEED tool, you can set the most suitable weighing filter for your application and create custom filters, thus maximizing the speed and accuracy of weighing in static and dynamic applications.

Free download from the Download section.

Parts

Available Versions

Part # Description List Price Cart / Quote
DGT1SXCK Weight transmitter with specific program for dynamic weighing, suitable for high-speed applications.

Consult
DGT1SXCK-PRONET Weight transmitter with specific program for dynamic weighing, suitable for high-speed applications. Complete with PROFINET communication port.

Consult
DGT1SXCK-ETHIP Weight transmitter with specific program for dynamic weighing, suitable for high-speed applications. Complete with ETHERNET IP communication port.

Consult
DGT1SXCK-MODTCP Weight transmitter with specific program for dynamic weighing, suitable for high-speed applications. Complete with MODBUS TCP communication port.

Consult

Options

Clock Calendar / Alibi Memory for type-approved communication

Part # Description List Price Cart / Quote
ALMEM3V3-1 Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box (it requires FW 05.00.02 or higher).

Consult
DFCLK3V3-1 Real time clock for printing/displaying of date and time. .

Consult
