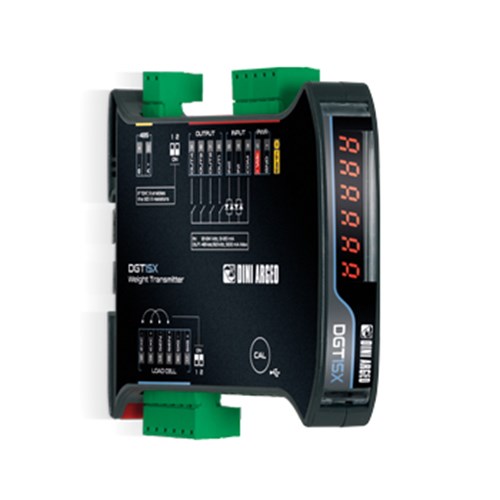

DGT1SX High-Speed Digital Weight Transmitter

New cutting-edge processor, able to process up to 4800 weight readings per second. The high speed allows an extremely accurate weight filtering even with weighing being perfomed in milliseconds.
Integrated Fieldbus.
New power supply circuit of the load cells (up to 16) for a better weighing stability.
Power supply circuit with protections against overloads, polarity reversal and short circuits, specific for industrial environments.
Micro-USB communication port for configuration, diagnostics and data backup available on all versions.
It can be used in conjunction with Xspeed tool, the PC program designed to configure the most suitable filtering for your system.
Up to 120 updates per second on Fieldbus.
Modbus RTU protocol integrated on all versions, up to 110 updates per second.
Analog output available on Fieldbus versions (upon request), to modernize existing plants without modifying their main functioning.
2 more outputs, for a total of 4 digital outputs.
Real time warning of any faults or disconnections of the load cell.
The integrated WEB SERVER allows full diagnostics, calibration and remote configuration of the weight transmitter from an Ethernet network.

HD View

High-performance multifunctional weight transmitter, the fastest of the Dini Argeo range. It can manage up to 4800 readings per second, for weighing with precision in milliseconds. For DIN rail mounting, it allows direct reading and diagnostics of the connected weighing system. The wide range of available interfaces makes the integration of weighing into any automation system easier and safer.

Approvals
CE-M EN 45501, OIML R-76, OIML R-61 (MID)

Onboard Web Server
Integrated WebServer as standard, for configuration, diagnostics and data backup.

Specifications

Number of scales/channels:
1

Calibration:

Theoretical (mV\V)
With sample weights
Via Web server
Via XSpeedTool

Conversion rate:
Up to 4800 Hz

Maximum number of load cells:
Up to 16x350Ω

Minimum sensitivity:
High resolution 0.01 µV/d
Legal for trade 0.3 µV/e

Number of legal-for-trade divisions:
Up to 10,000e or multi-field 2x3,000e

Load cell excitation voltage:
5 V

Communication ports:

1 micro-USB port (device)
1 RS485 port (Mod. DGT1SX / DGT1SX-AN)

Communication protocols:
Modbus RTU, ASCII or Fieldbus

Communication rate:

On serial port up to 1600 Hz
On Fieldbus up to 120 Hz
Via Modbus RTU up to 110 Hz

PC programs for configuration:
XSpeedTool

Display:
Red LED 8 mm, 6 characters

Keyboard:
5-key mechanical

Housing:
ABS

Power supply:
12÷24 Vdc, 5 W

Operating temperature range:
- For internal use -20°C ÷ +60°C
- Approved -10°C ÷ +40°C

Max humidity:
85%

INPUTS/OUTPUTS:

Analogue output:
16 bit (Model DGT1SX-AN)
4÷20mA
0÷10Vdc

Digital outputs:
n. 4 OUT, configurable

Digital inputs:
n. 2 IN, configurable

CERTIFICATIONS:
UL Listed (upon request)
2014/30/EU EMC
2014/35/EU LVD
2011/65/EU RoHS
OIML R61 - MID
OIML R51 - MID
OIML R76
EU Type Examination Certificate (2014/31/EU)

XSPEED Tool

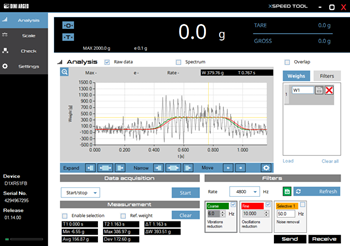

XSPEED tool is the PC program for optimizing the performance of the weighing system integrated in the process and industrial automation. Through XSPEED tool, you can set the most suitable weighing filter for your application and create custom filters, thus maximizing the speed and accuracy of weighing in static and dynamic applications.
