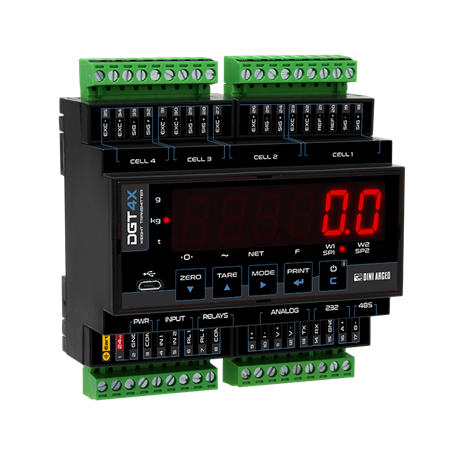

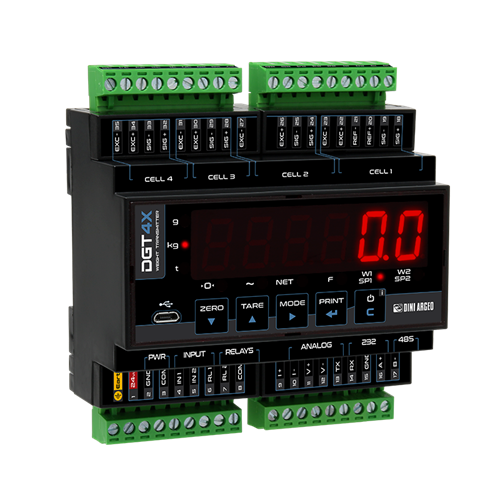

DGT4X High Speed Weight Transmitter

What's New Compared to the DGT4

New cutting-edge processor, able to process up to 2600 weight readings per second. The high speed allows an extremely accurate weight filtering even with weighing times in the order of milliseconds.
New cell feed circuit for greater weighing stability.
Power supply circuit with protections, specific for industrial environments.
Removable terminal blocks to simplify wiring in the electrical panel.
Frontal micro-USB communication port for configuration, diagnostics and data backup.
XSPEED TOOL: New PC software with oscilloscope function for system diagnostics and weighing filter optimization.
14.2 mm display.
New configuration menu to simplify calibration and configuration.
RS485 communication port always available on all versions.
Up to 120 fieldbus updates per second.

Request More Information

Australian_National-Measurement-Institute

High Speed Weight Transmitter

Weight transmitter for weight transfer to PLC via fieldbus, analog output or RS485. It allows the reading and diagnostics of each load cell or each connected scale.

Available versions

Approvals
CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID), Australian approval

Onboard Web Server

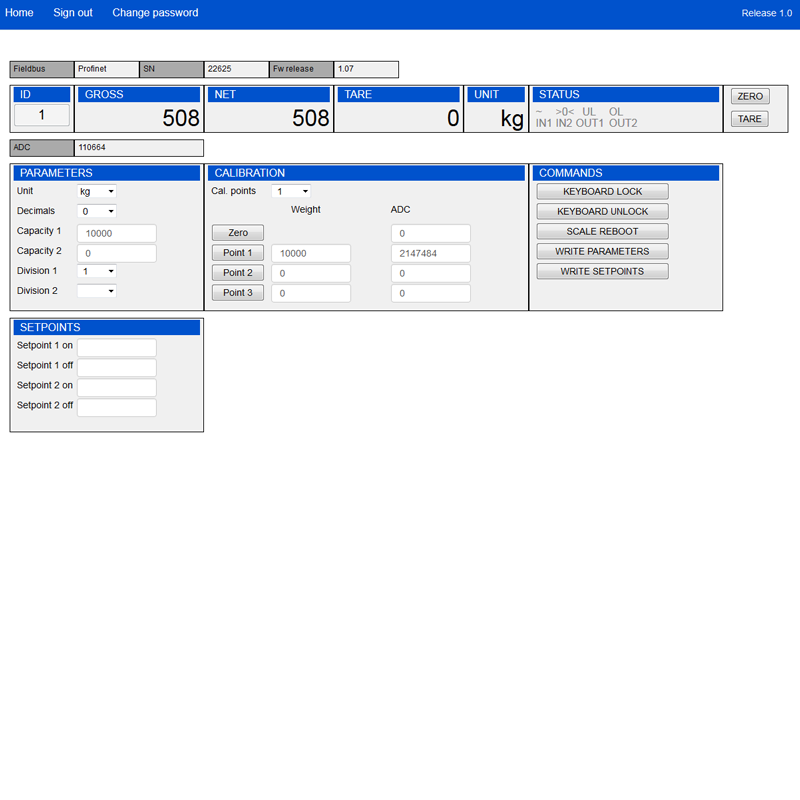

The integrated WEB SERVER allows complete diagnostics, calibration and remote configuration of the weight transmitter from the Ethernet network. Only available for PROFINET, ETHERNET/IP and MODBUS TCP/IP models.

DGT4X High Speed Weight Transmitter Specifications

Power supply:
12-24Vdc

Converter:
A/D 24 bit with 4 channel

Max scale number:
4

Load cells connection:
4 or 6 wires (with sense)

Operating modes:

Digital junction box
Multi-scale transmitter
Single-scale transmitter

Conversion rate:
up to 3200 conv./sec

Selectable sampling rate:
up to 2600 conv./sec

Fieldbus update rate:
up to 120 Hz

Displaying:
up to 800.000d

Signal sensitivity:
0,03 µV/d (0,3 µV/e)

Resolution:
3.000.000 counts

Linearization:
up to 8 points

Connectable load cells:
up to 16 350 Ω cells

Fieldbus:
Profibus, Profinet, EthernetIP, EtherCAT, EthernetIP, CANopen, DeviceNet, Modbus TCP/IP.

Serial ports:

1 Micro-USB port (device) for PC configuration with "Dinitools®" and "XSpeed Tool".
1 RS485 port
1 RS232 port (Mod. DGT4X / DGT4XAN)

Analog output:
16 bit (DGT4XAN Model) 4-20mA or 0-10Vdc.

Digital outputs:
n. 2 configurable OUTPUTS

Digital inputs:
n. 2 configurable INPUTS

Case:
ABS, for Din bar (106 x 56 x 118 mm)

Calibration:

Theoretical (mV\V)
With sample weights
Remotely by WEB SERVER
From the keyboard
From PC with "Dinitools"

Keyboard functions:
Zeroing, Tare, Function mode, Manual data printing/sending, ON/Stand-by

Program functions:
Setpoint, High resolution, Peak, Alibi Memory, Unit of measure conversion, Unbalancing alarm, Broken load cell exclusion

Keyboard:
Mechanical with 5 keys

Display:
14,2mm red LED

CERTIFICATIONS:
CE-M EN 45501
OIML R76 (10000e or 3000 + 3000e) / R51 / R61 MID
UL Listed (upon request)
EU Type Examination Certificate (45501:2015)
Australian legal for trade certificate of approval (NMI S788)

UPON REQUEST
UL certified version

XSPEED Tool

XSPEED tool is the PC program for optimizing the performance of the weighing system integrated in the process and industrial automation. Through XSPEED tool, you can set the most suitable weighing filter for your application and create custom filters, thus maximizing the speed and accuracy of weighing in static and dynamic applications.

Free download from the Download section.

Resources / Downloads

Manuals

Title	Version	Revision	Download	Email	Category	Archived
DGT4X Weight Transmitter User Manual			Download	Email		No

Parts

Available Versions

Part #	Description	List Price	Cart
DGT4X	High speed weight transmitter for DIN bar with 4 channels, 2 IN and 2 OUT. 5-key keypad, LED display.	Call for price	View Cart
DGT4XAN	High speed weight transmitter for DIN bar with 4 channels , 2 IN, 2 OUT, analogue output. 5-key keypad, LED display.	Call for price	View Cart
DGT4XPRONET	High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and PROFINET port. 5-key keypad, LED display.	Call for price	View Cart
DGT4XPB	High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and Profibus port. 5-key keypad, LED display.	Call for price	View Cart
DGT4XETHCAT	High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and EtherCAT port. 5-key keypad, LED display.	Call for price	View Cart
DGT4XETHIP	High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and EthernetIP port. 5-key keypad, LED display.	Call for price	View Cart
DGT4XDEVNET	High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and DeviceNet port. 5-key keypad, LED display.	Call for price	View Cart
DGT4XMODTCP	High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and MODBUS TCP/IP port. 5-key keypad, LED display.	Call for price	View Cart

Options

RS485 lightning and surge protection

Part #	Description	List Price	Cart
RS485PDIN	Protection circuit for port 485, with enclosure for DIN rail installation. Protection according to IEC 1000-4-5/D (IEC 801-5/D).	Call for price	View Cart

	Part #	Description	List Price	Cart
	KCEM	Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination with a Dini Argeo indicator.	Call for price	View Cart
	ECEM-AU	Single platform/scale legal-for-trade approval for Australia.	Call for price	View Cart

Part #	Description	List Price	Cart
D-LEGAL	Legal for trade approved software for recording weighing results to a PC (virtual alibi function) with an integrated API library for interfacing with other software.	Call for price	View Cart
D-API	Software for recording weighing results to a PC (for internal use) with an integrated API library for interfacing with other software.	Call for price	View Cart

	Part #	Description	List Price	Cart
	TPRP	Panel thermal printer. Fitted with connection cable, 5Vdc power supply (power adapter not included).	Call for price	View Cart
	TPRPCAL	5Vdc power supply unit.	Call for price	View Cart

	Part #	Description	List Price	Cart
	ALMEM-1	Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels (if applicable).	Call for price	View Cart
	DFCLK	Real time clock for printing/displaying of date and time. With UL marked PCB, screw terminal, plastic box and labels (if applicable).	Call for price	View Cart

	Part #	Description	List Price	Cart
	MDR2012	12Vdc power unit for DIN bar. 110/240Vac input. CE and UL certified. Not compatible with BOX2121S.	Call for price	View Cart
	DR1512	12Vdc power unit for DIN bar. 110/240Vac input.	Call for price	View Cart

	Part #	Description	List Price	Cart
	BOX2121S	Wall IP65 box with transparent door. Dimensions 210x210x100 mm, equipped with 2 cable glands. Suitable for DGT1 and DGT4 series instruments.	Call for price	View Cart

	Part #	Description	List Price	Cart
	SETHDIN-1	RS232 / RS485 / Ethernet converter. Modbus RTU / Modbus TCP/IP (if applicable). Connectable to all Dini Argeo weight indicators via the serial port. ABS housing for DIN rail. With PCB, screw terminals, plastic box and UL marked labels (if applicable).	Call for price	View Cart

Part #	Description	List Price	Cart
ZBA1S	Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Manual and ATEX UE CONFORMITY DECLARATIONS (available in EN, DE, FR, ES and IT).	Call for price	View Cart
KZBA-1	ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. It can connect up to 8 350 Ohm load cells. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135øC Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Call for price	View Cart
KMB4-1	Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20øC = Ta = +40øC) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130øC Dc IP65 (-20øC = Ta = +40øC) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Call for price	View Cart
DCATEXMB4	ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125øC Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).	Call for price	View Cart
JB4QA	ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Call for price	View Cart
JB4QAI	ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Call for price	View Cart
EXCB6	Blue shielded cable 6x0.22 mmý, only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 7 x O.D. _/m	Call for price	View Cart

Other options

Part #	Description	List Price	Cart
UMAN	Printed user manual (Free download from the website).	Call for price	View Cart
TECMAN	Printed technical manual (Free download from the website).	Call for price	View Cart
TECSUP	Technical assistance by telephone upon request.	Call for price	View Cart
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Call for price	View Cart
