E-BATCH Software for 3590E/CPEW Indicators for Multicomponent Dosage Systems

  • Management of the dosage on various scales (up to 4 independent), with automatic scale change during the dosage.
  • Check of the tare presence at dosage start with tare values programmable for each recipe.
  • Automatic recalculation of the formula targets, by entering the total weight to be dosed.
  • Automatic printing of the dosage data.
  • Storage and printing of the consumptions. Quick recall of the printouts from keyboard.
  • Automatic correction of the flight weight.
  • Programmable number of repetitions of the dosage cycle; function of continuous cycle.
  • Tolerance test on the dosed weight, with guided correction through simple messages on the display.
  • Control of the maximum dosage time.
  • Alarm management on the display.
  • Completely programmable printouts, for compatibility with any ASCII printer manageable through the serial port.
Request More Information
BATCH

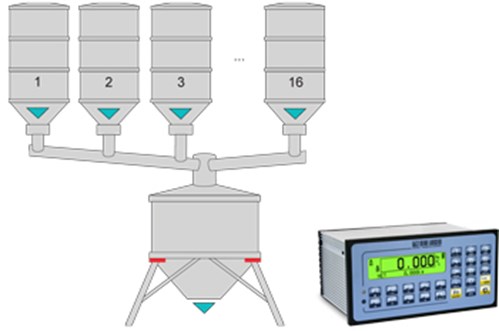

3590EXT and CPWE weight indicators software version for automatic multicomponent and multi-scale dosage systems. Database of 100 different activities and 500 formulas. Direct management of 12 different components through the relay. Completely programmable printouts.

Databases:
  • Database of 100 products/activities, which may be selected from the following.- Automatic dosage in loading.
    - Manual dosage in loading, with possibility of managing the control light.- Complete or partial unloading.
    - Fractioned unloading, for dividing all the dosed material in equal quantities.- Timer, to activate the mixers, burners, or stirrers for a preestablished time.- Pause, to allow the manual operations of the user.- Manual weight, to add the pre-weighed quantities to the dosage.
  • Database of 500 formulas; each formula contains 20 products/activities.
  • Programming of the activities and the recipes in manual mode or through software on PC (Dinitools).
 Keyboard Functions:
  • START / RESTART dosage, PAUSE / RESET cycle and introduction / selection formula.
  • Quick switch of the dosage target, through a dedicated key.
  • Quick introduction and selection of the dosage data.

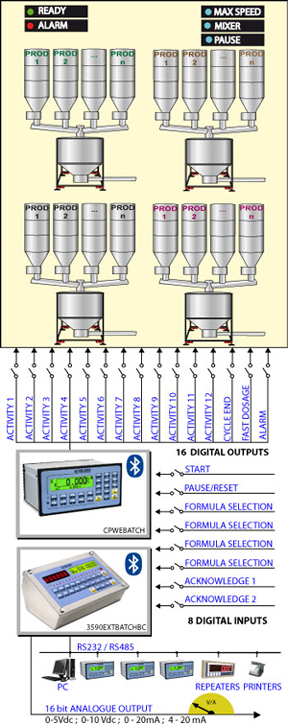

 I/O Functions:
  • START / RESTART dosage, PAUSE / RESET cycle through external inputs.
  • Formula selection through external inputs.
  • Dual dosage speed (approximate and fine), managed through any available contacts or analogue output (optional).
  • "Fine" dosage contact active either constantly or intermittently (jogging).
  • Management of the material levels through "under minimum level" and "over maximum level" contacts.
  • Inputs and outputs with programmable functions.
  • Analogue output (optional) proportional to the weight or to the dosage speed.
  • Serial communication protocol for programming the formulas, the products and managing the cycle.
  • Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC or PDA.

Resources / Downloads

Title View Email Category Type
Inventory Weighing Solutions and Programmes Email Weight Indicators|Bench Scales|Pallet Truck Scales|Floor Scales Articles

Parts

Available versions

Part # Description List Price Cart / Quote
BATCH Software for multicomponent dosage systems in loading and unloading. NOTE: For 3590, IOEXPB expansion board is required.

Consult
