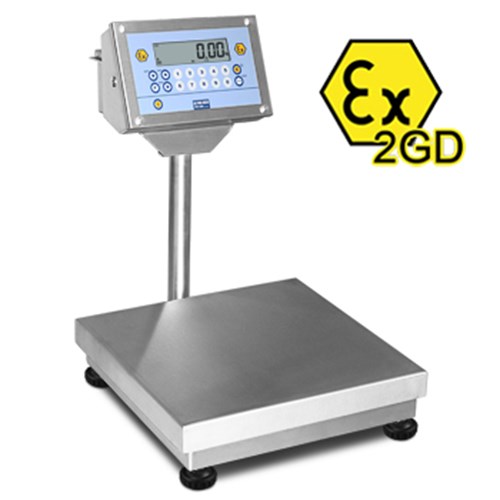

Easy Pesa 2GD Series, Stainless Steel Scales for ATEX 1, 21, 2, 22 Zones

Platform Features

  • Approved “single point” STAINLESS STEEL load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards.
    ATEX approved load cell with ATEX protection:
    ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga.
    ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
  • Structure, enclosure and loading plate made in AISI304 satin finish stainless steel.
  • Adjustable levelling feet with plastic over shoe.

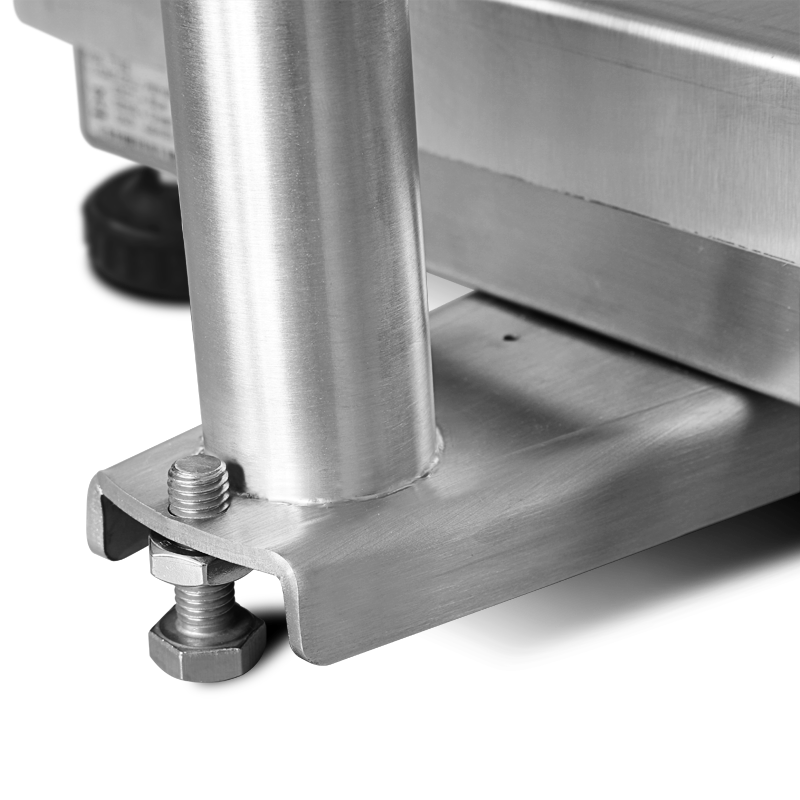

  • Supplied with support column, height:
    • 500 mm in the "Q" models;
    • 700 mm in the "X" models.
  • Length of connection cable to the indicator: 3m.

Weight Indicator Features

  • IP68 Weight indicator for ATEX zones with protection methods according to:
    ATEX II 2(2)G Ex ib [ib Gb] IIC T4 Gb for gases.
    ATEX II 2(2)D Ex tb [ib Db] IIIC T197°C IP65 Db for dust.
  • EC-Type-Examination certificate according to Annex III (ATEX directive). CE-M approvable (OIML R-76 / EN 45501).

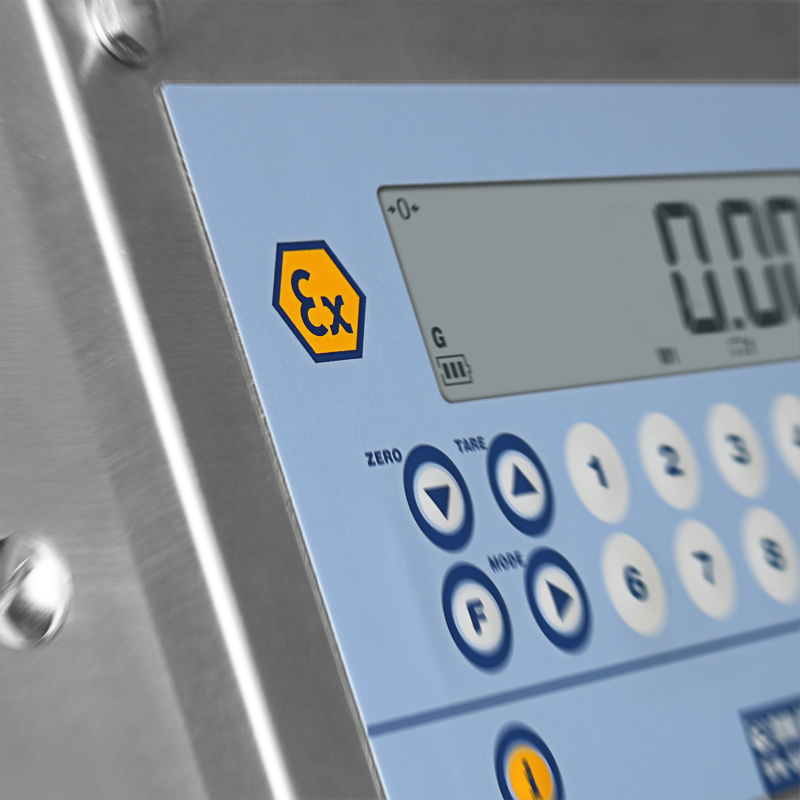

  • Waterproof 17-key numerical and functional keyboard.
  • LCD display with 6 25-mm high contrast digits, clearly visible even in poor lighting conditions and with low temperatures, and with 6 LEDs for showing the active functions.
  • Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.
  • Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
  • A/D 24-bit sigma-delta conversion, up to 100 conv./sec. autoselect.

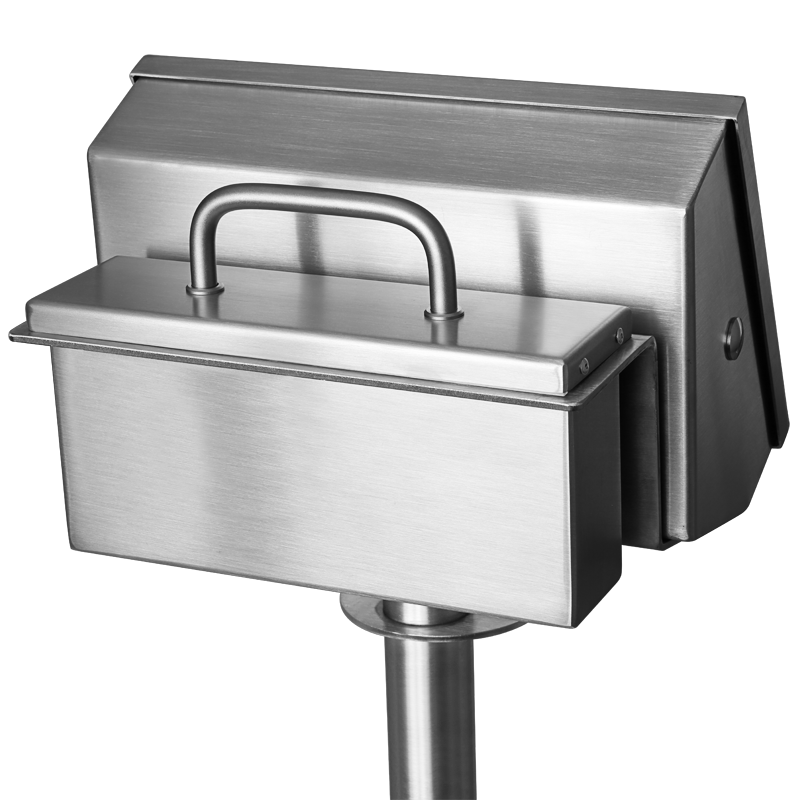

  • Power supply through external battery pack with 160h operating time. An extra battery pack for continuous use (24/7) is available as option.
  • Charger included in the supply.
Request More Information
EP2GD

Fully stainless steel bench scales, for specific use in ATEX hazardous areas. Powered by a long lasting rechargeable battery which allows an easier installation directly where it's needed. These scales don't need a power supply socket in dangerous zone nor ATEX proof power supply cables. Provided with the ATEX declaration of conformity. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197°C Db X protection.

Scale Function
Zeroing
Automatic tare
Presettable tare
Selectable function command
On/off switching



Selectable Functioning Mode
High Resolution Weighing x 10
Net/Gross or lb/kg conversion
Weight totalization
Formula weighing
+/- Checkweighing
Counting (Max. resolution of 1.500.000 divisions)

Certifications
The price includes the ATEX declaration of conformity (DCATEX3GD) and the load cell certificate of conformity (CCATEX).

Code Plate
Max (mm)		 Max
(kg)		 d (kg)
M (kg*)
2R (g)*		 d HR
(kg)*
EPQI2GD15B 400x400  15  2  5 2/5  1
EPQI2GD30B 400x400  30  5  10 5/10  2
EPQI2GD60B 400x400  60  10  20 10/20  5
EPQI2GD150B 400x400 150  20  50 20/50  10
EPXI2GD60B 600x600 60  10  20 10/20  5
EPXI2GD150B 600x600  150  20  50 20/50  10
EPXI2GD300B 600x600  300  50  100 50/100  20

(*) These divisions are obtainable only with the relative options.

Parts

Available versions

Part # Description List Price Cart / Quote
EPQI2GD15B ATEX 2GD bench scale, Max= 15kg, d= 2g. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Supplied with manuals and conformity declaration (available in IT, EN, FR, DE).

Consult
EPQI2GD30B ATEX 2GD bench scale, Max= 30kg, d= 5g. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Supplied with manuals and conformity declaration (available in IT, EN, FR, DE).

Consult
EPQI2GD60B ATEX 2GD bench scale, Max= 60kg, d= 10g. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Supplied with manuals and conformity declaration (available in IT, EN, FR, DE).

Consult
EPQI2GD150B ATEX 2GD bench scale, Max= 150kg, d= 20g. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Supplied with manuals and conformity declaration (available in IT, EN, FR, DE).

Consult
EPXI2GD60B ATEX 2GD bench scale, Max= 60kg, d= 10g. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Supplied with manuals and conformity declaration (available in IT, EN, FR, DE).

Consult
EPXI2GD150B ATEX 2GD bench scale, Max= 150kg, d= 20g. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Supplied with manuals and conformity declaration (available in IT, EN, FR, DE).

Consult
EPXI2GD300B ATEX 2GD bench scale, Max= 300kg, d= 50g. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Supplied with manuals and conformity declaration (available in IT, EN, FR, DE).

Consult

Options

Extractable additional battery

Part # Description List Price Cart / Quote
DFWBP76ATEXD Rechargeable ATEX battery, for 1 & 21 zones. If used with DFWATEX weight indicator this battery needs the BTCB2GD optional cable.

Consult

Approval for sale to third parties

Calibration service (ACCREDIA/DAKKS) only at time of order

Raising frame

High resolution (d HR) (only at time of order)
