Easy Pesa 3GD Series, Stainless Steel Scales, for ATEX Zones 2 and 22
Platform Features
- Approved “single point” stainless steel load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards
- ATEX approved load cell with ATEX protection:
- ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga.
- ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65
- Structure, enclosure and loading plate made in AISI304 satin finish stainless steel

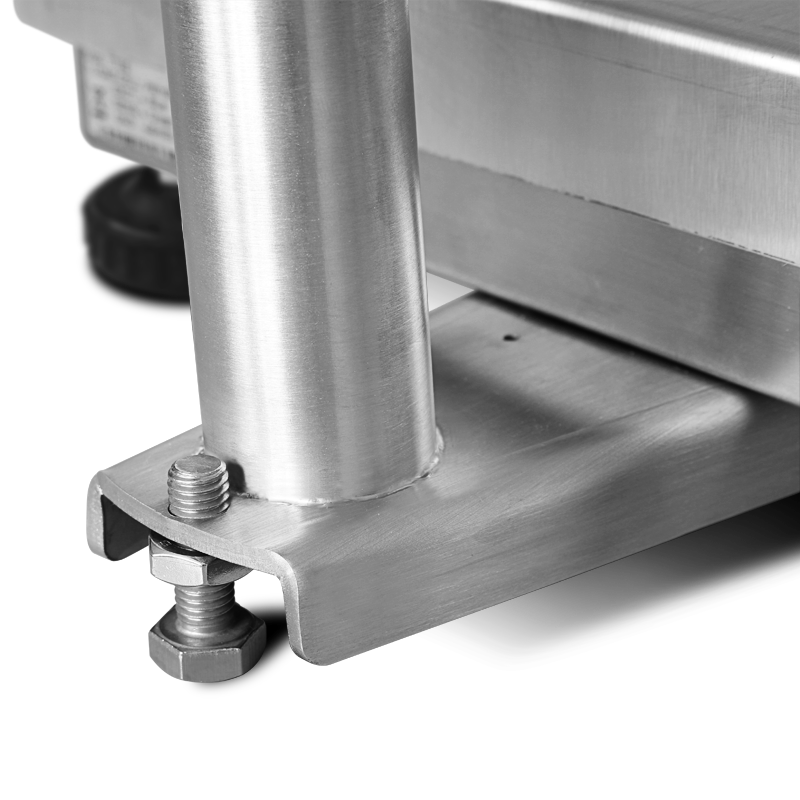

- Adjustable levelling feet with plastic over shoe
- Supplied with support column, height:
- 500 mm in the "Q" models
- 700 mm in the "X" models
- Length of connection cable to the indicator: 3m.

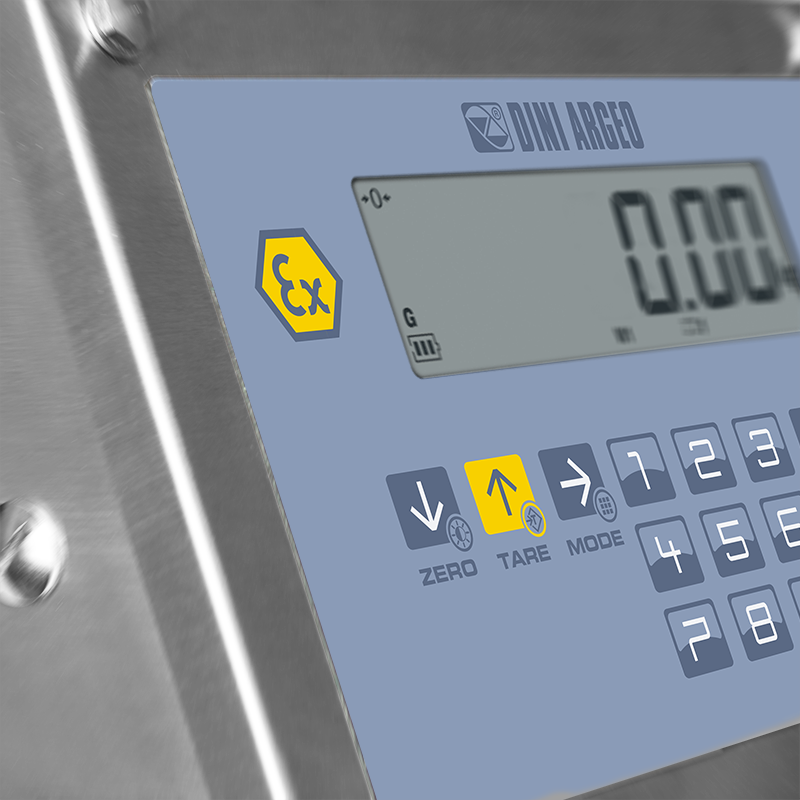

Weighing Indicator Features
- IP68 weight indicator for ATEX areas with protection methods according to:
- ATEX II 3G Ex nR IIC T6 Gc X for gases
- ATEX II 3D Ex tc IIIC T130°C Dc IP68 X for dust.
- EC-Type-Examination certificate according to Annex III (ATEX directive). CE-M approvable (OIML R-76 / EN 45501)
- Waterproof 17-key numerical and functional keyboard
- Backlight LCD display with 6 25-mm high contrast digits, clearly visible even in poor lighting conditions and with low temperatures
- Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use
- Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points
- A/D 24-bit sigma-delta conversion, up to 200 conv./sec. auto-select

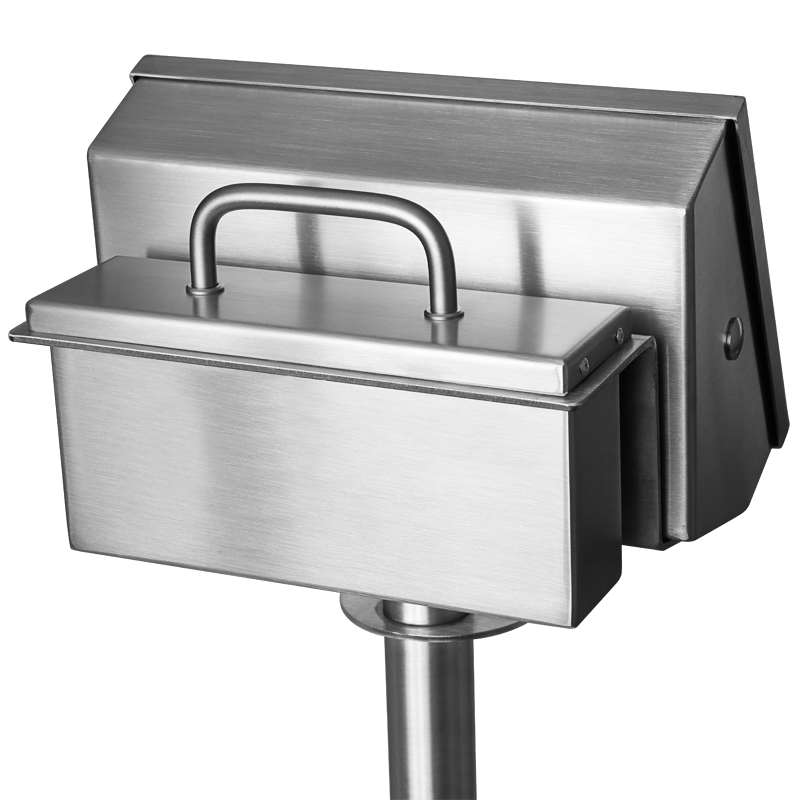

- Power supply through external battery pack with 100h operating time. It's possible to buy another battery pack for continuous use (24/7)
- Charger included in the supply
Fully stainless steel bench scales, for specific use in ATEX hazardous areas. Powered by a long lasting rechargeable battery which allows an easier installation directly where it's needed. These scales don't need a power supply socket in dangerous zone nor ATEX proof power supply cables. Provided with ATEX declaration of conformity. Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115°C Dc X.
Easy Pesa 3GD Series, Stainless Steel Scales, for ATEX zones 2 and 22 Specifications
|
Scale Function
|
Selectable Functioning Mode |
Certifications |
Available Versions
| Code | Plate Max (mm) |
Max (kg) |
d (kg) |  M (kg*) |
2R (g)* |
d HR (kg)* |
|---|---|---|---|---|---|---|
| EPQI3GD15B-1 | 400x400 | 15 | 2 | 5 | 2/5 | 1 |
| EPQI3GD30B-1 | 400x400 | 30 | 5 | 10 | 5/10 | 2 |
| EPQI3GD60B-1 | 400x400 | 60 | 10 | 20 | 10/20 | 5 |
| EPQI3GD150B-1 | 400x400 | 150 | 20 | 50 | 20/50 | 10 |
| EPXI3GD60B-1 | 600x600 | 60 | 10 | 20 | 10/20 | 5 |
| EPXI3GD150B-1 | 600x600 | 150 | 20 | 50 | 20/50 | 10 |
| EPXI3GD300B-1 | 600x600 | 300 | 50 | 100 | 50/100 | 20 |
(*) These divisions are obtainable only with the relative options.
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
EPQI3GD15B-1 | ATEX 3GD bench scale, Max= 15kg, d= 2g. Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115øC Dc X protection. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Supplied with manuals and conformity declaration (available in IT, EN, FR, DE). |
Consult |
|
|
|
EPQI3GD30B-1 | ATEX 3GD bench scale, Max= 30kg, d= 5g. EEx II 3G IIC T6 Gc X and Ex II 3D IIIC T115øC Dc X protection. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Supplied with manuals and conformity declaration (available in IT, EN, FR, DE). |
Consult |
|
|
|
EPQI3GD60B-1 | ATEX 3GD bench scale, Max= 60kg, d= 10g. Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115øC Dc X protection. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Supplied with manuals and conformity declaration (available in IT, EN, FR, DE). |
Consult |
|
|
|
EPQI3GD150B-1 | ATEX 3GD bench scale, Max= 150kg, d= 20g. Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115øC Dc X protection. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Supplied with manuals and conformity declaration (available in IT, EN, FR, DE). |
Consult |
|
|
EPXI3GD60B-1 | ATEX 3GD bench scale, Max= 60kg, d= 10g. Ex II 3GD IIC T6 T115øC X protection. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Supplied with manuals and conformity declaration (available in IT, EN, FR, DE). |
Consult |
|
|
|
EPXI3GD150B-1 | ATEX 3GD bench scale, Max= 150kg, d= 20g. Ex II 3GD IIC T6 T115øC X protection. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Supplied with manuals and conformity declaration (available in IT, EN, FR, DE). |
Consult |
|
|
|
EPXI3GD300B-1 | ATEX 3GD bench scale, Max= 300kg, d= 50g. Ex II 3GD IIC T6 T115øC X protection. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Supplied with manuals and conformity declaration (available in IT, EN, FR, DE). |
Consult |
Options
Extractable additional battery
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
BP6ESTATEX3GD | IP65 stainless steel, external ATEX battery pack, for 2 and 22 zones. Marking: ATEX II 3G Ex ec IIC T6 Gc X for gas and ATEX II 3D Ex tc IIIC T85øC Dc IP65 X for dust. For Dini Argeo ATEX 3GD instruments. ATTENTION: rechargeable in safe zone only, connectable and disconnectable from the weighing system also in hazardous area. (Battery charger not included). |
Consult |
