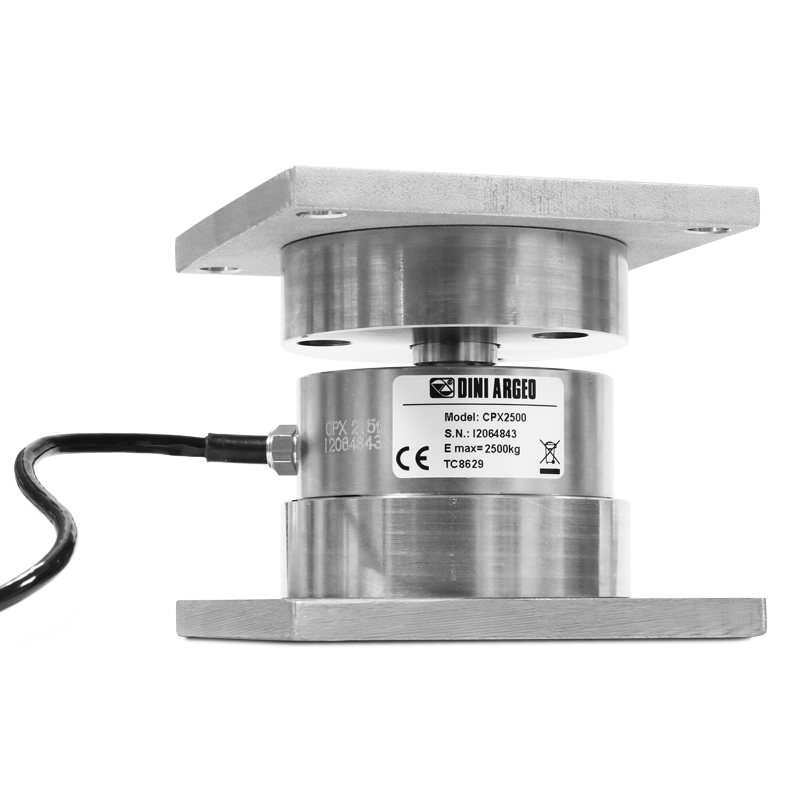

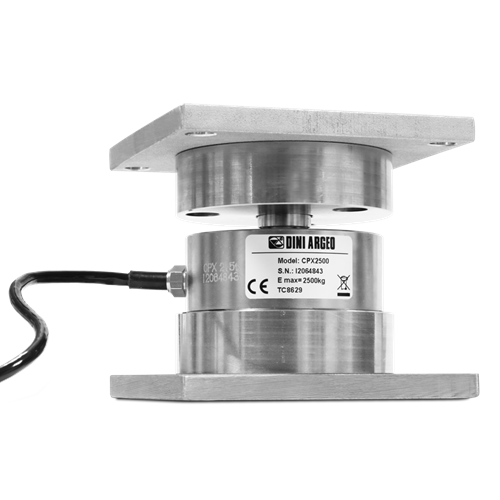

ELGO Series in Stainless Steel Kits, for CPX Compression Load Cell
- Compatible with CPX load cells up to 12,500kg.

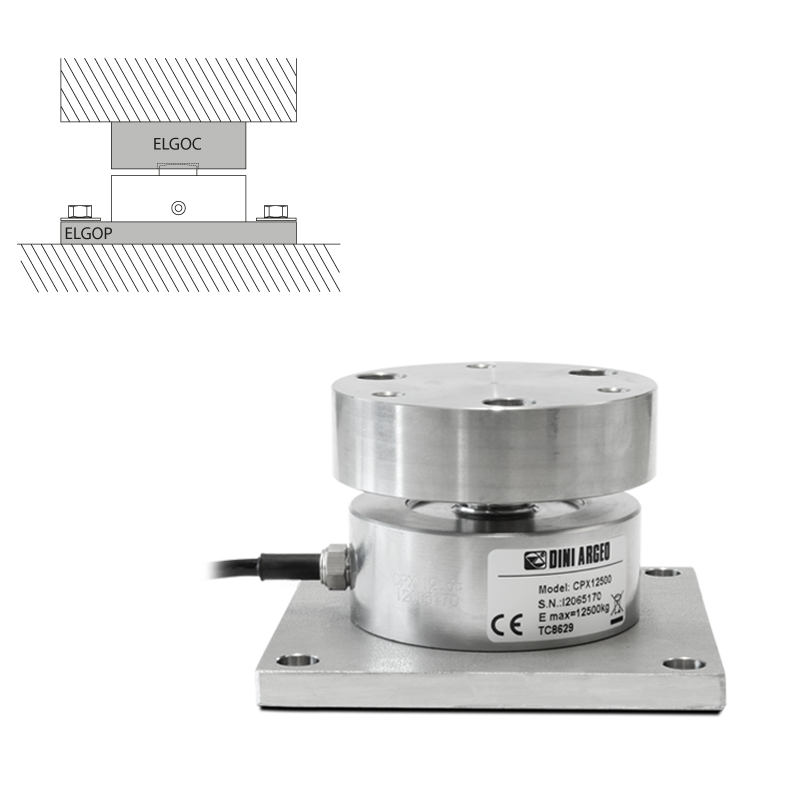

- Square stainless steel plate, for fixing directly to the load cells or to the circular plates.

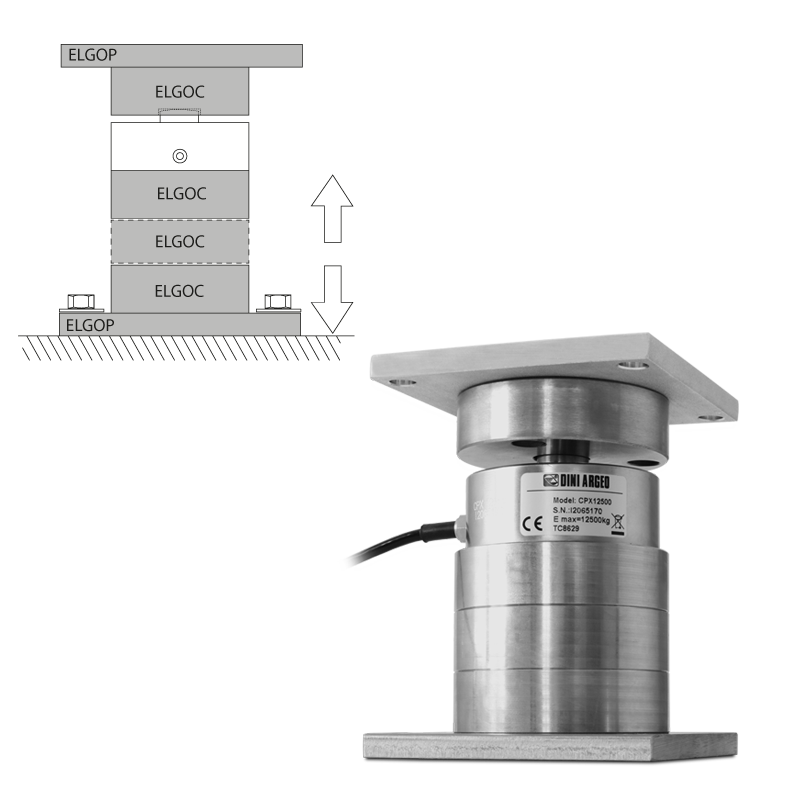

- Stainless steel multifunctional circular plates, designed to reach the desired height, and for the slot and locking of the load cell.
- Stainless steel load button, to combine with ELGOC for simple systems, with dummy load cells.
- Self-centring system for optimal weighing performances.
- Compensation system of the expansion on the transverse axial, +/- 2,5mm.
- The ELGO kit does not avoid overturns, nor protect against overloads/lateral forces.
Thanks to the ELGO modular kit, it is possible to quickly install CPX compression load cells, up to 12.500kg for weighing of silos, tanks, or different kinds of structures, containing installation costs. Built in STAINLESS steel and extremely simple to clean, ELGO is ideal for weighing in environments which are hostile, or that have high hygiene requirements. ATEX certification II 2GD c IIC T6 85°C.
Advantages:
- Adapt the kit's height to the structure to be weighed.
- Choose the ideal position for the load cell, lifting it from the ground in order to avoid dust and rubble.
- Choose the ideal installation direction of the cell (standard or turned upside down), according to the application.

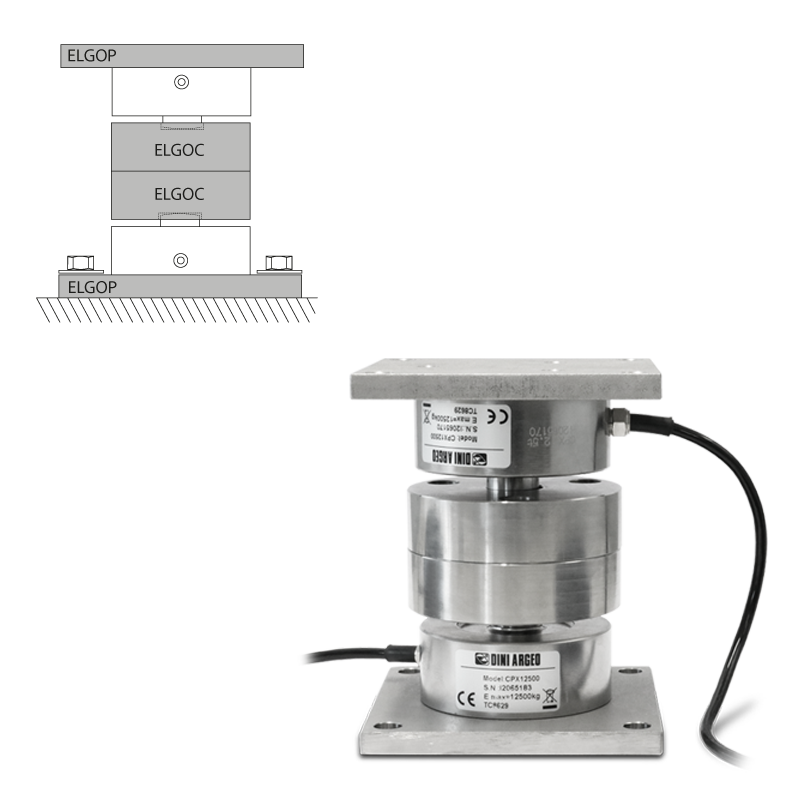

- Create double cell systems, doubling the reliability of the weighing system.
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles | |
| How to Choose the Best Load Cell for Your Needs | Email |
All Load Cells | Articles |
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
ELGOP | Fixing plate with screws. For CPX load cells up to 12.500kg. |
Consult |
|
|
ELGOC | Multipurpose plate with screws. For CPX load cells up to 12.500kg. |
Consult |
Options
Accessories
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
ELGON | Load button to be combined with ELGOC for applications including dummy load cells. |
Consult |
|
| GR25M8I | Kit 15 STAINLESS steel grains M8x25. |
Consult |
