ELP Hydraulic Weighing Kit for Stackers and Electric Pallet Trucks

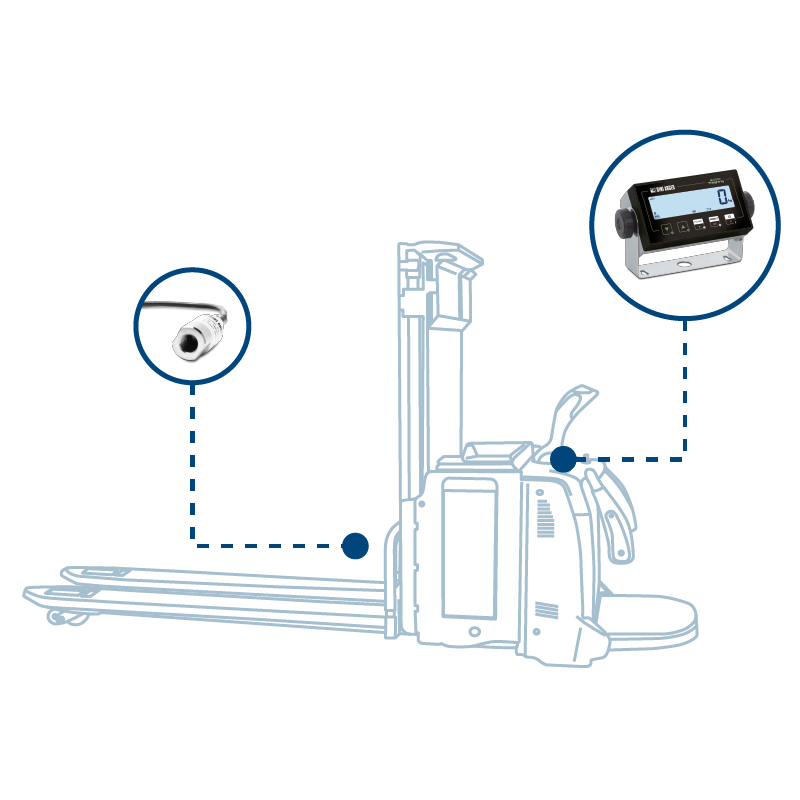

Weighing system to be applied to the hydraulic system of the pallet stacker and electric pallet truck, easy to install through a simple tee fitting. Ideal for weight checks, control of goods entering and leaving the warehouse, prevention of overloading of the pallet truck.
For pallet stackers and electric pallet trucks
WEIGHING FEATURES
- Maximum lifting capacity: up to 4,000 PSI / 280 BAR
- Resolution: from 1 kg
- Accuracy: ±0.5% to ±5% of capacity, min. ±20 kg*
*This value may be affected by several factors, consult the manual for more information.
WHY CHOOSE DINI ARGEO ELP
- Easy to install, connects to the hydraulic system via a tee fitting.
- It does not reduce the load capacity of the pallet truck and does not affect the original manufacturer's certification.
- It is indestructible because it is not subject to shock.
- Direct power from the pallet truck battery makes the system always ready to weigh when you need it.
- The weight indicator is compact and comes with a bracket for easy installation in the cabin
- Equipped with specific algorithm for weighing on stacker and electric pallet trucks.
- The optional printer allows to track the weighs carried out.
ELP Hydraulic Weighing Kit for Stackers and Electric Pallet Trucks Specification
|
COMPACT WEIGHT INDICATOR
|
HYDRAULIC PRESSURE SENSOR
|

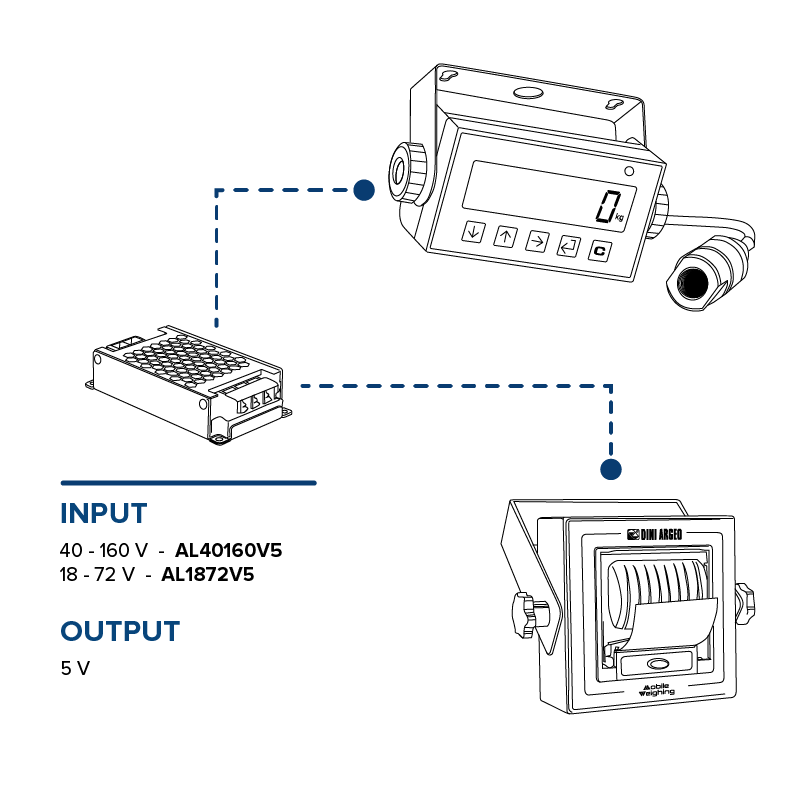

POWER SUPPLY OF CHOICE According to the voltage present on the pallet truck, it is possible to choose the most suitable optional ALxxV5 power supply, with input from 18 to 72Vdc or from 40 to 160Vdc. The ALxxV5 power supply units can be installed inside the weight indicator (by ordering the S1 service) and can simultaneously power the OBTPRLT printer, optimising the wiring of the various components. FIXING BRACKET |
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles | |
| Increase Efficiency and Productivity with Dini Argeo Weighing Solutions | Email |
Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|Pallet Truck Scales | Articles | |
| Smart Solution for Weighing in the Warehouse | Email |
Hydraulic Weighing | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|

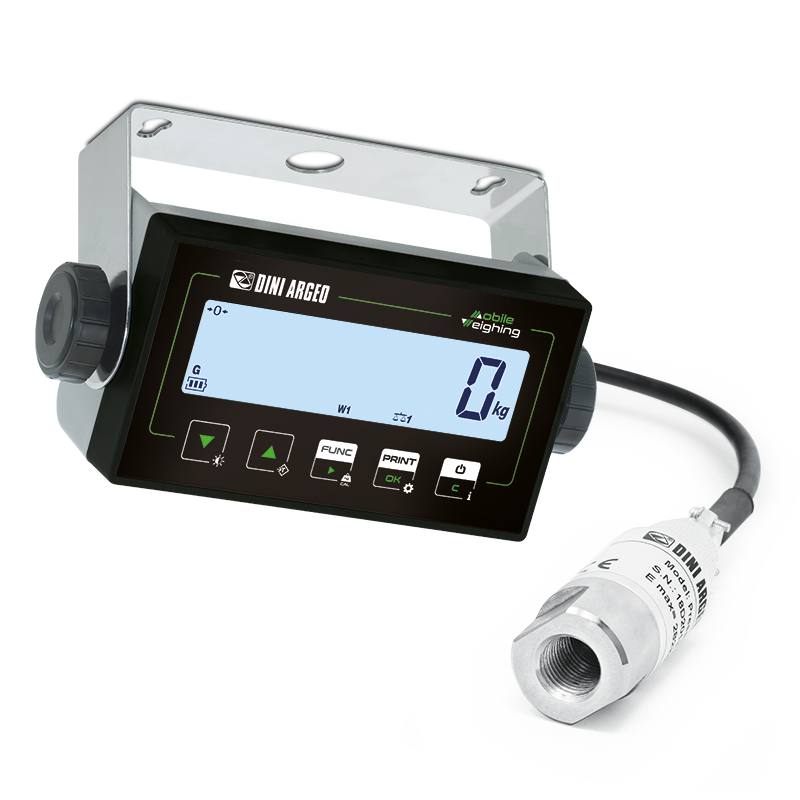

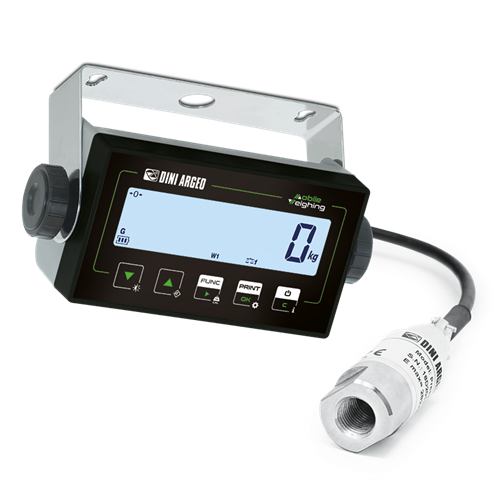

ELP-1 | Hydraulic weighing kit for stackers. The kit includes: Pressure sensor up to 4.000 PSI / 280 BAR, adjustable fixing bracket and weight indicator powered from the pallet truck (to be combined with a dedicated power supply unit). |
Consult |
Options
Power supply
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
AL40160V5 | Power adapter for the indicator in cabin (mounting not included). From 40 to 160 Vdc input (directly from the lift truck), 5Vdc 6A output for the indicator (max 30W). |
Consult |
|
|
|
AL1872V5 | Power adapter for the indicator in cabin (mounting not included). From 18 to 72 Vdc input (directly from the lift truck), 5Vdc 6A output for the indicator (max 30W). |
Consult |
|
|
|
AL918V5 | Power adapter for the indicator in cabin (mounting not included). From 9 to 18 Vdc input (directly from the lift truck), 5 Vdc 6A output for the indicator (max 30W). |
Consult |
