ELWL Logistic Series Electric Pallet Truck Weighing Scale

Electric pallet truck scale, with built-in electronic weighing. Easy to use, reliable, suitable for harsh work conditions. It is indispensable when one needs to weigh accurately and save time. Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample masses. Available also CE-M approved.

  • Maximum lifting capacity: 1200 kg
  • 4 shear-beam IP67 load cells and connections
  • Weight indicator with a 17-key, waterproof, numerical-functional keyboard; backlit 25mm LCD display with 6 high-contrast digits and with icons for showing the active functions
  • Easy to clean waterproof ABS IP65 case resistant to harsh and corrosive environments
  • Digital calibration and set-up configurable from keypad
  • Power supply through built-in rechargeable battery. Battery level indication
  • Programmable energy saving functions
  • Configurable RS232 / C bidirectional port for connection to the printer
  • Configurable RS232 / C bidirectional port for PC, modem radio or portable terminal
Request More Information

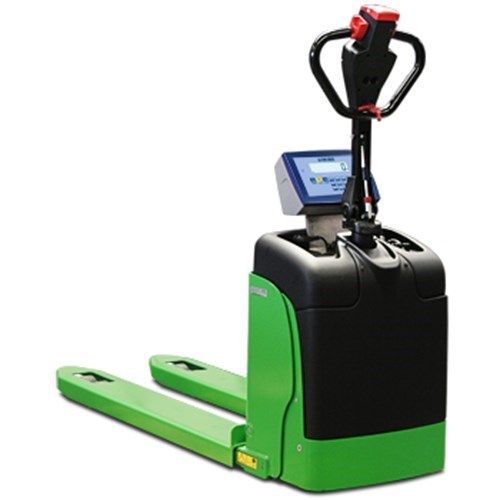

ELWL 2017

ELECTRICAL AND MECHANICAL FEATURES:

  • Thick steel and oven-fire painted structure.
  • Wheels with polyurethane coating.
  • Distance from the centre of gravity: 600 mm.
  • Fork height: 85 mm to max. 200 mm.
  • Adjustable lowering speed.
  • Maximum horizontal inclination: 10% at full load, 25% without load.
  • Electromagnetic and parking brakes.
  • Electric pallet truck supplied directly by rechargeable battery incorporated into the structure.
  • 24 VDC 55 Ah battery and charger.
  • Operating life of 40 work cycles, at full load, with movements of about 30 m.
  • Electric power supply 0.3 kw traction and in lifting 0,4 Kw.

MAIN FEATURES:

  • The user can select the operating modes directly using the dedicated key*:
    - High resolution display x 10
    - Precision weighing with temporary recalibration via a sample weight (for internal factory use)
    - Net/Gross
    - Lb to Kg converter
    - Free conversion factor (for meter and litre counters etc.)
    - Weight totalizer
    - Formulizer
    - +/- controller with quick target and threshold input
    - Percentage weighing
    - Percentage batching with programmable target
    - Piece counter
    - Hold
    - Alibi memory (optional)

  • Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.

    * These quick access keys to the menus can be blocked by configuring a dedicated password.

OPTION (ONLY AVAILABLE AT TIME OF ORDER)

  • Thermal printer option box
  • Radio modem option box
  • WI-FI interface
  • Alibi memory with time-date
  • Date / Time




Code		 Max
(kg)		 d
(kg)
(kg)
ELWL12-1 600/1200 0,2/0,5 --
ELWL12M-1  600/1200 -- 0,5/1

Resources/Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|ATEX Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing Kits|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Platforms, Indicators and Accessories|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Mounting Kits|Hygienic Load Cells Articles
Increase Efficiency and Productivity with Dini Argeo Weighing Solutions Email Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Platforms, Indicators and Accessories|Pallet Truck Scales Articles

Parts

Available Versions

Part # Description List Price Cart/Quote
ELWL12-1 Electric pallet truck scales with 600/1200 kg dual range capacity, 0,2/0,5 kg division, painted steel structure. Multifunction weight indicator with ABS IP65 case, 17-key keypad and backlit LCD display.

Consult
ELWL12M-1 Approved electric pallet truck scale with 600/1200 kg dual range capacity, 0,5/1 kg division, painted steel structure. Multifunction weight indicator with ABS IP65 case, 17-key keypad and backlit LCD display.

Consult

Options

Communication Interfaces

Part # Description List Price Cart/Quote
RF2G4 Built-in 2.4 GHz radiofrequency module. Max. functioning distance in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. Up to 39 configurable channels. (RF2G4 must be combined with another radio module).

Consult
OBRF2G4-USB External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels.

Consult
ALMEM-1 Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels. If applicable, it requires FW 05.00.02 or higher. Not compatible with weight repeaters.

Consult
BLTH-3 Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems.

Consult

Storing Weighments

Printers / Labelers

Date & Time Option

Keyboard Protection Cover

Calibration Service (ACCREDIA/DAKKS) Only at Time of Order

Other Options
