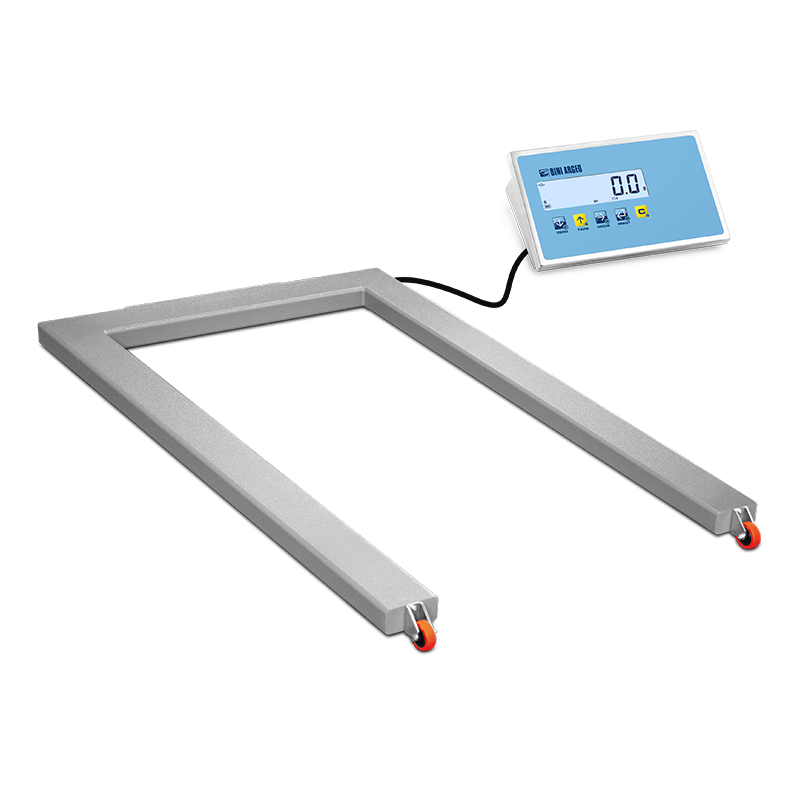

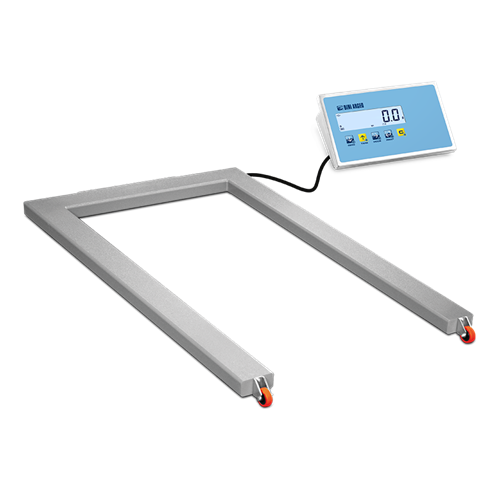

Fast, accurate, easy to use and transport stainless steel pallet truck scale. Integrated weight indicator, complete of extendable connection cable. Available in approved version for legal-for-trade use.
WEIGHING FEATURES
Maximum capacity: 2,000 kg
Resolution:
internal use: 0,2 / 0,5 / 1 kg
approved: 0,5 / 1 kg
Accuracy (weighing on Europallet with distributed load):
internal use: +/- 1 kg
approved: according to CE certification (Directive 2014/31/EU)
Digital calibration and set-up from keyboard or from PC with DINITOOLS.
Structure and loading surface in stainless steel sheet, complete with adjustable feet.
Level bubble, wheels and transport handle.
Connection cable to the indicator, 3 meters long.
Supplied as standard with extractable drawer for housing 4 AA batteries (not included), also rechargeable, and standard connector for connection to external power supply (if connected, it excludes the battery power).

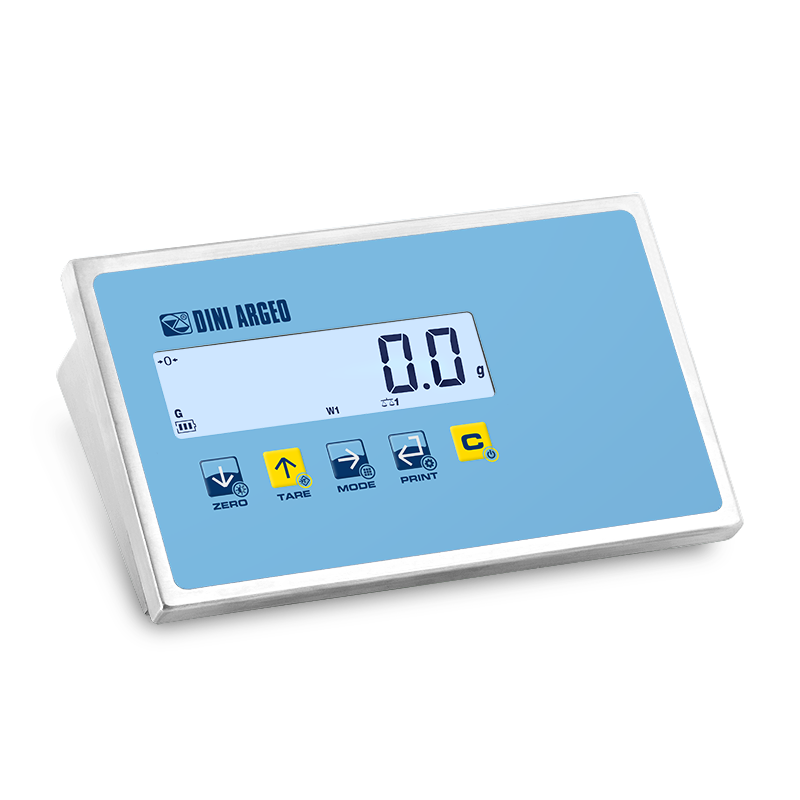

Backlit LCD display of 25mm with 6 digits, high contrast, with icons for indication of active functions.
Functional waterproof keypad with 5 keys.
Easy-to-clean IP68 stainless steel case, resistant to harsh and corrosive environments.
110-240 Vac power supply.
RS 232/C bidirectional port on RJ connector for quick connection (optional USB or RS485), configurable for PC, PLC, additional remote display.
Bi-directional RS 232/C port configurable for connection to printer or labeller.
Operating temperature: -10° / +40° C
SELECTABLE FUNCTION MODES
The user can select the operating modes directly using the dedicated key*: - High resolution display x 10 - Precision weighing with temporary recalibration via a sample weight (for internal factory use) - Net/Gross - Newton to Kg converter - Lb to Kg converter - Free conversion factor (for meter and litre counters etc.) - Weight totalizer - Formulizer - +/- controller with quick target and threshold input - Percentage weighing - Percentage batching with programmable target - Piece counter - Hold - Two-speed filling/batching with reset upon starting (with optional DFIO)
The “alibi memory” and “setpoint” functions are available in combination with the required operating mode and they are activated automatically when installing the relevant optional board.
Optional functions: - PEAK, detection of weight peaks (code DFWPK) - Newton to Kg converter (code DFWPK)
Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.
* These quick access keys to the menus can be blocked by configuring a dedicated password.
Pallet-weighing scale with 600/1500/2000 kg triple range capacity, 0,2/0,5/1 kg division, dimensions 1260x800 mm, h=75 mm, stainless steel structure. Multifunction weight indicator with stainless steel IP68 case, 5-key keypad and backlit LCD display.
Approved pallet-weighing scale with 1000/2000 kg dual range capacity, 0,5/1 kg division, dimensions 1260x800 mm, h=75 mm, stainless steel structure. Multifunction weight indicator with stainless steel IP68 case, 5-key keypad and backlit LCD display.
ISO 17025 calibration certificate from 1501 to 3000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.
Weight repeater with 60 mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure, and configurable protocol.
Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels (if applicable).
Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners.
Attention: this interface is not suitable for Master-Slave systems.
"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).
Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.
