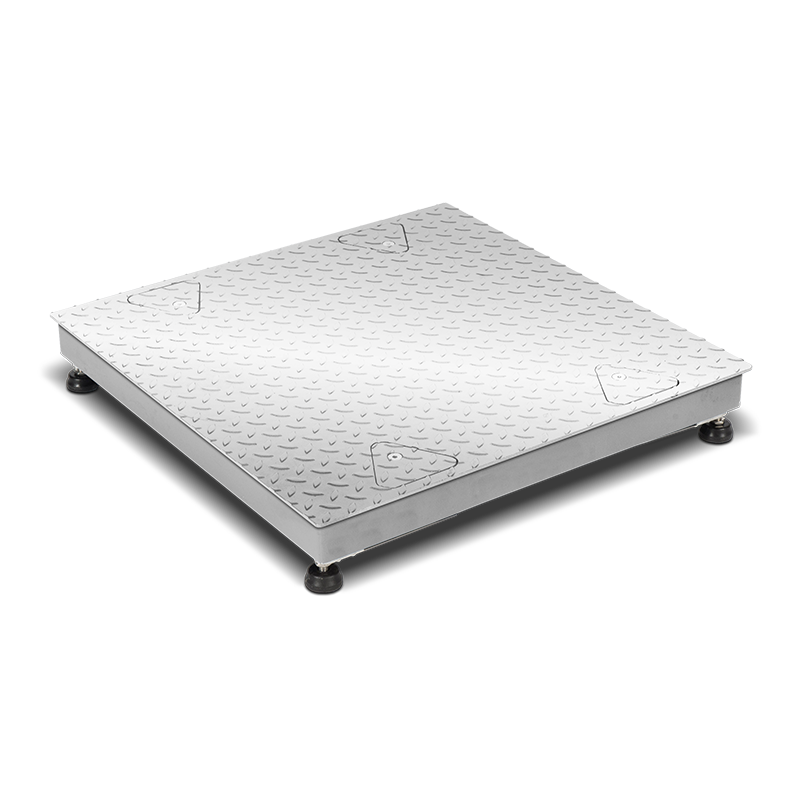

ESI Series 4 Cells Floor Platforms
- Fitted with 4 bending beam, stainless steel, approved load cells with IP68 protection from dust and water
- Very sturdy stainless steel monobloc with fixed chequered loading surface
- IP68 junction box
- Adjustable, anti slip feet and level
- Up to 15 VDC power supply
- 5 m 6-pin shielded cable, complete with female connector.
Stainless steel monobloc electronic platforms, fitted with stainless steel bending beam load cells. Suitable for weighing in all types of industrial and commercial applications. Standard version is with approved load cell.
Specifications
|
Options for ATEX Version CCATEX: ATEX certificate for each load cell. JB4QA: ATEX certified junction box. DCATEXMECH: ATEX declaration for the PLATFORM (for the load cells ATEX declaration see CCATEX-1 code). Option to be offered only if the platform is ordered without the indicator, if so, refer to the chosen weight indicator available certifications.
|
Accessories Indicator support stand. Pit frame for flush floor installation. |
|

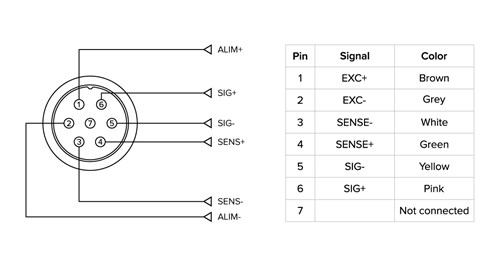

Connector Pinout
Available Versions -da modificare
| Code | l x w x h (mm) | Max (kg) | d (g) |  (g)* |
d HR (g)* |
|---|---|---|---|---|---|
| TSE3-HGX | 230x330x90 | 3 | 0,5 | See table below | 0,2 |
| TSE3-HGX-MI | 230x330x90 | 3 | -- | 0,5/1 (Multi interval) | -- |
| TSE6-HGX | 230x330x90 | 6 | 1 | See table below | 0,5 |
| TSE6-HGX-MI | 230x330x90 | 6 | -- | 1/2 (Multi interval) | -- |
| TSE12-HGX-MI | 230x330x90 | 12 | -- | 2/5 (Multi interval) | -- |
| TSE15-HGX | 230x330x90 | 15 | 2 | See table below | 1 |
| TTE6-HGX | 330x330x90 | 6 | 1 | See table below | 0,5 |
| TTE6-HGX-MI | 330x330x90 | 6 | -- | 1/2 (Multi interval) | -- |
| TTE12-HGX-MI | 330x330x90 | 12 | -- | 2/5 (Multi interval) | -- |
| TTE15-HGX | 330x330x90 | 15 | 2 | See table below | 1 |
| TTE30-HGX | 330x330x90 | 30 | 5 | See table below | 2 |
| TTE30-HGX-MI | 330x330x90 | 30 | -- | 5/10 (Multi interval) | -- |
| TQE12-HGX-MI | 400x400x115 | 12 | -- | 2/5 (Multi interval) | -- |
| TQE15-HGX | 400x400x115 | 15 | 2 | See table below | 1 |
| TQE30-HGX | 400x400x115 | 30 | 5 | See table below | 2 |
| TQE30-HGX-MI | 400x400x115 | 30 | -- | 5/10 (Multi interval) | -- |
| TQE60-HGX | 400x400x115 | 60 | 10 | See table below | 5 |
| TQE60-HGX-MI | 400x400x115 | 60 | -- | 10/20 (Multi interval) | -- |
| TME30-HGX | 400x500x115 | 30 | 5 | See table below | 2 |
| TME30-HGX-MI | 400x500x115 | 30 | -- | 5/10 (Multi interval) | -- |
| TME60-HGX | 400x500x115 | 60 | 10 | See table below | 5 |
| TME60-HGX-MI | 400x500x115 | 60 | -- | 10/20 (Multi interval) | -- |
(*) Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
ESI150-1 | 4-cell platform with 150 kg capacity, 20 g division, stainless steel loading surface 600x600 mm, h= 85 mm, steel structure. 5 m shielded cable. |
Consult |
|
|
|
ESI300-1 | 4-cell platform with 300 kg capacity, 50 g division, stainless steel loading surface 600x600 mm, h= 85 mm, steel structure. 5 m shielded cable. |
Consult |
Options
Calibration service with weight indicator
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
DINICAL | Connection to a Dini Argeo indicator and calibration. NET PRICE (*). |
Consult |
|
|
|
DINICAL-DRC | Connection to a Dini Argeo indicator and calibration. NET PRICE. |
Consult |
