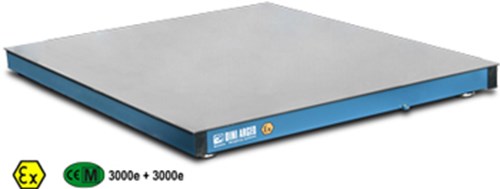

ET Series 4 Cells Floor Platforms

Fitted with 4 stainless steel shear-beam approved load cells each with 1100 Ohm input resistance and made according to OIML R60 standards with protection against dust and under water immersion according to IP68 standards
Steel tubular bearing structure, oven-fire painted in RAL 5007 blue; removable loading surface made in extra thick chequered galvanised steel; inspectionable trapdoor housing the junction box
Adjustable, stainless steel shock-proof jointed feet and level. Up to 15 VDC power supply
Junction box and wiring cables with sheathing according to IP67 standards, and shielded 5m long 6-pin cable complete with female connector.

HD View

Low profile electronic platforms with removable chequered loading plate. Fitted with IP68 STAINLESS STEEL load cells. Suitable for creating scales and electronic weighing systems for all types of industrial and commercial applications. Standard version is with approved load cell.

Specifications

Options for ATEX Version

CCATEX: ATEX certificate for each load cell.

JB4QA: ATEX certified junction box.

DCATEXMECH: ATEX declaration for the PLATFORM (for the load cells ATEX declaration see CCATEX-1 code). Option to be offered only if the platform is ordered without the indicator, if so, refer to the chosen weight indicator available certifications.

Options Only Available at Time of Order

Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval.

Stainless steel surface.

High resolution models for internal factory use.

AVAILABLE ON REQUEST: reinforced version for weighing of concentrated loads (coils, forklifts etc.)

Accessories

Indicator support column.

Frames for flush floor installation.

Access ramps.

Special sizes and capacities upon estimate.

Dimensions (mm)

Mod./Dim.	L	P	H	A	B	F
ETA	1000	1000	90	850	850	60
ETM	1000	1250	90	850	1100	60
ETB	1250	1250	90	1070	1070	60
ETD	1250	1500	115	1070	1320	60
ETE	1500	1500	115	1320	1320	60
ETF	1500	2000	130	1300	1800	60
ETG	1500	2000	150	1300	1800	60
ETH	1500	2500	180	1280	2280	60
ETL	2000	2500	180	1780	2280	60

Available Versions

Code	l x w x h (mm)	Nr. of cells	Max (kg)	d (g)	M (g)	2R (g)*	d HR (g)*
ETA3	1000x1000x90	4x300kg	300	50	100	--	20
ETA6	1000x1000x90	4x500kg	600	100	200	100-200	50
ETA15	1000x1000x90	4x1000kg	1500	200	500	200-500	100
ETM3	1000x1250x90	4x300kg	300	50	100	--	20
ETM6	1000x1250x90	4x500kg	600	100	200	100-200	50
ETM15	1000x1250x90	4x1000kg	1500	200	500	200-500	100
ETB3	1250x1250x90	4x300kg	300	50	100	--	20
ETB6	1250x1250x90	4x500kg	600	100	200	100-200	50
ETB15	1250x1250x90	4x1000kg	1500	200	500	200-500	100
ETB30	1250x1250x90	4x2000kg	3000	500	1000	500-1000	200
ETD6	1250x1500x115	4x500kg	600	100	200	100-200	50
ETD15	1250x1500x115	4x1000kg	1500	200	500	200-500	100
ETD30	1250x1500x115	4x2000kg	3000	500	1000	500-1000	200
ETE6	1500x1500x115	4x500kg	600	100	200	100-200	50
ETE15	1500x1500x115	4x1000kg	1500	200	500	200-500	100
ETE30	1500x1500x115	4x2000kg	3000	500	1000	500-1000	200
ETF6	1500x2000x130	4x500kg	600	100	200	100-200	50
ETF15	1500x2000x130	4x1000kg	1500	200	500	200-500	100
ETF30	1500x2000x130	4x2000kg	3000	500	1000	500-1000	200
ETG60-1	1500x2000x180	4x3000kg	6000	1000	2000	1000-2000	500
ETH30	1500x2500x180	4x3000kg	3000	500	1000	--	200
ETH60	1500x2500x180	4x3000kg	6000	1000	2000	1000-2000	500
ETH100	1500x2500x180	4x4500kg	10000	2000	5000	2000-5000	1000
ETL30	2000x2500x180	4x3000kg	3000	500	1000	--	200
ETL60	2000x2500x180	4x3000kg	6000	1000	2000	1000-2000	500
ETL100	2000x2500x180	4x4500kg	10000	2000	5000	2000-5000	1000

Connector Pinout

Connector Pinout ES ESI ET ETI

Resources/Downloads

Application Stories / Articles

Title	View	Email	Category	Type
Inventory Weighing Solutions and Programmes		Email	Bench Scales\|Pallet Truck Scales\|Floor Scales	Articles

Parts

Available Versions

Part #	Description	List Price	Cart/Quote
ETA3	4-cell platform with 300 kg capacity, 50 g division, galvanised steel loading surface 1000x1000 mm, h= 90 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETA6	4-cell platform with 600 kg capacity, 100 g division, galvanised steel loading surface 1000x1000 mm, h= 90 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETA15	4-cell platform with 1500 kg capacity, 200 g division, galvanised steel loading surface 1000x1000 mm, h= 90 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETM3	4-cell platform with 300 kg capacity, 50 g division, galvanised steel loading surface 1000x1250 mm, h= 90 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETM6	4-cell platform with 600 kg capacity, 100 g division, galvanised steel loading surface 1000x1250 mm, h= 90 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETM15	4-cell platform with 1500 kg capacity, 200 g division, galvanised steel loading surface 1000x1250 mm, h= 90 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETB3	4-cell platform with 300 kg capacity, 50 g division, galvanised steel loading surface 1250x1250 mm, h= 90 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETB6	4-cell platform with 600 kg capacity, 100 g division, galvanised steel loading surface 1250x1250 mm, h= 90 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETB15	4-cell platform with 1500 kg capacity, 200 g division, galvanised steel loading surface 1250x1250 mm, h= 90 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETB30	4-cell platform with 3000kg capacity, 500g division, galvanised steel loading surface 1250x1250mm, h= 90mm, painted steel structure. 5 m shielded cable.	Consult	View
ETD6	4-cell platform with 600 kg capacity, 100 g division, galvanised steel loading surface 1250x1500 mm, h= 115 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETD15	4-cell platform with 1500 kg capacity, 200 g division, galvanised steel loading surface 1250x1500 mm, h= 115 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETD30	4-cell platform with 3000 kg capacity, 500 g division, galvanised steel loading surface 1250x1500 mm, h= 115 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETE6	4-cell platform with 600 kg capacity, 100 g division, galvanised steel loading surface 1500x1500 mm, h= 115 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETE15	4-cell platform with 1500 kg capacity, 200 g division, galvanised steel loading surface 1500x1500 mm, h= 115 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETE30	4-cell platform with 3000 kg capacity, 500 g division, galvanised steel loading surface 1500x1500 mm, h= 115 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETF6	4-cell platform with 600 kg capacity, 100 g division, galvanised steel loading surface 1500x2000 mm, h= 130 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETF15	4-cell platform with 1500 kg capacity, 200 g division, galvanised steel loading surface 1500x2000 mm, h= 130 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETF30	4-cell platform with 3000 kg capacity, 500 g division, galvanised steel loading surface 1500x2000 mm, h= 130 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETG60-1	4-cell platform with 6000 kg capacity, 1000 g division, galvanised steel loading surface 1500x2000 mm, h= 180 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETH30	4-cell platform with 3000 kg capacity, 500 g division, galvanised steel loading surface 1500x2500 mm, h= 180 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETH60	4-cell platform with 6000 kg capacity, 1000 g division, galvanised steel loading surface 1500x2500 mm, h= 180 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETH100	4-cell platform with 10000 kg capacity, 2000 g division, galvanised steel loading surface 1500x2500 mm, h= 180 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETL30	4-cell platform with 3000 kg capacity, 500 g division, galvanised steel loading surface 2000x2500 mm, h= 180 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETL60	4-cell platform with 6000 kg capacity, 2000 g division, galvanised steel loading surface 2000x2500 mm, h= 180 mm, painted steel structure. 5 m shielded cable.	Consult	View
ETL100	4-cell platform with 10000 kg capacity, 2000 g division, galvanised steel loading surface 2000x2500 mm, h= 180 mm, painted steel structure. 5 m shielded cable.	Consult	View

Options

Calibration service with weight indicator

	Part #	Description	List Price	Cart/Quote
	DINICAL	Connection to a Dini Argeo indicator and calibration. NET PRICE (*).	Consult	View
	DINICAL-DRC	Direct connection (without connectors) from platform to indicator and calibration service. € NET.NOTE(1): delivered platform not connected: connection of the platform to the weight indicator to be carried out on site by qualified personnel.	Consult	View

ET Series 4 Cells Floor Platforms

Specifications

Dimensions (mm)

Available Versions

Connector Pinout

Resources/Downloads

Application Stories / Articles

Parts

Available Versions

Options

Calibration service with weight indicator

Legal for trade approval, class III or IIII, with Dini Argeo weight indicator (only at time of order)

High Resolution (d HR) (only at time of order)

IP68 protection

IP69K Protection

Stainless steel loading surface

Floor Columns

Frame for Flush Floor Installation

On / Off Ramp

Plates for fixing on the floor

Options for ATEX Version

Protection for Junction Box / Electronic Circuits

Calibration Service with Dini Argeo Weight Indicator (only at time of order)

Part #	Description	List Price	Cart/Quote
ECEM	3000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.	Consult	View
ECEM2	Multi-range 3000+3000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET €.	Consult	View

Part #	Description	List Price	Cart/Quote
ETAPI	Stainless steel loading surface 1000x1000x4 mm, for ETA platform.	Consult	View
ETMPI	Stainless steel loading surface 1000x1250x4 mm, for ETM platforms.	Consult	View
ETBPI	Stainless steel loading surface 1250x1250x4 mm, for ETB platform.	Consult	View
ETDPI	Stainless steel loading surface 1250x1500x4 mm, for ETD platforms.	Consult	View
ETEPI	Stainless steel loading surface 1500x1500x4 mm, for ETE platforms.	Consult	View
ETFPI	Stainless steel loading surface 1500x2000x5 mm, for ETF platforms.	Consult	View
ETHPI	Stainless steel loading surface 1500x2500x5 mm, for ETH platforms.	Consult	View

Part #	Description	List Price	Cart/Quote
CSP38I-1	AISI 304 stainless steel column 450x450mm, h=917mm, Ø 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
CSP38	Stainless steel column 450x450mm, h=917, Ø 38mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
CSP38D	Stainless steel column 350x350mm, h=750mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View

Part #	Description	List Price	Cart/Quote
ETATF	Frame for flush floor installation for ETA platforms.	Consult	View
ETMTF	Frame for flush floor installation for ETM platforms.	Consult	View
ETBTF	Frame for flush floor installation for ETB platforms.	Consult	View
ETDTF	Frame for flush floor installation for ETD platforms.	Consult	View
ETETF	Frame for flush floor installation for ETE platforms.	Consult	View
ETFTF	Frame for flush floor installation for ETF platforms.	Consult	View
ETGTF-1	Frame for flush floor installation for ETG platforms.	Consult	View
ETHTF	Frame for flush floor installation for ETH platforms.	Consult	View
ETLTF	Frame for flush floor installation for 2000x2500 mm platforms.	Consult	View
ETKB	Ball joints kit in stainless steel for pit frame ETxTF and ETxTFI. This accessory can be used in substitution of the standard plates. It allows the platform to swing and to settle, improving the weighing performance. Compatible with platforms with load cells up to 2000 kg.	Consult	View

Part #	Description	List Price	Cart/Quote
ETAR	Painted steel ramp, 1000x900mm, for ETA and ETM platforms.	Consult	View
ETBR	Painted steel ramp, 1250x900mm, for ETB platforms.	Consult	View
ETDR	Painted steel ramp, 1250x1100mm, for ETD platforms.	Consult	View
ETER	Painted steel ramp, 1500x1100mm, for ETE platforms.	Consult	View

Part #	Description	List Price	Cart/Quote
EXCB6	Blue shielded cable 6x0.22 mm², only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 7 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).	Consult	View
JB4QA	ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
CCATEX-1	Optional ATEX version for single load cell. Marking: ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga and ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
CCATEX3GD	ATEX certificate for each load cell. Marking: ATEX II 3G Ex nA IIC T6 Gc for gas and ATEX II 3D Ex tc IIIC T115°C Dc IP65 for dusts. Complete with manual and ATEX CE conformity declaration (available in EN, DE, FR and IT).	Consult	View
DCATEXMECH	ATEX version for the PLATFORM / LOAD CELL MOUNTING KIT for zone 1/21 (for the load cells ATEX declaration see CCATEX code). Option to be offered only if the platform is ordered without the indicator, otherwise refer to the available certifications for the chosen weight indicator. Provided with safety instructions and ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View

Part #	Description	List Price	Cart/Quote
CT5	ISO 17025 calibration certificate from 61 to 300 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT6	ISO 17025 calibration certificate from 301 to 1500 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT7	ISO 17025 calibration certificate from 1501 to 3000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CD3	ISO 9001 DINI ARGEO calibration report, from 1501 to 6000 kg, for single scale/platform. ACCREDIA reference weights.	Consult	View
CD4	ISO 9001 DINI ARGEO calibration report, from 6001 to 15000kg, for single scale/platform. ACCREDIA reference weights.	Consult	View
