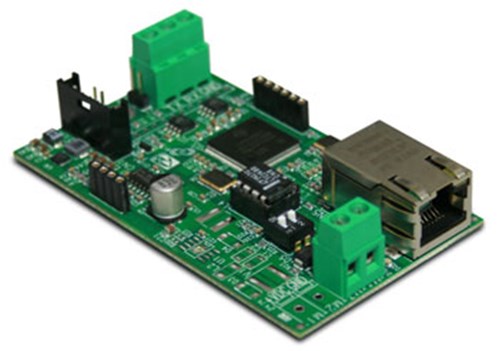

ETHD: Ethernet Interface for Indicators

  • Connection to the mains through the standard RJ45 connector
  • Mains interface: 10/100 Base-T
  • Supported protocols: TCP, UDP, DHCP, HTTP, ICMP, uPnP, ARP
  • Size: Height = 50 mm; Width = 87 mm
  • Visual indications: 2 LEDs
    - Green LED: ON when it is connected to the 10/100 Base-T mains.
    - Yellow LED: ON in the presence of the mains activity.
  • Operating temperature: -20°C +85°C
  • Power supply: from 5 to 12Vdc
  • Max. absorption: 350 mA



Request More Information
ETHD

Small size, excellent signal quality, support of the most common network protocols are just a few features of this product, which allows for a network connection of any scale or weighing system to the company’s computer system through the RJ45 connector; it’ easy to install and it’s fitted with a cable for the connection to the indicators.
The module does not exclude the use of other Dini Argeo products on the system, such as Control Light, Alibi Memory, attached or external printer.

Programming accessible by the integrated web interface.
It does not require any other pc application for the configuration.

Options

Interface and Cable

Part # Description List Price Cart / Quote
ETHD Built-in Ethernet interface. Speed from 10 to 100 Mbps, TCP, UDP, IP, ARP, ICMP, Ethernet Mac protocols.

Consult
