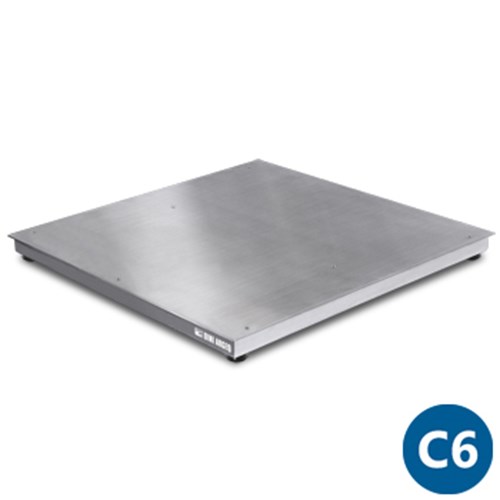

ETI Series 4-C6 Cells Stainless Steel Platforms

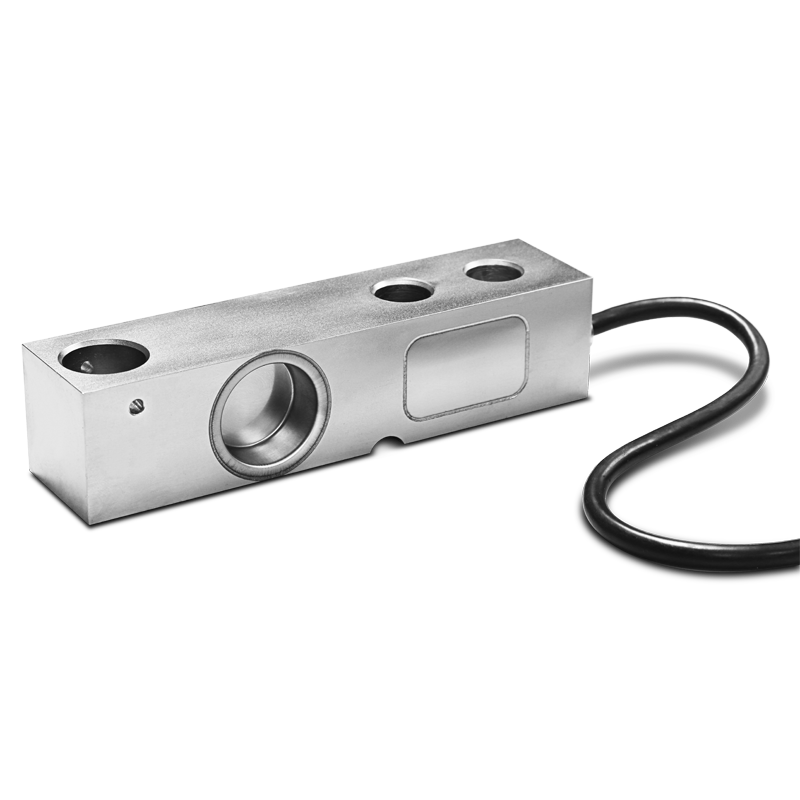

Fitted with 4 stainless steel shear-beam C6 load cells each with 350 Ohm input resistance. OIML R60 approved and protection against dust and immersion according to IP68 standards
Stainless steel bearing tubular structure, with removable stainless steel plate and IP67 junction box housing

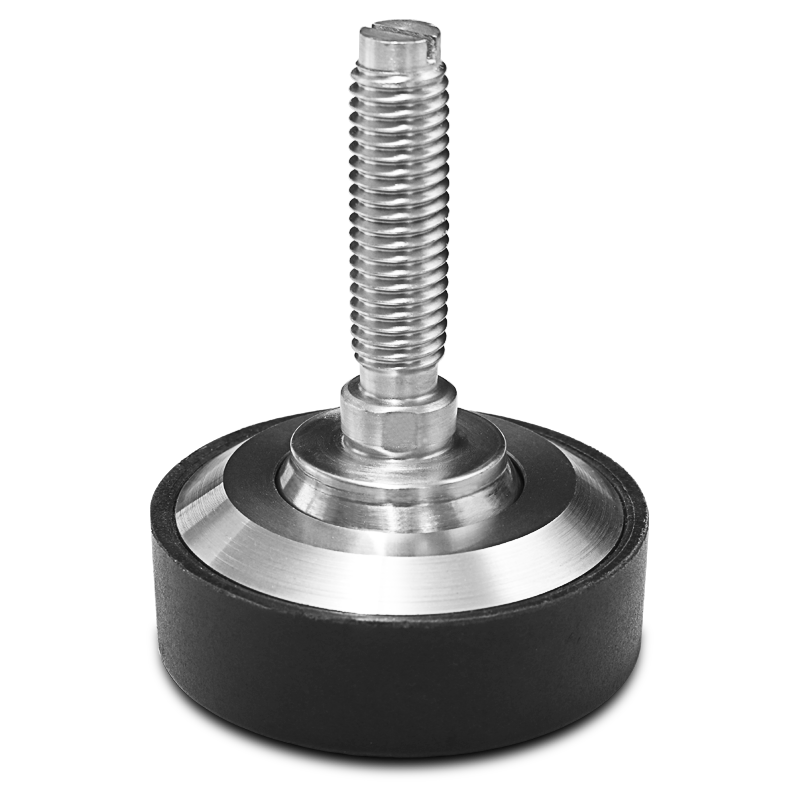

Adjustable, stainless steel shock-proof jointed feet and integrated level
Shielded 5m long 6-pin cable for connection to a weight indicator
Fitted with IP68 connector
Up to 15 VDC power supply

Electronic stainless steel weighing low profile platforms with removable loading plate fitted with IP68 stainless steel C6 approved load cells. Suitable for creating scales and electronic weighing systems for all types of industrial and commercial applications. Available in high resolution and suitable for ATEX zones.

Specifications

Accessories:

Indicator support stand
Frames for flush floor installation
Access ramps
Models with special sizes and capacities

Options Only Available at Time of Order:

Calibration with CE-M single or double range approval
High resolution models for internal factory use
AVAILABLE ON REQUEST: reinforced version for weighing of concentrated loads (coils, forklifts etc.)
Structure in AISI316 stainless steel

Options for ATEX Version:

CCATEX: ATEX certificate for each load cell
JB4QA: ATEX certified junction box
DCATEXMECH: ATEX declaration for the PLATFORM (for the load cells ATEX declaration see CCATEX-1 code). Option to be offered only if the platform is ordered without the indicator, if so, refer to the chosen weight indicator available certifications

Available Versions

Code	l x w x h (mm)	Nr. of cells	Max (kg)	d (g)	(g)*	2R (g)*	d HR (g)*
ETAI3C6	1000x1000x90	4x220kg	300	50	50	--	20
ETAI6C6	1000x1000x90	4x500kg	600	100	100	--	50
ETAI15C6	1000x1000x90	4x500kg	1200	200	200	100-200	100
ETMI3C6	1000x1250x90	4x220kg	300	50	50	--	20
ETMI6C6	1000x1250x90	4x500kg	600	100	100	--	50
ETMI15C6	1000x1250x90	4x500kg	1200	200	200	100-200	100
ETBI3C6	1250x1250x90	4x220kg	300	50	100	--	20
ETBI6C6	1250x1250x90	4x500kg	600	100	100	--	50
ETBI15C6	1250x1250x90	4x500kg	1200	200	200	100-200	100
ETBI30C6	1250x1250x90	4x2000kg	3000	500	500	--	200
ETDI6C6	1250x1500x115	4x500kg	600	100	100	--	50
ETDI15C6	1250x1500x115	4x500kg	1200	200	200	100-200	100
ETDI30C6	1250x1500x115	4x2000kg	3000	500	500	--	200
ETEI6C6	1500x1500x115	4x500kg	600	100	100	--	50
ETEI15C6	1500x1500x115	4x500kg	1200	200	200	100-200	100
ETEI30C6	1500x1500x115	4x2000kg	3000	500	500	--	200
ETFI6C6	1500x2000x130	4x500kg	600	100	100	--	50
ETFI15C6	1500x2000x130	4x500kg	1200	200	200	100-200	100
ETFI30C6	1500x2000x130	4x2000kg	3000	500	500	--	200

WARNING: ETFI, ETGI, ETHI, ETLI models require special transportation with quoted price.
(g)* : Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.

Connector Pinout

Connector Pinout ES ESI ET ETI

Parts

Available Versions

Part #	Description	List Price	Cart / Quote
ETAI3C6	4 C6 cell platform, Max=300kg, d=50g, loading surface 1000x1000mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETAI6C6	4 C6 cell platform, Max=600kg, d=100g, loading surface 1000x1000mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETAI15C6	4 C6 cell platform, Max=1200kg, d=200g, loading surface 1000x1000mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETMI3C6	4 C6 cell platform, Max=300kg, d=50g, loading surface 1000x1250mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETMI6C6	4 C6 cell platform, Max=600kg, d=100g, loading surface 1000x1250mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETMI15C6	4 C6 cell platform, Max=1200kg, d=200g, loading surface 1000x1250mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETBI3C6	4 C6 cell platform, Max=300kg, d=50g, loading surface 1250x1250mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETBI6C6	4 C6 cell platform, Max=600kg, d=100g, loading surface 1250x1250mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETBI15C6	4 C6 cell platform, Max=1200kg, d=200g, loading surface 1250x1250mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETBI30C6	4 C6 cell platform, Max=3000kg, d=500g, loading surface 1250x1250mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETDI6C6	4 C6 cell platform, Max=600kg, d=100g, loading surface 1250x1500mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETDI15C6	4 C6 cell platform, Max=1200kg, d=200g, loading surface 1250x1500mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETDI30C6	4 C6 cell platform, Max=3000kg, d=500g, loading surface 1250x1500mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETEI6C6	4 C6 cell platform, Max=600kg, d=100g, loading surface 1500x1500mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETEI15C6	4 C6 cell platform, Max=1200kg, d=200g, loading surface 1500x1500mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETEI30C6	4 C6 cell platform, Max=3000kg, d=500g, loading surface 1500x1500mm Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETFI6C6	4 C6 cell platform, Max=600kg, d=100g, loading surface 1500x2000mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETFI15C6	4 C6 cell platform, Max=1200kg, d=200g, loading surface 1500x2000mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETFI30C6	4 C6 cell platform, Max=3000kg, d=500g, loading surface 1500x2000mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View

Options

Calibration service with weight indicator

	Part #	Description	List Price	Cart / Quote
	DINICAL	Connection to a Dini Argeo indicator and calibration. NET PRICE (*).	Consult	View
	DINICAL-DRC	Connection to a Dini Argeo indicator and calibration. NET PRICE.	Consult	View

Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)

Part #	Description	List Price	Cart / Quote
ECEM-C6	6000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.	Consult	View
ECEM2-C6	Multi-range 6000+6000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View

High resolution (d HR)(only at time of order)

Part #	Description	List Price	Cart / Quote
ETHR	High resolution model for internal factory use.	Consult	View

Floor columns

Part #	Description	List Price	Cart / Quote
CSP38I-1	AISI 304 stainless steel column 450x450mm, h=917mm, O 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
CSP38	Stainless steel column 450x450mm, h=917, O 38mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
CSP38D	Stainless steel column 350x350mm, h=750mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View

Frame for flush floor installation

Part #	Description	List Price	Cart / Quote
ETATFI	Stainless steel frame for flush floor installation for ETAI platforms.	Consult	View
ETMTFI	Stainless steel frame for flush floor installation for ETMI platforms.	Consult	View
ETBTFI	Stainless steel frame for flush floor installation for ETBI platforms.	Consult	View
ETDTFI	Stainless steel frame for flush floor installation for ETDI platforms.	Consult	View
ETETFI	Stainless steel frame for flush floor installation for ETEI platforms.	Consult	View
ETFTFI	Stainless steel frame for flush floor installation for ETFI platforms.	Consult	View
ETHTFI	Stainless steel frame for flush floor installation for ETHI platforms.	Consult	View
ETLTFI	Stainless steel frame for flush floor installation for ETLI platforms.	Consult	View
ETKB	Ball joints kit in stainless steel for pit frame ETxTF and ETxTFI. This accessory can be used in substitution of the standard plates. It allows the platform to swing and to settle, improving the weighing performance. Compatible with platforms with load cells up to 2000 kg.	Consult	View

On/Off ramp

Part #	Description	List Price	Cart / Quote
ETARI	Stainless steel ramp, 1000x900mm, for ETAI and ETMI platforms.	Consult	View
ETBRI	Stainless steel ramp, 1250x900mm, for ETBI platforms.	Consult	View
ETDRI	Stainless steel ramp, 1250x1100mm, for ETDI platforms.	Consult	View
ETERI	Stainless steel ramp, 1500x1100mm, for ETEI platforms.	Consult	View

Options for ATEX version

Part #	Description	List Price	Cart / Quote
EXCB6	Blue shielded cable 6x0.22 mmý, only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 7 x O.D. _/m	Consult	View
CCATEX-1	Optional ATEX version for single load cell. Marking: ATEX II 1G Ex ia IIC T6 (Ta -20ö+40øC) TX (Ta -20ö+65øC) Ga and ATEX II 1D Ex ta IIIC TXøC (Ta -20ö+40øC) TXøC (Ta -20ö+65øC) Da IP65. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
CCATEX3GD	ATEX certificate for each load cell. Marking: ATEX II 3G Ex nA IIC T6 Gc for gas and ATEX II 3D Ex tc IIIC T115øC Dc IP65 for dusts. Complete with manual and ATEX CE conformity declaration (available in EN, DE, FR and IT).	Consult	View
JB4QA	ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
JB4QAI	ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
DCATEXMECH	ATEX version for the PLATFORM / LOAD CELL MOUNTING KIT for zone 1/21 (for the load cells ATEX declaration see CCATEX code). Option to be offered only if the platform is ordered without the indicator, otherwise refer to the available certifications for the chosen weight indicator. Provided with safety instructions and ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View

	Part #	Description	List Price	Cart / Quote
	ETPFI-1	Kit of 4 plates for fixing on the floor, in stainless steel. For platforms ETG, ETH, ETL, ETA, ETM, ETB, ETD, ETE, ETF, LPI and FL series.	Consult	View

	Part #	Description	List Price	Cart / Quote
	GELBOX	Anti condensation, insulating, and sealing gel. Useful for the protection of the electronic circuits of the weighing system, even in conditions of prolonged immersions in time. Pack of 300ml.	Consult	View

Part #	Description	List Price	Cart / Quote
CT5	ISO 17025 calibration certificate from 61 to 300 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT6	ISO 17025 calibration certificate from 301 to 1500 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT7	ISO 17025 calibration certificate from 1501 to 3000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CD3	ISO 9001 DINI ARGEO calibration report, from 1501 to 6000 kg, for single scale/platform. ACCREDIA reference weights.	Consult	View
CD4	ISO 9001 DINI ARGEO calibration report, from 6001 to 15000kg, for single scale/platform. ACCREDIA reference weights.	Consult	View
