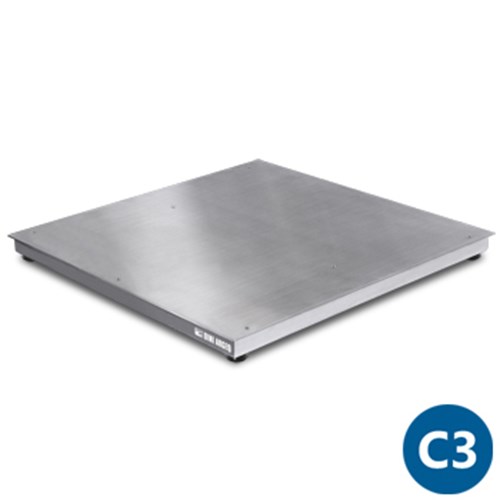

ETI Series 4-Cell Stainless Steel Platforms

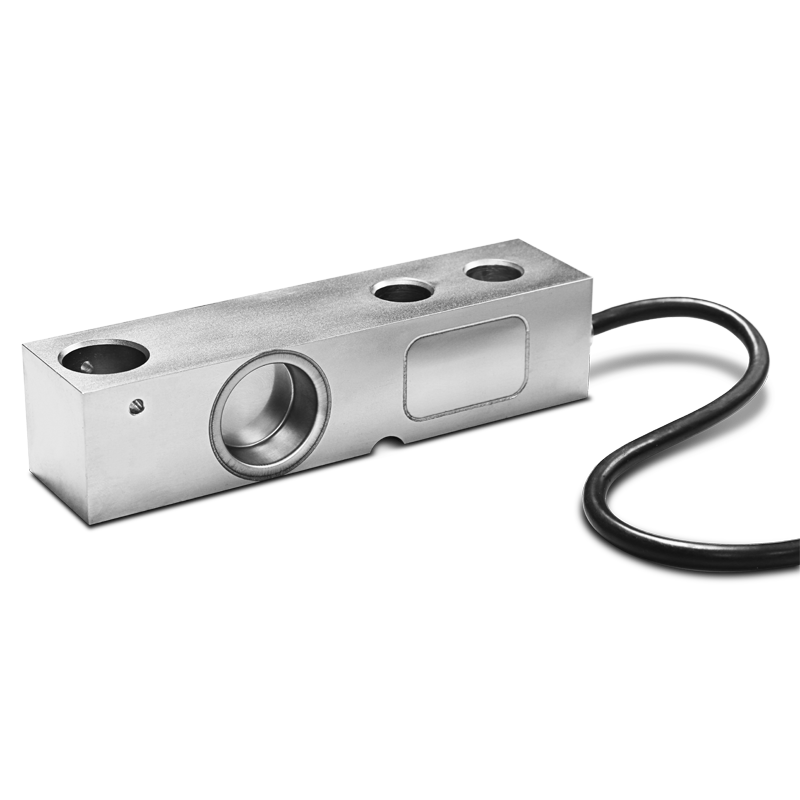

Fitted with 4 stainless steel shear-beam OIML approved load cells each with 1000 Ohm input resistance with protection against dust and immersion according to IP68 standards
Stainless steel bearing tubular structure, with removable stainless steel plate (except for the ELCI models which have a non removable plate) and IP67 junction box housing

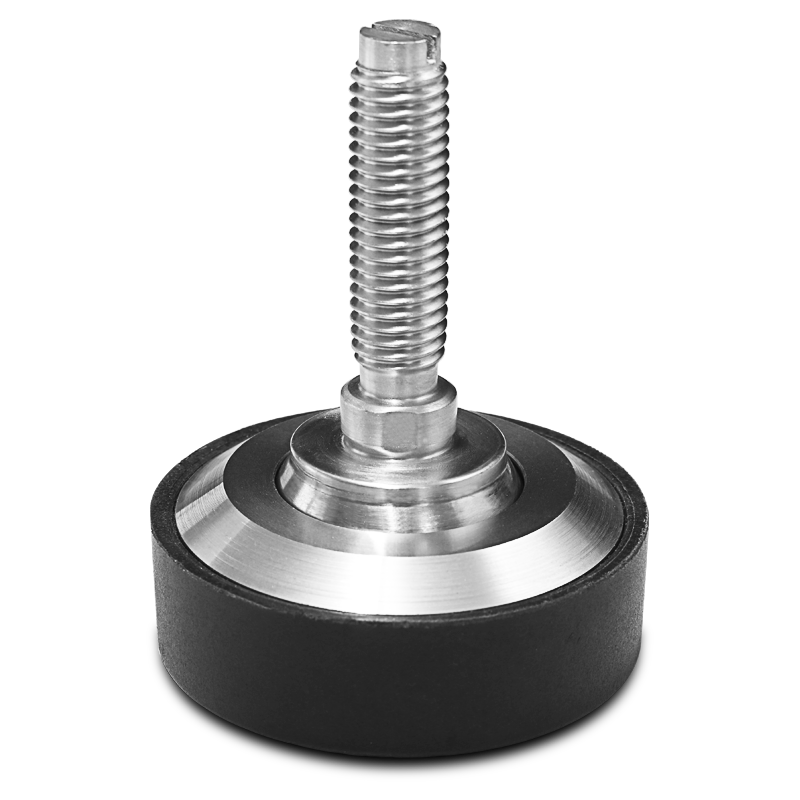

Adjustable, stainless steel shock-proof jointed feet and level
Up to 15 VDC power supply
Hermetic junction box and wiring cables with sheathing according to IP67 standards, and shielded 5m long 6-pin cable with connectors for connection to the indicator

Low profile stainless steel electronic platforms with removable loading plate. Fitted with IP68 stainless steel load cells. Suitable for creating scales and electronic weighing systems for all types of industrial and commercial applications. Standard version is with approved load cell.

Specifications

Accessories:

Indicator support stand
Frames for flush floor installation
Access ramps
Models with special sizes and capacities

Options Only Available at Time of Order:

Calibration with CE-M single or double range approval
High resolution models for internal factory use
AVAILABLE ON REQUEST: reinforced version for weighing of concentrated loads (coils, forklifts etc.)
Structure in AISI316 stainless steel

Options for ATEX Version:

CCATEX: ATEX certificate for each load cell
JB4QA: ATEX certified junction box
DCATEXMECH: ATEX declaration for the PLATFORM (for the load cells ATEX declaration see CCATEX-1 code). Option to be offered only if the platform is ordered without the indicator, if so, refer to the chosen weight indicator available certifications

Available Versions

Code	l x w x h (mm)	Nr. of cells	Max (kg)	d (g)	(g)*	2R (g)*	d HR (g)*
ELCI3	800x800x90	4x300kg	300	50	100	--	20
ELCI6	800x800x90	4x500kg	600	100	200	100-2	50
ELCI15	800x800x90	4x1000kg	1500	200	500	200-500	1
ETAI3	1000x1000x90	4x300kg	300	50	10		20
ETAI6	1000x1000x90	4x500kg	600	100	200	100-200	50
ETAI15	1000x1000x90	4x1000kg	1500	200	500	200-500	100
ETMI3	1000x1250x90	4x300kg	300	50	100	--	20
ETMI6	1000x1250x90	4x500kg	600	100	200	100-200	50
ETMI15	1000x1250x90	4x1000kg	1500	200	500	200-500	100
ETBI3	1250x1250x90	4x300kg	300	50	100	--	20
ETBI6	1250x1250x90	4x500kg	600	100	200	100-200	50
ETBI15	1250x1250x90	4x1000kg	1500	200	500	200-500	100
ETBI30	1250x1250x90	4x2000kg	3000	500	1000	500-1000	200
ETDI6	1250x1500x115	4x500kg	600	100	200	100-200	50
ETDI15	1250x1500x115	4x1000kg	1500	200	500	200-500	100
ETDI30	1250x1500x115	4x2000kg	3000	500	1000	500-1000	200
ETEI6	1500x1500x115	4x500kg	600	100	200	100-200	50
ETEI15	1500x1500x115	4x1000kg	1500	200	500	200-500	100
ETEI30	1500x1500x115	4x2000kg	3000	500	1000	500-1000	200
ETFI6	1500x2000x130	4x500kg	600	100	200	100-200	50
ETFI15	1500x2000x130	4x1000kg	1500	200	500	200-500	100
ETFI30	1500x2000x130	4x2000kg	3000	500	1000	500-1000	200
ETGI60-1	1500x2000x180	4x3000kg	6000	1000	2000	1000-2000	500
ETHI30	1500x2500x180	4x3000kg	3000	500	1000	--	200
ETHI60	1500x2500x180	4x3000kg	6000	1000	2000	1000-2000	500
ETLI30	2000x2500x180	4x3000kg	3000	500	1000	--	200
ETLI60	2000x2500x180	4x3000kg	6000	1000	2000	1000-2000	500
ETLI100	2000x2500x180	4x4500kg	10000	2000	5000	2000-5000	1000

WARNING: ETFI, ETGI, ETHI, ETLI models require special transportation with quoted price.
(g)* : Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.

Connector Pinout

Connector Pinout ES ESI ET ETI

Parts

Available versions

Part #	Description	List Price	Cart / Quote
ELCI3	4-cell platform with 300 kg capacity, 50 g division, stainless steel loading surface 800x800 mm, h= 90 mm, stainless steel structure. 5 m shielded cable.	Consult	View
ELCI6	4 load cell stainless steel platform, Max=600kg, d=100g, surface 800x800mm. 5 m shielded cable.	Consult	View
ELCI15	4-cell platform with 1500 kg capacity, 200 g division, stainless steel loading surface 800x800 mm, h= 90 mm, stainless steel structure. 5 m shielded cable.	Consult	View
ETAI3	4 C3 cell platform, Max=300kg, d=50g, loading surface 1000x1000mm. Stainless steel structure and loading plate. Shielded cable 5 m.	Consult	View
ETAI6	4 C3 cell platform, Max=600kg, d=100g, loading surface 1000x1000mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETAI15	4 C3 cell platform, Max=1500kg, d=200g, loading surface 1000x1000mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETMI3	4 C3 cell platform, Max=300kg, d=50g, loading surface 1000x1250mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETMI6	4 C3 cell platform, Max=600kg, d=100g, loading surface 1000x1250mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETMI15	4 C3 cell platform, Max=1500kg, d=200g, loading surface 1000x1250mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETBI3	4 C3 cell platform, Max=300kg, d=50g, loading surface 1250x1250mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETBI6	4 C3 cell platform, Max=600kg, d=100g, loading surface 1250x1250mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETBI15	4 C3 cell platform, Max=1500kg, d=200g, loading surface 1250x1250mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETBI30	4 C3 cell platform, Max=3000kg, d=500g, loading surface 1250x1250mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETDI6	4 C3 cell platform, Max=600kg, d=100g, loading surface 1250x1500mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETDI15	4 C3 cell platform, Max=1500kg, d=200g, loading surface 1250x1500mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETDI30	4 C3 cell platform, Max=3000kg, d=500g, loading surface 1250x1500mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETEI6	4 C3 cell platform, Max=600kg, d=100g, loading surface 1500x1500mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETEI15	4 C3 cell platform, Max=1500kg, d=200g, loading surface 1500x1500mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETEI30	4 C3 cell platform, Max=3000kg, d=500g, loading surface 1500x1500mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETFI6	4 C3 cell platform, Max=600kg, d=100g, loading surface 1500x2000mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETFI15	4 C3 cell platform, Max=1500kg, d=200g, loading surface 1500x2000mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETFI30	4 C3 cell platform, Max=3000kg, d=500g, loading surface 1500x2000mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETGI60-1	4 C3 cell platform, Max=6000kg, d=1000g, loading surface 1500x2000mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETHI30	4 C3 cell platform, Max=3000kg, d=500g, loading surface 1500x2500mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETHI60	4 C3 cell platform, Max=6000kg, d=1000g, loading surface 1500x2500mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETLI30	4 C3 cell platform, Max=3000kg, d=500g, loading surface 2000x2500mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETLI60	4 C3 cell platform, Max=6000kg, d=100g, loading surface 2000x2500mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETLI100	4 C3 cell platform, Max=10000kg, d=200g, loading surface 2000x2500mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View

Options

IP69K Protection

	Part #	Description	List Price	Cart / Quote
	IP69KLC	IP69K version for one loadcell.	Consult	View

ETI Series 4-Cell Stainless Steel Platforms

Specifications

Available Versions

Connector Pinout

Parts

Available versions

Options

IP69K Protection

IP68 protection

Calibration service with weight indicator

Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)

High resolution (d HR)(only at time of order)

Floor columns

Frame for flush floor installation

On/Off ramp

Options for ATEX version

Plates for fixing on the floor

Protection for junction box/electronic circuits

Calibration service with Dini Argeo indicator (only at time of order)

	Part #	Description	List Price	Cart / Quote
	DINICAL	Connection to a Dini Argeo indicator and calibration. NET PRICE (*).	Consult	View
	DINICAL-DRC	Connection to a Dini Argeo indicator and calibration. NET PRICE.	Consult	View

Part #	Description	List Price	Cart / Quote
ECEM	3000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.	Consult	View
ECEM2	CE-M single platform legal for trade multi range approval.	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View

Part #	Description	List Price	Cart / Quote
CSP38I-1	AISI 304 stainless steel column 450x450mm, h=917mm, O 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
CSP38	Stainless steel column 450x450mm, h=917, O 38mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
CSP38D	Stainless steel column 350x350mm, h=750mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View

Part #	Description	List Price	Cart / Quote
ETATFI	Stainless steel frame for flush floor installation for ETAI platforms.	Consult	View
ETMTFI	Stainless steel frame for flush floor installation for ETMI platforms.	Consult	View
ETBTFI	Stainless steel frame for flush floor installation for ETBI platforms.	Consult	View
ETDTFI	Stainless steel frame for flush floor installation for ETDI platforms.	Consult	View
ETETFI	Stainless steel frame for flush floor installation for ETEI platforms.	Consult	View
ETFTFI	Stainless steel frame for flush floor installation for ETFI platforms.	Consult	View
ETHTFI	Stainless steel frame for flush floor installation for ETHI platforms.	Consult	View
ETLTFI	Stainless steel frame for flush floor installation for ETLI platforms.	Consult	View
ETKB	Ball joints kit in stainless steel for pit frame ETxTF and ETxTFI. This accessory can be used in substitution of the standard plates. It allows the platform to swing and to settle, improving the weighing performance. Compatible with platforms with load cells up to 2000 kg.	Consult	View

Part #	Description	List Price	Cart / Quote
ETARI	Stainless steel ramp, 1000x900mm, for ETAI and ETMI platforms.	Consult	View
ETBRI	Stainless steel ramp, 1250x900mm, for ETBI platforms.	Consult	View
ETDRI	Stainless steel ramp, 1250x1100mm, for ETDI platforms.	Consult	View
ETERI	Stainless steel ramp, 1500x1100mm, for ETEI platforms.	Consult	View

Part #	Description	List Price	Cart / Quote
EXCB6	Blue shielded cable 6x0.22 mmý, only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 7 x O.D. _/m	Consult	View
CCATEX-1	Optional ATEX version for single load cell. Marking: ATEX II 1G Ex ia IIC T6 (Ta -20ö+40øC) TX (Ta -20ö+65øC) Ga and ATEX II 1D Ex ta IIIC TXøC (Ta -20ö+40øC) TXøC (Ta -20ö+65øC) Da IP65. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
CCATEX3GD	ATEX certificate for each load cell. Marking: ATEX II 3G Ex nA IIC T6 Gc for gas and ATEX II 3D Ex tc IIIC T115øC Dc IP65 for dusts. Complete with manual and ATEX CE conformity declaration (available in EN, DE, FR and IT).	Consult	View
JB4QA	ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
JB4QAI	ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
DCATEXMECH	ATEX version for the PLATFORM / LOAD CELL MOUNTING KIT for zone 1/21 (for the load cells ATEX declaration see CCATEX code). Option to be offered only if the platform is ordered without the indicator, otherwise refer to the available certifications for the chosen weight indicator. Provided with safety instructions and ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View

Part #	Description	List Price	Cart / Quote
CT5	ISO 17025 calibration certificate from 61 to 300 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT6	ISO 17025 calibration certificate from 301 to 1500 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT7	ISO 17025 calibration certificate from 1501 to 3000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CD3	ISO 9001 DINI ARGEO calibration report, from 1501 to 6000 kg, for single scale/platform. ACCREDIA reference weights.	Consult	View
CD4	ISO 9001 DINI ARGEO calibration report, from 6001 to 15000kg, for single scale/platform. ACCREDIA reference weights.	Consult	View
