Product PDF

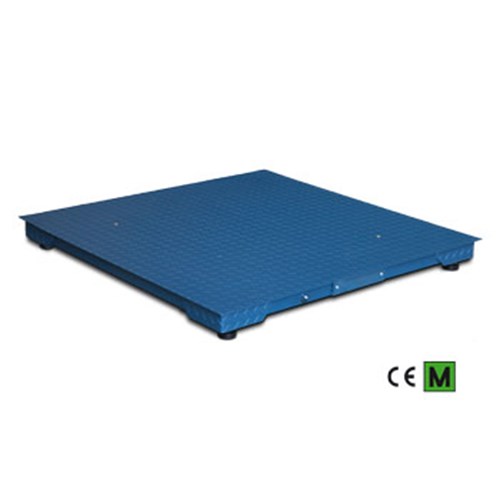

FL Series 4 Cells Floor Platforms

  • Functioning with 4 shear-beam 350Ohm nickel-plated steel load cells, approved according to OIML R60 C3 standards (3000 divisions), IP67 protection degree
  • Monobloc structure with oven-fire painted steel tubular, adjustable resting feet, and level
  • Fixed sheet steel chequered load surface
  • Up to 15 Vdc power supply

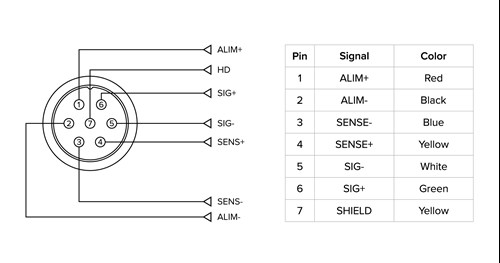

  • Shielded 3 m connection cable complete with female connector.
  • Upon request:
    • Platform calibration service with weight indicator
    • CE-M approval, to be combined always with the calibration service
    • Support column for indicator
Request More Information
FL

Monobloc electronic platforms suitable for weighing above ground in all types of industrial and commercial applications. Connectable to any weight indicator. The standard version is provided with approved load cells.

Code l x w x h
(mm)		 Nr. of cells Max (kg) d (g) M (g*) 2R
(g)*
FLC600 800x800x120 4x500kg 300/600 100/200 200 100/200
FLA600-1 1000x1000x120 4x1000kg 600 200 200 --
FLA600-1 1000x1000x120 4x1000kg 600 200 200 --
FLM600 1000x1250X120 4x1000kg 600 200 200 --
FLM1500-1 1000x1250x120 4x1000kg 600/1500 200/500 500 200/500
FLB600-1 1250x1250x120 4x1000kg 600 200 200 --
FLB1500-1 1250x1250x120 4x1000kg 600/1500 200/500 500 200/500
FLD1500-1 1250x1500x120 4x2000kg 1500 500 500 --
FLD3000-1 1250x1500x120 4x2000kg 1500/3000 500/1000 1000 500/1000
FLE1500-1 1500x1500x120 4x2000kg 1500 500 500 --
FLE3000-1 1500x1500x120 4x2000kg 1500/3000 500/1000 1000 500/1000



Parts

Available Versions

Part # Description List Price Cart / Quote
FLC600 Platform with 4 load cells, 300/600 kg capacity, 100/200 g division, steel structure and loading surface. Dimensions: 800x800 mm; height: 120 mm. 3 m shielded cable.

Consult
FLA600-1 Platform with 4 load cells, 600 kg capacity, 200 g division, steel structure and loading surface. Dimensions: 1000x1000 mm; height: 120 mm. 3 m shielded cable.

Consult
FLA1500-1 Platform with 4 load cells, 600/1500 kg capacity, 200/500 g division, steel structure and loading surface. Dimensions: 1000x1000 mm; height: 120 mm. 3 m shielded cable.

Consult
FLM600 Platform with 4 load cells, 600 kg capacity, 200 g division, steel structure and loading surface. Dimensions: 1000x1250 mm; height: 120 mm. 3 m shielded cable.

Consult
FLM1500-1 Platform with 4 load cells, 600/1500 kg capacity, 200/500 g division, steel structure and loading surface. Dimensions: 1000x1250 mm; height: 120 mm. 3 m shielded cable.

Consult
FLB600 Platform with 4 load cells, 600 kg capacity, 200 g division, steel structure and loading surface. Dimensions: 1250x1250 mm; height: 120 mm. 3 m shielded cable.

Consult
FLB1500 Platform with 4 load cells, 600/1500 kg capacity, 200/500 g division, steel structure and loading surface. Dimensions: 1250x1250 mm; height: 120 mm. 3 m shielded cable.

Consult
FLD1500-1 Platform with 4 load cells, 1500 kg capacity, 500 g division, steel structure and loading surface. Dimensions: 1250x1500 mm; height: 120 mm. 3 m shielded cable.

Consult
FLD3000-1 Platform with 4 load cells, 1500/3000 kg capacity, 500/1000 g division, steel structure and loading surface. Dimensions: 1250x1500 mm; height: 120 mm. 3 m shielded cable.

Consult
FLE1500-1 Platform with 4 load cells, 1500 kg capacity, 500 g division, steel structure and loading surface. Dimensions: 1500x1500 mm; height: 120 mm. 3 m shielded cable.

Consult
FLE3000-1 Platform with 4 load cells, 1500/3000 kg capacity, 500/1000 g division, steel structure and loading surface. Dimensions: 1500x1500 mm; height: 120 mm. 3 m shielded cable.

Consult

Options

Calibration service with weight indicator

Part # Description List Price Cart / Quote
DINICAL Connection to a Dini Argeo indicator and calibration. NET PRICE (*).

Consult
DINICAL-DRC Connection to a Dini Argeo indicator and calibration. NET PRICE.

Consult

Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)

Floor columns

Frame for flush floor installation

Plates for fixing on the floor

Calibration service with Dini Argeo indicator (only at time of order)
