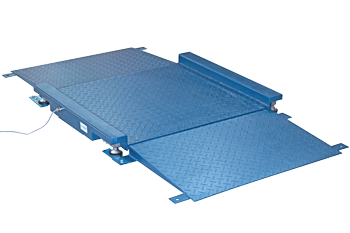

FLP Series Low Profile Platforms
- Fitted with 4 shear-beam 350Ohm nickel-plated steel load cells, approved according to OIML R60 C3 standards (3000 divisions), IP67 protection degree. Chequered steel structure and load surface, oven-fire painted, RAL 5007 blue
- Adjustable, anti-shock jointed feet and level
- Power supply from 5 to 15 VDC
- Hermetic junction box, IP67 wiring with shielded 5m long cable for connection to the indicator
- Fitted with sideboards and double on/off ramps
- Upon request:
- Platform calibration service with weight indicator
- 3000e CE-M approval (with first Periodic Check included, 3 years validity), to be combined always to the calibration service

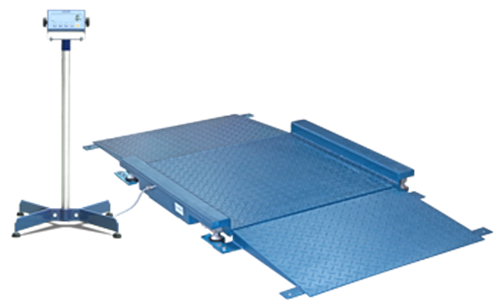

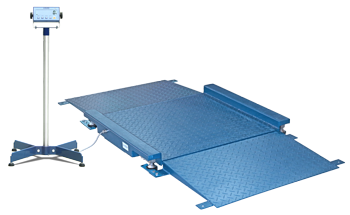

- Support column for indicator.
Low profile platforms, with 500 mm ramps, painted steel structure and chequered load surface. Ideal for weighing trolleys and pallet trucks thanks to the on/off ramps on both sides as well as the sideboards. The standard version is provided with approved load cells.
Available Versions
| Code | l x w x h (mm) |
Nr. of cells | Max (kg) | d (g) | M (g*) |
|---|---|---|---|---|---|
| FLPC-1 | 800x800x48 | 4x250kg | 600 | 200 | 200 |
| FLPA-1 | 1250x1000x48 | 4x2000kg | 1500 | 500 | 500 |
| FLPB-1 | 1500x1250x48 | 4x2000kg | 2000 | 1000 | 1000 |
(*) Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.

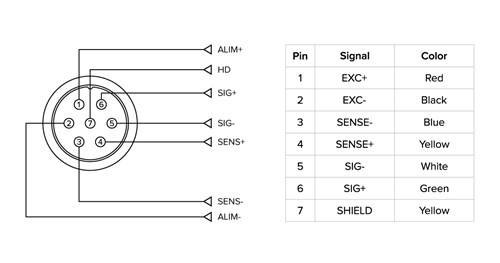

Connector Pinout
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
FLPC-1 | Low profile platform with 4 load cells, 600kg capacity, 200g division, steel structure and loading surface 800x800mm size. On/Off Ramps are included. 5 m shielded cable. |
Consult |
|
|
|
FLPA-1 | Low profile platform with 4 load cells, 1500kg capacity, 500g division, steel structure and loading surface 1000x1250mm size. On/Off Ramps are included. 5 m shielded cable. |
Consult |
|
|
|
FLPB-1 | Low profile platform with 4 load cells, 2000kg capacity, 1kg division, steel structure and loading surface 1250x1500mm size. On/Off Ramps are included. 5 m shielded cable. |
Consult |
Options
Calibration service with weight indicator
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
DINICAL | Connection to a Dini Argeo indicator and calibration. NET PRICE (*). |
Consult |
|
|
|
DINICAL-DRC | Connection to a Dini Argeo indicator and calibration. NET PRICE. |
Consult |
Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)
Floor columns
Calibration service with Dini Argeo indicator (only at time of order)
Related Products

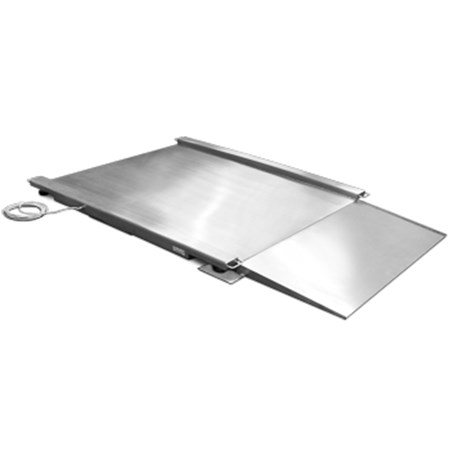

LPI Series Stainless Steel Low Profile Platforms
