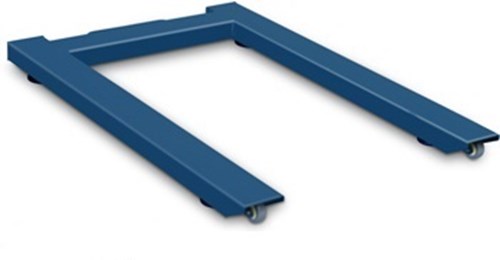

FPW Series Pallet-Weighers
- Functioning with 4 shear-beam 350Ohm nickel-plated steel load cells, approved according to OIML R60 C3 standards (3000 divisions), IP67 protection degree
- Accuracy: +/- 0.1% of the maximum capacity in the versions for internal use
- Accuracy: +/- 0.05% of the maximum capacity in the "M" approved versions
- Molded sheet-steel structure, oven-fire painted RAL 5007 blue
- Adjustable, shock-proof jointed feet, level, 2 wheels and handles for moving it
- 5/15 VDC power supply
- Shielded about 3m long cable for connection to the indicator
- Upon request:
- Platform calibration service with weight indicator
- 3000e CE-M approval, to be combined always to the calibration service
- Support column for indicator
Low profile, easy to move, pallet-weighing scale. Suitable for industrial and commercial applications, in which it’s necessary to quickly weigh goods on a pallet. The standard version is provided with approved load cells.
Connector Pinout
Available Versions
| Code | l x w x h (mm) |
Nr. of cells | Max (kg) |
d (g) |
 (g)* |
2R (g)* |
| FPW15-1 | 1263x840x90 | 4x1000kg | 1500 | 500 | 500 | - |
| FPW30-1 | 1263x840x90 | 4x1000kg | 3000 | 1000 | 1000 | - |
(*) Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles |
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
FPW15-1 | Pallet-weighing scale with 1500 kg capacity, 500 g division, steel structure. Dimensions 1263x840 mm, adjustable height. 3 m shielded cable. |
Consult |
|
|
|
FPW30 | Pallet-weighing scale with 3000 kg capacity, 1 kg division, steel structure. Dimensions 1263x840 mm, adjustable height. 3 m shielded cable. |
Consult |
Options
Calibration service with weight indicator
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
DINICAL | Connection to a Dini Argeo indicator and calibration. NET PRICE (*). |
Consult |
|
|
|
DINICAL-DRC | Connection to a Dini Argeo indicator and calibration. NET PRICE. |
Consult |
Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)
Floor columns
IP68 protection
Calibration service with Dini Argeo indicator (only at time of order)
