Product PDF

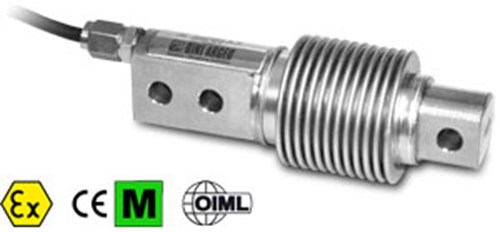

FXD Series Bending Beam Load Cell

C3 Precision Class
Stainless steel
IP68 Protection
Max. capacities from 10 to 500 kg
Shielded connection cable
OIML certificate available upon request
Test certificate available upon request

Request More Information

HD View

CAPACITIES (kg): 10, 20 , 50, 100, 200, 300, 500.

OIML R60. C3 precision class.

Stainless steel. IP68 protection.

Bending beam load cells for approved weighing (capacities from 100kg to 500kg), automatic systems, dosage.

FXD Series Specifications

Minimum load cell verification interval:
Vmin = EMax / 10.000

Maximum number of verification intervals:
nLC= 3000

Full Scale Output:
2 mV/V ± 0,1%

Combined error:
0,012% of Full Scale Output (F.S.)

Non-Repeatability:
0,01% F.S.

Temperature effect on zero:
+/- 0,02% F.S. / 10°C

Temperature effect on full scale output:
+/- 0,02% F.S. / 10°C

Compensated Temperature Range:
–10°C/+50°C

Operating Temperature Range:
–20°C/+60°C

Creep error after 30 minutes:
+/- 0,012% F.S.

Maximum tolerated excitation voltage:
15 VDC

Input Resistance:
385 ± 10 Ohm

Output Resistance:
350 ± 3 Ohm

Insulation Resistance:
> 5000 MOhm

Safe Overload:
120% F.S.

Ultimate Overload:
150% F.S.

Nominal displacement:
< 0,4 mm

Shielded cable:
4-wire shielded cable, 3m long, 5mm diameter.

Wiring Code

Wiring Code
Colour	Function
--	SHIELD
GREEN	OUTPUT +
RED	INPUT +
WHITE	OUTPUT -
BLACK	INPUT -

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:

ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.

The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

FXD Series Dimensions

Code	Max (kg)	l (mm)	h (mm)	a (mm)	b (mm)	c Ø (mm)	d (mm)	e (mm)	f (mm)	g (mm)	i (mm)
FXD10	10	120	45	18	82	N°3 x 8	20	44	27,3	18,6	20
FXD20	20	120	45	18	82	N°3 x 8	20	44	27,3	18,6	20
FXD50	50	120	45	18	82	N°3 x 8	20	44	27,3	18,6	20
FXD100	100	120	45	18	82	N°3 x 8	20	44	27,3	18,6	20
FXD200	200	120	45	18	82	N°3 x 8	20	44	27,3	18,6	20
FXD300	300	120	45	18	82	N°3 x 8	20	44	27,3	18,6	20
FXD500	500	120	45	18	82	N°3 x 8	20	44	27,3	18,6	20

Resources / Downloads

Articles

Title	View	Email	Category	Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses		Email	Pallet Truck Scales\|Pallet Scales\|Pallet Weighers\|Electric Pallet Truck Scales\|Ex Pallet Truck Scales\|Hygienic Pallet Truck Scales\|Pallet Weighing\|Weighing Forks\|Hydraulic Weighing\|Counting Scales\|Bench Scales\|Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Weighing Axle Platforms and Indicators\|High Resolution Load Cells\|Off Center Load Cells\|Bending Beam Load Cells\|Shear Beam Load Cells\|Double Shear Beam Load Cells\|Compression Load Cells\|Tension Load Cells\|Column Load Cells\|Assembly Kit Load Cells\|Ex Load Cells\|Hygienic Load Cells	Articles
How to Choose the Best Load Cell for Your Needs		Email	All Load Cells	Articles

Parts

Available Versions

Part #	Description	List Price	Cart / Quote
FXD10	Bending beam load cell, Max=10kg. Stainless steel, IP68 protection degree, 350 Ohm output resistance.	Consult	View
FXD20	Bending beam load cell, Max=20kg. Stainless steel, IP68 protection degree, 350 Ohm output resistance.	Consult	View
FXD50	Bending beam load cell, Max=50kg. Stainless steel, IP68 protection degree, 350 Ohm output resistance.	Consult	View
FXD100	Bending beam approved load cell, C3, Max=100kg. Stainless steel, IP68 protection degree, 350 Ohm output resistance.	Consult	View
FXD200	Bending beam approved load cell, C3, Max=200kg. Stainless steel, IP68 protection degree, 350 Ohm output resistance.	Consult	View
FXD300	Bending beam approved load cell, C3, Max=300kg. Stainless steel, IP68 protection degree, 350 Ohm output resistance.	Consult	View
FXD500	Bending beam approved load cell, C3, Max=500kg. Stainless steel, IP68 protection degree, 350 Ohm output resistance.	Consult	View

Options

Joints

	Part #	Description	List Price	Cart / Quote
	AVM8	Steel/rubber M8 elastic joint for FXC/FXD cells up to 500kg.	Consult	View
	SBJ8	Ball joint for load cells.	Consult	View

Base plates

	Part #	Description	List Price	Cart / Quote
	BPFX10	10 mm base plate for FXC FXD load cells. Size: 42 x 30 x 10 mm	Consult	View

Assembly kits

	Part #	Description	List Price	Cart / Quote
	KFX	Kit in stainless steel for assembling a FXC/FXD bending beam load cell up to 500 kg. (Load cell not included)	Consult	View
	KFXDN-1	Stainless steel kit for assembling 1 FXC/FXD cell up to 500kg. (Load cell not included)	Consult	View

Connection cables

Part #	Description	List Price	Cart / Quote
LCCB	Shielded cable 6x0.25 mmý (suitable for Ex zones). PVC inner sheath. Tinned copper braid shielding. PVC outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 6 x O.D. _/m	Consult	View
LCCBA	Armoured cable 6x0.25 mmý (suitable for Ex zones). PVC inner sheath, diameter 5mm. Iron-zinc alloy armour. Transparent PVC outer sheath, 8 mm diameter. Temperature range: -15 / +70 øC. Minimum bending radius >/= 5 x O.D. _/m	Consult	View
LCCBM	Shielded 4x0,34 mmý cable for moving applications. _/m	Consult	View
PRCB	Protection sheathing for shielded cable. _/meter internal O 15mm.	Consult	View

Junction Boxes

Part #	Description	List Price	Cart / Quote
JB4Q	Equalisation box for connection with up to 4 load cells. ABS box, IP67 protection rating, with 4 + 1 fairleads.	Consult	View
JB4QI	Stainless steel equalisation box for connection with up to 4 load cells. IP65 protection rating, with 4 + 1 fairleads.	Consult	View
JC4Q	Equalisation board for up to 4 cells. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View

Available weight indicator/transmitter

Part #	Description	List Price	Cart / Quote
DGT1S	Weight transmitter on DIN bar, with 2 INPUTS and 2 OUTPUTS. Fitted with 5-key keypad and LED display. Multifunction weighing program.	Consult	View
DGT1	Weight transmitter for DIN bar. 5-key keypad, LED display, date/time, alibi memory, and multifunction weighing program.	Consult	View
DGT4	Transmitter for DIN bar with 4 channels, 2 IN and 2 OUT. 5-key keypad, LED display, and standard weighing program.	Consult	View
DGTQ	Transmitter for panel mounting, with 2 IN and 2 OUT. 5-key keypad, LED display, and standard weighing program.	Consult	View

Options for ATEX version

Part #	Description	List Price	Cart / Quote
ZBA1S	Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Manual and ATEX UE CONFORMITY DECLARATIONS (available in EN, DE, FR, ES and IT).	Consult	View
KZBA-1	ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. It can connect up to 8 350 Ohm load cells. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135øC Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
JB4QAI	ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
JB4QA	ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
EXCB6	Blue shielded cable 6x0.22 mmý, only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 7 x O.D. _/m	Consult	View
KMB4-1	Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20øC = Ta = +40øC) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130øC Dc IP65 (-20øC = Ta = +40øC) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
CCATEX-1	Optional ATEX version for single load cell. Marking: ATEX II 1G Ex ia IIC T6 (Ta -20ö+40øC) TX (Ta -20ö+65øC) Ga and ATEX II 1D Ex ta IIIC TXøC (Ta -20ö+40øC) TXøC (Ta -20ö+65øC) Da IP65. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
CCATEX3GD	ATEX certificate for each load cell. Marking: ATEX II 3G Ex nA IIC T6 Gc for gas and ATEX II 3D Ex tc IIIC T115øC Dc IP65 for dusts. Complete with manual and ATEX CE conformity declaration (available in EN, DE, FR and IT).	Consult	View
DCATEXMECH	ATEX version for the PLATFORM / LOAD CELL MOUNTING KIT for zone 1/21 (for the load cells ATEX declaration see CCATEX code). Option to be offered only if the platform is ordered without the indicator, otherwise refer to the available certifications for the chosen weight indicator. Provided with safety instructions and ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
DCATEXMB4	ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125øC Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).	Consult	View
