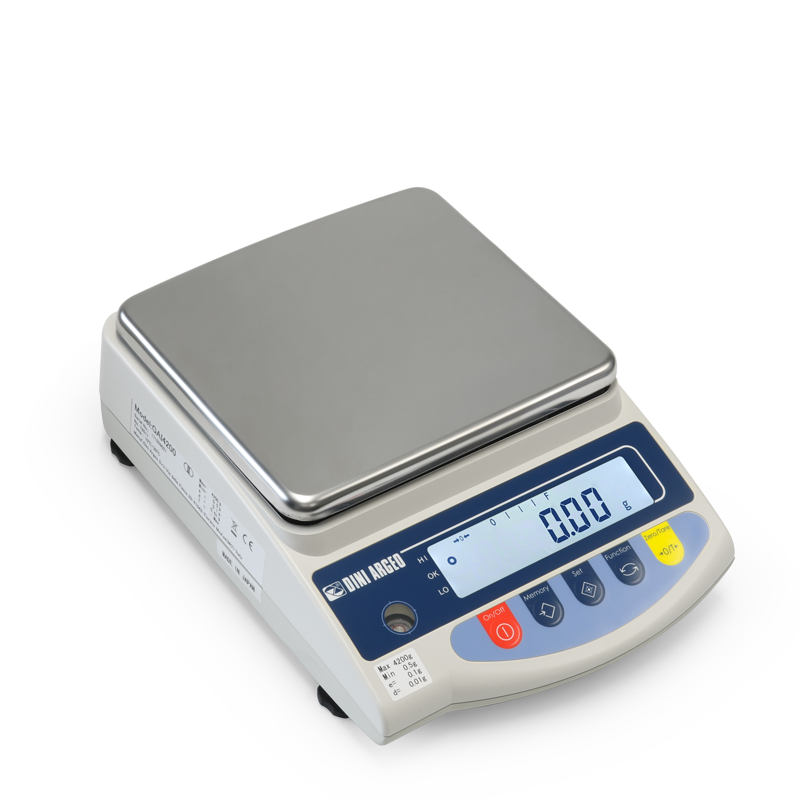

GAI Series Technical Precision Top-Loading Scale

• Backlit LCD display with 7 digits 16.5mm high.
• Waterproof membrane keypad, with 5 keys.
• Construction: bearing structure in die cast aluminium, ABS case.
• Weight detection through tuning fork system.
• Stainless steel plate, size:
  - GAI420N and GAI620N models Ø 118mm
  - GAI2200N, GAI4200N, GAI6200N models 180x160mm.

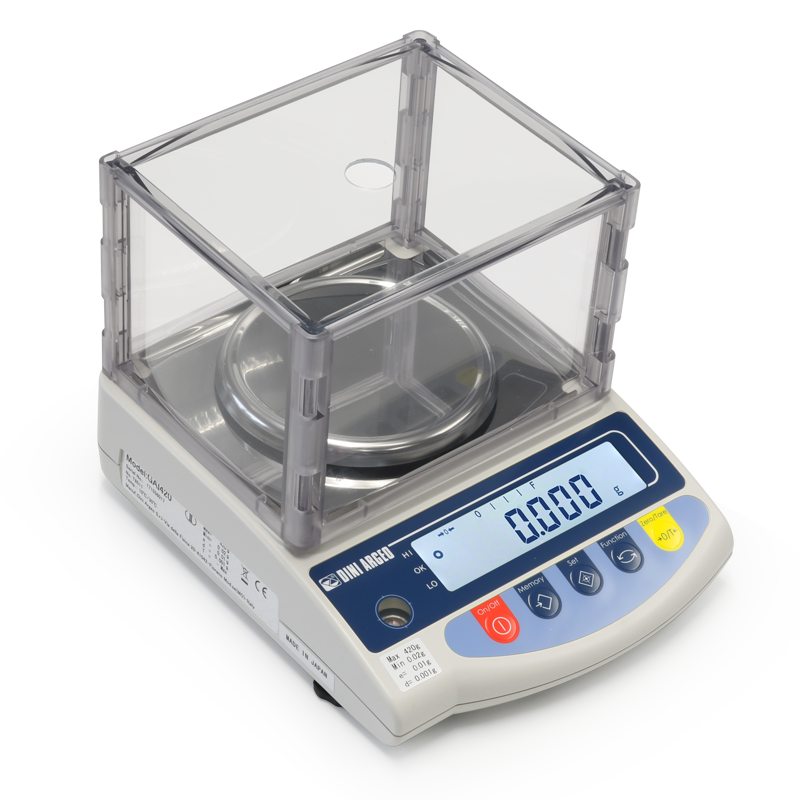

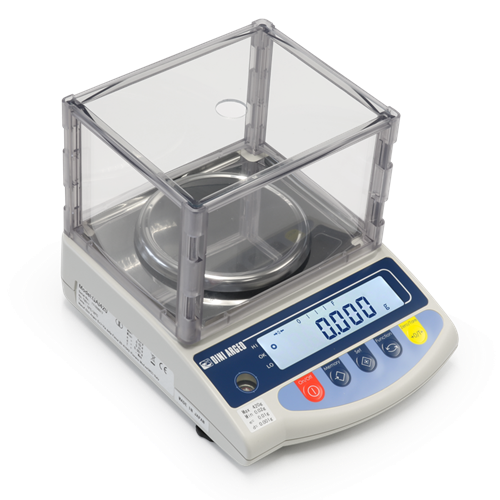

• Winscreen (on GAI420N and GAI620N models), level, adjustable feet.
• Power supply: standard fitte with 230 Vac power adapter.
• Operating temperature +5°C...+35°C, non-condensing relative humidity 80%.
• RS232/c port for connection to PC, 3590EGT series indicator or printer.
• Internal calibration (except GAI6200N).
• Upon request:
  - ACCREDIA calibration with issuing of relative certificate;
  - CE-M approval;
  - weigh-below hook.

FUNCTIONS

• counting;
• % weight;
• conversion units of measure:
  - Standard versions, not approved: g, kg, ct, oz, lb, ozt, dwt;
  - CM versions, approved: g, kg, ct (only available at time of scale's order);
• zeroing;
• zero tracking;
• semi-automatic tare;
• digital calibration.
