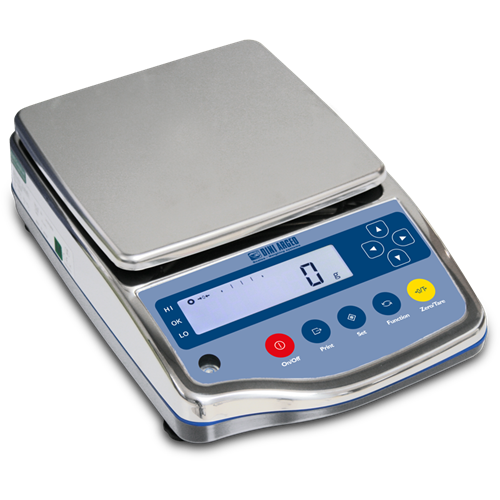

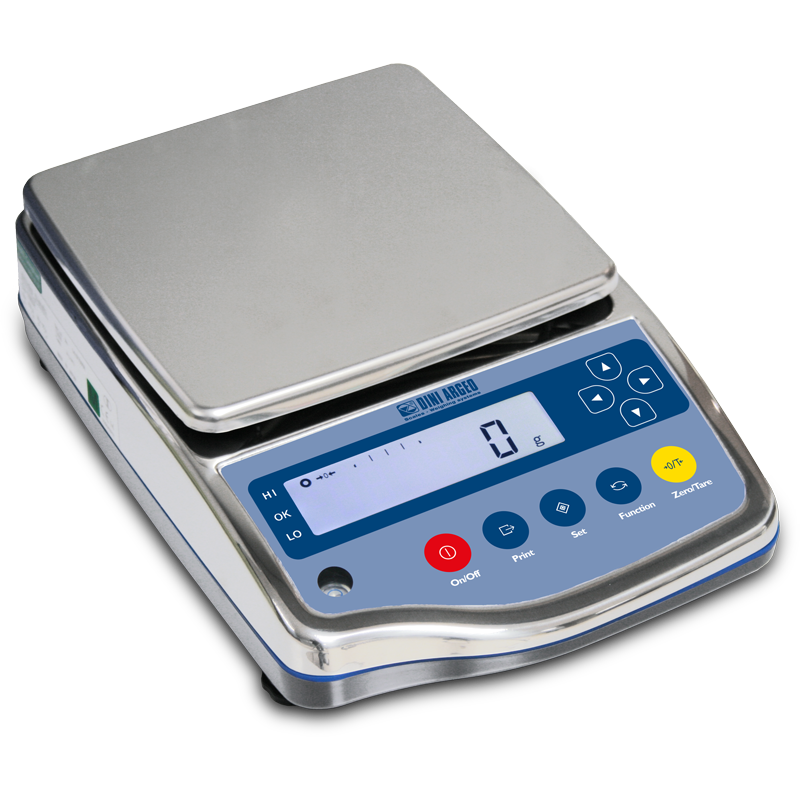

GAM Series Stainless Steel Technical Precision Scale
- High contrast backlit display
- Splashproof membrane keypad

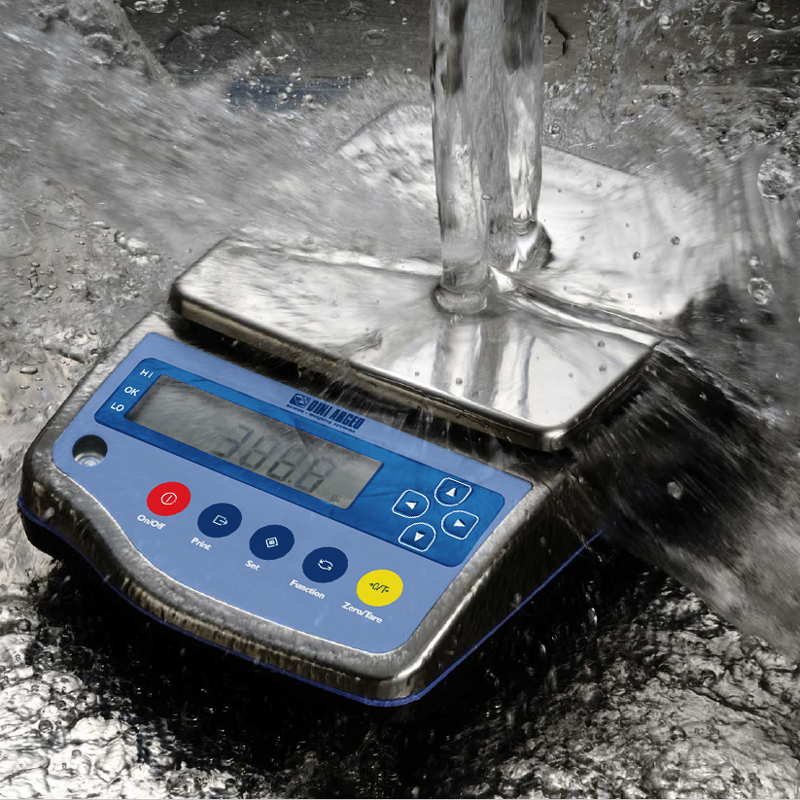

- Splashproof constuction, upper structure completely in stainless steel
- Overall IP65 protection
- Stainless steel plate, size:
- GAM320 and GAM820 models Ø 140mm
- GAM2200, GAM3200, GAM6200, GAM8200, GAM15000 models 190x190mm
- Weight detection through tuning fork system
- Level and adjustable foot assembly
- Power supply: standard fitted with 230 Vac power adapter or optional kit for power supply through 4 AA batteries

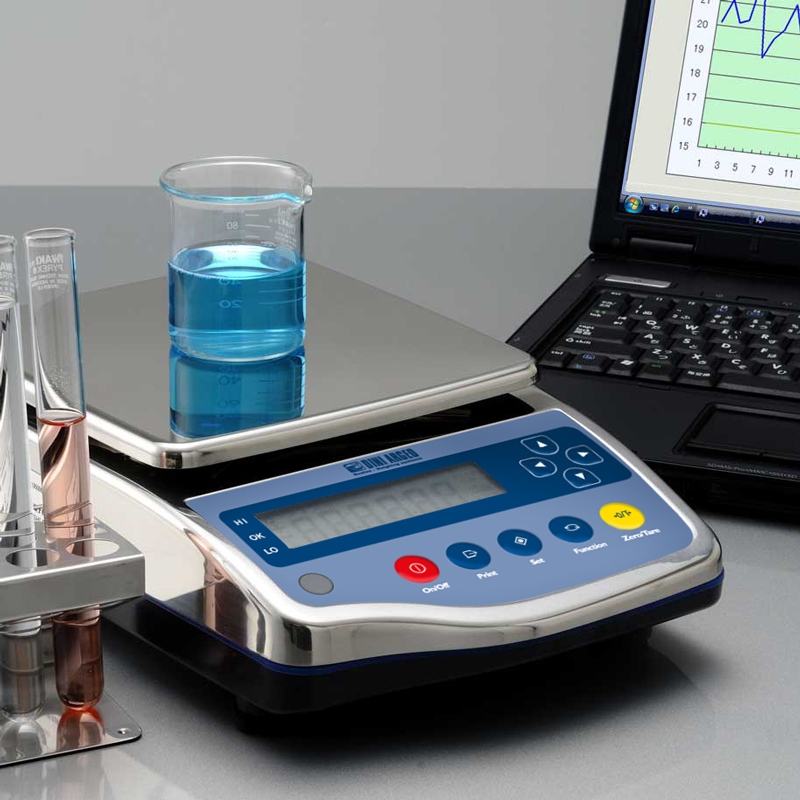

- RS232/c port for connection to PC, 3590E series indicator or printer
- Upon request:
- ACCREDIA calibration with issuing of relative certificate

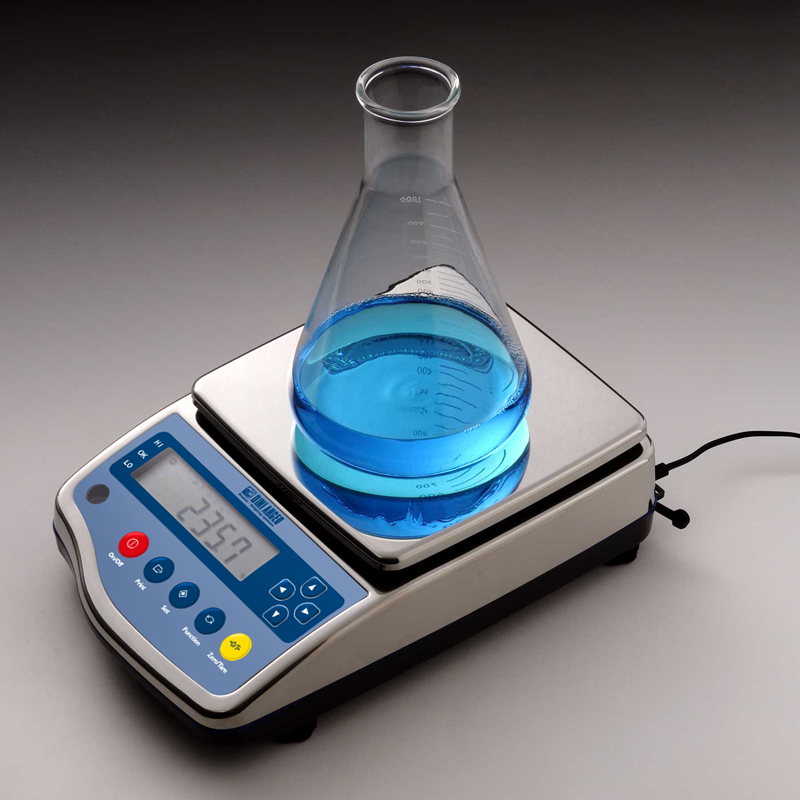

IP65 high precision scales, suitable for laboratory and industrial use. The completely stainaless steel structure makes this scale suitable for the environments with strict hygiene requirements.
DIVISION (g): from 0.01 to 1. CAPACITY (g): from 320 to 15000.
GAM Series Stainless Steel Technical Precision Scale Specification
ADVANCED APPLICATION WITH 3590E TOUCH SCREEN:
ADVANCED FUNCTIONS via serial port connection:
|
STANDARD FUNCTIONS:
|
|
Available Versions
| Code | Class | Plate Max (mm) | Max (g) | d (g) | M (g*) | Linearity (g) +/- | Repeatability (g) |
|---|---|---|---|---|---|---|---|
| GAM320 | II | Ø 140 mm | 320 | 0,01 | 0,01 | 0,01 | 0,01 |
| GAM820 | II | Ø 140 mm | 820 | 0,01 | 0,01 | 0,01 | 0,01 |
| GAM2200 | II | 190x190 mm | 2200 | 0,1 | 0,1 | 0,1 | 0,1 |
| GAM3200 | II | 190x190 mm | 3200 | 0,1 | 0,1 | 0,1 | 0,1 |
| GAM6200 | II | 190x190 mm | 6200 | 0,1 | 0,1 | 0,1 | 0,1 |
| GAM8200 | II | 190x190 mm | 8200 | 0,1 | 0,1 | 0,1 | 0,1 |
| GAM15000 | II | 190x190 mm | 15000 | 1 | 1 | 1 | 1 |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
GAM320 | Precision scale Max=320g, d=e=0,01g. Stainless steel structure, plate O 140 mm, fluorescent display and waterproof membrane keypad. |
Consult |
|
|
|
GAM820 | Precision scale Max=820g, d=e=0,01g. Stainless steel structure, plate O 140 mm, fluorescent display and waterproof membrane keypad. |
Consult |
|
|
|
GAM2200 | Precision scale Max=2200g, d=e=0,1g. Stainless steel structure, plate 190x190mm, fluorescent display and waterproof membrane keypad. |
Consult |
|
|
|
GAM3200 | Precision scale Max=3200g, d=e=0,1g. Stainless steel structure, plate 190x190mm, fluorescent display and waterproof membrane keypad. |
Consult |
|
|
|
GAM6200 | Precision scale Max=6200g, d=e=0,1g. Stainless steel structure, plate 190x190mm, fluorescent display and waterproof membrane keypad. |
Consult |
|
|
|
GAM8200 | Precision scale Max=8200g, d=e=0,1g. Stainless steel structure, plate 190x190mm, fluorescent display and waterproof membrane keypad. |
Consult |
|
|
|
GAM15000 | Precision scale Max=15000g, d=e=1g. Stainless steel structure, plate 190x190mm, fluorescent display and waterproof membrane keypad. |
Consult |
Options
Approval for sale to third parties
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
ECEM1MS | CE-M approval for scales with capacity over 6kg and up to 300kg, without any internal calibration system or preset g value for the place of use. |
Consult |
|
|
|
ECEM1LS | CE-M approval for class I, II or III scales with capacity up to 6kg, without any internal calibration system or preset g value for the place of use. |
Consult |
|
|
ECEMDOC | Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _. |
Consult |
Evolved indicator for advanced features
Calibration service with Dini Argeo indicator (only at time of order)
Calibration service (only at order)
Kit for animal weighing
Printers/Labelers
Connection cables
Other options
Spare parts
